IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

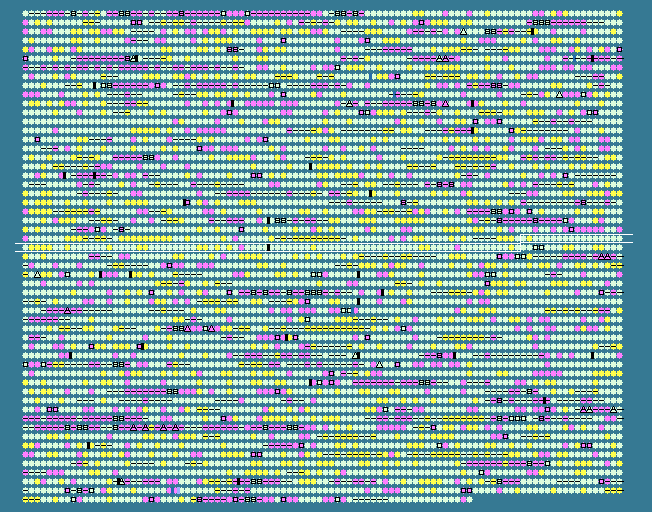

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2584	 59.09	0	2929175..2930323	-	382	28869825	galM	PSPTO_2636	-	aldose 1-epimerase
2585	 63.23	+1	2930623..2931495	+	290	28869826	-	PSPTO_2637	-	senescence marker protein-30 family protein
2586	 57.00	0	2931657..2932670	+	337	28869827	abP	PSPTO_2638	-	L-arabinose ABC transporter, periplasmic L-arabinose-binding protein
2587	 60.43	0	2932726..2934249	+	507	28869828	-	PSPTO_2639	-	L-arabinose transporter ATP-binding protein
2588	 58.38	0	2934266..2935255	+	329	28869829	araH	PSPTO_2640	-	L-arabinose transporter permease protein
2589	 62.04	0	2935266..2935373	+	35	28869830	-	PSPTO_2641	-	putative lipoprotein
2590	 60.03	0	2935352..2936602	-	416	28869831	-	PSPTO_2642	-	sensor histidine kinase
2591	 60.26	0	2936674..2937375	-	233	28869832	-	PSPTO_2643	-	DNA-binding response regulator
2592	 58.21	0	2937426..2938205	-	259	28869833	-	PSPTO_2644	-	MltA-interacting protein
2593	 61.82	0	2938265..2939854	-	529	28869834	-	PSPTO_2645	-	hypothetical protein
2594	 61.74	0	2940161..2940871	+	236	28869835	-	PSPTO_2646	-	TetR family transcriptional regulator
2595	 56.95	0	2940935..2941675	+	246	28869836	-	PSPTO_2647	-	hypothetical protein
2596	 56.84	0	2941675..2942142	+	155	28869837	-	PSPTO_2648	-	hypothetical protein
2597	 61.27	0	2942151..2943113	+	320	28869838	-	PSPTO_2649	-	hypothetical protein
2598	 56.79	0	2943186..2943347	+	53	28869839	-	PSPTO_2650	-	hypothetical protein
2599	 59.52	0	2943337..2943714	-	125	28869840	-	PSPTO_2651	-	response regulator
2600	 59.39	0	2943711..2946692	-	993	28869841	-	PSPTO_2652	-	bacteriophytochrome, putative
2601	 60.62	0	2949573..2950250	+	225	28869842	-	PSPTO_2654	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2602	 63.92	+1	2950250..2951233	+	327	28869843	-	PSPTO_2655	-	oxidoreductase, molybdopterin-binding subunit, putative
2603	 62.60	0	2951420..2953459	+	679	28869844	-	PSPTO_2656	-	aldehyde oxidase and xanthine dehydrogenase family protein
2604	 64.60	+1	2953462..2954430	+	322	28869845	-	PSPTO_2657	-	xanthine dehydrogenase accessory factor XdhC, putative
2605	 63.47	+1	2954411..2955004	-	197	28869846	-	PSPTO_2658	-	hypothetical protein
2606	 57.78	0	2955177..2955761	+	194	28869847	-	PSPTO_2659	-	NAD(P)H-flavin oxidoreductase
2607	 60.63	0	2956044..2957435	-	463	28869848	-	PSPTO_2660	-	aldehyde dehydrogenase family protein
2608	 62.57	0	2957538..2958416	+	292	28869849	-	PSPTO_2661	-	LysR family transcriptional regulator
2609	 61.74	0	2958422..2959516	-	364	28869850	-	PSPTO_2662	-	tartrate dehydrogenase
2610	 61.59	0	2959629..2960534	+	301	28869851	-	PSPTO_2663	-	LysR family transcriptional regulator
2611	 61.04	0	2960581..2961735	-	384	28869852	-	PSPTO_2664	-	spermidine/putrescine ABC transporter, ATP-binding protein
2612	 61.03	0	2961732..2962547	-	271	28869853	-	PSPTO_2665	-	spermidine/putrescine ABC transporter, permease protein, putative
2613	 61.17	0	2962554..2963408	-	284	28869854	-	PSPTO_2666	-	spermidine/putrescine ABC transporter, permease protein, putative
2614	 60.53	0	2963495..2964520	-	341	28869855	-	PSPTO_2667	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein, putative
2615	 62.88	+1	2964810..2965919	-	369	28869856	ribBA-2	PSPTO_2668	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
2616	 58.08	0	2966014..2966304	+	96	28869857	-	PSPTO_2669	-	hypothetical protein
2617	 59.93	0	2966404..2966967	-	187	28869858	-	PSPTO_2670	-	mutT/nudix family protein
2618	 61.49	0	2966969..2967721	-	250	28869859	-	PSPTO_2671	-	GntR family transcriptional regulator
2619	 59.47	0	2967912..2968397	-	161	28869860	-	PSPTO_2672	-	NAD(P)H-flavin oxidoreductase
2620	 63.36	+1	2968411..2969892	-	493	28869861	-	PSPTO_2673	-	aldehyde dehydrogenase family protein
2621	 63.37	+1	2969889..2970737	-	282	28869862	-	PSPTO_2674	-	3-oxoadipate enol-lactone hydrolase family protein
2622	 57.87	0	2970772..2971362	-	196	28869863	-	PSPTO_2675	-	hypothetical protein
2623	 60.44	0	2971649..2972788	+	379	28869864	fdhA-2	PSPTO_2676	-	glutathione-independent formaldehyde dehydrogenase
2624	 59.81	0	2972883..2973743	+	286	28869865	-	PSPTO_2677	-	short chain dehydrogenase/reductase family oxidoreductase
2625	 59.59	0	2973945..2974919	+	324	28869866	hopP1	PSPTO_2678	-	type III helper protein HopP1
2626	 60.16	0	2974894..2975016	+	40	28869867	-	PSPTO_2679	-	hypothetical protein
2627	 61.71	0	2975356..2976786	+	476	28869868	gabD-3	PSPTO_2680	-	succinate-semialdehyde dehydrogenase
2628	 56.73	0	2976862..2977797	-	311	28869869	pbpG	PSPTO_2681	-	D-alanyl-D-alanine endopeptidase
2629	 59.33	0	2978050..2978649	-	199	28869870	-	PSPTO_2682	-	hypothetical protein
2630	 64.48	+1	2978728..2978910	-	60	28869871	-	PSPTO_2683	-	hypothetical protein
2631	 64.43	+1	2979083..2979439	-	118	28869872	-	PSPTO_2684	-	hypothetical protein
2632	 59.97	0	2979641..2980417	+	258	28869873	-	PSPTO_2685	-	shikimate 5-dehydrogenase
2633	 63.21	+1	2980482..2981147	-	221	28869874	-	PSPTO_2686	-	hypothetical protein
2634	 57.80	0	2981249..2981812	+	187	28869875	-	PSPTO_2687	-	hypothetical protein
2635	 62.42	0	2982076..2983230	+	384	28869876	-	PSPTO_2688	-	major facilitator family transporter
2636	 59.58	0	2983227..2984129	-	300	28869877	-	PSPTO_2689	-	LysR family transcriptional regulator
2637	 48.97	-2	2984262..2984504	+	80	28869878	-	PSPTO_2690	-	putative lipoprotein
2638	 55.64	0	2984539..2985300	+	253	28869879	-	PSPTO_2691	-	TerC family membrane protein
2639	 59.44	0	2985402..2985581	-	59	28869880	-	PSPTO_2692	-	hypothetical protein
2640	 60.34	0	2985801..2986496	+	231	28869881	-	PSPTO_2693	-	hypothetical protein
2641	 60.75	0	2986568..2987851	-	427	28869882	-	PSPTO_2694	-	hypothetical protein
2642	 60.83	0	2988478..2989539	-	353	28869883	-	PSPTO_2695	-	hypothetical protein
2643	 55.56	0	2989651..2990037	-	128	28869884	-	PSPTO_2696	-	mutT/nudix family protein
2644	 58.77	0	2990361..2991437	-	358	28869885	-	PSPTO_2697	-	oxidoreductase, zinc-binding
2645	 59.37	0	2991704..2992018	+	104	28869886	-	PSPTO_2698	-	hypothetical protein
2646	 60.08	0	2992163..2994622	+	819	28869887	-	PSPTO_2699	-	GAF domain/GGDEF domain/EAL domain-containing protein
2647	 56.76	0	2994802..2995356	+	184	28869888	-	PSPTO_2700	-	hypothetical protein
2648	 61.87	0	2995844..2996782	-	312	28869889	-	PSPTO_2701	-	fructokinase
2649	 63.29	+1	2996807..2998288	-	493	28869890	xylB	PSPTO_2702	-	xylulokinase
2650	 59.99	0	2998299..2999780	-	493	28869891	uxuB	PSPTO_2703	-	D-mannonate oxidoreductase
2651	 58.15	0	3000944..3001777	-	277	28869892	-	PSPTO_2705	-	mannitol ABC transporter, permease protein
2652	 58.41	0	3001788..3002720	-	310	28869893	-	PSPTO_2706	-	mannitol ABC transporter, permease protein
2653	 58.88	0	3002808..3004130	-	440	28869894	-	PSPTO_2707	-	mannitol ABC transporter, periplasmic mannitol-binding protein
2654	 55.41	0	3004371..3005276	-	301	28869895	mltR	PSPTO_2708	-	transcriptional activator MltR
2655	 61.07	0	3005404..3006189	+	261	28869896	-	PSPTO_2709	-	precorrin 6A synthase
2656	 62.03	0	3006174..3007382	-	402	28869897	-	PSPTO_2710	-	hypothetical protein
2657	 57.78	0	3007489..3007848	-	119	28869898	-	PSPTO_2711	-	response regulator
2658	 59.81	0	3008195..3011707	+	1170	28869899	-	PSPTO_2712	-	sensor histidine kinase/response regulator
2659	 55.48	0	3011736..3012602	+	288	28869900	-	PSPTO_2713	-	chemotaxis protein methyltransferase CheR, putative
2660	 57.07	0	3012599..3013213	+	204	28869901	-	PSPTO_2714	-	protein-glutamate methylesterase, putative
2661	 57.87	0	3013207..3014388	+	393	28869902	-	PSPTO_2715	-	sensor histidine kinase/response regulator
2662	 55.56	0	3014480..3014857	+	125	28869903	-	PSPTO_2716	-	response regulator
2663	 60.61	0	3014885..3016915	-	676	28869904	-	PSPTO_2717	-	sensory box histidine kinase/response regulator
2664	 57.98	0	3016912..3018396	-	494	28869905	-	PSPTO_2718	-	hypothetical protein
2665	 58.43	0	3018617..3019429	+	270	28869906	-	PSPTO_2719	-	enoyl-CoA hydratase
2666	 60.81	0	3019482..3020318	+	278	28869907	-	PSPTO_2720	-	NADH pyrophosphatase
2667	 63.21	+1	3020286..3021065	-	259	28869908	-	PSPTO_2721	-	hypothetical protein
2668	 64.49	+1	3021171..3022319	-	382	28869909	-	PSPTO_2722	-	Gfo/Idh/MocA family oxidoreductase
2669	 57.42	0	3022420..3023187	-	255	28869910	-	PSPTO_2723	-	short chain dehydrogenase
2670	 59.08	0	3023215..3024282	-	355	28869911	-	PSPTO_2724	-	hypothetical protein
2671	 55.97	0	3024485..3024802	-	105	28869912	-	PSPTO_2725	-	SCP-2 sterol transfer family protein
2672	 60.90	0	3024858..3025568	-	236	28869913	-	PSPTO_2726	-	hypothetical protein
2673	 48.96	-2	3025629..3025724	-	31	28869914	-	PSPTO_2727	-	hypothetical protein
2674	 58.55	0	3025774..3026796	+	340	28869915	-	PSPTO_2728	-	putative periplasmic protease
2675	 58.18	0	3027056..3027550	-	164	28869916	-	PSPTO_2729	-	hypothetical protein
2676	 60.76	0	3027534..3029192	-	552	28869917	cysI	PSPTO_2730	-	sulphite reductase
2677	 60.71	0	3029769..3030842	+	357	28869918	-	PSPTO_2731	-	sugar-binding domain-containing protein
2678	 60.22	0	3030852..3034571	-	1239	28869919	metH	PSPTO_2732	-	B12-dependent methionine synthase
2679	 59.88	0	3034729..3037041	+	770	28869920	cti	PSPTO_2733	-	esterified fatty acid cis/trans isomerase
2680	 56.21	0	3037217..3038239	+	340	28869921	-	PSPTO_2734	-	acetyltransferase family protein
2681	 57.74	0	3038310..3038903	+	197	28869922	yhgI	PSPTO_2735	-	yhgI protein
2682	 62.26	0	3039164..3041113	-	649	28869923	-	PSPTO_2736	-	biotin carboxylase/biotin-containing subunit
2683	 61.84	0	3041110..3041958	-	282	28869924	-	PSPTO_2737	-	gamma-carboxygeranoyl-CoA hydratase
58.61	MEAN

4.14	STD DEV
