IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

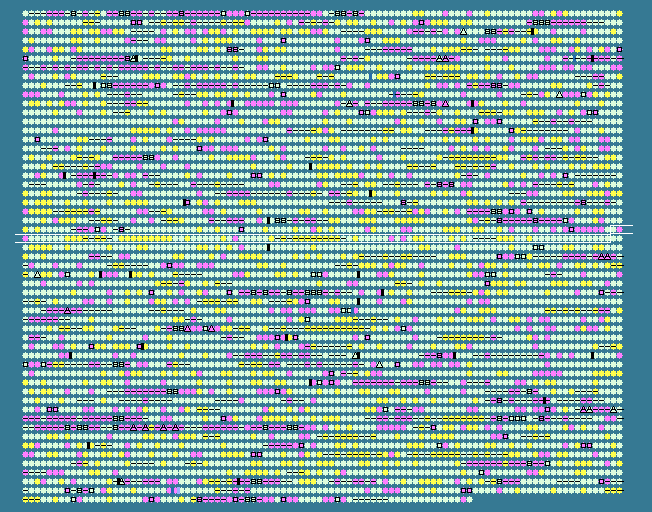

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2499	 56.80	0	2815564..2817093	+	509	28869740	-	PSPTO_2549	-	sigma-54 dependent transcriptional regulator
2500	 52.48	-1	2817143..2817283	+	46	28869741	-	PSPTO_2550	-	hypothetical protein
2501	 53.86	-1	2817337..2817828	+	163	28869742	-	PSPTO_2551	-	hypothetical protein
2502	 56.58	0	2817858..2819156	+	432	28869743	-	PSPTO_2552	-	hypothetical protein
2503	 55.67	0	2819156..2820028	+	290	28869744	-	PSPTO_2553	-	hypothetical protein
2504	 57.66	0	2820042..2823548	+	1168	28869745	-	PSPTO_2554	-	hypothetical protein
2505	 60.91	0	2823826..2824659	+	277	28869746	phnC	PSPTO_2555	-	phosphonates ABC transporter, ATP-binding protein
2506	 56.78	0	2824697..2825707	+	336	28869747	phnD	PSPTO_2556	-	phosphonates ABC transporter, periplasmic phosphonates-binding protein
2507	 60.71	0	2825735..2826523	+	262	28869748	phnE	PSPTO_2557	-	phosphonates ABC transporter, permease protein
2508	 63.61	+1	2826562..2827281	+	239	28869749	phnF	PSPTO_2558	-	transcriptional regulator PhnF
2509	 64.73	+1	2827296..2827760	+	154	28869750	phnG	PSPTO_2559	-	phosphonate metabolism protein PhnG
2510	 62.81	+1	2827760..2828356	+	198	28869751	phnH	PSPTO_2560	-	carbon-phosphorus lyase complex subunit
2511	 63.33	+1	2828356..2829435	+	359	28869752	phnI	PSPTO_2561	-	phosphonate metabolism protein PhnI
2512	 60.02	0	2829432..2830319	+	295	28869753	phnJ	PSPTO_2562	-	phosphonate metabolism protein PhnJ
2513	 62.90	+1	2830316..2831137	+	273	28869754	-	PSPTO_2563	-	phosphonates transport ATP-binding protein
2514	 64.30	+1	2831170..2831886	+	238	28869755	-	PSPTO_2564	-	phosphonate ABC transporter, ATP-binding protein
2515	 61.08	0	2831880..2833025	+	381	28869756	-	PSPTO_2565	-	phosphonate metabolism protein PhnM
2516	 59.96	0	2833025..2833591	+	188	28869757	phnN	PSPTO_2566	-	ATP-binding protein PhnN
2517	 65.20	+1	2833582..2834331	+	249	28869758	-	PSPTO_2567	-	carbon-phosphorus lyase complex accessory protein
2518	 63.08	+1	2834486..2836852	+	788	28869759	gcd-1	PSPTO_2568	-	glucose dehydrogenase
2519	 63.52	+1	2836915..2838438	-	507	28869760	-	PSPTO_2569	-	amidase family protein
2520	 63.37	+1	2838609..2839760	-	383	28869761	-	PSPTO_2570	-	M20/M25/M40 family peptidase
2521	 64.01	+1	2839757..2841184	-	475	28869762	-	PSPTO_2571	-	hypothetical protein
2522	 62.13	0	2841181..2842194	-	337	28869763	-	PSPTO_2572	-	peptide ABC transporter, ATP-binding protein
2523	 63.57	+1	2842191..2843192	-	333	28869764	-	PSPTO_2573	-	peptide ABC transporter, ATP-binding protein
2524	 62.82	+1	2843209..2844117	-	302	28869765	-	PSPTO_2574	-	peptide ABC transporter, permease protein
2525	 62.20	0	2844126..2845043	-	305	28869766	-	PSPTO_2575	-	peptide ABC transporter, permease protein
2526	 60.68	0	2845146..2846666	-	506	28869767	-	PSPTO_2576	-	peptide ABC transporter, periplasmic peptide-binding protein
2527	 61.86	0	2846878..2847771	+	297	28869768	-	PSPTO_2577	-	LysR family transcriptional regulator
2528	 64.24	+1	2847956..2848861	+	301	28869769	-	PSPTO_2578	-	putative GTP cyclohydrolase
2529	 56.33	0	2848873..2849433	+	186	28869770	-	PSPTO_2579	-	carbonic anhydrase-related protein
2530	 58.78	0	2849485..2850651	+	388	28869771	-	PSPTO_2580	-	hypothetical protein
2531	 59.37	0	2850700..2851329	-	209	28869772	-	PSPTO_2581	-	DNA-binding protein
2532	 60.26	0	2853098..2854018	+	306	28869773	-	PSPTO_2583	-	glutamine amidotransferase, class-II protein
2533	 60.96	0	2854015..2854698	+	227	28869774	-	PSPTO_2584	-	hypothetical protein
2534	 62.94	+1	2854714..2856054	+	446	28869775	-	PSPTO_2585	-	glutamate synthase family protein
2535	 61.39	0	2856588..2857913	+	441	28869776	amt-2	PSPTO_2586	-	ammonium transporter
2536	 52.03	-1	2857952..2858074	+	40	28869777	-	PSPTO_2587	-	hypothetical protein
2537	 57.61	0	2858488..2859525	-	345	28869778	-	PSPTO_2588	-	luciferase family protein
2538	 58.33	0	2859734..2860069	-	111	28869779	-	PSPTO_2589	-	hypothetical protein
2539	 59.40	0	2860393..2861493	+	366	28869780	-	PSPTO_2590	-	luciferase family protein
2540	 59.86	0	2861816..2863402	+	528	28869781	-	PSPTO_2591	-	GGDEF domain-containing protein
2541	 61.77	0	2863432..2866575	-	1047	28869782	-	PSPTO_2592	-	AcrB/AcrD/AcrF family protein
2542	 64.34	+1	2866609..2867769	-	386	28869783	-	PSPTO_2593	-	multidrug resistance protein AcrA/AcrE family
2543	 60.72	0	2867950..2868504	+	184	28869784	nfxB	PSPTO_2594	-	transcriptional regulatory protein NfxB
2544	 63.19	+1	2868541..2869950	-	469	28869785	pchA	PSPTO_2595	-	salicylate biosynthesis isochorismate synthase
2545	 58.26	0	2869947..2870267	-	106	28869786	pchB	PSPTO_2596	-	isochorismate-pyruvate lyase
2546	 65.71	+1	2870283..2871851	-	522	28869787	irp5	PSPTO_2597	-	yersiniabactin synthetase, salycilate ligase component
2547	 63.85	+1	2871864..2872679	-	271	28869788	irp4	PSPTO_2598	-	yersiniabactin synthetase, thioesterase component
2548	 65.65	+1	2872651..2873733	-	360	28869789	irp3	PSPTO_2599	-	yersiniabactin synthetase, thiazolinyl reductase component
2549	 64.32	+1	2873730..2883251	-	3173	28869790	irp1	PSPTO_2600	-	yersiniabactin polyketide/non-ribosomal peptide synthetase
2550	 63.49	+1	2883238..2884464	-	408	28869791	-	PSPTO_2601	-	hypothetical protein
2551	 63.41	+1	2884461..2890634	-	2057	28869792	-	PSPTO_2602	-	yersiniabactin non-ribosomal peptide synthetase
2552	 62.14	0	2890695..2892440	-	581	28869793	-	PSPTO_2603	-	ABC transporter, ATP-binding/permease protein
2553	 62.51	0	2892437..2894218	-	593	28869794	-	PSPTO_2604	-	ABC transporter, ATP-binding/permease protein
2554	 60.54	0	2894373..2896430	-	685	28869795	-	PSPTO_2605	-	TonB-dependent siderophore receptor, putative
2555	 59.96	0	2896523..2897461	+	312	28869796	-	PSPTO_2606	-	AraC family transcriptional regulator
2556	 63.23	+1	2897458..2899956	-	832	28869797	-	PSPTO_2607	-	TonB-dependent siderophore receptor, putative
2557	 58.42	0	2900350..2900955	+	201	28869798	-	PSPTO_2608	-	Sco1/SenC family protein
2558	 59.30	0	2900955..2901443	+	162	28869799	-	PSPTO_2609	-	hypothetical protein
2559	 59.26	0	2901682..2902140	-	152	28869800	-	PSPTO_2610	-	phosphoesterase, putative
2560	 58.25	0	2902216..2902797	-	193	28869801	-	PSPTO_2611	-	tRNA synthetase class II family protein
2561	 59.52	0	2903125..2903628	-	167	28869802	-	PSPTO_2612	-	acetyltransferase
2562	 54.69	0	2903711..2904286	-	191	28869803	-	PSPTO_2613	-	hypothetical protein
2563	 57.74	0	2904461..2905300	+	279	28869804	-	PSPTO_2614	-	TauD/TfdA family dioxygenase
2564	 54.22	-1	2905681..2906178	-	165	28869805	-	PSPTO_2615	-	GAF domain-containing protein
2565	 58.20	0	2906392..2908293	+	633	28869806	-	PSPTO_2616	-	methyl-accepting chemotaxis protein
2566	 64.13	+1	2908370..2909275	-	301	28869807	-	PSPTO_2617	-	LysR family transcriptional regulator
2567	 62.68	0	2909379..2910581	+	400	28869808	argD-2	PSPTO_2618	-	acetylornithine aminotransferase
2568	 60.27	0	2910590..2911246	-	218	28869809	-	PSPTO_2619	-	hypothetical protein
2569	 56.24	0	2911293..2911733	-	146	28869810	-	PSPTO_2620	-	CBS domain-containing protein
2570	 61.21	0	2911958..2914321	+	787	28869811	polB	PSPTO_2621	-	DNA polymerase II
2571	 62.06	0	2914318..2915163	-	281	28869812	-	PSPTO_2622	-	Sir2 family transcriptional regulator
2572	 63.23	+1	2915330..2916172	+	280	28869813	-	PSPTO_2623	-	PhzF family phenazine biosynthesis protein
2573	 60.83	0	2916314..2917153	-	279	28869814	-	PSPTO_2624	-	hypothetical protein
2574	 63.92	+1	2918440..2919312	-	290	28869815	-	PSPTO_2626	-	LysR family transcriptional regulator
2575	 59.31	0	2919555..2920397	+	280	28869816	-	PSPTO_2627	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2576	 58.64	0	2920441..2921175	+	244	28869817	-	PSPTO_2628	-	amino acid ABC transporter, permease protein
2577	 60.20	0	2921165..2921953	+	262	28869818	-	PSPTO_2629	-	amino acid ABC transporter, permease protein
2578	 61.41	0	2921940..2922776	+	278	28869819	-	PSPTO_2630	-	amino acid ABC transporter, ATP-binding protein
2579	 59.43	0	2922804..2923397	+	197	28869820	-	PSPTO_2631	-	hypothetical protein
2580	 63.52	+1	2923595..2926390	+	931	28869821	-	PSPTO_2632	-	fused rhodanese domain-containing protein/cystathionine beta-lyase
2581	 64.67	+1	2926602..2927351	+	249	28869822	-	PSPTO_2633	-	cation ABC transporter, ATP-binding protein
2582	 62.18	0	2927348..2928217	+	289	28869823	-	PSPTO_2634	-	cation ABC transporter, permease protein
2583	 58.31	0	2928229..2929125	+	298	28869824	-	PSPTO_2635	-	cation ABC transporter, periplasmic cation-binding protein
2584	 59.09	0	2929175..2930323	-	382	28869825	galM	PSPTO_2636	-	aldose 1-epimerase
2585	 63.23	+1	2930623..2931495	+	290	28869826	-	PSPTO_2637	-	senescence marker protein-30 family protein
2586	 57.00	0	2931657..2932670	+	337	28869827	abP	PSPTO_2638	-	L-arabinose ABC transporter, periplasmic L-arabinose-binding protein
2587	 60.43	0	2932726..2934249	+	507	28869828	-	PSPTO_2639	-	L-arabinose transporter ATP-binding protein
2588	 58.38	0	2934266..2935255	+	329	28869829	araH	PSPTO_2640	-	L-arabinose transporter permease protein
2589	 62.04	0	2935266..2935373	+	35	28869830	-	PSPTO_2641	-	putative lipoprotein
2590	 60.03	0	2935352..2936602	-	416	28869831	-	PSPTO_2642	-	sensor histidine kinase
2591	 60.26	0	2936674..2937375	-	233	28869832	-	PSPTO_2643	-	DNA-binding response regulator
2592	 58.21	0	2937426..2938205	-	259	28869833	-	PSPTO_2644	-	MltA-interacting protein
2593	 61.82	0	2938265..2939854	-	529	28869834	-	PSPTO_2645	-	hypothetical protein
2594	 61.74	0	2940161..2940871	+	236	28869835	-	PSPTO_2646	-	TetR family transcriptional regulator
2595	 56.95	0	2940935..2941675	+	246	28869836	-	PSPTO_2647	-	hypothetical protein
2596	 56.84	0	2941675..2942142	+	155	28869837	-	PSPTO_2648	-	hypothetical protein
2597	 61.27	0	2942151..2943113	+	320	28869838	-	PSPTO_2649	-	hypothetical protein
2598	 56.79	0	2943186..2943347	+	53	28869839	-	PSPTO_2650	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
