IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

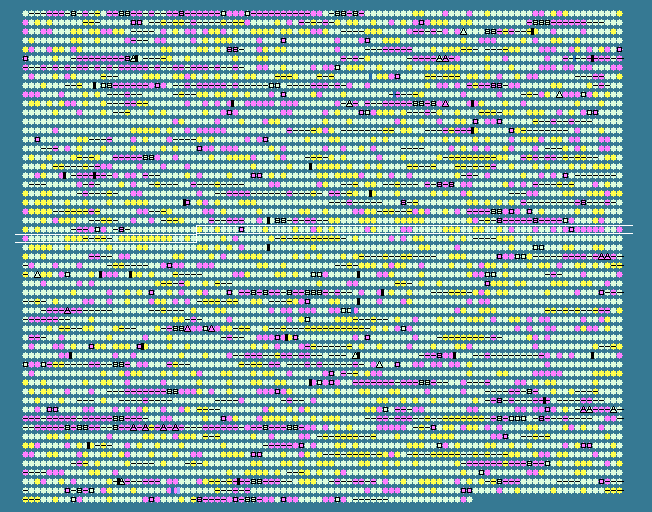

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2430	 64.20	+1	2736166..2738154	-	662	28869671	topB	PSPTO_2478	-	DNA topoisomerase III
2431	 60.39	0	2738331..2739158	-	275	28869672	-	PSPTO_2479	-	hypothetical protein
2432	 58.47	0	2739439..2741328	+	629	28869673	-	PSPTO_2480	-	methyl-accepting chemotaxis protein
2433	 66.42	+1	2741606..2742427	+	273	28869674	tonB-2	PSPTO_2481	-	tonB protein
2434	 62.00	0	2742562..2743290	+	242	28869675	exbB-3	PSPTO_2482	-	TonB system transport protein ExbB
2435	 58.06	0	2743322..2743693	+	123	28869676	exbD-3	PSPTO_2483	-	TonB system transport protein ExbD
2436	 59.93	0	2743976..2746378	+	800	28869677	-	PSPTO_2484	-	TonB-dependent siderophore receptor, putative
2437	 53.18	-1	2746748..2747770	+	340	28869678	-	PSPTO_2485	-	ISPsy7, transposase
2438	 58.09	0	2748125..2749162	-	345	28869679	-	PSPTO_2486	-	ABC transporter, periplasmic substrate-binding protein, putative
2439	 61.64	0	2749395..2750210	+	271	28869680	-	PSPTO_2487	-	hypothetical protein
2440	 59.52	0	2750281..2751189	+	302	28869681	-	PSPTO_2488	-	glutaminase
2441	 62.86	+1	2751293..2752369	+	358	28869682	-	PSPTO_2489	-	hypothetical protein
2442	 61.98	0	2752511..2754322	+	603	28869683	-	PSPTO_2490	-	ABC transporter, ATP-binding/permease protein
2443	 59.44	0	2754410..2755447	+	345	28869684	-	PSPTO_2491	-	aldo/keto reductase family oxidoreductase
2444	 61.80	0	2755531..2756331	+	266	28869685	-	PSPTO_2492	-	short chain dehydrogenase/reductase family oxidoreductase
2445	 60.86	0	2756324..2758150	+	608	28869686	-	PSPTO_2493	-	glycosy hydrolase family protein
2446	 62.27	0	2758195..2759103	-	302	28869687	-	PSPTO_2494	-	LysR family transcriptional regulator
2447	 59.18	0	2759406..2760287	+	293	28869688	-	PSPTO_2495	-	alpha/beta fold family hydrolase
2448	 59.34	0	2760925..2762343	-	472	28869689	-	PSPTO_2496	-	major facilitator family transporter
2449	 49.21	-2	2762532..2762657	-	41	28869690	-	PSPTO_2497	-	hypothetical protein
2450	 65.04	+1	2762711..2762833	-	40	28869691	-	PSPTO_2498	-	hypothetical protein
2451	 61.80	0	2762823..2764055	+	410	28869692	mntH	PSPTO_2499	-	manganese transport protein MntH
2452	 62.81	+1	2764117..2765568	+	483	28869693	-	PSPTO_2500	-	major facilitator family transporter
2453	 57.78	0	2765573..2765842	-	89	28869694	-	PSPTO_2501	-	hypothetical protein
2454	 59.80	0	2765910..2766113	-	67	28869695	-	PSPTO_2502	-	hypothetical protein
2455	 58.60	0	2766177..2766746	-	189	28869696	-	PSPTO_2503	-	hypothetical protein
2456	 61.55	0	2766894..2767460	+	188	28869697	-	PSPTO_2504	-	amino acid transporter LysE
2457	 58.51	0	2767470..2768303	-	277	28869698	-	PSPTO_2505	-	AraC family transcriptional regulator
2458	 55.02	0	2768415..2768723	-	102	28869699	-	PSPTO_2506	-	putative lipoprotein
2459	 62.47	0	2768816..2769673	-	285	28869700	-	PSPTO_2507	-	hypothetical protein
2460	 61.31	0	2769761..2770189	+	142	28869701	-	PSPTO_2508	-	hypothetical protein
2461	 61.06	0	2770328..2772217	+	629	28869702	-	PSPTO_2509	-	penicillin-binding protein
2462	 61.66	0	2772382..2774100	+	572	28869703	poxB	PSPTO_2510	-	pyruvate dehydrogenase
2463	 58.87	0	2774360..2776321	+	653	28869704	-	PSPTO_2511	-	methyl-accepting chemotaxis protein
2464	 53.07	-1	2776943..2777464	-	173	28869705	-	PSPTO_2512	-	hypothetical protein
2465	 53.70	-1	2777452..2777559	+	35	28869706	-	PSPTO_2513	-	hypothetical protein
2466	 59.54	0	2777569..2778087	+	172	28869707	-	PSPTO_2514	-	hypothetical protein
2467	 58.80	0	2778105..2778638	+	177	28869708	-	PSPTO_2515	-	putative lipoprotein
2468	 61.36	0	2778665..2779663	-	332	28869709	moaA	PSPTO_2516	-	molybdenum cofactor biosynthesis protein A
2469	 61.93	0	2779927..2781276	-	449	28869710	-	PSPTO_2517	-	sodium/hydrogen exchanger family protein
2470	 61.06	0	2781389..2782441	-	350	28869711	-	PSPTO_2518	-	extracellular solute-binding domain-containing protein
2471	 64.89	+1	2782438..2783622	-	394	28869712	-	PSPTO_2519	-	oxidoreductase, FAD-binding
2472	 64.73	+1	2783619..2785010	-	463	28869713	-	PSPTO_2520	-	pyridine nucleotide-disulphide oxidoreductase family protein
2473	 65.98	+1	2785007..2785297	-	96	28869714	-	PSPTO_2521	-	hypothetical protein
2474	 61.38	0	2785312..2786106	-	264	28869715	-	PSPTO_2522	-	ABC transporter, permease protein
2475	 60.14	0	2786110..2786982	-	290	28869716	-	PSPTO_2523	-	ABC transporter, permease protein
2476	 62.20	0	2786979..2788007	-	342	28869717	-	PSPTO_2524	-	ABC transporter, ATP-binding protein
2477	 63.45	+1	2788249..2789088	+	279	28869718	-	PSPTO_2525	-	IclR family transcriptional regulator
2478	 60.30	0	2789232..2790911	+	559	28869719	-	PSPTO_2526	-	methyl-accepting chemotaxis protein
2479	 60.64	0	2790980..2791942	-	320	28869720	-	PSPTO_2527	-	hypothetical protein
2480	 64.29	+1	2792008..2792637	-	209	28869721	-	PSPTO_2528	-	hypothetical protein
2481	 56.73	0	2793112..2793453	-	113	28869722	-	PSPTO_2529	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2482	 54.26	-1	2793450..2793578	-	42	28869723	-	PSPTO_2530	-	hypothetical protein
2483	 56.84	0	2793591..2793875	-	94	28869724	-	PSPTO_2531	-	hypothetical protein
2484	 58.38	0	2794541..2796109	+	522	28869725	-	PSPTO_2532	-	TerC family membrane protein
2485	 59.20	0	2796179..2796754	-	191	28869726	-	PSPTO_2533	-	acetyltransferase
2486	 49.49	-2	2796816..2797496	-	226	28869727	-	PSPTO_2534	-	hypothetical protein
2487	 56.26	0	2797493..2800933	-	1146	28869728	-	PSPTO_2535	-	hypothetical protein
2488	 55.63	0	2800881..2801324	-	147	28869729	-	PSPTO_2536	-	hypothetical protein
2489	 52.14	-1	2801296..2801763	-	155	28869730	-	PSPTO_2537	-	hypothetical protein
2490	 57.81	0	2801756..2803798	-	680	28869731	-	PSPTO_2538	-	Rhs element Vgr protein
2491	 46.90	-2	2803874..2804389	-	171	28869732	hcp-1	PSPTO_2539	-	secreted protein Hcp
2492	 54.19	-1	2806011..2806988	-	325	28869733	-	PSPTO_2541	-	ISPssy, transposase
2493	 49.70	-2	2807665..2808165	+	166	28869734	-	PSPTO_2543	-	hypothetical protein
2494	 51.96	-1	2808195..2809670	+	491	28869735	-	PSPTO_2544	-	hypothetical protein
2495	 50.00	-2	2809686..2810093	+	135	28869736	-	PSPTO_2545	-	hypothetical protein
2496	 53.97	-1	2810191..2811978	+	595	28869737	-	PSPTO_2546	-	hypothetical protein
2497	 54.56	0	2811942..2812949	+	335	28869738	-	PSPTO_2547	-	hypothetical protein
2498	 57.26	0	2812959..2815562	+	867	28869739	-	PSPTO_2548	-	clpB protein, putative
2499	 56.80	0	2815564..2817093	+	509	28869740	-	PSPTO_2549	-	sigma-54 dependent transcriptional regulator
2500	 52.48	-1	2817143..2817283	+	46	28869741	-	PSPTO_2550	-	hypothetical protein
2501	 53.86	-1	2817337..2817828	+	163	28869742	-	PSPTO_2551	-	hypothetical protein
2502	 56.58	0	2817858..2819156	+	432	28869743	-	PSPTO_2552	-	hypothetical protein
2503	 55.67	0	2819156..2820028	+	290	28869744	-	PSPTO_2553	-	hypothetical protein
2504	 57.66	0	2820042..2823548	+	1168	28869745	-	PSPTO_2554	-	hypothetical protein
2505	 60.91	0	2823826..2824659	+	277	28869746	phnC	PSPTO_2555	-	phosphonates ABC transporter, ATP-binding protein
2506	 56.78	0	2824697..2825707	+	336	28869747	phnD	PSPTO_2556	-	phosphonates ABC transporter, periplasmic phosphonates-binding protein
2507	 60.71	0	2825735..2826523	+	262	28869748	phnE	PSPTO_2557	-	phosphonates ABC transporter, permease protein
2508	 63.61	+1	2826562..2827281	+	239	28869749	phnF	PSPTO_2558	-	transcriptional regulator PhnF
2509	 64.73	+1	2827296..2827760	+	154	28869750	phnG	PSPTO_2559	-	phosphonate metabolism protein PhnG
2510	 62.81	+1	2827760..2828356	+	198	28869751	phnH	PSPTO_2560	-	carbon-phosphorus lyase complex subunit
2511	 63.33	+1	2828356..2829435	+	359	28869752	phnI	PSPTO_2561	-	phosphonate metabolism protein PhnI
2512	 60.02	0	2829432..2830319	+	295	28869753	phnJ	PSPTO_2562	-	phosphonate metabolism protein PhnJ
2513	 62.90	+1	2830316..2831137	+	273	28869754	-	PSPTO_2563	-	phosphonates transport ATP-binding protein
2514	 64.30	+1	2831170..2831886	+	238	28869755	-	PSPTO_2564	-	phosphonate ABC transporter, ATP-binding protein
2515	 61.08	0	2831880..2833025	+	381	28869756	-	PSPTO_2565	-	phosphonate metabolism protein PhnM
2516	 59.96	0	2833025..2833591	+	188	28869757	phnN	PSPTO_2566	-	ATP-binding protein PhnN
2517	 65.20	+1	2833582..2834331	+	249	28869758	-	PSPTO_2567	-	carbon-phosphorus lyase complex accessory protein
2518	 63.08	+1	2834486..2836852	+	788	28869759	gcd-1	PSPTO_2568	-	glucose dehydrogenase
2519	 63.52	+1	2836915..2838438	-	507	28869760	-	PSPTO_2569	-	amidase family protein
2520	 63.37	+1	2838609..2839760	-	383	28869761	-	PSPTO_2570	-	M20/M25/M40 family peptidase
2521	 64.01	+1	2839757..2841184	-	475	28869762	-	PSPTO_2571	-	hypothetical protein
2522	 62.13	0	2841181..2842194	-	337	28869763	-	PSPTO_2572	-	peptide ABC transporter, ATP-binding protein
2523	 63.57	+1	2842191..2843192	-	333	28869764	-	PSPTO_2573	-	peptide ABC transporter, ATP-binding protein
2524	 62.82	+1	2843209..2844117	-	302	28869765	-	PSPTO_2574	-	peptide ABC transporter, permease protein
2525	 62.20	0	2844126..2845043	-	305	28869766	-	PSPTO_2575	-	peptide ABC transporter, permease protein
2526	 60.68	0	2845146..2846666	-	506	28869767	-	PSPTO_2576	-	peptide ABC transporter, periplasmic peptide-binding protein
2527	 61.86	0	2846878..2847771	+	297	28869768	-	PSPTO_2577	-	LysR family transcriptional regulator
2528	 64.24	+1	2847956..2848861	+	301	28869769	-	PSPTO_2578	-	putative GTP cyclohydrolase
2529	 56.33	0	2848873..2849433	+	186	28869770	-	PSPTO_2579	-	carbonic anhydrase-related protein
58.61	MEAN

4.14	STD DEV
