IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

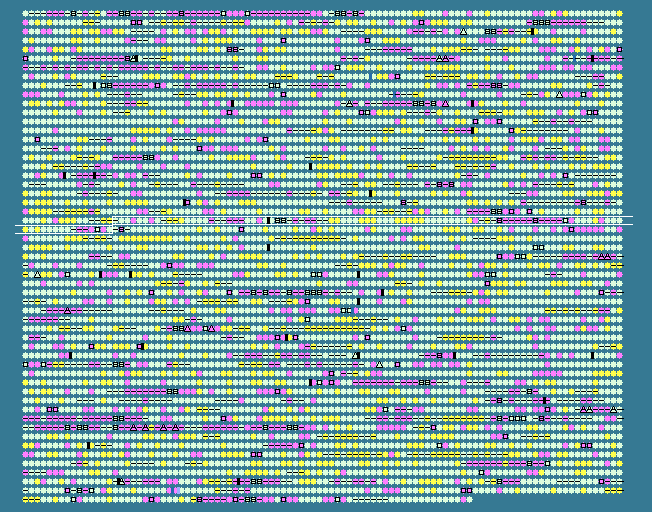

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2316	 55.93	0	2614830..2615099	+	89	28869557	-	PSPTO_2360	-	hypothetical protein
2317	 61.47	0	2615212..2615442	+	76	28869558	-	PSPTO_2361	-	hypothetical protein
2318	 59.22	0	2615439..2616230	+	263	28869559	map-2	PSPTO_2362	-	methionine aminopeptidase, type I
2319	 54.17	-1	2616307..2616546	-	79	28869560	-	PSPTO_2363	-	hypothetical protein
2320	 57.83	0	2616752..2617453	-	233	28869561	endA	PSPTO_2364	-	endonuclease I
2321	 57.94	0	2617458..2617709	-	83	28869562	-	PSPTO_2365	-	hypothetical protein
2322	 54.67	0	2617846..2618070	+	74	28869563	-	PSPTO_2366	-	putative lipoprotein
2323	 56.88	0	2618254..2619213	+	319	28869564	rbsB-1	PSPTO_2367	-	ribose ABC transporter, periplasmic ribose-binding protein
2324	 60.04	0	2619267..2620820	+	517	28869565	rbsA-1	PSPTO_2368	-	ribose ABC transporter, ATP-binding protein
2325	 62.54	0	2620817..2621809	+	330	28869566	rbsC-1	PSPTO_2369	-	ribose ABC transporter, permease protein
2326	 63.52	+1	2621811..2622827	+	338	28869567	rbsR	PSPTO_2370	-	ribose operon repressor
2327	 62.98	+1	2622858..2623778	+	306	28869568	rbsK	PSPTO_2371	-	ribokinase
2328	 58.77	0	2623775..2624179	+	134	28869569	-	PSPTO_2372	-	D-ribose pyranase
2329	 59.94	0	2624219..2625244	+	341	28869570	-	PSPTO_2373	-	inosine/uridine-preferring nucleoside hydrolase
2330	 55.92	0	2625268..2625723	-	151	28869571	-	PSPTO_2374	-	hypothetical protein
2331	 60.42	0	2625780..2626115	+	111	28869572	-	PSPTO_2375	-	putative lipoprotein
2332	 48.36	-2	2626181..2626393	-	70	28869573	-	PSPTO_2376	-	cold shock domain-contain protein
2333	 59.15	0	2626699..2627004	-	101	28869574	-	PSPTO_2377	-	hypothetical protein
2334	 57.51	0	2627367..2629289	+	640	28869575	thrS	PSPTO_2378	-	threonyl-tRNA synthetase
2335	 51.87	-1	2629307..2629840	+	177	28869576	infC	PSPTO_2379	-	translation initiation factor IF-3
2336	 49.74	-2	2629901..2630095	+	64	28869577	rpmI	PSPTO_2380	-	50S ribosomal protein L35
2337	 52.10	-1	2630125..2630481	+	118	28869578	rplT	PSPTO_2381	-	50S ribosomal protein L20
2338	 58.41	0	2630585..2631601	+	338	28869579	pheS	PSPTO_2382	-	phenylalanyl-tRNA synthetase subunit alpha
2339	 61.29	0	2631630..2634008	+	792	28869580	pheT	PSPTO_2383	-	phenylalanyl-tRNA synthetase subunit beta
2340	 53.80	-1	2634012..2634314	+	100	28869581	ihfA	PSPTO_2384	-	integration host factor subunit alpha
2341	 55.74	0	2634295..2634651	+	118	28869582	-	PSPTO_2385	-	transcriptional regulator, putative
2342	 60.59	0	2635219..2636106	-	295	28869583	-	PSPTO_2386	-	C-5 cytosine-specific DNA methylase family protein
2343	 59.24	0	2636500..2637522	+	340	28869584	-	PSPTO_2387	-	ISPsy4, transposase
2344	 57.78	0	2637519..2638328	+	269	28869585	-	PSPTO_2388	-	transposase/IS protein
2345	 56.96	0	2638723..2639505	-	260	28869586	-	PSPTO_2389	-	hypothetical protein
2346	 46.04	-2	2639556..2640326	+	256	28869587	-	PSPTO_2390	-	hypothetical protein
2347	 55.45	0	2640619..2640939	-	106	28869588	-	PSPTO_2391	-	hypothetical protein
2348	 51.94	-1	2640996..2641355	+	119	28869589	-	PSPTO_2392	-	ISPsy5, Orf1
2349	 46.25	-2	2643148..2644068	-	306	28869590	-	PSPTO_2394	-	radical SAM domain-containing protein
2350	 60.27	0	2644361..2645314	-	317	28869591	-	PSPTO_2395	-	transcriptional regulator, putative
2351	 61.42	0	2645396..2646196	-	266	28869592	-	PSPTO_2396	-	short chain dehydrogenase/reductase family oxidoreductase
2352	 64.05	+1	2646227..2646991	-	254	28869593	-	PSPTO_2397	-	short chain dehydrogenase
2353	 63.14	+1	2647023..2648552	-	509	28869594	rbsA-2	PSPTO_2398	-	ribose ABC transporter, ATP-binding protein
2354	 61.52	0	2648568..2649500	-	310	28869595	rbsB-2	PSPTO_2399	-	ribose ABC transporter, periplasmic ribose-binding protein
2355	 61.19	0	2649567..2650571	-	334	28869596	rbsC-2	PSPTO_2400	-	ribose ABC transporter, permease protein
2356	 60.33	0	2650935..2651771	+	278	28869597	-	PSPTO_2401	-	transketolase, N-terminal subunit
2357	 62.27	0	2651761..2652693	+	310	28869598	-	PSPTO_2402	-	transketolase, C-terminal subunit
2358	 62.60	0	2652724..2654199	+	491	28869599	-	PSPTO_2403	-	glycerol kinase, putative
2359	 62.67	0	2654285..2654584	-	99	28869600	-	PSPTO_2404	-	ArsR family transcriptional regulator
2360	 61.81	0	2654680..2655771	+	363	28869601	xenA	PSPTO_2405	-	xenobiotic reductase A
2361	 60.40	0	2655936..2656382	+	148	28869602	-	PSPTO_2406	-	hypothetical protein
2362	 58.14	0	2656519..2657163	+	214	28869603	-	PSPTO_2407	-	hypothetical protein
2363	 65.89	+1	2657199..2657969	-	256	28869604	ureD-1	PSPTO_2408	-	urease accessory protein UreD
2364	 63.20	+1	2658053..2658715	-	220	28869605	ureG-1	PSPTO_2409	-	urease accessory protein UreG
2365	 64.94	+1	2660459..2661154	-	231	28869606	-	PSPTO_2411	-	bifunctional urease subunit gamma/beta
2366	 65.30	+1	2661170..2661901	-	243	28869607	ureF-1	PSPTO_2412	-	urease accessory protein UreF
2367	 65.31	+1	2661898..2662338	-	146	28869608	-	PSPTO_2413	-	urease accessory protein UreE
2368	 60.29	0	2662361..2663050	-	229	28869609	-	PSPTO_2414	-	branched-chain amino acid ABC transporter, ATP-binding protein, putative
2369	 58.81	0	2663053..2663790	-	245	28869610	-	PSPTO_2415	-	branched-chain amino acid ABC transporter, ATP-binding protein
2370	 61.33	0	2663787..2664929	-	380	28869611	-	PSPTO_2416	-	branched-chain amino acid ABC transporter, permease protein
2371	 60.54	0	2664931..2665812	-	293	28869612	-	PSPTO_2417	-	branched-chain amino acid ABC transporter, permease protein
2372	 60.49	0	2665900..2667081	-	393	28869613	-	PSPTO_2418	-	branched-chain amino acid ABC transporter, periplasmic amino acid-binding protein
2373	 60.49	0	2667858..2669006	+	382	28869614	-	PSPTO_2419	-	regulatory protein, putative
2374	 61.61	0	2669003..2669635	+	210	28869615	-	PSPTO_2420	-	transcription antitermination protein, putative
2375	 62.96	+1	2669857..2671392	+	511	28869616	amdA	PSPTO_2421	-	amidase
2376	 52.19	-1	2671508..2673427	-	639	28869617	-	PSPTO_2422	-	hypothetical protein
2377	 60.21	0	2673558..2674532	-	324	28869618	-	PSPTO_2423	-	aliphatic sulfonate ABC transporter periplasmic substrate-binding protein
2378	 62.29	0	2674609..2675568	-	319	28869619	-	PSPTO_2424	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2379	 60.36	0	2675565..2676911	-	448	28869620	-	PSPTO_2425	-	NtaA/SnaA/SoxA family monooxygenase
2380	 54.19	-1	2677987..2678964	+	325	28869621	-	PSPTO_2426	-	ISPssy, transposase
2381	 51.42	-1	2679142..2680236	+	364	28869622	-	PSPTO_2427	-	serine hydroxymethyltransferase, putative
2382	 49.29	-2	2680315..2681655	+	446	28869623	-	PSPTO_2428	-	multidrug resistance protein NorM, putative
2383	 46.40	-2	2681681..2683111	+	476	28869624	-	PSPTO_2429	-	CapK domain-containing protein
2384	 46.75	-2	2683108..2684091	+	327	28869625	-	PSPTO_2430	-	pyridoxal-phosphate dependent enzyme family protein
2385	 43.46	-2	2684150..2685067	+	305	28869626	-	PSPTO_2431	-	hypothetical protein
2386	 54.19	-1	2685197..2686174	-	325	28869627	-	PSPTO_2432	-	ISPssy, transposase
2387	 45.45	-2	2686388..2686519	-	43	28869628	-	PSPTO_2433	-	hypothetical protein
2388	 48.09	-2	2686542..2687483	+	313	28869629	-	PSPTO_2434	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2389	 49.58	-2	2687499..2688914	+	471	28869630	-	PSPTO_2435	-	oxidoreductase, FAD-binding, putative
2390	 48.33	-2	2689146..2689505	+	119	28869631	-	PSPTO_2436	-	ISPsy5, Orf1
2391	 56.31	0	2689523..2691076	+	517	28869632	-	PSPTO_2437	-	ISPsy5, transposase
2392	 50.92	-1	2691134..2692657	+	507	28869633	-	PSPTO_2438	-	amine oxidase, flavin-containing
2393	 59.49	0	2692713..2693924	+	403	28869634	-	PSPTO_2439	-	acyl-CoA dehydrogenase family protein
2394	 57.58	0	2693952..2695139	+	395	28869635	-	PSPTO_2440	-	acyl-CoA dehydrogenase family protein
2395	 56.73	0	2695933..2698065	+	710	28869636	-	PSPTO_2441	-	methyl-accepting chemotaxis protein
2396	 63.25	+1	2698089..2699552	+	487	28869637	-	PSPTO_2442	-	CheW domain-containing protein
2397	 53.97	-1	2699607..2699732	+	41	28869638	-	PSPTO_2443	-	hypothetical protein
2398	 60.49	0	2699806..2700291	-	161	28869639	-	PSPTO_2444	-	acetyltransferase
2399	 61.87	0	2700352..2700789	-	145	28869640	-	PSPTO_2445	-	hypothetical protein
2400	 59.82	0	2700804..2701694	-	296	28869641	-	PSPTO_2446	-	metallo-beta-lactamase superfamily protein
2401	 62.94	+1	2701802..2702686	+	294	28869642	-	PSPTO_2447	-	LysR family transcriptional regulator
2402	 59.66	0	2702812..2704752	-	646	28869643	-	PSPTO_2448	-	methyl-accepting chemotaxis protein
2403	 63.18	+1	2705019..2705591	-	190	28869644	soxG-2	PSPTO_2449	-	sarcosine oxidase, gamma subunit
2404	 61.95	0	2705595..2708501	-	968	28869645	soxA-2	PSPTO_2450	-	sarcosine oxidase, alpha subunit
2405	 59.48	0	2708498..2708803	-	101	28869646	soxD-2	PSPTO_2451	-	sarcosine oxidase, delta subunit
2406	 60.95	0	2708817..2710058	-	413	28869647	soxB-2	PSPTO_2452	-	sarcosine oxidase, beta subunit
2407	 61.46	0	2710040..2710942	-	300	28869648	folD-1	PSPTO_2453	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
2408	 56.98	0	2710939..2711805	-	288	28869649	purU-2	PSPTO_2454	-	formyltetrahydrofolate deformylase
2409	 56.96	0	2712390..2712626	+	78	28869650	-	PSPTO_2455	-	hypothetical protein
2410	 54.70	0	2712652..2712768	-	38	28869651	-	PSPTO_2456	-	hypothetical protein
2411	 46.37	-2	2712992..2714518	+	508	28869652	-	PSPTO_2457	-	hypothetical protein
2412	 47.32	-2	2714515..2715129	+	204	28869653	-	PSPTO_2458	-	hypothetical protein
2413	 56.31	0	2715565..2717118	-	517	28869654	-	PSPTO_2460	-	ISPsy5, transposase
2414	 48.33	-2	2717136..2717495	-	119	28869655	-	PSPTO_2461	-	ISPsy5, Orf1
2415	 60.42	0	2718060..2720171	-	703	28869656	-	PSPTO_2463	-	TonB-dependent siderophore receptor, putative
58.61	MEAN

4.14	STD DEV
