IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

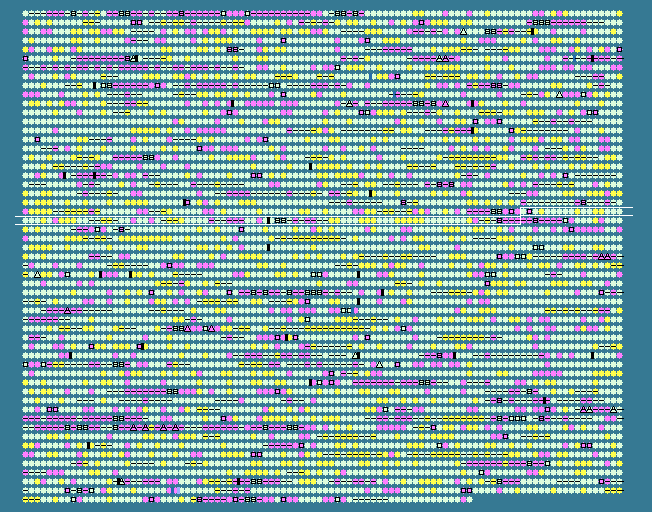

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2284	 59.66	0	2581120..2583375	-	751	28869526	-	PSPTO_2326	-	extracellular solute-binding protein/sensory box protein
2285	 54.19	-1	2583651..2584628	-	325	28869527	-	PSPTO_2328	-	ISPssy, transposase
2286	 61.58	0	2585606..2585998	-	130	28869528	-	PSPTO_2330	-	response regulator
2287	 63.14	+1	2586250..2587581	-	443	28869529	-	PSPTO_2331	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
2288	 60.90	0	2587685..2588152	+	155	28869530	-	PSPTO_2332	-	hypothetical protein
2289	 61.07	0	2588101..2588493	-	130	28869531	-	PSPTO_2333	-	hypothetical protein
2290	 58.10	0	2588498..2588812	-	104	28869532	-	PSPTO_2334	-	hypothetical protein
2291	 58.36	0	2589210..2590280	+	356	28869533	-	PSPTO_2335	-	exopolysaccharide production protein ExoZ, putative
2292	 58.08	0	2590311..2590601	+	96	28869534	-	PSPTO_2336	-	hypothetical protein
2293	 63.76	+1	2590640..2591569	+	309	28869535	pcaQ	PSPTO_2337	-	pca operon transcriptional activator PcaQ
2294	 60.00	0	2591697..2592416	+	239	28869536	pcaH	PSPTO_2338	-	protocatechuate 3,4-dioxygenase, beta subunit
2295	 59.54	0	2592428..2593030	+	200	28869537	pcaG	PSPTO_2339	-	protocatechuate 3,4-dioxygenase, alpha subunit
2296	 63.11	+1	2593098..2594447	+	449	28869538	pcaK	PSPTO_2340	-	4-hydroxybenzoate transporter
2297	 64.90	+1	2594472..2595833	+	453	28869539	pcaB	PSPTO_2341	-	3-carboxy-cis,cis-muconate cycloisomerase
2298	 57.89	0	2595830..2596228	+	132	28869540	pcaC-1	PSPTO_2342	-	4-carboxymuconolactone decarboxylase
2299	 60.38	0	2596721..2597977	-	418	28869541	-	PSPTO_2343	-	OprD family outer membrane porin
2300	 60.55	0	2598221..2599087	+	288	28869542	-	PSPTO_2344	-	hypothetical protein
2301	 61.97	0	2599195..2600514	-	439	28869543	-	PSPTO_2345	-	transporter, putative
2302	 60.17	0	2601132..2603039	+	635	28869544	-	PSPTO_2346	-	4-hydroxyphenylpyruvate dioxygenase, putative
2303	 57.89	0	2603144..2603815	+	223	28869545	-	PSPTO_2347	-	TetR family transcriptional regulator
2304	 63.27	+1	2603819..2604673	-	284	28869546	-	PSPTO_2348	-	shikimate 5-dehydrogenase
2305	 61.05	0	2604859..2605749	+	296	170660221	-	PSPTO_2349	-	RNA pseudouridine synthase family protein
2306	 54.67	0	2605826..2606050	-	74	28869547	-	PSPTO_2350	-	putative lipoprotein
2307	 62.54	0	2606146..2606751	-	201	28869548	mobA	PSPTO_2351	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2308	 63.70	+1	2606827..2607366	+	179	28869549	moaB	PSPTO_2352	-	molybdenum cofactor biosynthesis protein B
2309	 64.69	+1	2607373..2608584	+	403	28869550	moeA	PSPTO_2353	-	molybdopterin biosynthesis protein MoeA
2310	 59.44	0	2608674..2609600	+	308	28869551	-	PSPTO_2354	-	glycosyl transferase, group 2 family protein
2311	 61.53	0	2609648..2611456	-	602	28869552	-	PSPTO_2355	-	glutathione-regulated potassium-efflux system protein
2312	 55.21	0	2611521..2611904	-	127	28869553	-	PSPTO_2356	-	hypothetical protein
2313	 58.22	0	2611931..2612356	+	141	28869554	-	PSPTO_2357	-	hypothetical protein
2314	 62.20	0	2612511..2613539	-	342	28869555	-	PSPTO_2358	-	hypothetical protein
2315	 64.53	+1	2613769..2614800	+	343	28869556	allD	PSPTO_2359	-	ureidoglycolate dehydrogenase
2316	 55.93	0	2614830..2615099	+	89	28869557	-	PSPTO_2360	-	hypothetical protein
2317	 61.47	0	2615212..2615442	+	76	28869558	-	PSPTO_2361	-	hypothetical protein
2318	 59.22	0	2615439..2616230	+	263	28869559	map-2	PSPTO_2362	-	methionine aminopeptidase, type I
2319	 54.17	-1	2616307..2616546	-	79	28869560	-	PSPTO_2363	-	hypothetical protein
2320	 57.83	0	2616752..2617453	-	233	28869561	endA	PSPTO_2364	-	endonuclease I
2321	 57.94	0	2617458..2617709	-	83	28869562	-	PSPTO_2365	-	hypothetical protein
2322	 54.67	0	2617846..2618070	+	74	28869563	-	PSPTO_2366	-	putative lipoprotein
2323	 56.88	0	2618254..2619213	+	319	28869564	rbsB-1	PSPTO_2367	-	ribose ABC transporter, periplasmic ribose-binding protein
2324	 60.04	0	2619267..2620820	+	517	28869565	rbsA-1	PSPTO_2368	-	ribose ABC transporter, ATP-binding protein
2325	 62.54	0	2620817..2621809	+	330	28869566	rbsC-1	PSPTO_2369	-	ribose ABC transporter, permease protein
2326	 63.52	+1	2621811..2622827	+	338	28869567	rbsR	PSPTO_2370	-	ribose operon repressor
2327	 62.98	+1	2622858..2623778	+	306	28869568	rbsK	PSPTO_2371	-	ribokinase
2328	 58.77	0	2623775..2624179	+	134	28869569	-	PSPTO_2372	-	D-ribose pyranase
2329	 59.94	0	2624219..2625244	+	341	28869570	-	PSPTO_2373	-	inosine/uridine-preferring nucleoside hydrolase
2330	 55.92	0	2625268..2625723	-	151	28869571	-	PSPTO_2374	-	hypothetical protein
2331	 60.42	0	2625780..2626115	+	111	28869572	-	PSPTO_2375	-	putative lipoprotein
2332	 48.36	-2	2626181..2626393	-	70	28869573	-	PSPTO_2376	-	cold shock domain-contain protein
2333	 59.15	0	2626699..2627004	-	101	28869574	-	PSPTO_2377	-	hypothetical protein
2334	 57.51	0	2627367..2629289	+	640	28869575	thrS	PSPTO_2378	-	threonyl-tRNA synthetase
2335	 51.87	-1	2629307..2629840	+	177	28869576	infC	PSPTO_2379	-	translation initiation factor IF-3
2336	 49.74	-2	2629901..2630095	+	64	28869577	rpmI	PSPTO_2380	-	50S ribosomal protein L35
2337	 52.10	-1	2630125..2630481	+	118	28869578	rplT	PSPTO_2381	-	50S ribosomal protein L20
2338	 58.41	0	2630585..2631601	+	338	28869579	pheS	PSPTO_2382	-	phenylalanyl-tRNA synthetase subunit alpha
2339	 61.29	0	2631630..2634008	+	792	28869580	pheT	PSPTO_2383	-	phenylalanyl-tRNA synthetase subunit beta
2340	 53.80	-1	2634012..2634314	+	100	28869581	ihfA	PSPTO_2384	-	integration host factor subunit alpha
2341	 55.74	0	2634295..2634651	+	118	28869582	-	PSPTO_2385	-	transcriptional regulator, putative
2342	 60.59	0	2635219..2636106	-	295	28869583	-	PSPTO_2386	-	C-5 cytosine-specific DNA methylase family protein
2343	 59.24	0	2636500..2637522	+	340	28869584	-	PSPTO_2387	-	ISPsy4, transposase
2344	 57.78	0	2637519..2638328	+	269	28869585	-	PSPTO_2388	-	transposase/IS protein
2345	 56.96	0	2638723..2639505	-	260	28869586	-	PSPTO_2389	-	hypothetical protein
2346	 46.04	-2	2639556..2640326	+	256	28869587	-	PSPTO_2390	-	hypothetical protein
2347	 55.45	0	2640619..2640939	-	106	28869588	-	PSPTO_2391	-	hypothetical protein
2348	 51.94	-1	2640996..2641355	+	119	28869589	-	PSPTO_2392	-	ISPsy5, Orf1
2349	 46.25	-2	2643148..2644068	-	306	28869590	-	PSPTO_2394	-	radical SAM domain-containing protein
2350	 60.27	0	2644361..2645314	-	317	28869591	-	PSPTO_2395	-	transcriptional regulator, putative
2351	 61.42	0	2645396..2646196	-	266	28869592	-	PSPTO_2396	-	short chain dehydrogenase/reductase family oxidoreductase
2352	 64.05	+1	2646227..2646991	-	254	28869593	-	PSPTO_2397	-	short chain dehydrogenase
2353	 63.14	+1	2647023..2648552	-	509	28869594	rbsA-2	PSPTO_2398	-	ribose ABC transporter, ATP-binding protein
2354	 61.52	0	2648568..2649500	-	310	28869595	rbsB-2	PSPTO_2399	-	ribose ABC transporter, periplasmic ribose-binding protein
2355	 61.19	0	2649567..2650571	-	334	28869596	rbsC-2	PSPTO_2400	-	ribose ABC transporter, permease protein
2356	 60.33	0	2650935..2651771	+	278	28869597	-	PSPTO_2401	-	transketolase, N-terminal subunit
2357	 62.27	0	2651761..2652693	+	310	28869598	-	PSPTO_2402	-	transketolase, C-terminal subunit
2358	 62.60	0	2652724..2654199	+	491	28869599	-	PSPTO_2403	-	glycerol kinase, putative
2359	 62.67	0	2654285..2654584	-	99	28869600	-	PSPTO_2404	-	ArsR family transcriptional regulator
2360	 61.81	0	2654680..2655771	+	363	28869601	xenA	PSPTO_2405	-	xenobiotic reductase A
2361	 60.40	0	2655936..2656382	+	148	28869602	-	PSPTO_2406	-	hypothetical protein
2362	 58.14	0	2656519..2657163	+	214	28869603	-	PSPTO_2407	-	hypothetical protein
2363	 65.89	+1	2657199..2657969	-	256	28869604	ureD-1	PSPTO_2408	-	urease accessory protein UreD
2364	 63.20	+1	2658053..2658715	-	220	28869605	ureG-1	PSPTO_2409	-	urease accessory protein UreG
2365	 64.94	+1	2660459..2661154	-	231	28869606	-	PSPTO_2411	-	bifunctional urease subunit gamma/beta
2366	 65.30	+1	2661170..2661901	-	243	28869607	ureF-1	PSPTO_2412	-	urease accessory protein UreF
2367	 65.31	+1	2661898..2662338	-	146	28869608	-	PSPTO_2413	-	urease accessory protein UreE
2368	 60.29	0	2662361..2663050	-	229	28869609	-	PSPTO_2414	-	branched-chain amino acid ABC transporter, ATP-binding protein, putative
2369	 58.81	0	2663053..2663790	-	245	28869610	-	PSPTO_2415	-	branched-chain amino acid ABC transporter, ATP-binding protein
2370	 61.33	0	2663787..2664929	-	380	28869611	-	PSPTO_2416	-	branched-chain amino acid ABC transporter, permease protein
2371	 60.54	0	2664931..2665812	-	293	28869612	-	PSPTO_2417	-	branched-chain amino acid ABC transporter, permease protein
2372	 60.49	0	2665900..2667081	-	393	28869613	-	PSPTO_2418	-	branched-chain amino acid ABC transporter, periplasmic amino acid-binding protein
2373	 60.49	0	2667858..2669006	+	382	28869614	-	PSPTO_2419	-	regulatory protein, putative
2374	 61.61	0	2669003..2669635	+	210	28869615	-	PSPTO_2420	-	transcription antitermination protein, putative
2375	 62.96	+1	2669857..2671392	+	511	28869616	amdA	PSPTO_2421	-	amidase
2376	 52.19	-1	2671508..2673427	-	639	28869617	-	PSPTO_2422	-	hypothetical protein
2377	 60.21	0	2673558..2674532	-	324	28869618	-	PSPTO_2423	-	aliphatic sulfonate ABC transporter periplasmic substrate-binding protein
2378	 62.29	0	2674609..2675568	-	319	28869619	-	PSPTO_2424	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
2379	 60.36	0	2675565..2676911	-	448	28869620	-	PSPTO_2425	-	NtaA/SnaA/SoxA family monooxygenase
2380	 54.19	-1	2677987..2678964	+	325	28869621	-	PSPTO_2426	-	ISPssy, transposase
2381	 51.42	-1	2679142..2680236	+	364	28869622	-	PSPTO_2427	-	serine hydroxymethyltransferase, putative
2382	 49.29	-2	2680315..2681655	+	446	28869623	-	PSPTO_2428	-	multidrug resistance protein NorM, putative
2383	 46.40	-2	2681681..2683111	+	476	28869624	-	PSPTO_2429	-	CapK domain-containing protein
58.61	MEAN

4.14	STD DEV
