IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

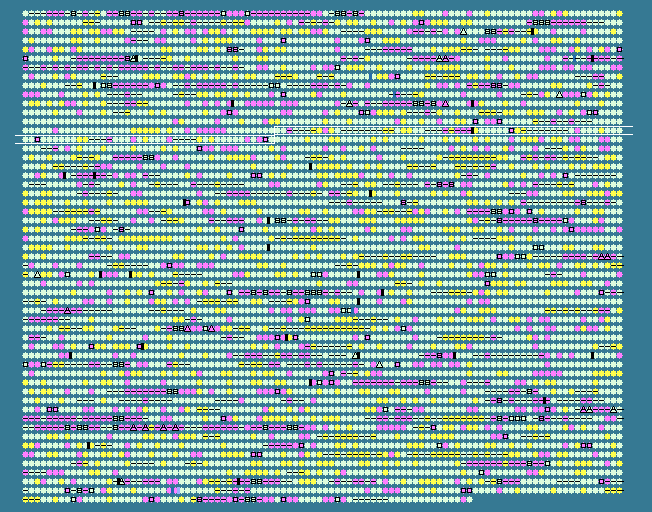

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 59.37	0	1522289..1523233	+	314	28868587	hrpR	PSPTO_1379	-	type III transcriptional regulator HrpR
1344	 58.97	0	1523279..1524187	+	302	28868588	hrpS	PSPTO_1380	-	type III transcriptional regulator HrpS
1345	 54.39	-1	1524281..1524622	+	113	28868589	hrpA1	PSPTO_1381	-	type III helper protein HrpA1
1346	 60.11	0	1524678..1525790	+	370	28868590	hrpZ1	PSPTO_1382	-	type III helper protein HrpZ1
1347	 58.13	0	1525818..1526192	+	124	28868591	hrpB	PSPTO_1383	-	type III secretion protein HrpB
1348	 59.23	0	1526201..1527007	+	268	28868592	hrcJ	PSPTO_1384	-	type III secretion protein HrcJ
1349	 63.47	+1	1527004..1527534	+	176	28868593	hrpD	PSPTO_1385	-	type III secretion protein HrpD
1350	 63.40	+1	1527570..1528151	+	193	28868594	hrpE	PSPTO_1386	-	type III secretion protein HrpE
1351	 54.22	-1	1528246..1528470	+	74	28868595	hrpF	PSPTO_1387	-	type III secretion protein HrpF
1352	 63.66	+1	1528457..1528888	+	143	28868596	hrpG	PSPTO_1388	-	type III secretion protein HrpG
1353	 57.95	0	1528890..1530989	+	699	162533078	hrcC	PSPTO_1389	-	outer-membrane type III secretion protein HrcC
1354	 58.33	0	1530986..1531189	+	67	28868598	hrpT	PSPTO_1390	-	type III secretion protein HrpT
1355	 56.39	0	1531192..1531551	+	119	28868599	hrpV	PSPTO_1391	-	negative regulator of hrp expression HrpV
1356	 57.13	0	1532093..1533172	-	359	28868600	hrcU	PSPTO_1392	-	type III secretion protein HrcU
1357	 60.88	0	1533169..1533963	-	264	28868601	hrcT	PSPTO_1393	-	type III secretion protein HrcT
1358	 58.05	0	1533964..1534230	-	88	28868602	hrcS	PSPTO_1394	-	type III secretion protein HrcS
1359	 58.04	0	1534238..1534840	-	200	162533077	hrcR	PSPTO_1395	-	type III secretion system protein
1360	 60.63	0	1534888..1535301	-	137	28868604	hrcQb	PSPTO_1396	-	type III secretion protein HrcQb
1361	 64.02	+1	1535291..1536007	-	238	28868605	hrcQa	PSPTO_1397	-	type III secretion protein HrcQa
1362	 62.11	0	1536004..1536573	-	189	28868606	hrpP	PSPTO_1398	-	type III secretion protein HrpP
1363	 57.72	0	1536580..1537026	-	148	28868607	hrpO	PSPTO_1399	-	type III secretion protein HrpO
1364	 65.33	+1	1537029..1538378	-	449	28868608	hrcN	PSPTO_1400	-	type III secretion cytoplasmic ATPase HrcN
1365	 62.44	0	1538375..1539367	-	330	28868609	hrpQ	PSPTO_1401	-	type III secretion protein HrpQ
1366	 59.72	0	1539401..1541488	-	695	28868610	hrcV	PSPTO_1402	-	type III secretion protein HrcV
1367	 59.35	0	1541488..1542594	-	368	28868611	hrpJ	PSPTO_1403	-	type III secretion protein HrpJ
1368	 55.32	0	1542838..1543392	+	184	28868612	hrpL	PSPTO_1404	-	RNA polymerase sigma factor HrpL
1369	 58.39	0	1543479..1545821	+	780	28868613	hrpK1	PSPTO_1405	-	type III helper protein HrpK1
1370	 55.46	0	1545896..1547296	+	466	28868614	hopB1	PSPTO_1406	-	type III effector HopB1
1371	 53.41	-1	1548470..1548718	+	82	90818607	-	PSPTO_5622	-	PSPTO5622
1372	 63.98	+1	1548919..1549104	+	61	28868615	-	PSPTO_1408	-	hypothetical protein
1373	 49.29	-2	1549288..1550133	+	281	28868616	-	PSPTO_1409	-	hypothetical protein
1374	 53.48	-1	1550627..1551043	+	138	28868617	-	PSPTO_1410	-	exchangeable effector locus protein
1375	 49.48	-2	1551198..1551773	-	191	28868618	-	PSPTO_1411	-	hypothetical protein
1376	 62.44	0	1551979..1553043	+	354	28868619	queA	PSPTO_1412	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1377	 60.22	0	1553058..1554173	+	371	28868620	tgt	PSPTO_1413	-	queuine tRNA-ribosyltransferase
1378	 55.65	0	1554227..1554562	+	111	28868621	yajC	PSPTO_1414	-	preprotein translocase subunit YajC
1379	 59.18	0	1554625..1556493	+	622	28868622	secD	PSPTO_1415	-	preprotein translocase subunit SecD
1380	 59.43	0	1556503..1557414	+	303	28868623	secF	PSPTO_1416	-	preprotein translocase subunit SecF
1381	 58.33	0	1557523..1558062	+	179	28868624	-	PSPTO_1417	-	hypothetical protein
1382	 54.07	-1	1558205..1559665	-	486	28868625	-	PSPTO_1418	-	ISPsy6, transposase
1383	 62.25	0	1559737..1560552	-	271	28868626	suhB	PSPTO_1419	-	inositol-1-monophosphatase
1384	 62.14	0	1560768..1561541	+	257	28868627	-	PSPTO_1420	-	RNA methyltransferase
1385	 61.39	0	1561541..1562317	+	258	28868628	cysE	PSPTO_1421	-	serine O-acetyltransferase
1386	 57.32	0	1562477..1562968	+	163	28868629	-	PSPTO_1422	-	rrf2 family protein
1387	 58.11	0	1563013..1564227	+	404	28868630	iscS-2	PSPTO_1423	-	cysteine desulfurase
1388	 58.91	0	1564310..1564696	+	128	28868631	iscU	PSPTO_1424	-	scaffold protein
1389	 57.10	0	1564739..1565062	+	107	28868632	iscA	PSPTO_1425	-	iron-binding protein IscA
1390	 58.24	0	1565074..1565595	+	173	28868633	hscB	PSPTO_1426	-	co-chaperone HscB
1391	 61.57	0	1565640..1567502	+	620	28868634	hscA	PSPTO_1427	-	chaperone protein HscA
1392	 57.89	0	1567506..1567847	+	113	28868635	-	PSPTO_1428	-	ferredoxin, 2Fe-2S
1393	 53.62	-1	1567856..1568062	+	68	28868636	-	PSPTO_1429	-	hypothetical protein
1394	 55.63	0	1568159..1568584	+	141	28868637	ndk	PSPTO_1430	-	nucleoside diphosphate kinase
1395	 57.01	0	1568618..1569766	+	382	28868638	-	PSPTO_1431	-	radical SAM protein
1396	 56.13	0	1569793..1570551	+	252	28868639	pilF	PSPTO_1432	-	type IV pilus biogenesis protein PilF
1397	 62.75	0	1570551..1571546	+	331	28868640	-	PSPTO_1433	-	hypothetical protein
1398	 59.55	0	1571550..1572659	+	369	28868641	ispG	PSPTO_1434	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1399	 58.37	0	1572682..1573971	+	429	28868642	hisS	PSPTO_1435	-	histidyl-tRNA synthetase
1400	 60.28	0	1574010..1574651	+	213	28868643	-	PSPTO_1436	-	hypothetical protein
1401	 59.65	0	1574644..1575798	+	384	28868644	-	PSPTO_1437	-	PQQ repeat-containing protein
1402	 58.37	0	1575936..1577405	+	489	28868645	engA	PSPTO_1438	-	GTP-binding protein EngA
1403	 54.07	-1	1577530..1578990	-	486	28868646	-	PSPTO_1439	-	ISPsy6, transposase
1404	 58.66	0	1579125..1580273	+	382	28868647	-	PSPTO_1440	-	putative aminotransferase
1405	 59.22	0	1580261..1581052	+	263	28868648	-	PSPTO_1441	-	carbon-nitrogen family hydrolase
1406	 58.10	0	1581091..1581627	-	178	28868649	-	PSPTO_1442	-	hypothetical protein
1407	 58.51	0	1581671..1582540	-	289	28868650	bcpA	PSPTO_1443	-	carboxyphosphonoenolpyruvate phosphonomutase
1408	 59.16	0	1582912..1584669	-	585	162533076	leuA	PSPTO_1444	-	2-isopropylmalate synthase
1409	 61.21	0	1584963..1585787	-	274	28868652	-	PSPTO_1445	-	M24/M37 family peptidase
1410	 62.21	0	1585794..1587185	-	463	28868653	xseA	PSPTO_1446	-	exodeoxyribonuclease VII large subunit
1411	 65.08	+1	1587200..1587388	+	62	28868654	-	PSPTO_1447	-	hypothetical protein
1412	 59.93	0	1587464..1588012	+	182	28868655	-	PSPTO_1448	-	hypothetical protein
1413	 60.41	0	1588107..1589576	+	489	28868656	guaB	PSPTO_1449	-	inositol-5-monophosphate dehydrogenase
1414	 60.27	0	1589700..1591277	+	525	28868657	guaA	PSPTO_1450	-	bifunctional GMP synthase/glutamine amidotransferase protein
1415	 51.18	-1	1592228..1593409	-	393	28868658	-	PSPTO_1451	-	hypothetical protein
1416	 57.26	0	1593498..1593614	-	38	28868659	-	PSPTO_1452	-	hypothetical protein
1417	 56.25	0	1593629..1594924	-	431	28868660	lsc-1	PSPTO_1453	-	levansucrase
1418	 57.98	0	1595545..1596534	-	329	28868661	-	PSPTO_1454	-	hypothetical protein
1419	 52.31	-1	1598062..1600338	+	758	28868662	-	PSPTO_1455	-	hypothetical protein
1420	 61.14	0	1600668..1602041	+	457	28868663	cumA	PSPTO_1456	-	multicopper oxidase
1421	 63.92	+1	1602041..1602550	+	169	28868664	-	PSPTO_1457	-	cytidine/deoxycytidylate deaminase family protein
1422	 58.86	0	1602547..1603917	-	456	28868665	-	PSPTO_1458	-	ligand-binding/transglycosylase domain-containing protein
1423	 61.00	0	1604253..1608149	+	1298	28868666	purL	PSPTO_1459	-	phosphoribosylformylglycinamidine synthase
1424	 56.73	0	1608155..1608466	+	103	28868667	-	PSPTO_1460	-	hypothetical protein
1425	 53.11	-1	1608605..1609231	-	208	28868668	-	PSPTO_1461	-	hypothetical protein
1426	 58.88	0	1609228..1609779	-	183	28868669	-	PSPTO_1462	-	mutT/nudix family protein
1427	 57.14	0	1609794..1609940	+	48	28868670	-	PSPTO_1463	-	hypothetical protein
1428	 59.46	0	1609930..1610526	+	198	28868671	-	PSPTO_1464	-	mutT/nudix family protein
1429	 58.48	0	1610585..1611109	+	174	28868672	-	PSPTO_1465	-	hexapeptide repeat-containing transferase
1430	 62.10	0	1611109..1611327	+	72	28868673	-	PSPTO_1466	-	hypothetical protein
1431	 59.62	0	1611959..1612426	+	155	28868674	-	PSPTO_1467	-	hypothetical protein
1432	 62.27	0	1612530..1613711	+	393	28868675	purT	PSPTO_1468	-	phosphoribosylglycinamide formyltransferase 2
1433	 61.35	0	1613824..1615140	-	438	28868676	-	PSPTO_1469	-	major facilitator family transporter
1434	 58.25	0	1615271..1616518	-	415	28868677	-	PSPTO_1470	-	CBS domain-containing protein
1435	 60.76	0	1616531..1617343	-	270	28868678	-	PSPTO_1471	-	hypothetical protein
1436	 60.35	0	1617559..1618935	+	458	28868679	ffh	PSPTO_1472	-	signal recognition particle protein Ffh
1437	 56.59	0	1619184..1619441	+	85	28868680	rpsP	PSPTO_1473	-	30S ribosomal protein S16
1438	 54.44	-1	1619447..1619986	+	179	28868681	rimM	PSPTO_1474	-	16S rRNA-processing protein
1439	 57.10	0	1619992..1620744	+	250	28868682	trmD	PSPTO_1475	-	tRNA (guanine-N(1)-)-methyltransferase
1440	 52.42	-1	1620789..1621139	+	116	28868683	rplS	PSPTO_1476	-	50S ribosomal protein L19
1441	 54.00	-1	1621273..1622733	-	486	28868684	-	PSPTO_1477	-	ISPsy6, transposase
1442	 61.54	0	1622850..1623746	+	298	28868685	xerD	PSPTO_1478	-	site-specific tyrosine recombinase XerD
58.61	MEAN

4.14	STD DEV
