IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

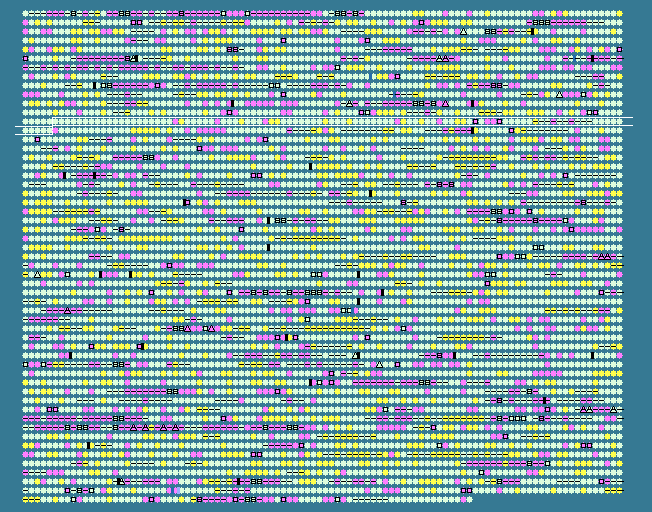

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1206	 62.01	0	1360516..1361997	-	493	28868450	algE	PSPTO_1239	-	alginate biosynthesis protein AlgE
1207	 61.50	0	1361994..1363406	-	470	28868451	algK	PSPTO_1240	-	alginate biosynthesis protein AlgK
1208	 60.36	0	1363409..1364581	-	390	28868452	-	PSPTO_1241	-	alginate biosynthesis protein Alg44
1209	 58.77	0	1364622..1366103	-	493	28868453	-	PSPTO_1242	-	alginate biosynthesis protein Alg8
1210	 57.63	0	1366206..1367522	-	438	28868454	algD	PSPTO_1243	-	GDP-mannose 6-dehydrogenase AlgD
1211	 58.46	0	1368333..1369112	-	259	28868455	-	PSPTO_1244	-	hypothetical protein
1212	 60.55	0	1369648..1370481	+	277	28868456	-	PSPTO_1245	-	polysaccharide deacetylase family protein
1213	 56.49	0	1370776..1372170	+	464	28868457	-	PSPTO_1246	-	PhoH-like protein
1214	 58.44	0	1372312..1372797	+	161	28868458	moaC	PSPTO_1247	-	molybdenum cofactor biosynthesis protein C
1215	 56.50	0	1372794..1373039	+	81	28868459	moaD	PSPTO_1248	-	molybdenum cofactor biosynthesis protein D
1216	 61.30	0	1373042..1373488	+	148	28868460	moaE	PSPTO_1249	-	molybdenum cofactor biosynthesis protein E
1217	 56.87	0	1373711..1374394	+	227	28868461	-	PSPTO_1250	-	CsgG family protein
1218	 56.35	0	1374416..1374793	+	125	28868462	-	PSPTO_1251	-	hypothetical protein
1219	 60.94	0	1374790..1375452	+	220	28868463	-	PSPTO_1252	-	putative lipoprotein
1220	 60.89	0	1375533..1376726	-	397	162533080	rhlB	PSPTO_1253	-	ATP-dependent RNA helicase RhlB
1221	 60.45	0	1377109..1377768	-	219	28868465	estA	PSPTO_1254	-	carboxylesterase
1222	 58.02	0	1378253..1379281	+	342	28868466	-	PSPTO_1255	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1223	 57.19	0	1379352..1380533	+	393	28868467	-	PSPTO_1256	-	amino acid ABC transporter, permease protein
1224	 58.38	0	1380544..1381641	+	365	28868468	-	PSPTO_1257	-	amino acid ABC transporter, permease protein
1225	 57.52	0	1381652..1382416	+	254	28868469	-	PSPTO_1258	-	amino acid ABC transporter, ATP-binding protein
1226	 50.28	-2	1382406..1382582	-	58	28868470	-	PSPTO_1259	-	hypothetical protein
1227	 63.90	+1	1382572..1383801	+	409	28868471	-	PSPTO_1260	-	cyanate MFS transporter
1228	 61.71	0	1383842..1384366	+	174	28868472	-	PSPTO_1261	-	hypothetical protein
1229	 61.32	0	1384359..1384676	+	105	28868473	-	PSPTO_1262	-	GIY-YIG nuclease superfamily protein
1230	 60.45	0	1384741..1385673	+	310	28868474	-	PSPTO_1263	-	hypothetical protein
1231	 57.75	0	1385856..1386068	-	70	28868475	nrdH	PSPTO_1264	-	glutaredoxin NrdH
1232	 57.98	0	1386213..1387214	-	333	28868476	-	PSPTO_1265	-	nucleoid-associated protein NdpA
1233	 51.77	-1	1387607..1387888	+	93	28868477	-	PSPTO_1266	-	HU family DNA-binding protein
1234	 61.31	0	1388286..1389311	-	341	162533079	-	PSPTO_1267	-	putative SAM-dependent methyltransferase
1235	 60.84	0	1389375..1392221	-	948	28868479	valS	PSPTO_1268	-	valyl-tRNA synthetase
1236	 58.92	0	1392581..1393006	-	141	28868480	-	PSPTO_1269	-	hypothetical protein
1237	 63.40	+1	1393014..1393442	-	142	28868481	holC	PSPTO_1270	-	DNA polymerase III subunit chi
1238	 61.03	0	1393501..1394991	-	496	28868482	pepA	PSPTO_1271	-	leucyl aminopeptidase
1239	 60.02	0	1395310..1396437	+	375	28868483	-	PSPTO_1272	-	hypothetical protein
1240	 60.55	0	1396424..1397485	+	353	28868484	-	PSPTO_1273	-	hypothetical protein
1241	 53.52	-1	1397612..1397824	-	70	28868485	-	PSPTO_1274	-	cold shock domain-contain protein
1242	 62.11	0	1398228..1399457	-	409	28868486	gcvT-2	PSPTO_1275	-	glycine cleavage system T protein
1243	 63.18	+1	1399420..1402284	-	954	28868487	gcvP	PSPTO_1276	-	glycine dehydrogenase
1244	 59.90	0	1402295..1402678	-	127	28868488	gcvH-2	PSPTO_1277	-	glycine cleavage system protein H
1245	 58.97	0	1402983..1405100	-	705	28868489	-	PSPTO_1278	-	sensory box protein/response regulator
1246	 61.43	0	1407395..1408903	-	502	28868490	-	PSPTO_1280	-	transcriptional regulator TyrR, putative
1247	 57.70	0	1409228..1409584	-	118	28868491	-	PSPTO_1281	-	hypothetical protein
1248	 58.17	0	1409689..1410147	-	152	28868492	-	PSPTO_1282	-	hypothetical protein
1249	 59.22	0	1410144..1410908	-	254	28868493	-	PSPTO_1283	-	heme oxygenase, putative
1250	 61.73	0	1410889..1413462	-	857	28868494	-	PSPTO_1284	-	TonB-dependent outer membrane heme receptor
1251	 63.36	+1	1413583..1414488	-	301	28868495	-	PSPTO_1285	-	regulatory protein, putative
1252	 59.67	0	1414616..1415158	-	180	28868496	-	PSPTO_1286	-	RNA polymerase sigma-70 family protein
1253	 60.48	0	1415258..1416259	-	333	28868497	gap-1	PSPTO_1287	-	glyceraldehyde 3-phosphate dehydrogenase, type I
1254	 60.26	0	1416479..1418305	+	608	28868498	edd	PSPTO_1288	-	phosphogluconate dehydratase
1255	 62.42	0	1418302..1419267	+	321	28868499	glk	PSPTO_1289	-	glucokinase
1256	 60.03	0	1419318..1420055	+	245	28868500	-	PSPTO_1290	-	DNA-binding response regulator
1257	 61.76	0	1420117..1421523	+	468	28868501	-	PSPTO_1291	-	sensor histidine kinase
1258	 57.58	0	1421695..1422981	+	428	28868502	-	PSPTO_1292	-	glucose ABC transporter, periplasmic glucose-binding protein, putative
1259	 58.86	0	1423086..1423994	+	302	28868503	-	PSPTO_1293	-	glucose ABC transporter, permease protein, putative
1260	 57.80	0	1423987..1424832	+	281	28868504	-	PSPTO_1294	-	glucose ABC transporter, permease protein, putative
1261	 58.91	0	1424835..1425995	+	386	28868505	gltK	PSPTO_1295	-	glucose ABC transporter, ATP-binding protein
1262	 56.17	0	1426129..1427490	+	453	28868506	oprB	PSPTO_1296	-	porin B
1263	 54.81	0	1427498..1427632	+	44	28868507	-	PSPTO_1297	-	hypothetical protein
1264	 63.36	+1	1427604..1428479	+	291	28868508	-	PSPTO_1298	-	hypothetical protein
1265	 61.94	0	1428566..1429432	-	288	28868509	hexR	PSPTO_1299	-	DNA-binding transcriptional regulator HexR
1266	 59.52	0	1429651..1431120	+	489	28868510	zwf-1	PSPTO_1300	-	glucose-6-phosphate 1-dehydrogenase
1267	 65.41	+1	1431107..1431820	+	237	28868511	pgl	PSPTO_1301	-	6-phosphogluconolactonase
1268	 61.78	0	1431849..1432523	+	224	28868512	eda-1	PSPTO_1302	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1269	 59.17	0	1432654..1432893	-	79	28868513	-	PSPTO_1303	-	hypothetical protein
1270	 53.72	-1	1433113..1433583	+	156	28868514	-	PSPTO_1304	-	hypothetical protein
1271	 58.38	0	1433678..1435186	-	502	28868515	-	PSPTO_1305	-	GGDEF domain-containing protein
1272	 61.68	0	1435390..1436754	-	454	28868516	-	PSPTO_1306	-	heavy metal sensor histidine kinase
1273	 62.83	+1	1436744..1437421	-	225	28868517	-	PSPTO_1307	-	DNA-binding heavy metal response regulator
1274	 62.80	+1	1437432..1440536	-	1034	28868518	-	PSPTO_1308	-	AcrB/AcrD/AcrF family protein
1275	 61.35	0	1440533..1441699	-	388	28868519	-	PSPTO_1309	-	HlyD family secretion protein
1276	 54.19	-1	1441968..1442945	+	325	28868520	-	PSPTO_1310	-	ISPssy, transposase
1277	 55.29	0	1443185..1443562	+	125	28868521	-	PSPTO_1311	-	hypothetical protein
1278	 54.70	0	1443875..1444459	+	194	28868522	-	PSPTO_1312	-	fimbral biosynthesis protein
1279	 54.98	0	1444523..1445275	+	250	28868523	-	PSPTO_1313	-	pili assembly chaperone
1280	 54.19	-1	1446346..1447323	-	325	28868524	-	PSPTO_1315	-	ISPssy, transposase
1281	 60.79	0	1449166..1449948	+	260	28868525	-	PSPTO_1317	-	fimbral chaperone protein
1282	 56.86	0	1449950..1450948	+	332	28868526	-	PSPTO_1318	-	hypothetical protein
1283	 59.38	0	1450996..1451283	+	95	28868527	-	PSPTO_1319	-	hypothetical protein
1284	 58.30	0	1451301..1452053	-	250	28868528	-	PSPTO_1320	-	hypothetical protein
1285	 60.90	0	1452046..1452201	+	51	28868529	-	PSPTO_1321	-	hypothetical protein
1286	 62.66	0	1452168..1452641	-	157	28868530	-	PSPTO_1322	-	acetyltransferase
1287	 58.31	0	1452704..1453648	-	314	28868531	-	PSPTO_1323	-	chemotaxis protein CheV, putative
1288	 59.02	0	1454243..1454752	+	169	28868532	dsbB	PSPTO_1324	-	disulfide bond formation protein B
1289	 53.82	-1	1455218..1456159	+	313	28868533	cyoA	PSPTO_1325	-	cytochrome o ubiquinol oxidase, subunit II
1290	 57.77	0	1456163..1458175	+	670	28868534	cyoB	PSPTO_1326	-	cytochrome o ubiquinol oxidase, subunit I
1291	 57.66	0	1458179..1458811	+	210	28868535	cyoC	PSPTO_1327	-	cytochrome o ubiquinol oxidase, subunit III
1292	 52.25	-1	1458811..1459143	+	110	28868536	cyoD	PSPTO_1328	-	cytochrome o ubiquinol oxidase, subunit IV
1293	 55.41	0	1459154..1460041	+	295	28868537	cyoE	PSPTO_1329	-	protoheme IX farnesyltransferase
1294	 56.27	0	1460299..1461183	+	294	28868538	-	PSPTO_1330	-	glycosyl transferase, group 2 family protein
1295	 56.63	0	1461281..1461868	+	195	28868539	-	PSPTO_1331	-	acetyltransferase
1296	 58.73	0	1462008..1463027	+	339	28868540	ilvE	PSPTO_1332	-	branched-chain amino acid aminotransferase
1297	 58.33	0	1463091..1464086	-	331	28868541	-	PSPTO_1333	-	hypothetical protein
1298	 59.77	0	1464236..1465888	-	550	28868542	-	PSPTO_1334	-	methyl-accepting chemotaxis protein
1299	 55.68	0	1466008..1466799	-	263	28868543	-	PSPTO_1335	-	cyclohexadienyl dehydratase, putative
1300	 57.24	0	1466973..1467269	+	98	28868544	-	PSPTO_1336	-	ArsR family transcriptional regulator
1301	 61.13	0	1467326..1468336	+	336	28868545	-	PSPTO_1337	-	oxidoreductase, zinc-binding
1302	 59.73	0	1468578..1469096	+	172	28868546	sodC	PSPTO_1338	-	superoxide dismutase, Cu-Zn
1303	 59.09	0	1469164..1470351	-	395	28868547	-	PSPTO_1339	-	hypothetical protein
1304	 57.66	0	1470549..1471325	-	258	28868548	-	PSPTO_1340	-	carbonic anhydrase
1305	 57.89	0	1471584..1472552	-	322	28868549	-	PSPTO_1341	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
