IslandPathversion 1.0

IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

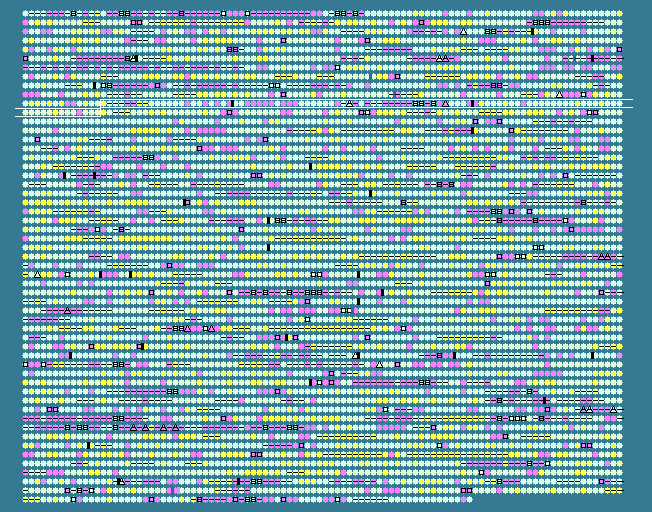

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1014	 63.64	+1	1140091..1141347	+	418	28868258	aroA	PSPTO_1041	-	3-phosphoshikimate 1-carboxyvinyltransferase
1015	 61.24	0	1141370..1142032	-	220	28868259	-	PSPTO_1042	-	transcriptional activator ChrR
1016	 56.65	0	1142032..1142640	-	202	28868260	-	PSPTO_1043	-	RNA polymerase sigma factor RpoE
1017	 55.56	0	1143054..1143233	-	59	28868261	-	PSPTO_1044	-	hypothetical protein
1018	 54.07	-1	1143628..1144032	-	134	28868262	-	PSPTO_1045	-	virulence-associated protein, putative
1019	 51.95	-1	1144032..1144262	-	76	28868263	-	PSPTO_1046	-	virulence-associated protein, putative
1020	 63.38	+1	1144377..1145258	-	293	28868264	-	PSPTO_1047	-	hypothetical protein
1021	 63.79	+1	1145233..1146204	-	323	28868265	-	PSPTO_1048	-	hypothetical protein
1022	 60.42	0	1146288..1147568	-	426	28868266	dctM	PSPTO_1049	-	TRAP dicarboxylate transporter, DctM subunit
1023	 59.47	0	1147569..1148096	-	175	28868267	-	PSPTO_1050	-	TRAP dicarboxylate transporter, DctQ subunit, putative
1024	 58.87	0	1148160..1149185	-	341	28868268	dctP	PSPTO_1051	-	TRAP dicarboxylate transporter, DctP subunit
1025	 60.90	0	1149242..1150126	-	294	28868269	-	PSPTO_1052	-	senescence marker protein-30 family protein
1026	 59.90	0	1150183..1151010	-	275	28868270	-	PSPTO_1053	-	hypothetical protein
1027	 58.87	0	1151189..1152457	-	422	28868271	-	PSPTO_1054	-	OprD family outer membrane porin
1028	 52.97	-1	1152451..1152669	+	72	28868272	-	PSPTO_1055	-	hypothetical protein
1029	 57.91	0	1152922..1153686	+	254	28868273	-	PSPTO_1056	-	short chain dehydrogenase/reductase family oxidoreductase
1030	 55.96	0	1153738..1154148	-	136	28868274	-	PSPTO_1057	-	hypothetical protein
1031	 52.92	-1	1154148..1154387	-	79	28868275	-	PSPTO_1058	-	hypothetical protein
1032	 59.58	0	1154539..1156428	-	629	28868276	-	PSPTO_1059	-	methyl-accepting chemotaxis protein
1033	 51.39	-1	1156430..1156573	+	47	28868277	-	PSPTO_1060	-	hypothetical protein
1034	 57.42	0	1156819..1158699	+	626	28868278	-	PSPTO_1061	-	methyl-accepting chemotaxis protein
1035	 53.41	-1	1158828..1159091	-	87	28868279	-	PSPTO_1062	-	hypothetical protein
1036	 55.35	0	1162781..1163902	-	373	28868280	-	PSPTO_1065	-	DnaJ domain-containing protein
1037	 61.08	0	1164246..1166303	+	685	28868281	-	PSPTO_1066	-	methyl-accepting chemotaxis protein
1038	 54.44	-1	1166480..1167493	+	337	28868282	-	PSPTO_1067	-	glycosyl transferase, group 2 family protein
1039	 51.99	-1	1167577..1169136	-	519	28868283	-	PSPTO_1068	-	hypothetical protein
1040	 46.62	-2	1169280..1169678	-	132	28868284	-	PSPTO_1069	-	hypothetical protein
1041	 53.84	-1	1169689..1170639	-	316	28868285	-	PSPTO_1070	-	lipopolysaccharide biosynthesis protein
1042	 53.84	-1	1170626..1171576	-	316	28868286	-	PSPTO_1071	-	glycosyl transferase, group 2 family protein
1043	 56.00	0	1171573..1172688	-	371	28868287	-	PSPTO_1072	-	aminotransferase
1044	 53.01	-1	1172691..1174586	-	631	28868288	-	PSPTO_1073	-	hypothetical protein
1045	 52.45	-1	1174632..1179317	-	1561	28868289	-	PSPTO_1074	-	glycosyl transferase, group 2 family protein
1046	 55.02	0	1179310..1180674	-	454	28868290	-	PSPTO_1075	-	O-antigen ABC transporter, ATP-binding protein, putative
1047	 57.13	0	1180664..1181491	-	275	28868291	-	PSPTO_1076	-	O-antigen ABC transporter, permease protein, putative
1048	 55.31	0	1181491..1182036	-	181	28868292	rfbC-1	PSPTO_1077	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1049	 55.59	0	1182707..1183636	-	309	28868293	-	PSPTO_1078	-	lipopolysaccharide biosynthesis protein
1050	 55.89	0	1183678..1184568	-	296	28868294	rfbA	PSPTO_1079	-	glucose-1-phosphate thymidylyltransferase
1051	 57.28	0	1184565..1185470	-	301	28868295	rfbD	PSPTO_1080	-	dTDP-4-dehydrorhamnose reductase
1052	 55.59	0	1185470..1186543	-	357	28868296	rfbB-1	PSPTO_1081	-	dTDP-glucose 4,6-dehydratase
1053	 53.88	-1	1187114..1187332	+	72	28868297	-	PSPTO_1082	-	hypothetical protein
1054	 58.96	0	1188596..1188997	-	133	28868298	-	PSPTO_1083	-	S24 family peptidase
1055	 59.93	0	1190000..1190890	-	296	28868299	-	PSPTO_1084	-	integrase/recombinase XerD, putative
1056	 54.23	-1	1190965..1191342	-	125	28868300	-	PSPTO_1085	-	hypothetical protein
1057	 58.64	0	1191539..1193269	+	576	28868301	hsdM	PSPTO_1086	-	type I restriction-modification system, M subunit
1058	 51.06	-1	1193259..1194527	+	422	28868302	-	PSPTO_1087	-	type I restriction-modification system, S subunit
1059	 58.50	0	1194524..1195576	+	350	28868303	-	PSPTO_1088	-	hypothetical protein
1060	 57.48	0	1195573..1198695	+	1040	28868304	-	PSPTO_1089	-	type I restriction-modification enzyme, R subunit, putative
1061	 37.93	-2	1198881..1199858	-	325	28868305	-	PSPTO_1090	-	hypothetical protein
1062	 38.85	-2	1199858..1200274	-	138	28868306	-	PSPTO_1091	-	hypothetical protein
1063	 46.03	-2	1201192..1201506	+	104	28868307	mobB-1	PSPTO_1092	-	mobilization protein MobB
1064	 52.77	-1	1201509..1203926	+	805	28868308	-	PSPTO_1093	-	relaxase/mobilization nuclease domain-containing protein
1065	 52.65	-1	1203937..1204314	+	125	28868309	-	PSPTO_1094	-	hypothetical protein
1066	 59.24	0	1205057..1206079	+	340	28868310	-	PSPTO_1095	-	ISPsy4, transposase
1067	 57.78	0	1206076..1206885	+	269	28868311	-	PSPTO_1096	-	transposase/IS protein
1068	 51.21	-1	1207129..1209657	+	842	28868312	-	PSPTO_1097	-	hypothetical protein
1069	 56.31	0	1211249..1212802	-	517	28868313	-	PSPTO_1098	-	ISPsy5, transposase
1070	 48.33	-2	1212820..1213179	-	119	28868314	-	PSPTO_1099	-	ISPsy5, Orf1
1071	 52.86	-1	1214486..1215673	-	395	28868315	-	PSPTO_1100	-	phage integrase family site specific recombinase
1072	 58.49	0	1215889..1216989	-	366	28868316	ychF	PSPTO_1101	-	translation-associated GTPase
1073	 60.34	0	1217011..1217595	-	194	28868317	pth	PSPTO_1102	-	peptidyl-tRNA hydrolase
1074	 56.86	0	1217760..1218371	-	203	28868318	-	PSPTO_1103	-	50S ribosomal protein L25/general stress protein Ctc
1075	 54.99	0	1218509..1219450	-	313	28868319	prsA	PSPTO_1104	-	ribose-phosphate pyrophosphokinase
1076	 54.42	-1	1219609..1220457	-	282	28868320	ispE	PSPTO_1105	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1077	 62.46	0	1220460..1221077	-	205	28868321	lolB	PSPTO_1106	-	outer membrane lipoprotein LolB
1078	 60.71	0	1221082..1222809	-	575	28868322	-	PSPTO_1107	-	TPR domain-containing protein
1079	 61.35	0	1223036..1224313	+	425	28868323	hemA	PSPTO_1108	-	glutamyl-tRNA reductase
1080	 59.46	0	1224310..1225392	+	360	28868324	prfA	PSPTO_1109	-	peptide chain release factor 1
1081	 64.27	+1	1225393..1226226	+	277	28868325	hemK	PSPTO_1110	-	hemK protein
1082	 61.67	0	1226211..1226990	+	259	28868326	moeB	PSPTO_1111	-	molybdopterin biosynthesis protein MoeB
1083	 58.70	0	1226983..1227810	+	275	28868327	murI	PSPTO_1112	-	glutamate racemase
1084	 53.85	-1	1227846..1228430	-	194	28868328	-	PSPTO_1113	-	hypothetical protein
1085	 55.56	0	1228770..1228994	-	74	28868329	-	PSPTO_1114	-	hypothetical protein
1086	 60.32	0	1229099..1229602	-	167	28868330	-	PSPTO_1115	-	hypothetical protein
1087	 58.23	0	1229595..1230863	-	422	28868331	cfa	PSPTO_1116	-	cyclopropane-fatty-acyl-phospholipid synthase
1088	 61.26	0	1230850..1231533	-	227	28868332	-	PSPTO_1117	-	hypothetical protein
1089	 59.86	0	1231647..1232894	-	415	28868333	-	PSPTO_1118	-	amine oxidase, flavin-containing
1090	 61.60	0	1232891..1233679	-	262	28868334	-	PSPTO_1119	-	short chain dehydrogenase/reductase family oxidoreductase
1091	 58.39	0	1233676..1234098	-	140	28868335	-	PSPTO_1120	-	hypothetical protein
1092	 60.18	0	1234091..1235539	-	482	28868336	phrB	PSPTO_1121	-	deoxyribodipyrimidine photolyase
1093	 62.93	+1	1235549..1236457	-	302	28868337	-	PSPTO_1122	-	MerR family transcriptional regulator
1094	 58.10	0	1236463..1237419	-	318	28868338	-	PSPTO_1123	-	hypothetical protein
1095	 56.10	0	1237618..1237740	-	40	28868339	-	PSPTO_1124	-	hypothetical protein
1096	 58.33	0	1237715..1237930	-	71	28868340	-	PSPTO_1125	-	hypothetical protein
1097	 64.54	+1	1237927..1238913	-	328	28868341	-	PSPTO_1126	-	amine oxidase, flavin-containing
1098	 60.13	0	1239201..1240103	+	300	28868342	-	PSPTO_1127	-	hypothetical protein
1099	 58.46	0	1240127..1241149	+	340	28868343	hemH	PSPTO_1128	-	ferrochelatase
1100	 60.11	0	1241259..1242479	-	406	28868344	uraA	PSPTO_1129	-	uracil transporter
1101	 60.56	0	1242541..1243179	-	212	28868345	upp	PSPTO_1130	-	uracil phosphoribosyltransferase
1102	 59.50	0	1243387..1243944	+	185	28868346	hpt	PSPTO_1131	-	hypoxanthine-guanine phosphoribosyltransferase
1103	 58.38	0	1244010..1244504	+	164	28868347	-	PSPTO_1132	-	hypothetical protein
1104	 58.74	0	1245042..1245773	-	243	28868348	-	PSPTO_1133	-	amino acid ABC transporter, permease protein
1105	 58.39	0	1245872..1246693	-	273	28868349	-	PSPTO_1134	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1106	 63.43	+1	1246804..1247700	+	298	28868350	-	PSPTO_1135	-	homocysteine S-methyltransferase family protein
1107	 59.11	0	1247783..1249291	-	502	28868351	mqo	PSPTO_1136	-	malate:quinone oxidoreductase
1108	 61.26	0	1249976..1250086	+	36	28868352	-	PSPTO_1137	-	hypothetical protein
1109	 61.00	0	1250473..1251054	+	193	28868353	-	PSPTO_1138	-	putative lipoprotein
1110	 54.76	0	1251135..1251386	-	83	28868354	-	PSPTO_1139	-	hypothetical protein
1111	 59.88	0	1251599..1252762	-	387	28868355	-	PSPTO_1140	-	hypothetical protein
1112	 56.83	0	1252869..1253051	+	60	28868356	-	PSPTO_1141	-	hypothetical protein
1113	 60.15	0	1253051..1253311	+	86	28868357	-	PSPTO_1142	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
