IslandPath Analysis: Pseudomonas syringae pv. tomato str. DC3000

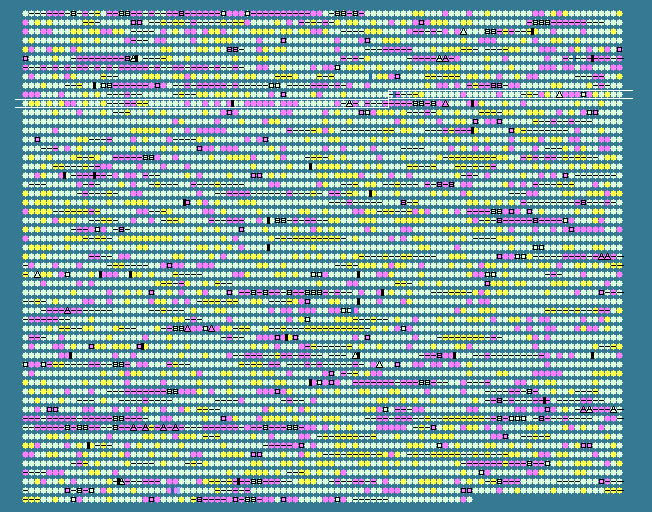

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.61 STD DEV: 4.14
Pseudomonas syringae pv. tomato str. DC3000, complete genome - 1..6397126
5475 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
962	 56.24	0	1070947..1071579	+	210	28868206	-	PSPTO_0986	-	putative sulfite oxidase subunit YedZ
963	 50.22	-2	1077352..1077582	+	76	28868207	-	PSPTO_0987	-	hypothetical protein
964	 59.50	0	1077641..1080460	-	939	28868208	-	PSPTO_0988	-	hypothetical protein
965	 61.02	0	1080457..1081164	-	235	28868209	-	PSPTO_0989	-	hypothetical protein
966	 62.36	0	1081154..1082431	-	425	28868210	-	PSPTO_0990	-	hypothetical protein
967	 65.30	+1	1082577..1083380	+	267	28868211	-	PSPTO_0991	-	hypothetical protein
968	 56.14	0	1083373..1083828	+	151	28868212	rimI	PSPTO_0992	-	ribosomal-protein-alanine acetyltransferase
969	 59.07	0	1083838..1084245	-	135	28868213	-	PSPTO_0993	-	hypothetical protein
970	 59.31	0	1084494..1085132	+	212	28868214	-	PSPTO_0994	-	carbonic anhydrase
971	 59.02	0	1085145..1086818	-	557	28868215	-	PSPTO_0995	-	methyl-accepting chemotaxis protein
972	 60.61	0	1086926..1087585	-	219	28868216	-	PSPTO_0996	-	HD domain-containing protein
973	 59.28	0	1087661..1089664	-	667	28868217	-	PSPTO_0997	-	acyltransferase family protein
974	 54.93	0	1089883..1090257	+	124	28868218	-	PSPTO_0998	-	alkylphosphonate utilization operon protein PhnA, putative
975	 61.36	0	1090603..1091826	+	407	28868219	-	PSPTO_0999	-	sugar efflux transporter
976	 57.92	0	1091889..1092608	-	239	28868220	-	PSPTO_1000	-	CDP-alcohol phosphatidyltransferase family protein
977	 59.23	0	1092695..1094710	-	671	28868221	-	PSPTO_1001	-	hypothetical protein
978	 57.99	0	1096637..1097074	-	145	28868222	-	PSPTO_1003	-	acetyltransferase
979	 56.76	0	1097150..1098391	-	413	28868223	-	PSPTO_1004	-	GGDEF domain-containing protein
980	 53.87	-1	1098690..1099736	+	348	28868224	gmd	PSPTO_1005	-	GDP-mannose 4,6-dehydratase
981	 56.86	0	1099737..1099838	+	33	28868225	-	PSPTO_1006	-	hypothetical protein
982	 58.75	0	1099814..1100773	-	319	28868226	-	PSPTO_1007	-	GDP-6-deoxy-D-lyxo-4-hexulose reductase
983	 59.67	0	1100918..1102318	+	466	28868227	-	PSPTO_1008	-	methyl-accepting chemotaxis protein
984	 58.05	0	1102902..1103528	-	208	28868228	-	PSPTO_1009	-	isochorismatase family protein
985	 62.28	0	1103683..1105254	-	523	28868229	phoD	PSPTO_1010	-	alkaline phosphatase D
986	 60.11	0	1105251..1105814	-	187	28868230	-	PSPTO_1011	-	acetyltransferase
987	 54.66	0	1106014..1106421	+	135	28868231	-	PSPTO_1012	-	TonB system transport protein
988	 64.12	+1	1106421..1107206	+	261	28868232	-	PSPTO_1013	-	TonB domain-containing protein
989	 57.56	0	1107227..1109509	+	760	28868233	-	PSPTO_1014	-	TonB-dependent receptor, putative
990	 58.36	0	1109641..1110651	+	336	28868234	-	PSPTO_1015	-	integrase/recombinase XerC, putative
991	 53.08	-1	1110675..1112279	+	534	28868235	-	PSPTO_1016	-	hypothetical protein
992	 48.33	-2	1112173..1112532	+	119	28868236	-	PSPTO_1017	-	ISPsy5, Orf1
993	 48.33	-2	1112778..1113137	+	119	28868237	-	PSPTO_1019	-	ISPsy5, Orf1
994	 56.31	0	1113155..1114708	+	517	28868238	-	PSPTO_1020	-	ISPsy5, transposase
995	 39.71	-2	1115514..1116344	-	276	28868239	hopAM1-1	PSPTO_1022	-	type III effector HopAM1-1
996	 62.66	0	1116554..1117102	+	182	28868240	-	PSPTO_1023	-	MotA/TolQ/ExbB proton channel family protein
997	 60.28	0	1117166..1118434	+	422	28868241	-	PSPTO_1024	-	phospholipase D family protein
998	 62.83	+1	1118505..1119704	+	399	28868242	-	PSPTO_1025	-	transglycosylase, putative
999	 60.99	0	1119987..1121132	+	381	28868243	wssA	PSPTO_1026	-	cell morphology protein
1000	 60.32	0	1121129..1123348	+	739	28868244	wssB	PSPTO_1027	-	cellulose synthase, catalytic subunit
1001	 61.70	0	1123363..1125618	+	751	28868245	-	PSPTO_1028	-	cellulose synthase regulator protein
1002	 65.02	+1	1125622..1126833	+	403	28868246	wssD	PSPTO_1029	-	endo-1,4-D-glucanase
1003	 63.93	+1	1127013..1130705	+	1230	28868247	wssE	PSPTO_1030	-	cellulose synthase operon protein C
1004	 60.51	0	1130721..1131386	+	221	28868248	wssF	PSPTO_1031	-	cell morphology protein
1005	 62.52	0	1131383..1132057	+	224	28868249	wssG	PSPTO_1032	-	cell morphology protein
1006	 62.01	0	1132076..1133491	+	471	28868250	wssH	PSPTO_1033	-	cellulose acetylase, subunit WssH
1007	 63.80	+1	1133503..1134654	+	383	28868251	wssI	PSPTO_1034	-	cell morphology protein
1008	 53.55	-1	1135027..1136406	-	459	28868252	-	PSPTO_1035	-	colicin/pyosin nuclease family protein
1009	 47.62	-2	1136613..1137074	-	153	28868253	-	PSPTO_1036	-	hypothetical protein
1010	 61.26	0	1137307..1137768	-	153	28868254	-	PSPTO_1037	-	hypothetical protein
1011	 63.33	+1	1137765..1138214	-	149	28868255	-	PSPTO_1038	-	hypothetical protein
1012	 60.30	0	1138505..1139509	+	334	28868256	-	PSPTO_1039	-	response regulator
1013	 55.28	0	1139513..1139995	+	160	28868257	-	PSPTO_1040	-	sensory box protein
1014	 63.64	+1	1140091..1141347	+	418	28868258	aroA	PSPTO_1041	-	3-phosphoshikimate 1-carboxyvinyltransferase
1015	 61.24	0	1141370..1142032	-	220	28868259	-	PSPTO_1042	-	transcriptional activator ChrR
1016	 56.65	0	1142032..1142640	-	202	28868260	-	PSPTO_1043	-	RNA polymerase sigma factor RpoE
1017	 55.56	0	1143054..1143233	-	59	28868261	-	PSPTO_1044	-	hypothetical protein
1018	 54.07	-1	1143628..1144032	-	134	28868262	-	PSPTO_1045	-	virulence-associated protein, putative
1019	 51.95	-1	1144032..1144262	-	76	28868263	-	PSPTO_1046	-	virulence-associated protein, putative
1020	 63.38	+1	1144377..1145258	-	293	28868264	-	PSPTO_1047	-	hypothetical protein
1021	 63.79	+1	1145233..1146204	-	323	28868265	-	PSPTO_1048	-	hypothetical protein
1022	 60.42	0	1146288..1147568	-	426	28868266	dctM	PSPTO_1049	-	TRAP dicarboxylate transporter, DctM subunit
1023	 59.47	0	1147569..1148096	-	175	28868267	-	PSPTO_1050	-	TRAP dicarboxylate transporter, DctQ subunit, putative
1024	 58.87	0	1148160..1149185	-	341	28868268	dctP	PSPTO_1051	-	TRAP dicarboxylate transporter, DctP subunit
1025	 60.90	0	1149242..1150126	-	294	28868269	-	PSPTO_1052	-	senescence marker protein-30 family protein
1026	 59.90	0	1150183..1151010	-	275	28868270	-	PSPTO_1053	-	hypothetical protein
1027	 58.87	0	1151189..1152457	-	422	28868271	-	PSPTO_1054	-	OprD family outer membrane porin
1028	 52.97	-1	1152451..1152669	+	72	28868272	-	PSPTO_1055	-	hypothetical protein
1029	 57.91	0	1152922..1153686	+	254	28868273	-	PSPTO_1056	-	short chain dehydrogenase/reductase family oxidoreductase
1030	 55.96	0	1153738..1154148	-	136	28868274	-	PSPTO_1057	-	hypothetical protein
1031	 52.92	-1	1154148..1154387	-	79	28868275	-	PSPTO_1058	-	hypothetical protein
1032	 59.58	0	1154539..1156428	-	629	28868276	-	PSPTO_1059	-	methyl-accepting chemotaxis protein
1033	 51.39	-1	1156430..1156573	+	47	28868277	-	PSPTO_1060	-	hypothetical protein
1034	 57.42	0	1156819..1158699	+	626	28868278	-	PSPTO_1061	-	methyl-accepting chemotaxis protein
1035	 53.41	-1	1158828..1159091	-	87	28868279	-	PSPTO_1062	-	hypothetical protein
1036	 55.35	0	1162781..1163902	-	373	28868280	-	PSPTO_1065	-	DnaJ domain-containing protein
1037	 61.08	0	1164246..1166303	+	685	28868281	-	PSPTO_1066	-	methyl-accepting chemotaxis protein
1038	 54.44	-1	1166480..1167493	+	337	28868282	-	PSPTO_1067	-	glycosyl transferase, group 2 family protein
1039	 51.99	-1	1167577..1169136	-	519	28868283	-	PSPTO_1068	-	hypothetical protein
1040	 46.62	-2	1169280..1169678	-	132	28868284	-	PSPTO_1069	-	hypothetical protein
1041	 53.84	-1	1169689..1170639	-	316	28868285	-	PSPTO_1070	-	lipopolysaccharide biosynthesis protein
1042	 53.84	-1	1170626..1171576	-	316	28868286	-	PSPTO_1071	-	glycosyl transferase, group 2 family protein
1043	 56.00	0	1171573..1172688	-	371	28868287	-	PSPTO_1072	-	aminotransferase
1044	 53.01	-1	1172691..1174586	-	631	28868288	-	PSPTO_1073	-	hypothetical protein
1045	 52.45	-1	1174632..1179317	-	1561	28868289	-	PSPTO_1074	-	glycosyl transferase, group 2 family protein
1046	 55.02	0	1179310..1180674	-	454	28868290	-	PSPTO_1075	-	O-antigen ABC transporter, ATP-binding protein, putative
1047	 57.13	0	1180664..1181491	-	275	28868291	-	PSPTO_1076	-	O-antigen ABC transporter, permease protein, putative
1048	 55.31	0	1181491..1182036	-	181	28868292	rfbC-1	PSPTO_1077	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1049	 55.59	0	1182707..1183636	-	309	28868293	-	PSPTO_1078	-	lipopolysaccharide biosynthesis protein
1050	 55.89	0	1183678..1184568	-	296	28868294	rfbA	PSPTO_1079	-	glucose-1-phosphate thymidylyltransferase
1051	 57.28	0	1184565..1185470	-	301	28868295	rfbD	PSPTO_1080	-	dTDP-4-dehydrorhamnose reductase
1052	 55.59	0	1185470..1186543	-	357	28868296	rfbB-1	PSPTO_1081	-	dTDP-glucose 4,6-dehydratase
1053	 53.88	-1	1187114..1187332	+	72	28868297	-	PSPTO_1082	-	hypothetical protein
1054	 58.96	0	1188596..1188997	-	133	28868298	-	PSPTO_1083	-	S24 family peptidase
1055	 59.93	0	1190000..1190890	-	296	28868299	-	PSPTO_1084	-	integrase/recombinase XerD, putative
1056	 54.23	-1	1190965..1191342	-	125	28868300	-	PSPTO_1085	-	hypothetical protein
1057	 58.64	0	1191539..1193269	+	576	28868301	hsdM	PSPTO_1086	-	type I restriction-modification system, M subunit
1058	 51.06	-1	1193259..1194527	+	422	28868302	-	PSPTO_1087	-	type I restriction-modification system, S subunit
1059	 58.50	0	1194524..1195576	+	350	28868303	-	PSPTO_1088	-	hypothetical protein
1060	 57.48	0	1195573..1198695	+	1040	28868304	-	PSPTO_1089	-	type I restriction-modification enzyme, R subunit, putative
1061	 37.93	-2	1198881..1199858	-	325	28868305	-	PSPTO_1090	-	hypothetical protein
58.61	MEAN

4.14	STD DEV
