IslandPath Analysis: Psychrobacter sp. PRwf-1

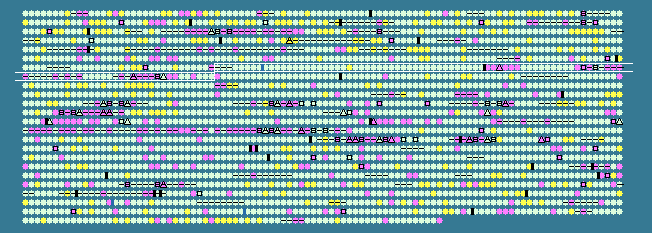

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
633	 47.24	0	768315..769961	-	548	148652450	groEL	PsycPRwf_0638	-	chaperonin GroEL
634	 43.64	0	770108..770398	-	96	148652451	groES	PsycPRwf_0639	-	co-chaperonin GroES
635	 43.19	0	770731..771288	+	185	148652452	-	PsycPRwf_0640	-	hypothetical protein
636	 46.19	0	771435..771644	+	69	148652453	-	PsycPRwf_0641	-	hypothetical protein
637	 48.14	0	771864..773072	-	402	148652454	-	PsycPRwf_0642	-	succinyl-diaminopimelate desuccinylase
638	 45.90	0	773196..774110	-	304	148652455	-	PsycPRwf_0643	-	2OG-Fe(II) oxygenase
639	 45.21	0	774303..775178	+	291	148652456	-	PsycPRwf_0644	-	hypothetical protein
640	 44.95	0	775237..776088	+	283	148652457	-	PsycPRwf_0645	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
641	 45.08	0	782045..782827	+	260	148652458	-	PsycPRwf_0646	-	short-chain dehydrogenase/reductase SDR
642	 48.07	0	783102..783515	+	137	148652459	-	PsycPRwf_0647	-	OsmC family protein
643	 48.60	0	783517..783981	+	154	148652460	-	PsycPRwf_0648	-	hypothetical protein
644	 45.48	0	784052..784726	+	224	148652461	-	PsycPRwf_0649	-	hypothetical protein
645	 46.87	0	784788..786560	-	590	148652462	-	PsycPRwf_0650	-	potassium/proton antiporter
646	 45.74	0	786697..788187	-	496	148652463	-	PsycPRwf_0651	-	ABC-2 type transporter
647	 49.12	0	788187..789662	-	491	148652464	-	PsycPRwf_0652	-	hypothetical protein
648	 48.98	0	789691..790764	-	357	148652465	-	PsycPRwf_0653	-	secretion protein HlyD family protein
649	 47.73	0	790825..792588	-	587	148652466	-	PsycPRwf_0654	-	outer membrane efflux protein
650	 44.44	0	793124..793870	-	248	148652467	-	PsycPRwf_0655	-	hypothetical protein
651	 48.19	0	794166..795686	-	506	148652468	-	PsycPRwf_0656	-	catalase
652	 45.03	0	796102..796443	+	113	148652469	-	PsycPRwf_0657	-	small multidrug resistance protein
653	 46.33	0	796464..797225	-	253	148652470	-	PsycPRwf_0658	-	ABC transporter related
654	 47.66	0	797321..798430	-	369	148652471	-	PsycPRwf_0659	-	transport system permease protein
655	 49.86	+1	798488..799546	-	352	148652472	-	PsycPRwf_0660	-	transport system permease protein
656	 45.35	0	799592..800656	-	354	148652473	-	PsycPRwf_0661	-	periplasmic binding protein
657	 47.66	0	801129..802643	+	504	148652474	-	PsycPRwf_0662	-	major facilitator transporter
658	 45.91	0	802804..803463	-	219	148652475	-	PsycPRwf_0663	-	two component LuxR family transcriptional regulator
659	 44.05	0	803592..805514	-	640	148652476	-	PsycPRwf_0664	-	integral membrane sensor signal transduction histidine kinase
660	 48.45	0	805820..807202	+	460	148652477	-	PsycPRwf_0665	-	nitrite transporter
661	 47.30	0	811540..813078	+	512	148652478	-	PsycPRwf_0667	-	nitrate reductase, beta subunit
662	 47.80	0	813080..813943	+	287	148652479	-	PsycPRwf_0668	-	nitrate reductase molybdenum cofactor assembly chaperone
663	 45.59	0	813956..814681	+	241	148652480	-	PsycPRwf_0669	-	respiratory nitrate reductase, gamma subunit
664	 46.87	0	814874..816055	+	393	148652481	-	PsycPRwf_0670	-	globin
665	 46.86	0	816170..817123	+	317	148652482	-	PsycPRwf_0671	-	PpiC-type peptidyl-prolyl cis-trans isomerase
666	 44.30	0	817190..817645	+	151	148652483	-	PsycPRwf_0672	-	hypothetical protein
667	 45.36	0	817706..818104	+	132	148652484	-	PsycPRwf_0673	-	hypothetical protein
668	 45.75	0	818334..818792	+	152	148652485	-	PsycPRwf_0674	-	arsenate reductase
669	 45.17	0	819045..819365	+	106	148652486	-	PsycPRwf_0675	-	FeoA family protein
670	 48.67	0	819423..821333	+	636	148652487	-	PsycPRwf_0676	-	ferrous iron transport protein B
671	 49.36	+1	821586..822290	-	234	148652488	-	PsycPRwf_0677	-	fumarylacetoacetate (FAA) hydrolase
672	 47.38	0	822507..823154	+	215	148652489	-	PsycPRwf_0678	-	glutathione S-transferase domain-containing protein
673	 47.06	0	823212..824078	-	288	148652490	-	PsycPRwf_0679	-	ABC transporter related
674	 45.33	0	824129..824803	-	224	148652491	-	PsycPRwf_0680	-	polar amino acid ABC transporter, inner membrane subunit
675	 45.38	0	824800..825546	-	248	148652492	-	PsycPRwf_0681	-	polar amino acid ABC transporter, inner membrane subunit
676	 43.08	0	825683..826687	-	334	148652493	-	PsycPRwf_0682	-	extracellular solute-binding protein
677	 48.15	0	827080..828078	-	332	148652494	-	PsycPRwf_0683	-	diaminopimelate dehydrogenase
678	 32.96	-2	828717..828986	-	89	148652495	-	PsycPRwf_0684	-	XRE family transcriptional regulator
679	 42.13	-1	829091..829306	+	71	148652496	-	PsycPRwf_0685	-	hypothetical protein
680	 41.04	-1	829315..830508	+	397	148652497	-	PsycPRwf_0686	-	phage integrase family protein
681	 38.14	-2	830511..830801	+	96	148652498	-	PsycPRwf_0687	-	hypothetical protein
682	 38.89	-2	831644..831751	-	35	148652499	-	PsycPRwf_0688	-	hypothetical protein
683	 41.57	-1	831815..832081	+	88	148652500	-	PsycPRwf_0689	-	Serine protease inhibitor-like protein
684	 43.49	0	832465..833724	-	419	148652501	-	PsycPRwf_0690	-	oxidoreductase FAD-binding subunit
685	 44.83	0	834047..834655	+	202	148652502	-	PsycPRwf_0691	-	cytochrome B561
686	 45.48	0	834675..835349	+	224	148652503	-	PsycPRwf_0692	-	two component transcriptional regulator
687	 46.11	0	835414..836877	+	487	148652504	-	PsycPRwf_0693	-	integral membrane sensor signal transduction histidine kinase
688	 46.53	0	836977..837567	+	196	148652505	-	PsycPRwf_0694	-	hypothetical protein
689	 45.95	0	837542..837874	+	110	148652506	-	PsycPRwf_0695	-	hypothetical protein
690	 47.37	0	837930..839012	+	360	148652507	-	PsycPRwf_0696	-	ApbE family lipoprotein
691	 42.69	0	839076..839759	+	227	148652508	-	PsycPRwf_0697	-	ferric reductase-like protein
692	 47.29	0	839841..840542	+	233	148652509	-	PsycPRwf_0698	-	hypothetical protein
693	 37.18	-2	840904..841734	-	276	148652510	-	PsycPRwf_0699	-	cation efflux protein
694	 39.74	-1	841813..842514	+	233	148652511	-	PsycPRwf_0700	-	IS1 transposase
695	 37.23	-2	842604..843245	+	213	148652512	-	PsycPRwf_0701	-	hypothetical protein
696	 44.71	0	843368..844237	-	289	148652513	-	PsycPRwf_0702	-	transposase, IS4 family protein
697	 45.65	0	844420..845304	-	294	148652514	-	PsycPRwf_0703	-	prolipoprotein diacylglyceryl transferase
698	 38.63	-2	845488..846960	-	490	148652515	-	PsycPRwf_0704	-	integral membrane sensor signal transduction histidine kinase
699	 41.22	-1	846962..847696	-	244	148652516	-	PsycPRwf_0705	-	two component heavy metal response transcriptional regulator
700	 37.92	-2	848022..848348	+	108	148652517	-	PsycPRwf_0706	-	hypothetical protein
701	 39.19	-1	848512..848784	+	90	148652518	-	PsycPRwf_0707	-	hypothetical protein
702	 44.95	0	848846..849439	+	197	148652519	-	PsycPRwf_0708	-	hypothetical protein
703	 45.85	0	849605..850243	+	212	148652520	-	PsycPRwf_0709	-	hypothetical protein
704	 46.22	0	850338..852044	+	568	148652521	-	PsycPRwf_0710	-	CopA family copper resistance protein
705	 43.76	0	852070..853134	+	354	148652522	-	PsycPRwf_0711	-	copper resistance B precursor
706	 38.99	-2	853230..853706	+	158	148652523	-	PsycPRwf_0712	-	hypothetical protein
707	 45.93	0	854282..856900	+	872	148652524	-	PsycPRwf_0713	-	heavy metal translocating P-type ATPase
708	 42.11	-1	856981..857265	+	94	148652525	-	PsycPRwf_0714	-	twin arginine-targeting protein translocase
709	 45.48	0	857321..857707	+	128	148652526	-	PsycPRwf_0715	-	twin-arginine translocation protein, TatB subunit
710	 38.97	-2	857704..858573	+	289	148652527	-	PsycPRwf_0716	-	Sec-independent protein translocase, TatC subunit
711	 47.60	0	858664..859953	+	429	148652528	-	PsycPRwf_0717	-	hypothetical protein
712	 47.85	0	860198..860383	+	61	148652529	-	PsycPRwf_0718	-	hypothetical protein
713	 43.60	0	860846..861439	-	197	148652530	-	PsycPRwf_0719	-	resolvase domain-containing protein
714	 46.69	0	861737..862717	-	326	148652531	-	PsycPRwf_0720	-	AraC family transcriptional regulator
715	 44.44	0	862824..863372	+	182	148652532	-	PsycPRwf_0721	-	isochorismatase hydrolase
716	 45.57	0	863452..864366	+	304	148652533	-	PsycPRwf_0722	-	Zn-dependent hydrolase of the beta-lactamase fold-like protein
717	 41.62	-1	864730..865851	-	373	148652534	-	PsycPRwf_0723	-	filamentation induced by cAMP protein Fic
718	 42.59	0	866779..866994	+	71	148652535	-	PsycPRwf_0725	-	hypothetical protein
719	 41.71	-1	867005..868210	+	401	148652536	-	PsycPRwf_0726	-	phage integrase family protein
720	 40.00	-1	868197..868496	+	99	148652537	-	PsycPRwf_0727	-	hypothetical protein
721	 38.24	-2	870006..872429	+	807	148652538	-	PsycPRwf_0728	-	hypothetical protein
722	 34.90	-2	872395..873222	+	275	148652539	-	PsycPRwf_0729	-	hypothetical protein
723	 41.41	-1	873285..873581	+	98	148652540	-	PsycPRwf_0730	-	transposase IS3/IS911 family protein
724	 43.86	0	873596..874450	+	284	148652541	-	PsycPRwf_0731	-	integrase catalytic subunit
725	 35.81	-2	874540..875265	+	241	148652542	-	PsycPRwf_0732	-	GntR family transcriptional regulator
726	 39.06	-2	875419..876081	-	220	148652543	-	PsycPRwf_0733	-	hypothetical protein
727	 45.43	0	876371..877015	-	214	148652544	-	PsycPRwf_0734	-	maleylacetoacetate isomerase
728	 45.32	0	877225..878058	+	277	148652545	-	PsycPRwf_0735	-	regulatory protein, IclR
729	 41.80	-1	878447..879355	-	302	148652546	-	PsycPRwf_0737	-	LysR family transcriptional regulator
730	 47.43	0	879585..880634	+	349	148652547	-	PsycPRwf_0738	-	cupin 2 domain-containing protein
731	 43.21	0	880815..881462	+	215	148652548	-	PsycPRwf_0739	-	maleylacetoacetate isomerase
732	 44.54	0	881501..882205	+	234	148652549	-	PsycPRwf_0740	-	fumarylacetoacetate (FAA) hydrolase
45.93	MEAN

3.38	STD DEV
