IslandPath Analysis: Psychrobacter sp. PRwf-1

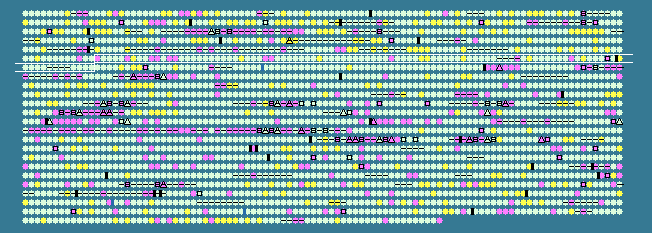

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
513	 41.23	-1	619708..620391	-	227	148652330	-	PsycPRwf_0518	-	hypothetical protein
514	 46.69	0	620808..621698	+	296	148652331	-	PsycPRwf_0519	-	NAD-dependent epimerase/dehydratase
515	 45.63	0	621771..623153	+	460	148652332	-	PsycPRwf_0520	-	hypothetical protein
516	 44.74	0	623311..623985	+	224	148652333	pyrE	PsycPRwf_0521	-	orotate phosphoribosyltransferase
517	 45.50	0	624098..625075	+	325	148652334	-	PsycPRwf_0522	-	glutathione synthetase
518	 42.12	-1	625255..625698	+	147	148652335	-	PsycPRwf_0523	-	hypothetical protein
519	 50.86	+1	626072..627229	+	385	148652336	-	PsycPRwf_0524	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
520	 47.38	0	627401..628831	+	476	148652337	-	PsycPRwf_0525	-	UDP-N-acetylmuramate--alanine ligase
521	 47.15	0	628973..629971	+	332	148652338	-	PsycPRwf_0526	-	D-alanine--D-alanine ligase
522	 41.19	-1	630195..631136	+	313	148652339	-	PsycPRwf_0527	-	cell division protein FtsQ
523	 41.80	-1	631489..632787	+	432	148652340	-	PsycPRwf_0528	-	cell division protein FtsA
524	 45.31	0	632868..634061	+	397	148652341	-	PsycPRwf_0529	-	cell division protein FtsZ
525	 41.39	-1	634258..635151	+	297	148652342	lpxC	PsycPRwf_0530	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
526	 38.70	-2	635447..635986	-	179	148652343	-	PsycPRwf_0531	-	hypothetical protein
527	 44.49	0	636176..636901	+	241	148652344	-	PsycPRwf_0532	-	hypothetical protein
528	 47.32	0	637134..637469	-	111	148652345	-	PsycPRwf_0533	-	hypothetical protein
529	 48.34	0	637759..638391	+	210	148652346	-	PsycPRwf_0534	-	ribosomal RNA methyltransferase RrmJ/FtsJ
530	 46.82	0	638918..640801	+	627	148652347	-	PsycPRwf_0535	-	ATP-dependent metalloprotease FtsH
531	 47.59	0	640968..641879	+	303	148652348	-	PsycPRwf_0536	-	dihydropteroate synthase
532	 42.49	-1	641974..642246	+	90	148652349	-	PsycPRwf_0537	-	hypothetical protein
533	 47.81	0	642284..642739	+	151	148652350	-	PsycPRwf_0538	-	hypothetical protein
534	 49.28	0	642873..643562	+	229	148652351	-	PsycPRwf_0539	-	hypothetical protein
535	 46.90	0	643800..644492	+	230	148652352	-	PsycPRwf_0540	-	peptidase M22, glycoprotease
536	 45.77	0	644574..645425	+	283	148652353	-	PsycPRwf_0541	-	putative undecaprenol kinase
537	 49.72	+1	645507..646385	+	292	148652354	-	PsycPRwf_0542	-	hypothetical protein
538	 45.85	0	646489..647151	+	220	148652355	-	PsycPRwf_0543	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
539	 43.64	0	647280..647774	-	164	148652356	-	PsycPRwf_0544	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
540	 48.44	0	648200..652225	+	1341	148652357	-	PsycPRwf_0545	-	phosphoribosylformylglycinamidine synthase
541	 32.74	-2	652557..653894	+	445	148652358	-	PsycPRwf_0546	-	hypothetical protein
542	 35.04	-2	654540..654656	+	38	148652359	-	PsycPRwf_0547	-	hypothetical protein
543	 47.58	0	654873..655679	+	268	148652360	-	PsycPRwf_0548	-	peptidase M48, Ste24p
544	 44.34	0	655749..656675	-	308	148652361	-	PsycPRwf_0549	-	N-acetylmuramoyl-L-alanine amidase
545	 43.85	0	657155..657601	+	148	148652362	-	PsycPRwf_0550	-	hypothetical protein
546	 46.59	0	657776..658318	-	180	148652363	-	PsycPRwf_0551	-	membrane protein-like protein
547	 49.39	+1	658399..660447	-	682	148652364	-	PsycPRwf_0552	-	D-alanyl-D-alanine carboxypeptidase/D-alanyl-D-alanine-endopeptidase
548	 46.53	0	660577..661182	-	201	148652365	-	PsycPRwf_0553	-	DNA polymerase III subunit epsilon
549	 48.34	0	661247..663292	-	681	148652366	-	PsycPRwf_0554	-	signal-transduction protein
550	 49.59	+1	663433..664662	-	409	148652367	-	PsycPRwf_0555	-	hypothetical protein
551	 47.67	0	664723..667422	-	899	148652368	-	PsycPRwf_0556	-	metal dependent phosphohydrolase
552	 45.82	0	667592..668392	-	266	148652369	-	PsycPRwf_0557	-	methionine aminopeptidase, type I
553	 44.44	0	668986..669840	+	284	148652370	rpsB	PsycPRwf_0558	-	30S ribosomal protein S2
554	 45.16	0	670033..670911	+	292	148652371	tsf	PsycPRwf_0559	-	elongation factor Ts
555	 43.05	0	671087..671971	+	294	148652372	-	PsycPRwf_0560	-	hypothetical protein
556	 46.80	0	672122..674920	-	932	148652373	-	PsycPRwf_0561	-	phosphoenolpyruvate carboxylase
557	 43.46	0	675007..675312	-	101	148652374	-	PsycPRwf_0562	-	putative mono-oxygenase ydhR
558	 45.90	0	675528..676490	+	320	148652375	-	PsycPRwf_0563	-	hypothetical protein
559	 47.68	0	676608..677987	-	459	148652376	-	PsycPRwf_0564	-	uracil-xanthine permease
560	 49.09	0	678276..678827	-	183	148652377	-	PsycPRwf_0565	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
561	 45.97	0	678863..680500	-	545	148652378	-	PsycPRwf_0566	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
562	 42.06	-1	681129..681758	+	209	148652379	-	PsycPRwf_0567	-	BLUF domain-containing protein
563	 46.80	0	681872..683386	-	504	148652380	-	PsycPRwf_0568	-	FAD linked oxidase domain-containing protein
564	 45.48	0	683754..684980	+	408	148652381	-	PsycPRwf_0569	-	D-3-phosphoglycerate dehydrogenase
565	 46.28	0	685307..686194	+	295	148652382	-	PsycPRwf_0570	-	beta-lactamase domain-containing protein
566	 45.36	0	686506..686871	+	121	148652383	-	PsycPRwf_0571	-	hypothetical protein
567	 49.63	+1	687016..688095	-	359	148652384	-	PsycPRwf_0572	-	cation diffusion facilitator family transporter
568	 49.89	+1	688226..690550	-	774	148652385	-	PsycPRwf_0573	-	primosomal protein N'
569	 47.47	0	690651..691046	-	131	148652386	-	PsycPRwf_0574	-	putative endoribonuclease L-PSP
570	 46.70	0	691102..693285	-	727	148652387	-	PsycPRwf_0575	-	metal dependent phosphohydrolase
571	 49.04	0	693851..694111	-	86	148652388	-	PsycPRwf_0576	-	DNA-directed RNA polymerase, omega subunit
572	 47.97	0	694250..694864	-	204	148652389	-	PsycPRwf_0577	-	guanylate kinase
573	 48.28	0	695083..696039	+	318	148652390	-	PsycPRwf_0578	-	hydroxymethylbutenyl pyrophosphate reductase
574	 53.38	+2	696071..696883	+	270	148652391	-	PsycPRwf_0579	-	hypothetical protein
575	 45.46	0	697117..699078	+	653	148652392	-	PsycPRwf_0580	-	heat shock protein 90
576	 45.42	0	699279..700502	+	407	148652393	-	PsycPRwf_0581	-	nicotinate phosphoribosyltransferase
577	 46.88	0	700730..702493	+	587	148652394	-	PsycPRwf_0582	-	acyl-CoA synthetase
578	 46.32	0	702758..703612	+	284	148652395	-	PsycPRwf_0583	-	S-formylglutathione hydrolase
579	 47.82	0	703692..704402	+	236	148652396	-	PsycPRwf_0584	-	ribulose-phosphate 3-epimerase
580	 46.31	0	704472..704810	+	112	148652397	-	PsycPRwf_0585	-	hypothetical protein
581	 43.27	0	704855..705166	+	103	148652398	-	PsycPRwf_0586	-	hypothetical protein
582	 43.12	0	705355..705681	+	108	148652399	-	PsycPRwf_0587	-	hypothetical protein
583	 36.54	-2	705805..705960	-	51	148652400	rpmG	PsycPRwf_0588	-	50S ribosomal protein L33
584	 42.62	0	706027..706263	-	78	148652401	rpmB	PsycPRwf_0589	-	50S ribosomal protein L28
585	 49.43	+1	706888..708285	+	465	148652402	-	PsycPRwf_0590	-	major facilitator transporter
586	 44.44	0	708398..709189	-	263	148652403	-	PsycPRwf_0591	-	cytochrome c assembly protein
587	 48.58	0	709652..711199	+	515	148652404	-	PsycPRwf_0592	-	signal recognition particle protein
588	 42.79	0	711315..712688	-	457	148652405	-	PsycPRwf_0593	-	major facilitator transporter
589	 47.84	0	712997..713251	-	84	148652406	-	PsycPRwf_0594	-	Na+-dependent transporter-like protein
590	 48.57	0	713707..717525	-	1272	148652407	metH	PsycPRwf_0595	-	B12-dependent methionine synthase
591	 45.47	0	717848..718498	+	216	148652408	-	PsycPRwf_0596	-	beta-Ig-H3/fasciclin
592	 42.44	-1	718572..720119	-	515	148652409	-	PsycPRwf_0597	-	amino acid carrier protein
593	 45.26	0	720680..721291	+	203	148652410	-	PsycPRwf_0598	-	LemA family protein
594	 50.46	+1	721534..722724	+	396	148652411	-	PsycPRwf_0599	-	hypothetical protein
595	 47.74	0	722882..723457	+	191	148652412	-	PsycPRwf_0600	-	hypothetical protein
596	 45.73	0	723588..724337	-	249	148652413	-	PsycPRwf_0601	-	silent information regulator protein Sir2
597	 43.19	0	724399..724824	+	141	148652414	-	PsycPRwf_0602	-	hypothetical protein
598	 41.76	-1	724858..725961	-	367	148652415	-	PsycPRwf_0603	-	IS605 family transposase OrfB
599	 44.41	0	726229..727203	+	324	148652416	-	PsycPRwf_0604	-	hypothetical protein
600	 49.92	+1	727833..728483	+	216	148652417	-	PsycPRwf_0605	-	cytochrome c, class I
601	 44.93	0	728854..729819	+	321	148652418	-	PsycPRwf_0606	-	ABC transporter related
602	 43.01	0	729816..730631	+	271	148652419	-	PsycPRwf_0607	-	ABC-2 type transporter
603	 47.40	0	730774..731676	+	300	148652420	queF	PsycPRwf_0608	-	7-cyano-7-deazaguanine reductase
604	 47.83	0	732673..734472	+	599	148652421	-	PsycPRwf_0609	-	acetolactate synthase 3 catalytic subunit
605	 45.05	0	734472..734966	+	164	148652422	-	PsycPRwf_0610	-	acetolactate synthase 3 regulatory subunit
606	 45.03	0	735076..736092	+	338	148652423	-	PsycPRwf_0611	-	ketol-acid reductoisomerase
607	 42.75	0	736283..736696	+	137	148652424	-	PsycPRwf_0612	-	hypothetical protein
608	 43.52	0	737109..737324	+	71	148652425	-	PsycPRwf_0613	-	cold-shock DNA-binding domain-containing protein
609	 42.93	0	737833..738582	+	249	148652426	-	PsycPRwf_0614	-	electron transfer flavoprotein, alpha/beta-subunit-like protein
610	 45.87	0	738765..739697	+	310	148652427	-	PsycPRwf_0615	-	electron transfer flavoprotein, alpha subunit-like protein
611	 48.37	0	739917..740468	+	183	148652428	-	PsycPRwf_0616	-	GCN5-related N-acetyltransferase
612	 48.46	0	740573..741418	-	281	148652429	-	PsycPRwf_0617	-	arginyl-tRNA-protein transferase
45.93	MEAN

3.38	STD DEV
