IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

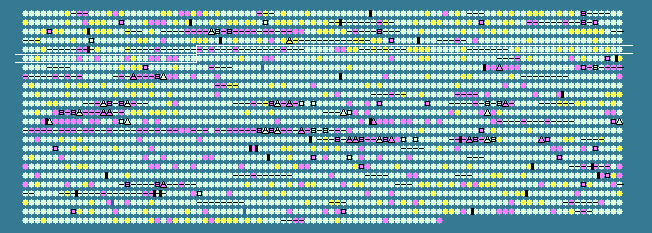

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
430	 38.89	-2	527606..527893	+	95	148652247	-	PsycPRwf_0435	-	ribosomal protein S17
431	 43.36	0	528042..528410	+	122	148652248	rplN	PsycPRwf_0436	-	50S ribosomal protein L14
432	 39.94	-1	528420..528737	+	105	148652249	rplX	PsycPRwf_0437	-	50S ribosomal protein L24
433	 43.58	0	528759..529295	+	178	148652250	rplE	PsycPRwf_0438	-	50S ribosomal protein L5
434	 43.46	0	529308..529613	+	101	148652251	rpsN	PsycPRwf_0439	-	30S ribosomal protein S14
435	 45.11	0	529626..530024	+	132	148652252	rpsH	PsycPRwf_0440	-	30S ribosomal protein S8
436	 41.39	-1	530219..530752	+	177	148652253	rplF	PsycPRwf_0441	-	50S ribosomal protein L6
437	 47.01	0	530764..531114	+	116	148652254	rplR	PsycPRwf_0442	-	50S ribosomal protein L18
438	 43.17	0	531117..531614	+	165	148652255	rpsE	PsycPRwf_0443	-	30S ribosomal protein S5
439	 43.33	0	531648..531827	+	59	148652256	rpmD	PsycPRwf_0444	-	50S ribosomal protein L30
440	 44.66	0	531827..532285	+	152	148652257	rplO	PsycPRwf_0445	-	50S ribosomal protein L15
441	 42.79	0	532291..533622	+	443	148652258	secY	PsycPRwf_0446	-	preprotein translocase subunit SecY
442	 43.98	0	534035..534391	+	118	148652259	rpsM	PsycPRwf_0447	-	30S ribosomal protein S13
443	 47.33	0	534412..534804	+	130	148652260	-	PsycPRwf_0448	-	30S ribosomal protein S11
444	 41.90	-1	534917..535558	+	213	148652261	rpsD	PsycPRwf_0449	-	30S ribosomal protein S4
445	 43.45	0	535598..536605	+	335	148652262	-	PsycPRwf_0450	-	DNA-directed RNA polymerase subunit alpha
446	 45.83	0	536626..536985	+	119	148652263	rplQ	PsycPRwf_0451	-	50S ribosomal protein L17
447	 45.09	0	537265..537885	-	206	148652264	-	PsycPRwf_0452	-	Sua5/YciO/YrdC/YwlC family protein
448	 45.54	0	538057..538728	-	223	148652265	-	PsycPRwf_0453	-	hypothetical protein
449	 43.52	0	538809..539456	+	215	148652266	-	PsycPRwf_0454	-	hypothetical protein
450	 45.36	0	539725..539907	+	60	148652267	rpmF	PsycPRwf_0455	-	50S ribosomal protein L32
451	 45.65	0	540030..541028	+	332	148652268	-	PsycPRwf_0456	-	malonyl CoA-acyl carrier protein transacylase
452	 47.33	0	541028..541756	+	242	148652269	-	PsycPRwf_0457	-	3-oxoacyl-(acyl-carrier-protein) reductase
453	 34.57	-2	541984..542226	+	80	148652270	-	PsycPRwf_0458	-	acyl carrier protein
454	 39.25	-1	542595..543101	+	168	148652271	-	PsycPRwf_0459	-	hypothetical protein
455	 49.54	+1	543328..544524	-	398	148652272	-	PsycPRwf_0460	-	hypothetical protein
456	 50.36	+1	544618..546297	+	559	148652273	-	PsycPRwf_0461	-	carbohydrate kinase, YjeF related protein
457	 48.13	0	546373..546960	-	195	148652274	-	PsycPRwf_0462	-	hypothetical protein
458	 48.23	0	547066..547629	-	187	148652275	-	PsycPRwf_0463	-	NUDIX hydrolase
459	 51.02	+1	547859..548842	+	327	148652276	-	PsycPRwf_0464	-	NUDIX hydrolase
460	 48.64	0	548880..549944	-	354	148652277	-	PsycPRwf_0465	-	biotin/lipoate A/B protein ligase
461	 51.17	+1	550210..551022	+	270	148652278	-	PsycPRwf_0466	-	hypothetical protein
462	 48.76	0	551141..554983	+	1280	148652279	-	PsycPRwf_0467	-	SMC domain-containing protein
463	 45.91	0	555167..556192	+	341	148652280	-	PsycPRwf_0468	-	ZipA, C-terminal FtsZ-binding region
464	 48.24	0	556346..557224	-	292	148652281	-	PsycPRwf_0469	-	short chain dehydrogenase
465	 49.66	+1	557291..558025	-	244	148652282	-	PsycPRwf_0470	-	phosphoglycerate mutase
466	 49.75	+1	558086..559297	-	403	148652283	-	PsycPRwf_0471	-	aminoglycoside phosphotransferase
467	 50.96	+1	559448..560695	-	415	148652284	-	PsycPRwf_0472	-	acyl-CoA dehydrogenase domain-containing protein
468	 49.64	+1	561020..563080	+	686	148652285	-	PsycPRwf_0473	-	DNA ligase, NAD-dependent
469	 45.34	0	563289..564554	+	421	148652286	-	PsycPRwf_0474	-	FAD dependent oxidoreductase
470	 45.13	0	564725..565063	+	112	148652287	-	PsycPRwf_0475	-	endoribonuclease L-PSP
471	 48.33	0	565220..565879	-	219	148652288	-	PsycPRwf_0476	-	hypothetical protein
472	 46.68	0	565988..567703	-	571	148652289	-	PsycPRwf_0477	-	von Willebrand factor, type A
473	 46.30	0	568093..569010	+	305	148652290	-	PsycPRwf_0478	-	hypothetical protein
474	 51.18	+1	569147..573253	-	1368	148652291	-	PsycPRwf_0479	-	ribonuclease
475	 45.94	0	574538..575632	+	364	148652292	-	PsycPRwf_0480	-	RluA family pseudouridine synthase
476	 49.14	0	575660..576355	+	231	148652293	-	PsycPRwf_0481	-	HAD family hydrolase
477	 47.89	0	576465..577412	+	315	148652294	ubiA	PsycPRwf_0482	-	prenyltransferase
478	 47.42	0	577437..578075	+	212	148652295	-	PsycPRwf_0483	-	hypothetical protein
479	 48.89	0	578070..578744	-	224	148652296	-	PsycPRwf_0484	-	hypothetical protein
480	 48.36	0	579260..579685	-	141	148652297	-	PsycPRwf_0485	-	hypothetical protein
481	 43.92	0	579917..580492	-	191	148652298	-	PsycPRwf_0486	-	translation elongation factor P
482	 45.84	0	580550..581668	+	372	148652299	-	PsycPRwf_0487	-	lysine 2,3-aminomutase YodO family protein
483	 49.80	+1	581680..582189	+	169	148652300	-	PsycPRwf_0488	-	cytochrome c, class I
484	 49.23	0	582291..582875	-	194	148652301	-	PsycPRwf_0489	-	peptidase M23B
485	 47.72	0	583024..585873	-	949	148652302	fadE	PsycPRwf_0490	-	acyl-CoA dehydrogenase
486	 47.58	0	586233..586913	-	226	148652303	-	PsycPRwf_0491	-	DNA repair protein RadC
487	 46.68	0	587286..588536	+	416	148652304	-	PsycPRwf_0492	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
488	 45.68	0	588651..589460	+	269	148652305	-	PsycPRwf_0493	-	nitroreductase
489	 47.58	0	589519..590283	+	254	148652306	-	PsycPRwf_0494	-	hypothetical protein
490	 50.57	+1	590399..591094	+	231	148652307	-	PsycPRwf_0495	-	HhH-GPD family protein
491	 48.28	0	591124..592053	-	309	148652308	-	PsycPRwf_0496	-	uroporphyrin-III C/tetrapyrrole methyltransferase
492	 51.05	+1	592160..592588	+	142	148652309	-	PsycPRwf_0497	-	hypothetical protein
493	 47.54	0	592781..593653	+	290	148652310	-	PsycPRwf_0498	-	transport-associated
494	 47.97	0	593785..594645	+	286	148652311	-	PsycPRwf_0499	-	esterase/lipase-like protein
495	 45.49	0	594992..595246	+	84	148652312	-	PsycPRwf_0500	-	BolA family protein
496	 50.65	+1	595457..596755	+	432	148652313	-	PsycPRwf_0501	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
497	 47.02	0	596809..597480	+	223	148652314	hisG	PsycPRwf_0502	-	ATP phosphoribosyltransferase catalytic subunit
498	 50.73	+1	597669..598961	+	430	148652315	hisD	PsycPRwf_0503	-	histidinol dehydrogenase
499	 45.20	0	599288..600391	+	367	148652316	-	PsycPRwf_0504	-	histidinol-phosphate aminotransferase
500	 48.24	0	600538..602241	-	567	148652317	-	PsycPRwf_0505	-	anthranilate synthase component I/chorismate-binding protein
501	 44.67	0	602708..604012	+	434	148652318	-	PsycPRwf_0506	-	hypothetical protein
502	 43.37	0	604291..604569	+	92	148652319	rpmE2	PsycPRwf_0507	-	50S ribosomal protein L31 type B
503	 49.44	+1	604746..606080	-	444	148652320	-	PsycPRwf_0508	-	secretion protein HlyD family protein
504	 45.47	0	606171..607793	-	540	148652321	-	PsycPRwf_0509	-	hypothetical protein
505	 46.36	0	608053..609603	-	516	148652322	-	PsycPRwf_0510	-	integral membrane protein MviN
506	 47.96	0	609840..610721	+	293	148652323	-	PsycPRwf_0511	-	HpcH/HpaI aldolase
507	 44.93	0	610754..611374	-	206	148652324	-	PsycPRwf_0512	-	N-acetyl-anhydromuranmyl-L-alanine amidase
508	 47.09	0	611553..613565	+	670	148652325	-	PsycPRwf_0513	-	hypothetical protein
509	 49.12	0	613594..615018	+	474	148652326	-	PsycPRwf_0514	-	PGAP1 family protein
510	 35.99	-2	615042..615869	-	275	148652327	-	PsycPRwf_0515	-	hypothetical protein
511	 44.16	0	615879..618797	-	972	148652328	-	PsycPRwf_0516	-	hypothetical protein
512	 42.83	0	618962..619561	-	199	148652329	-	PsycPRwf_0517	-	hypothetical protein
513	 41.23	-1	619708..620391	-	227	148652330	-	PsycPRwf_0518	-	hypothetical protein
514	 46.69	0	620808..621698	+	296	148652331	-	PsycPRwf_0519	-	NAD-dependent epimerase/dehydratase
515	 45.63	0	621771..623153	+	460	148652332	-	PsycPRwf_0520	-	hypothetical protein
516	 44.74	0	623311..623985	+	224	148652333	pyrE	PsycPRwf_0521	-	orotate phosphoribosyltransferase
517	 45.50	0	624098..625075	+	325	148652334	-	PsycPRwf_0522	-	glutathione synthetase
518	 42.12	-1	625255..625698	+	147	148652335	-	PsycPRwf_0523	-	hypothetical protein
519	 50.86	+1	626072..627229	+	385	148652336	-	PsycPRwf_0524	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
520	 47.38	0	627401..628831	+	476	148652337	-	PsycPRwf_0525	-	UDP-N-acetylmuramate--alanine ligase
521	 47.15	0	628973..629971	+	332	148652338	-	PsycPRwf_0526	-	D-alanine--D-alanine ligase
522	 41.19	-1	630195..631136	+	313	148652339	-	PsycPRwf_0527	-	cell division protein FtsQ
523	 41.80	-1	631489..632787	+	432	148652340	-	PsycPRwf_0528	-	cell division protein FtsA
524	 45.31	0	632868..634061	+	397	148652341	-	PsycPRwf_0529	-	cell division protein FtsZ
525	 41.39	-1	634258..635151	+	297	148652342	lpxC	PsycPRwf_0530	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
526	 38.70	-2	635447..635986	-	179	148652343	-	PsycPRwf_0531	-	hypothetical protein
527	 44.49	0	636176..636901	+	241	148652344	-	PsycPRwf_0532	-	hypothetical protein
528	 47.32	0	637134..637469	-	111	148652345	-	PsycPRwf_0533	-	hypothetical protein
529	 48.34	0	637759..638391	+	210	148652346	-	PsycPRwf_0534	-	ribosomal RNA methyltransferase RrmJ/FtsJ
45.93	MEAN

3.38	STD DEV
