IslandPath Analysis: Psychrobacter sp. PRwf-1

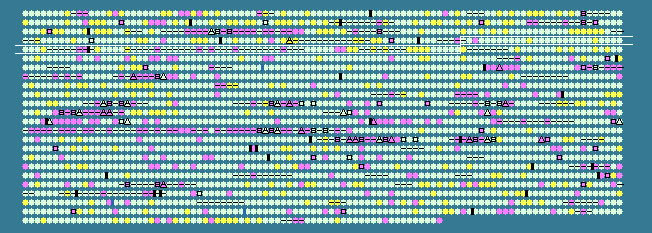

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
374	 45.46	0	453804..455015	+	403	148652191	-	PsycPRwf_0379	-	OmpA/MotB domain-containing protein
375	 42.69	0	455216..457063	+	615	148652192	-	PsycPRwf_0380	-	GTP-binding protein TypA
376	 41.44	-1	457404..457835	+	143	148652193	-	PsycPRwf_0381	-	large conductance mechanosensitive channel protein
377	 44.48	0	457938..458861	-	307	148652194	-	PsycPRwf_0382	-	formamidopyrimidine-DNA glycosylase
378	 46.33	0	458864..461557	-	897	148652195	-	PsycPRwf_0383	-	(p)ppGpp synthetase I, SpoT/RelA
379	 48.55	0	461801..463351	-	516	148652196	rumA	PsycPRwf_0384	-	23S rRNA 5-methyluridine methyltransferase
380	 45.19	0	463603..464412	-	269	148652197	-	PsycPRwf_0385	-	hypothetical protein
381	 48.63	0	464533..465480	-	315	148652198	cysM	PsycPRwf_0386	-	cysteine synthase B
382	 47.64	0	465660..469133	+	1157	148652199	-	PsycPRwf_0387	-	multi-sensor hybrid histidine kinase
383	 45.41	0	469186..470013	+	275	148652200	-	PsycPRwf_0388	-	enoyl-CoA hydratase
384	 45.60	0	470331..471545	+	404	148652201	-	PsycPRwf_0389	-	Bcr/CflA subfamily drug resistance transporter
385	 51.42	+1	471724..472215	-	163	148652202	-	PsycPRwf_0390	-	hypothetical protein
386	 46.16	0	472691..473485	+	264	148652203	-	PsycPRwf_0391	-	cobyrinic acid a,c-diamide synthase
387	 48.76	0	473546..474109	+	187	148652204	-	PsycPRwf_0392	-	hypothetical protein
388	 48.02	0	474310..476964	+	884	148652205	-	PsycPRwf_0393	-	DNA topoisomerase I
389	 45.27	0	477065..478078	-	337	148652206	-	PsycPRwf_0394	-	hypothetical protein
390	 47.57	0	478378..481200	-	940	148652207	-	PsycPRwf_0395	-	1A family penicillin-binding protein
391	 47.45	0	481937..482935	+	332	148652208	-	PsycPRwf_0396	-	Tfp pilus assembly protein ATPase PilM-like protein
392	 47.76	0	483001..483513	+	170	148652209	-	PsycPRwf_0397	-	fimbrial assembly family protein
393	 48.01	0	483523..484932	+	469	148652210	-	PsycPRwf_0398	-	Tfp pilus assembly protein PilO-like protein
394	 46.14	0	485000..486928	+	642	148652211	-	PsycPRwf_0399	-	type IV pilus secretin PilQ
395	 47.33	0	487190..487732	+	180	148652212	-	PsycPRwf_0400	-	shikimate kinase
396	 49.59	+1	487825..488925	+	366	148652213	-	PsycPRwf_0401	-	3-dehydroquinate synthase
397	 45.05	0	489039..490088	+	349	148652214	-	PsycPRwf_0402	-	hypothetical protein
398	 49.36	+1	490907..495430	+	1507	148652215	gltB	PsycPRwf_0403	-	glutamate synthase subunit alpha
399	 48.63	0	495647..497065	+	472	148652216	gltD	PsycPRwf_0404	-	glutamate synthase subunit beta
400	 46.30	0	497448..498095	+	215	148652217	-	PsycPRwf_0405	-	carbonic anhydrase
401	 43.59	0	498216..498761	+	181	148652218	-	PsycPRwf_0406	-	lactoylglutathione lyase
402	 48.10	0	498975..499922	+	315	148652219	-	PsycPRwf_0407	-	MscS mechanosensitive ion channel
403	 46.98	0	500026..500472	-	148	148652220	-	PsycPRwf_0408	-	cytochrome c, class II
404	 49.45	+1	500692..501690	-	332	148652221	-	PsycPRwf_0409	-	coproporphyrinogen III oxidase
405	 45.85	0	501751..502437	-	228	148652222	-	PsycPRwf_0410	-	GTP cyclohydrolase II
406	 48.90	0	503074..505206	+	710	148652223	-	PsycPRwf_0411	-	1-deoxy-D-xylulose-5-phosphate synthase
407	 47.77	0	505361..506191	+	276	148652224	-	PsycPRwf_0412	-	inositol-phosphate phosphatase
408	 44.09	0	506319..506969	+	216	148652225	-	PsycPRwf_0413	-	hypothetical protein
409	 46.44	0	507055..507939	-	294	148652226	-	PsycPRwf_0414	-	formyltetrahydrofolate deformylase
410	 39.84	-1	508355..510613	+	752	148652227	-	PsycPRwf_0415	-	hypothetical protein
411	 34.44	-2	510661..512100	+	479	148652228	-	PsycPRwf_0416	-	hypothetical protein
412	 48.26	0	512539..514059	-	506	148652229	gatB	PsycPRwf_0417	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
413	 49.80	+1	514059..515558	-	499	148652230	-	PsycPRwf_0418	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
414	 48.38	0	515768..516106	-	112	148652231	-	PsycPRwf_0419	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
415	 48.49	0	516770..517798	+	342	148652232	-	PsycPRwf_0420	-	cell shape determining protein MreB
416	 47.56	0	517821..518741	+	306	148652233	-	PsycPRwf_0421	-	rod shape-determining protein MreC
417	 44.79	0	518955..519443	+	162	148652234	-	PsycPRwf_0422	-	hypothetical protein
418	 50.61	+1	519525..520184	+	219	148652235	-	PsycPRwf_0423	-	maf protein
419	 47.99	0	520354..522195	+	613	148652236	-	PsycPRwf_0424	-	ribonuclease
420	 48.08	0	522771..523082	+	103	148652237	rpsJ	PsycPRwf_0425	-	30S ribosomal protein S10
421	 47.57	0	523177..523815	+	212	148652238	rplC	PsycPRwf_0426	-	50S ribosomal protein L3
422	 46.27	0	523830..524432	+	200	148652239	rplD	PsycPRwf_0427	-	50S ribosomal protein L4
423	 39.60	-1	524429..524779	+	116	148652240	rplW	PsycPRwf_0428	-	50S ribosomal protein L23
424	 45.49	0	524791..525621	+	276	148652241	rplB	PsycPRwf_0429	-	50S ribosomal protein L2
425	 42.75	0	525633..525908	+	91	148652242	rpsS	PsycPRwf_0430	-	30S ribosomal protein S19
426	 43.94	0	525919..526248	+	109	148652243	rplV	PsycPRwf_0431	-	50S ribosomal protein L22
427	 43.82	0	526252..526995	+	247	148652244	rpsC	PsycPRwf_0432	-	30S ribosomal protein S3
428	 44.20	0	526999..527412	+	137	148652245	rplP	PsycPRwf_0433	-	50S ribosomal protein L16
429	 45.13	0	527412..527606	+	64	148652246	-	PsycPRwf_0434	-	50S ribosomal protein L29
430	 38.89	-2	527606..527893	+	95	148652247	-	PsycPRwf_0435	-	ribosomal protein S17
431	 43.36	0	528042..528410	+	122	148652248	rplN	PsycPRwf_0436	-	50S ribosomal protein L14
432	 39.94	-1	528420..528737	+	105	148652249	rplX	PsycPRwf_0437	-	50S ribosomal protein L24
433	 43.58	0	528759..529295	+	178	148652250	rplE	PsycPRwf_0438	-	50S ribosomal protein L5
434	 43.46	0	529308..529613	+	101	148652251	rpsN	PsycPRwf_0439	-	30S ribosomal protein S14
435	 45.11	0	529626..530024	+	132	148652252	rpsH	PsycPRwf_0440	-	30S ribosomal protein S8
436	 41.39	-1	530219..530752	+	177	148652253	rplF	PsycPRwf_0441	-	50S ribosomal protein L6
437	 47.01	0	530764..531114	+	116	148652254	rplR	PsycPRwf_0442	-	50S ribosomal protein L18
438	 43.17	0	531117..531614	+	165	148652255	rpsE	PsycPRwf_0443	-	30S ribosomal protein S5
439	 43.33	0	531648..531827	+	59	148652256	rpmD	PsycPRwf_0444	-	50S ribosomal protein L30
440	 44.66	0	531827..532285	+	152	148652257	rplO	PsycPRwf_0445	-	50S ribosomal protein L15
441	 42.79	0	532291..533622	+	443	148652258	secY	PsycPRwf_0446	-	preprotein translocase subunit SecY
442	 43.98	0	534035..534391	+	118	148652259	rpsM	PsycPRwf_0447	-	30S ribosomal protein S13
443	 47.33	0	534412..534804	+	130	148652260	-	PsycPRwf_0448	-	30S ribosomal protein S11
444	 41.90	-1	534917..535558	+	213	148652261	rpsD	PsycPRwf_0449	-	30S ribosomal protein S4
445	 43.45	0	535598..536605	+	335	148652262	-	PsycPRwf_0450	-	DNA-directed RNA polymerase subunit alpha
446	 45.83	0	536626..536985	+	119	148652263	rplQ	PsycPRwf_0451	-	50S ribosomal protein L17
447	 45.09	0	537265..537885	-	206	148652264	-	PsycPRwf_0452	-	Sua5/YciO/YrdC/YwlC family protein
448	 45.54	0	538057..538728	-	223	148652265	-	PsycPRwf_0453	-	hypothetical protein
449	 43.52	0	538809..539456	+	215	148652266	-	PsycPRwf_0454	-	hypothetical protein
450	 45.36	0	539725..539907	+	60	148652267	rpmF	PsycPRwf_0455	-	50S ribosomal protein L32
451	 45.65	0	540030..541028	+	332	148652268	-	PsycPRwf_0456	-	malonyl CoA-acyl carrier protein transacylase
452	 47.33	0	541028..541756	+	242	148652269	-	PsycPRwf_0457	-	3-oxoacyl-(acyl-carrier-protein) reductase
453	 34.57	-2	541984..542226	+	80	148652270	-	PsycPRwf_0458	-	acyl carrier protein
454	 39.25	-1	542595..543101	+	168	148652271	-	PsycPRwf_0459	-	hypothetical protein
455	 49.54	+1	543328..544524	-	398	148652272	-	PsycPRwf_0460	-	hypothetical protein
456	 50.36	+1	544618..546297	+	559	148652273	-	PsycPRwf_0461	-	carbohydrate kinase, YjeF related protein
457	 48.13	0	546373..546960	-	195	148652274	-	PsycPRwf_0462	-	hypothetical protein
458	 48.23	0	547066..547629	-	187	148652275	-	PsycPRwf_0463	-	NUDIX hydrolase
459	 51.02	+1	547859..548842	+	327	148652276	-	PsycPRwf_0464	-	NUDIX hydrolase
460	 48.64	0	548880..549944	-	354	148652277	-	PsycPRwf_0465	-	biotin/lipoate A/B protein ligase
461	 51.17	+1	550210..551022	+	270	148652278	-	PsycPRwf_0466	-	hypothetical protein
462	 48.76	0	551141..554983	+	1280	148652279	-	PsycPRwf_0467	-	SMC domain-containing protein
463	 45.91	0	555167..556192	+	341	148652280	-	PsycPRwf_0468	-	ZipA, C-terminal FtsZ-binding region
464	 48.24	0	556346..557224	-	292	148652281	-	PsycPRwf_0469	-	short chain dehydrogenase
465	 49.66	+1	557291..558025	-	244	148652282	-	PsycPRwf_0470	-	phosphoglycerate mutase
466	 49.75	+1	558086..559297	-	403	148652283	-	PsycPRwf_0471	-	aminoglycoside phosphotransferase
467	 50.96	+1	559448..560695	-	415	148652284	-	PsycPRwf_0472	-	acyl-CoA dehydrogenase domain-containing protein
468	 49.64	+1	561020..563080	+	686	148652285	-	PsycPRwf_0473	-	DNA ligase, NAD-dependent
469	 45.34	0	563289..564554	+	421	148652286	-	PsycPRwf_0474	-	FAD dependent oxidoreductase
470	 45.13	0	564725..565063	+	112	148652287	-	PsycPRwf_0475	-	endoribonuclease L-PSP
471	 48.33	0	565220..565879	-	219	148652288	-	PsycPRwf_0476	-	hypothetical protein
472	 46.68	0	565988..567703	-	571	148652289	-	PsycPRwf_0477	-	von Willebrand factor, type A
473	 46.30	0	568093..569010	+	305	148652290	-	PsycPRwf_0478	-	hypothetical protein
45.93	MEAN

3.38	STD DEV
