IslandPath Analysis: Psychrobacter sp. PRwf-1

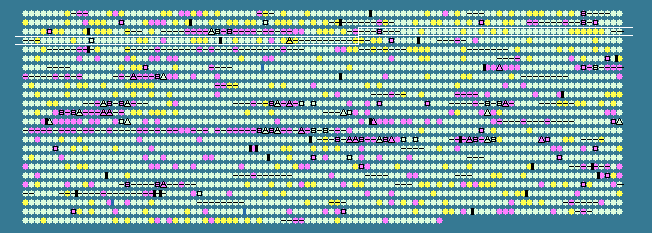

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
257	 46.35	0	308608..308991	+	127	148652074	-	PsycPRwf_0262	-	succinate dehydrogenase, hydrophobic membrane anchor
258	 46.79	0	309198..311048	+	616	148652075	sdhA	PsycPRwf_0263	-	succinate dehydrogenase flavoprotein subunit
259	 45.99	0	311177..311887	+	236	148652076	sdhB	PsycPRwf_0264	-	succinate dehydrogenase iron-sulfur subunit
260	 39.74	-1	312460..313161	-	233	148652077	-	PsycPRwf_0265	-	IS1 transposase
261	 47.58	0	313445..316321	+	958	148652078	kgd	PsycPRwf_0266	-	alpha-ketoglutarate decarboxylase
262	 47.64	0	316529..317758	+	409	148652079	-	PsycPRwf_0267	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
263	 46.78	0	317980..319437	+	485	148652080	-	PsycPRwf_0268	-	dihydrolipoamide dehydrogenase
264	 44.19	0	319653..320822	+	389	148652081	sucC	PsycPRwf_0269	-	succinyl-CoA synthetase subunit beta
265	 46.80	0	320880..321755	+	291	148652082	-	PsycPRwf_0270	-	succinyl-CoA synthetase, alpha subunit
266	 47.33	0	321963..322841	+	292	148652083	-	PsycPRwf_0271	-	nucleotidyl transferase
267	 49.65	+1	322978..324669	+	563	148652084	-	PsycPRwf_0272	-	glucose-6-phosphate isomerase
268	 48.99	0	324762..326102	+	446	148652085	-	PsycPRwf_0273	-	UDP-glucose/GDP-mannose dehydrogenase, dimerisation
269	 48.43	0	326234..327697	-	487	148652086	-	PsycPRwf_0274	-	phosphomannomutase
270	 47.28	0	327789..329057	-	422	148652087	-	PsycPRwf_0275	-	UDP-glucose/GDP-mannose dehydrogenase, dimerisation
271	 49.08	0	329219..330088	+	289	148652088	mazG	PsycPRwf_0276	-	nucleoside triphosphate pyrophosphohydrolase
272	 49.08	0	330054..330434	+	126	148652089	-	PsycPRwf_0277	-	helix-hairpin-helix repeat-containing competence protein ComEA
273	 46.89	0	330478..331008	-	176	148652090	-	PsycPRwf_0278	-	hypothetical protein
274	 49.65	+1	331231..333099	-	622	148652091	-	PsycPRwf_0279	-	Na+/solute symporter
275	 44.06	0	333104..333364	-	86	148652092	-	PsycPRwf_0280	-	membrane protein-like protein
276	 46.72	0	333983..335491	+	502	148652093	-	PsycPRwf_0281	-	amino acid carrier protein
277	 49.52	+1	335602..337269	-	555	148652094	-	PsycPRwf_0282	-	electron-transferring-flavoprotein dehydrogenase
278	 47.31	0	337754..338404	+	216	148652095	-	PsycPRwf_0283	-	hypothetical protein
279	 51.52	+1	338477..339499	+	340	148652096	-	PsycPRwf_0284	-	glutamate racemase
280	 47.08	0	339673..339963	+	96	148652097	-	PsycPRwf_0285	-	hypothetical protein
281	 50.60	+1	340063..341487	-	474	148652098	-	PsycPRwf_0286	-	lytic murein transglycosylase
282	 48.65	0	341796..342761	-	321	148652099	-	PsycPRwf_0287	-	aldose 1-epimerase
283	 48.05	0	342832..343524	-	230	148652100	-	PsycPRwf_0288	-	thiopurine S-methyltransferase
284	 44.32	0	343681..344208	-	175	148652101	-	PsycPRwf_0289	-	peptide methionine sulfoxide reductase
285	 47.76	0	344360..345184	+	274	148652102	-	PsycPRwf_0290	-	putative methyltransferase
286	 47.65	0	345273..346334	+	353	148652103	-	PsycPRwf_0291	-	putative methyltransferase
287	 47.57	0	346462..347634	+	390	148652104	-	PsycPRwf_0292	-	hypothetical protein
288	 45.02	0	347669..347899	-	76	148652105	-	PsycPRwf_0293	-	hypothetical protein
289	 46.67	0	348184..350013	+	609	148652106	argS	PsycPRwf_0294	-	arginyl-tRNA synthetase
290	 48.79	0	350161..350988	+	275	148652107	-	PsycPRwf_0295	-	sporulation domain-containing protein
291	 48.48	0	351076..351834	+	252	148652108	-	PsycPRwf_0296	-	transcriptional regulator IclR-like protein
292	 49.68	+1	351928..352857	-	309	148652109	-	PsycPRwf_0297	-	3-hydroxyisobutyrate dehydrogenase
293	 50.16	+1	352971..354254	-	427	148652110	-	PsycPRwf_0298	-	enoyl-CoA hydratase/isomerase
294	 49.43	+1	354304..355086	-	260	148652111	-	PsycPRwf_0299	-	enoyl-CoA hydratase
295	 49.70	+1	355277..356443	-	388	148652112	-	PsycPRwf_0300	-	acyl-CoA dehydrogenase domain-containing protein
296	 49.53	+1	356685..358172	-	495	148652113	-	PsycPRwf_0301	-	methylmalonate-semialdehyde dehydrogenase
297	 51.71	+1	358463..360475	-	670	148652114	-	PsycPRwf_0302	-	propionyl-CoA synthetase
298	 48.64	0	360701..361909	-	402	148652115	-	PsycPRwf_0303	-	major facilitator transporter
299	 47.31	0	362108..363037	-	309	148652116	-	PsycPRwf_0304	-	short-chain dehydrogenase/reductase SDR
300	 45.23	0	363423..364700	-	425	148652117	clpX	PsycPRwf_0305	-	ATP-dependent protease ATP-binding subunit
301	 47.72	0	364905..365627	-	240	148652118	-	PsycPRwf_0306	-	ATP-dependent Clp protease, proteolytic subunit ClpP
302	 44.69	0	366062..367399	-	445	148652119	tig	PsycPRwf_0307	-	trigger factor
303	 50.92	+1	367799..368452	-	217	148652120	-	PsycPRwf_0308	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
304	 44.60	0	369362..369991	+	209	148652121	-	PsycPRwf_0309	-	superoxide dismutase
305	 47.14	0	370090..370929	-	279	148652122	-	PsycPRwf_0310	-	hypothetical protein
306	 49.34	+1	371286..372641	+	451	148652123	-	PsycPRwf_0311	-	glutamyl-tRNA reductase
307	 43.16	0	372794..373414	-	206	148652124	-	PsycPRwf_0312	-	rhomboid family protein
308	 45.85	0	373860..375473	+	537	148652125	-	PsycPRwf_0313	-	OmpA/MotB domain-containing protein
309	 51.35	+1	375637..376707	-	356	148652126	-	PsycPRwf_0314	-	beta-hexosaminidase
310	 46.65	0	376938..379145	+	735	148652127	-	PsycPRwf_0315	-	carboxyl-terminal protease
311	 43.14	0	380014..380217	-	67	148652128	-	PsycPRwf_0316	-	CsbD family protein
312	 43.69	0	380341..381093	+	250	148652129	-	PsycPRwf_0317	-	transposase, IS4 family protein
313	 48.89	0	382403..384067	-	554	148652130	-	PsycPRwf_0318	-	integral membrane sensor signal transduction histidine kinase
314	 46.73	0	384181..384852	-	223	148652131	-	PsycPRwf_0319	-	two component transcriptional regulator
315	 48.03	0	385199..385756	+	185	148652132	-	PsycPRwf_0320	-	hypothetical protein
316	 47.98	0	385909..386652	-	247	148652133	-	PsycPRwf_0321	-	aminomethyltransferase related to GcvT-like protein
317	 44.73	0	386898..387248	+	116	148652134	-	PsycPRwf_0322	-	alkylphosphonate utilization operon protein PhnA
318	 44.07	0	387399..388283	-	294	148652135	-	PsycPRwf_0323	-	DegV family protein
319	 44.05	0	388609..389718	+	369	148652136	-	PsycPRwf_0324	-	hypothetical protein
320	 51.65	+1	389854..391644	-	596	148652137	-	PsycPRwf_0325	-	ABC transporter related
321	 50.68	+1	391637..393475	-	612	148652138	-	PsycPRwf_0326	-	cysteine ABC transporter permease/ATP-binding protein
322	 46.47	0	394133..395731	+	532	148652139	-	PsycPRwf_0327	-	cytochrome bd ubiquinol oxidase, subunit I
323	 48.33	0	395721..396860	+	379	148652140	-	PsycPRwf_0328	-	cytochrome d ubiquinol oxidase, subunit II
324	 42.31	-1	396887..397042	+	51	148652141	-	PsycPRwf_0329	-	cyd operon protein YbgT
325	 48.16	0	397233..398561	+	442	148652142	-	PsycPRwf_0330	-	glutamate-1-semialdehyde-2,1-aminomutase
326	 47.27	0	398881..400401	+	506	148652143	-	PsycPRwf_0331	-	Ppx/GppA phosphatase
327	 47.21	0	400454..401260	+	268	148652144	-	PsycPRwf_0332	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
328	 43.81	0	401654..401863	+	69	148652145	-	PsycPRwf_0333	-	cold-shock DNA-binding domain-containing protein
329	 49.55	+1	402172..404508	+	778	148652146	-	PsycPRwf_0334	-	oxidoreductase alpha (molybdopterin) subunit
330	 51.67	+1	404540..405679	+	379	148652147	-	PsycPRwf_0335	-	formate dehydrogenase, subunit FdhD
331	 50.51	+1	405792..407369	+	525	148652148	-	PsycPRwf_0336	-	tRNA(Ile)-lysidine synthetase
332	 48.53	0	407667..408515	+	282	148652149	-	PsycPRwf_0337	-	pyrroline-5-carboxylate reductase
333	 42.68	0	408629..409195	+	188	148652150	-	PsycPRwf_0338	-	protein of unknown function YGGT
334	 47.51	0	410010..410672	+	220	148652151	-	PsycPRwf_0339	-	RDD domain-containing protein
335	 42.71	0	410910..411389	+	159	148652152	-	PsycPRwf_0340	-	hemerythrin HHE cation binding domain-containing protein
336	 49.50	+1	411692..412792	+	366	148652153	-	PsycPRwf_0341	-	N-ethylmaleimide reductase
337	 47.97	0	412914..413651	-	245	148652154	-	PsycPRwf_0342	-	pantothenate kinase
338	 46.91	0	413879..414283	-	134	148652155	-	PsycPRwf_0343	-	iojap-like protein
339	 48.16	0	414449..415264	-	271	148652156	-	PsycPRwf_0344	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
340	 50.47	+1	415573..417720	-	715	148652157	-	PsycPRwf_0345	-	phosphate acetyltransferase
341	 47.71	0	417845..419047	-	400	148652158	-	PsycPRwf_0346	-	acetate kinase
342	 40.29	-1	419472..419816	+	114	148652159	-	PsycPRwf_0347	-	hypothetical protein
343	 48.06	0	419924..421261	+	445	148652160	-	PsycPRwf_0348	-	diaminopimelate decarboxylase
344	 50.45	+1	421543..422424	+	293	148652161	-	PsycPRwf_0349	-	diaminopimelate epimerase
345	 52.05	+1	422454..423479	+	341	148652162	-	PsycPRwf_0350	-	phage integrase family protein
346	 52.32	+1	423586..424470	-	294	148652163	-	PsycPRwf_0351	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
347	 46.28	0	424961..426706	+	581	148652164	-	PsycPRwf_0352	-	RNA polymerase, sigma 54 subunit, RpoN
348	 42.61	0	427202..427600	+	132	148652165	-	PsycPRwf_0353	-	sigma 54 modulation protein/ribosomal protein S30EA
349	 44.28	0	427837..428037	-	66	148652166	-	PsycPRwf_0354	-	thiamine biosynthesis protein ThiS
350	 48.91	0	428088..428453	-	121	148652167	-	PsycPRwf_0355	-	hypothetical protein
351	 48.08	0	428621..429739	-	372	148652168	-	PsycPRwf_0356	-	RNA polymerase factor sigma-32
352	 46.93	0	429796..430170	-	124	148652169	-	PsycPRwf_0357	-	SirA family protein
353	 48.88	0	430615..432216	+	533	148652170	-	PsycPRwf_0358	-	peptidase M48, Ste24p
354	 42.67	0	432252..432701	-	149	148652171	-	PsycPRwf_0359	-	GatB/Yqey domain-containing protein
355	 44.44	0	432986..433201	-	71	148652172	rpsU	PsycPRwf_0360	-	30S ribosomal protein S21
356	 53.29	+2	433867..434292	+	141	148652173	-	PsycPRwf_0361	-	hypothetical protein
45.93	MEAN

3.38	STD DEV
