IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

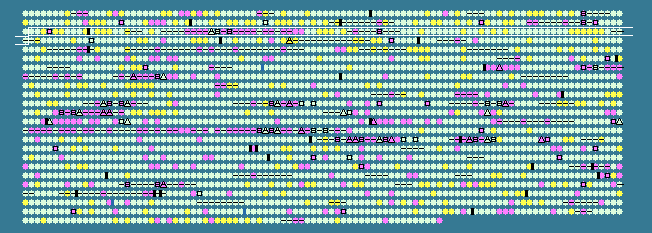

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
202	 44.36	0	239796..240212	+	138	148652019	rplS	PsycPRwf_0203	-	50S ribosomal protein L19
203	 48.98	0	240499..242013	+	504	148652020	-	PsycPRwf_0204	-	hypothetical protein
204	 50.14	+1	242157..244001	+	614	148652021	-	PsycPRwf_0205	-	excinuclease ABC, C subunit
205	 41.82	-1	244034..245140	-	368	148652022	-	PsycPRwf_0206	-	IS605 family transposase OrfB
206	 50.88	+1	245311..246102	-	263	148652023	-	PsycPRwf_0207	-	hypothetical protein
207	 52.85	+2	246171..247502	-	443	148652024	-	PsycPRwf_0208	-	Beta-ketoacyl synthase-like protein
208	 48.66	0	247575..247985	-	136	148652025	-	PsycPRwf_0209	-	hypothetical protein
209	 42.50	-1	248056..248415	-	119	148652026	-	PsycPRwf_0210	-	hypothetical protein
210	 45.65	0	248480..248812	-	110	148652027	-	PsycPRwf_0211	-	BolA family protein
211	 49.50	+1	249034..249837	-	267	148652028	-	PsycPRwf_0212	-	peptidase M48, Ste24p
212	 49.03	0	251656..252891	+	411	148652029	-	PsycPRwf_0213	-	trimethylamine-N-oxide reductase c-type cytochrome TorC
213	 51.53	+1	252948..255470	+	840	148652030	-	PsycPRwf_0214	-	trimethylamine-N-oxide reductase TorA
214	 49.55	+1	255591..256256	+	221	148652031	-	PsycPRwf_0215	-	cytoplasmic chaperone TorD family protein
215	 51.56	+1	256323..257633	+	436	148652032	-	PsycPRwf_0216	-	molybdenum cofactor synthesis domain-containing protein
216	 48.02	0	257966..259279	+	437	148652033	moaA	PsycPRwf_0217	-	molybdenum cofactor biosynthesis protein A
217	 48.48	0	259365..259892	+	175	148652034	-	PsycPRwf_0218	-	molybdenum cofactor biosynthesis protein B
218	 50.31	+1	259897..260715	+	272	148652035	-	PsycPRwf_0219	-	molybdopterin-guanine dinucleotide biosynthesis protein A-like protein
219	 49.21	0	260928..261494	+	188	148652036	-	PsycPRwf_0220	-	molybdenum cofactor biosynthesis protein C
220	 45.27	0	261699..261941	+	80	148652037	-	PsycPRwf_0221	-	molybdopterin converting factor, subunit 1
221	 47.29	0	261973..262488	+	171	148652038	-	PsycPRwf_0222	-	molybdopterin biosynthesis MoaE protein
222	 50.07	+1	262616..263374	-	252	148652039	-	PsycPRwf_0223	-	molybdate ABC transporter, inner membrane subunit
223	 49.08	0	263587..264513	-	308	148652040	-	PsycPRwf_0224	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
224	 47.37	0	264720..265916	-	398	148652041	-	PsycPRwf_0225	-	aromatic amino acid aminotransferase
225	 47.74	0	266107..267591	+	494	148652042	-	PsycPRwf_0226	-	Na+/H+ antiporter NhaC
226	 45.08	0	267648..268703	+	351	148652043	-	PsycPRwf_0227	-	UDP-glucose 4-epimerase
227	 45.11	0	268787..270280	-	497	148652044	-	PsycPRwf_0228	-	hypothetical protein
228	 38.07	-2	270520..272040	-	506	148652045	-	PsycPRwf_0229	-	NAD-dependent epimerase/dehydratase
229	 34.22	-2	272116..273240	-	374	148652046	-	PsycPRwf_0230	-	glycosyl transferase, group 1
230	 33.95	-2	273465..274601	-	378	148652047	-	PsycPRwf_0231	-	glycosyl transferase, group 1
231	 38.10	-2	275575..275700	-	41	148652048	-	PsycPRwf_0233	-	hypothetical protein
232	 46.26	0	275990..276577	-	195	148652049	-	PsycPRwf_0234	-	integrase catalytic subunit
233	 44.23	0	276694..277005	-	103	148652050	-	PsycPRwf_0235	-	transposase IS3/IS911 family protein
234	 32.20	-2	277178..278323	-	381	148652051	-	PsycPRwf_0236	-	hypothetical protein
235	 39.70	-1	279538..279804	-	88	148652052	-	PsycPRwf_0240	-	transposase IS3/IS911 family protein
236	 36.90	-2	279954..281918	-	654	148652053	-	PsycPRwf_0241	-	asparagine synthase (glutamine-hydrolyzing)
237	 32.38	-2	281928..282974	-	348	148652054	-	PsycPRwf_0242	-	glycosyl transferase, group 1
238	 35.59	-2	283023..284441	-	472	148652055	-	PsycPRwf_0243	-	polysaccharide biosynthesis protein
239	 33.67	-2	284432..285613	-	393	148652056	-	PsycPRwf_0244	-	glycosyl transferase, group 1
240	 42.64	0	285617..286690	-	357	148652057	-	PsycPRwf_0245	-	DegT/DnrJ/EryC1/StrS aminotransferase
241	 40.89	-1	286731..287312	-	193	148652058	-	PsycPRwf_0246	-	hexapaptide repeat-containing transferase
242	 36.99	-2	287330..288286	-	318	148652059	-	PsycPRwf_0247	-	oxidoreductase domain-containing protein
243	 44.57	0	288338..289360	-	340	148652060	-	PsycPRwf_0248	-	NAD-dependent epimerase/dehydratase
244	 40.79	-1	289427..290713	-	428	148652061	-	PsycPRwf_0249	-	UDP-glucose/GDP-mannose dehydrogenase
245	 41.79	-1	290754..292751	-	665	148652062	-	PsycPRwf_0250	-	polysaccharide biosynthesis protein CapD
246	 39.10	-2	292810..295065	-	751	148652063	-	PsycPRwf_0251	-	non-specific protein-tyrosine kinase
247	 41.20	-1	295143..295574	-	143	148652064	-	PsycPRwf_0252	-	protein tyrosine phosphatase
248	 43.48	0	295631..296734	-	367	148652065	-	PsycPRwf_0253	-	polysaccharide export protein
249	 45.36	0	296953..299181	-	742	148652066	-	PsycPRwf_0254	-	UvrD/REP helicase
250	 49.74	+1	299255..300424	-	389	148652067	-	PsycPRwf_0255	-	alpha/beta hydrolase fold
251	 51.21	+1	300465..301583	-	372	148652068	-	PsycPRwf_0256	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
252	 52.35	+1	301786..303105	-	439	148652069	-	PsycPRwf_0257	-	recombination factor protein RarA
253	 48.13	0	303521..304216	+	231	148652070	-	PsycPRwf_0258	-	hypothetical protein
254	 51.91	+1	304213..305208	+	331	148652071	-	PsycPRwf_0259	-	hypothetical protein
255	 45.04	0	305422..306702	-	426	148652072	-	PsycPRwf_0260	-	citrate synthase I
256	 42.33	-1	308231..308608	+	125	148652073	-	PsycPRwf_0261	-	succinate dehydrogenase, cytochrome b556 subunit
257	 46.35	0	308608..308991	+	127	148652074	-	PsycPRwf_0262	-	succinate dehydrogenase, hydrophobic membrane anchor
258	 46.79	0	309198..311048	+	616	148652075	sdhA	PsycPRwf_0263	-	succinate dehydrogenase flavoprotein subunit
259	 45.99	0	311177..311887	+	236	148652076	sdhB	PsycPRwf_0264	-	succinate dehydrogenase iron-sulfur subunit
260	 39.74	-1	312460..313161	-	233	148652077	-	PsycPRwf_0265	-	IS1 transposase
261	 47.58	0	313445..316321	+	958	148652078	kgd	PsycPRwf_0266	-	alpha-ketoglutarate decarboxylase
262	 47.64	0	316529..317758	+	409	148652079	-	PsycPRwf_0267	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
263	 46.78	0	317980..319437	+	485	148652080	-	PsycPRwf_0268	-	dihydrolipoamide dehydrogenase
264	 44.19	0	319653..320822	+	389	148652081	sucC	PsycPRwf_0269	-	succinyl-CoA synthetase subunit beta
265	 46.80	0	320880..321755	+	291	148652082	-	PsycPRwf_0270	-	succinyl-CoA synthetase, alpha subunit
266	 47.33	0	321963..322841	+	292	148652083	-	PsycPRwf_0271	-	nucleotidyl transferase
267	 49.65	+1	322978..324669	+	563	148652084	-	PsycPRwf_0272	-	glucose-6-phosphate isomerase
268	 48.99	0	324762..326102	+	446	148652085	-	PsycPRwf_0273	-	UDP-glucose/GDP-mannose dehydrogenase, dimerisation
269	 48.43	0	326234..327697	-	487	148652086	-	PsycPRwf_0274	-	phosphomannomutase
270	 47.28	0	327789..329057	-	422	148652087	-	PsycPRwf_0275	-	UDP-glucose/GDP-mannose dehydrogenase, dimerisation
271	 49.08	0	329219..330088	+	289	148652088	mazG	PsycPRwf_0276	-	nucleoside triphosphate pyrophosphohydrolase
272	 49.08	0	330054..330434	+	126	148652089	-	PsycPRwf_0277	-	helix-hairpin-helix repeat-containing competence protein ComEA
273	 46.89	0	330478..331008	-	176	148652090	-	PsycPRwf_0278	-	hypothetical protein
274	 49.65	+1	331231..333099	-	622	148652091	-	PsycPRwf_0279	-	Na+/solute symporter
275	 44.06	0	333104..333364	-	86	148652092	-	PsycPRwf_0280	-	membrane protein-like protein
276	 46.72	0	333983..335491	+	502	148652093	-	PsycPRwf_0281	-	amino acid carrier protein
277	 49.52	+1	335602..337269	-	555	148652094	-	PsycPRwf_0282	-	electron-transferring-flavoprotein dehydrogenase
278	 47.31	0	337754..338404	+	216	148652095	-	PsycPRwf_0283	-	hypothetical protein
279	 51.52	+1	338477..339499	+	340	148652096	-	PsycPRwf_0284	-	glutamate racemase
280	 47.08	0	339673..339963	+	96	148652097	-	PsycPRwf_0285	-	hypothetical protein
281	 50.60	+1	340063..341487	-	474	148652098	-	PsycPRwf_0286	-	lytic murein transglycosylase
282	 48.65	0	341796..342761	-	321	148652099	-	PsycPRwf_0287	-	aldose 1-epimerase
283	 48.05	0	342832..343524	-	230	148652100	-	PsycPRwf_0288	-	thiopurine S-methyltransferase
284	 44.32	0	343681..344208	-	175	148652101	-	PsycPRwf_0289	-	peptide methionine sulfoxide reductase
285	 47.76	0	344360..345184	+	274	148652102	-	PsycPRwf_0290	-	putative methyltransferase
286	 47.65	0	345273..346334	+	353	148652103	-	PsycPRwf_0291	-	putative methyltransferase
287	 47.57	0	346462..347634	+	390	148652104	-	PsycPRwf_0292	-	hypothetical protein
288	 45.02	0	347669..347899	-	76	148652105	-	PsycPRwf_0293	-	hypothetical protein
289	 46.67	0	348184..350013	+	609	148652106	argS	PsycPRwf_0294	-	arginyl-tRNA synthetase
290	 48.79	0	350161..350988	+	275	148652107	-	PsycPRwf_0295	-	sporulation domain-containing protein
291	 48.48	0	351076..351834	+	252	148652108	-	PsycPRwf_0296	-	transcriptional regulator IclR-like protein
292	 49.68	+1	351928..352857	-	309	148652109	-	PsycPRwf_0297	-	3-hydroxyisobutyrate dehydrogenase
293	 50.16	+1	352971..354254	-	427	148652110	-	PsycPRwf_0298	-	enoyl-CoA hydratase/isomerase
294	 49.43	+1	354304..355086	-	260	148652111	-	PsycPRwf_0299	-	enoyl-CoA hydratase
295	 49.70	+1	355277..356443	-	388	148652112	-	PsycPRwf_0300	-	acyl-CoA dehydrogenase domain-containing protein
296	 49.53	+1	356685..358172	-	495	148652113	-	PsycPRwf_0301	-	methylmalonate-semialdehyde dehydrogenase
297	 51.71	+1	358463..360475	-	670	148652114	-	PsycPRwf_0302	-	propionyl-CoA synthetase
298	 48.64	0	360701..361909	-	402	148652115	-	PsycPRwf_0303	-	major facilitator transporter
299	 47.31	0	362108..363037	-	309	148652116	-	PsycPRwf_0304	-	short-chain dehydrogenase/reductase SDR
300	 45.23	0	363423..364700	-	425	148652117	clpX	PsycPRwf_0305	-	ATP-dependent protease ATP-binding subunit
301	 47.72	0	364905..365627	-	240	148652118	-	PsycPRwf_0306	-	ATP-dependent Clp protease, proteolytic subunit ClpP
45.93	MEAN

3.38	STD DEV
