IslandPath Analysis: Psychrobacter sp. PRwf-1

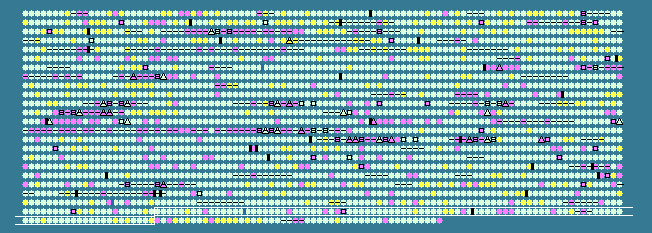

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2223	 45.74	0	2788448..2788729	+	93	148654040	-	PsycPRwf_2243	-	acetyltransferase-like protein
2224	 43.20	0	2788885..2789178	+	97	148654041	-	PsycPRwf_2244	-	transcriptional coactivator/pterin dehydratase
2225	 44.68	0	2789300..2790013	+	237	148654042	-	PsycPRwf_2245	-	hypothetical protein
2226	 48.54	0	2790010..2791206	-	398	148654043	-	PsycPRwf_2246	-	hypothetical protein
2227	 47.92	0	2791390..2792280	+	296	148654044	-	PsycPRwf_2247	-	CBS domain-containing protein
2228	 49.86	+1	2792270..2793310	+	346	148654045	-	PsycPRwf_2248	-	patatin
2229	 46.42	0	2793397..2793969	-	190	148654046	-	PsycPRwf_2249	-	hypothetical protein
2230	 47.85	0	2794268..2795590	+	440	148654047	-	PsycPRwf_2250	-	N-acetylglutamate synthase
2231	 41.90	-1	2795688..2796446	-	252	148654048	-	PsycPRwf_2251	-	peptidylprolyl isomerase, FKBP-type
2232	 42.65	0	2797078..2798655	+	525	148654049	-	PsycPRwf_2252	-	TM helix repeat-containing protein
2233	 44.54	0	2798844..2799521	+	225	148654050	-	PsycPRwf_2253	-	dehydrogenase
2234	 43.39	0	2799664..2800329	-	221	148654051	-	PsycPRwf_2254	-	phospholipid/glycerol acyltransferase
2235	 46.14	0	2800401..2802290	-	629	148654052	-	PsycPRwf_2255	-	DNA topoisomerase IV subunit B
2236	 43.70	0	2802432..2803058	-	208	148654053	-	PsycPRwf_2256	-	hypothetical protein
2237	 43.48	0	2803248..2803523	+	91	148654054	-	PsycPRwf_2257	-	hypothetical protein
2238	 43.24	0	2821323..2821958	-	211	148654055	-	PsycPRwf_2258	-	G:T/U mismatch-specific DNA glycosylase-like protein
2239	 43.82	0	2822266..2822904	+	212	148654056	upp	PsycPRwf_2259	-	uracil phosphoribosyltransferase
2240	 45.29	0	2823021..2823731	-	236	148654057	-	PsycPRwf_2260	-	hypothetical protein
2241	 45.68	0	2823731..2824216	-	161	148654058	-	PsycPRwf_2261	-	thioesterase superfamily protein
2242	 48.97	0	2824290..2825159	-	289	148654059	-	PsycPRwf_2262	-	uroporphyrinogen-III synthase-like protein
2243	 47.25	0	2825229..2826248	-	339	148654060	-	PsycPRwf_2263	-	porphobilinogen deaminase
2244	 46.88	0	2826493..2827968	+	491	148654061	-	PsycPRwf_2264	-	argininosuccinate lyase
2245	 42.00	-1	2827996..2828295	+	99	148654062	-	PsycPRwf_2265	-	hypothetical protein
2246	 46.53	0	2828380..2829129	-	249	148654063	-	PsycPRwf_2266	-	phosphate uptake regulator, PhoU
2247	 45.61	0	2829218..2830129	-	303	148654064	-	PsycPRwf_2267	-	phosphate ABC transporter, ATPase subunit
2248	 46.33	0	2830216..2831115	-	299	148654065	-	PsycPRwf_2268	-	phosphate ABC transporter, inner membrane subunit PstA
2249	 45.01	0	2831263..2832213	-	316	148654066	-	PsycPRwf_2269	-	phosphate ABC transporter, inner membrane subunit PstC
2250	 45.11	0	2832298..2833605	-	435	148654067	-	PsycPRwf_2270	-	phosphate ABC transporter, periplasmic phosphate-binding protein
2251	 42.42	-1	2833955..2834317	+	120	148654068	-	PsycPRwf_2271	-	rare lipoprotein A
2252	 48.63	0	2834837..2836837	+	666	148654069	-	PsycPRwf_2272	-	thiamine biosynthesis protein ThiC
2253	 41.75	-1	2836988..2837878	-	296	148654070	-	PsycPRwf_2273	-	fructose-1,6-bisphosphate aldolase
2254	 41.28	-1	2838169..2839275	-	368	148654071	-	PsycPRwf_2274	-	IS605 family transposase OrfB
2255	 42.97	0	2839576..2840094	+	172	148654072	-	PsycPRwf_2275	-	hypothetical protein
2256	 44.22	0	2840588..2841607	+	339	148654073	-	PsycPRwf_2276	-	hypothetical protein
2257	 47.52	0	2841686..2842714	+	342	148654074	-	PsycPRwf_2277	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2258	 48.34	0	2842783..2843295	+	170	148654075	-	PsycPRwf_2278	-	flavin reductase domain-containing protein
2259	 47.45	0	2843426..2844247	+	273	148654076	-	PsycPRwf_2279	-	hypothetical protein
2260	 46.59	0	2844425..2846272	-	615	148654077	-	PsycPRwf_2280	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
2261	 44.81	0	2846452..2847819	-	455	148654078	-	PsycPRwf_2281	-	UDP-N-acetylglucosamine pyrophosphorylase
2262	 46.63	0	2848149..2848772	-	207	148654079	-	PsycPRwf_2282	-	phosphatidylglycerophosphatase A
2263	 48.61	0	2848759..2849877	-	372	148654080	-	PsycPRwf_2283	-	thiamine-monophosphate kinase
2264	 46.25	0	2850081..2850839	-	252	148654081	-	PsycPRwf_2284	-	NusB antitermination factor
2265	 47.05	0	2850979..2851503	-	174	148654082	-	PsycPRwf_2285	-	riboflavin synthase
2266	 51.88	+1	2851735..2852505	-	256	148654083	-	PsycPRwf_2286	-	imidazole glycerol phosphate synthase subunit HisF
2267	 46.48	0	2852842..2854704	+	620	148654084	-	PsycPRwf_2287	-	Na+/Pi-cotransporter
2268	 45.89	0	2854850..2856091	+	413	148654085	-	PsycPRwf_2288	-	homoserine kinase
2269	 46.32	0	2856321..2856551	+	76	148654086	-	PsycPRwf_2289	-	hypothetical protein
2270	 47.32	0	2856611..2857525	+	304	148654087	-	PsycPRwf_2290	-	glutamine amidotransferase, class-II
2271	 51.39	+1	2857520..2858095	-	191	148654088	-	PsycPRwf_2291	-	SecC motif-containing protein
2272	 50.04	+1	2858343..2860574	+	743	148654089	-	PsycPRwf_2292	-	neutral/alkaline nonlysosomal ceramidase
2273	 43.75	0	2860761..2861144	-	127	148654090	-	PsycPRwf_2293	-	hypothetical protein
2274	 41.10	-1	2861418..2861726	-	102	148654091	-	PsycPRwf_2294	-	hypothetical protein
2275	 45.37	0	2861836..2862882	-	348	148654092	-	PsycPRwf_2295	-	DNA/RNA non-specific endonuclease
2276	 46.93	0	2863405..2864691	+	428	148654093	-	PsycPRwf_2296	-	iron-containing alcohol dehydrogenase
2277	 43.61	0	2864788..2865702	-	304	148654094	-	PsycPRwf_2297	-	LysR family transcriptional regulator
2278	 42.89	0	2865868..2866275	+	135	148654095	-	PsycPRwf_2298	-	DoxX family protein
2279	 42.86	0	2866819..2867364	+	181	148654096	-	PsycPRwf_2299	-	NADPH-dependent FMN reductase
2280	 42.45	-1	2867366..2868133	+	255	148654097	-	PsycPRwf_2300	-	hypothetical protein
2281	 41.33	-1	2868524..2869198	+	224	148654098	-	PsycPRwf_2301	-	isochorismatase hydrolase
2282	 39.76	-1	2869629..2869955	-	108	148654099	-	PsycPRwf_2302	-	acetyltransferase-like protein
2283	 46.08	0	2870361..2871074	+	237	148654100	-	PsycPRwf_2303	-	pirin domain-containing protein
2284	 44.59	0	2871242..2872174	+	310	148654101	-	PsycPRwf_2304	-	pirin domain-containing protein
2285	 43.63	0	2872444..2873055	+	203	148654102	-	PsycPRwf_2305	-	oxidoreductase related to nitroreductase-like protein
2286	 46.84	0	2873191..2874012	-	273	148654103	-	PsycPRwf_2306	-	short-chain dehydrogenase/reductase SDR
2287	 46.70	0	2873991..2875097	-	368	148654104	-	PsycPRwf_2307	-	hypothetical protein
2288	 47.48	0	2875243..2875956	-	237	148654105	-	PsycPRwf_2308	-	pseudouridine synthase
2289	 41.90	-1	2876261..2876587	+	108	148654106	-	PsycPRwf_2309	-	thioredoxin
2290	 45.88	0	2877323..2878621	+	432	148654107	rho	PsycPRwf_2310	-	transcription termination factor Rho
2291	 47.15	0	2878957..2879202	+	81	148654108	-	PsycPRwf_2311	-	17 kDa surface antigen
2292	 49.83	+1	2879388..2880266	-	292	148654109	-	PsycPRwf_2312	-	protein of unknown function, zinc metallopeptidase putative
2293	 49.35	+1	2880849..2881235	+	128	148654110	-	PsycPRwf_2313	-	hypothetical protein
2294	 40.19	-1	2881401..2881721	-	106	148654111	-	PsycPRwf_2314	-	histone family protein DNA-binding protein
2295	 48.22	0	2881826..2884237	-	803	148654112	-	PsycPRwf_2315	-	phenylalanyl-tRNA synthetase, beta subunit
2296	 49.02	0	2884346..2885473	-	375	148654113	-	PsycPRwf_2316	-	phenylalanyl-tRNA synthetase, alpha subunit
2297	 44.82	0	2885710..2886066	-	118	148654114	rplT	PsycPRwf_2317	-	50S ribosomal protein L20
2298	 42.93	0	2886149..2886346	-	65	148654115	rpmI	PsycPRwf_2318	-	50S ribosomal protein L35
2299	 48.92	0	2886828..2887757	+	309	148654116	-	PsycPRwf_2319	-	phosphoribosyl-AMP cyclohydrolase
2300	 44.31	0	2887879..2888133	+	84	148654117	-	PsycPRwf_2320	-	twin arginine-targeting protein translocase
2301	 48.37	0	2888170..2888934	+	254	148654118	-	PsycPRwf_2321	-	twin-arginine translocation protein, TatB subunit
2302	 44.00	0	2888931..2889764	+	277	148654119	-	PsycPRwf_2322	-	Sec-independent protein translocase, TatC subunit
2303	 48.62	0	2890139..2891656	+	505	148654120	-	PsycPRwf_2323	-	superfamily I DNA/RNA helicase-like protein
2304	 51.65	+1	2891708..2892679	+	323	148654121	-	PsycPRwf_2324	-	dihydrouridine synthase, DuS
2305	 48.12	0	2892735..2893160	-	141	148654122	-	PsycPRwf_2325	-	membrane protein-like protein
2306	 48.99	0	2893181..2893627	-	148	148654123	-	PsycPRwf_2326	-	OsmC family protein
2307	 46.58	0	2893846..2895732	-	628	148654124	-	PsycPRwf_2327	-	outer membrane autotransporter
2308	 47.70	0	2896350..2896871	+	173	148654125	-	PsycPRwf_2328	-	dinucleoside polyphosphate hydrolase
2309	 48.98	0	2897055..2897891	-	278	148654126	-	PsycPRwf_2329	-	hypothetical protein
2310	 47.44	0	2898112..2898990	+	292	148654127	-	PsycPRwf_2330	-	prolipoprotein diacylglyceryl transferase
2311	 45.99	0	2899060..2899920	+	286	148654128	thyA	PsycPRwf_2331	-	thymidylate synthase
2312	 45.53	0	2900030..2900611	+	193	148654129	-	PsycPRwf_2332	-	dihydrofolate reductase
2313	 48.16	0	2900764..2902308	+	514	148654130	-	PsycPRwf_2333	-	phospholipase D/transphosphatidylase
2314	 48.79	0	2902452..2904275	-	607	148654131	-	PsycPRwf_2334	-	peptidase M24
2315	 45.84	0	2904432..2906006	-	524	148654132	-	PsycPRwf_2335	-	amino acid/peptide transporter
2316	 54.11	+2	2906293..2906706	-	137	148654133	-	PsycPRwf_2336	-	hypothetical protein
2317	 49.05	0	2906983..2908554	-	523	148654134	-	PsycPRwf_2337	-	apolipoprotein N-acyltransferase
2318	 52.45	+1	2908853..2911096	+	747	148654135	-	PsycPRwf_2338	-	ATP-dependent DNA helicase RecG
2319	 45.78	0	2911150..2913543	-	797	148654136	-	PsycPRwf_2339	-	TonB-dependent receptor
2320	 47.31	0	2913699..2916209	+	836	148654137	-	PsycPRwf_2340	-	TonB-dependent receptor
2321	 45.58	0	2916510..2917448	+	312	148654138	-	PsycPRwf_2341	-	hypothetical protein
2322	 50.09	+1	2917771..2919405	+	544	148654139	-	PsycPRwf_2342	-	flavoprotein involved in K+ transport-like protein
45.93	MEAN

3.38	STD DEV
