IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

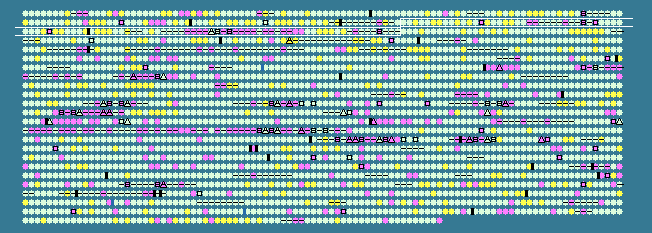

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
164	 45.64	0	196042..198876	-	944	148651981	-	PsycPRwf_0165	-	glycerol-3-phosphate acyltransferase
165	 47.99	0	199482..200375	+	297	148651982	-	PsycPRwf_0166	-	palmitoyl-CoA hydrolase
166	 50.82	+1	200529..201866	-	445	148651983	-	PsycPRwf_0167	-	lytic murein transglycosylase
167	 48.94	0	202029..203303	-	424	148651984	-	PsycPRwf_0168	-	A/G-specific adenine glycosylase
168	 47.43	0	203433..204404	-	323	148651985	rbgA	PsycPRwf_0169	-	ribosomal biogenesis GTPase
169	 49.80	+1	204627..205367	-	246	148651986	-	PsycPRwf_0170	-	dienelactone hydrolase
170	 51.15	+1	205637..206113	+	158	148651987	-	PsycPRwf_0171	-	hypothetical protein
171	 46.97	0	206272..207525	-	417	148651988	-	PsycPRwf_0172	-	Rh family protein/ammonium transporter
172	 44.25	0	207634..207972	-	112	148651989	-	PsycPRwf_0173	-	nitrogen regulatory protein P-II
173	 49.48	+1	208359..209219	-	286	148651990	-	PsycPRwf_0174	-	UspA domain-containing protein
174	 48.17	0	209376..210878	-	500	148651991	-	PsycPRwf_0175	-	sulphate transporter
175	 50.00	+1	211558..213015	+	485	148651992	murD	PsycPRwf_0176	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
176	 47.23	0	213137..214345	+	402	148651993	-	PsycPRwf_0177	-	cell cycle protein
177	 42.01	-1	214403..215509	-	368	148651994	-	PsycPRwf_0178	-	IS605 family transposase OrfB
178	 51.33	+1	215789..216727	-	312	148651995	-	PsycPRwf_0179	-	glutamate--tRNA ligase
179	 43.45	0	216759..217193	-	144	148651996	-	PsycPRwf_0180	-	TraR/DksA family transcriptional regulator
180	 46.43	0	217357..218379	-	340	148651997	-	PsycPRwf_0181	-	calcineurin phosphoesterase C-terminal domain-containing protein
181	 51.32	+1	218419..219213	-	264	148651998	-	PsycPRwf_0182	-	ABC-3 protein
182	 50.24	+1	219327..220154	-	275	148651999	-	PsycPRwf_0183	-	ABC transporter related
183	 48.88	0	220278..220856	-	192	148652000	-	PsycPRwf_0184	-	ferric uptake regulator family protein
184	 49.08	0	221384..222361	+	325	148652001	-	PsycPRwf_0185	-	periplasmic solute binding protein
185	 41.24	-1	222498..222965	+	155	148652002	-	PsycPRwf_0186	-	hypothetical protein
186	 41.06	-1	223321..224187	+	288	148652003	-	PsycPRwf_0187	-	F0F1 ATP synthase subunit A
187	 43.90	0	224222..224467	+	81	148652004	-	PsycPRwf_0188	-	F0F1 ATP synthase subunit C
188	 43.95	0	224572..225042	+	156	148652005	-	PsycPRwf_0189	-	F0F1 ATP synthase subunit B
189	 43.17	0	225257..225886	+	209	148652006	-	PsycPRwf_0190	-	F0F1 ATP synthase subunit delta
190	 44.60	0	226051..227595	+	514	148652007	-	PsycPRwf_0191	-	F0F1 ATP synthase subunit alpha
191	 42.40	-1	227691..228572	+	293	148652008	-	PsycPRwf_0192	-	F0F1 ATP synthase subunit gamma
192	 46.15	0	228611..230038	+	475	148652009	-	PsycPRwf_0193	-	F0F1 ATP synthase subunit beta
193	 45.32	0	230169..230585	+	138	148652010	-	PsycPRwf_0194	-	ATP synthase F1, epsilon subunit
194	 41.19	-1	230778..231884	+	368	148652011	-	PsycPRwf_0195	-	IS605 family transposase OrfB
195	 44.91	0	232013..232729	+	238	148652012	-	PsycPRwf_0196	-	two component transcriptional regulator
196	 41.73	-1	232943..234049	+	368	148652013	-	PsycPRwf_0197	-	IS605 family transposase OrfB
197	 46.51	0	234457..236148	+	563	148652014	-	PsycPRwf_0198	-	integral membrane sensor signal transduction histidine kinase
198	 48.53	0	236205..237665	-	486	148652015	-	PsycPRwf_0199	-	integral membrane sensor signal transduction histidine kinase
199	 44.70	0	237787..238050	+	87	148652016	rpsP	PsycPRwf_0200	-	30S ribosomal protein S16
200	 45.95	0	238140..238670	+	176	148652017	-	PsycPRwf_0201	-	16S rRNA processing protein RimM
201	 47.51	0	238761..239522	+	253	148652018	-	PsycPRwf_0202	-	tRNA (guanine-N1)-methyltransferase
202	 44.36	0	239796..240212	+	138	148652019	rplS	PsycPRwf_0203	-	50S ribosomal protein L19
203	 48.98	0	240499..242013	+	504	148652020	-	PsycPRwf_0204	-	hypothetical protein
204	 50.14	+1	242157..244001	+	614	148652021	-	PsycPRwf_0205	-	excinuclease ABC, C subunit
205	 41.82	-1	244034..245140	-	368	148652022	-	PsycPRwf_0206	-	IS605 family transposase OrfB
206	 50.88	+1	245311..246102	-	263	148652023	-	PsycPRwf_0207	-	hypothetical protein
207	 52.85	+2	246171..247502	-	443	148652024	-	PsycPRwf_0208	-	Beta-ketoacyl synthase-like protein
208	 48.66	0	247575..247985	-	136	148652025	-	PsycPRwf_0209	-	hypothetical protein
209	 42.50	-1	248056..248415	-	119	148652026	-	PsycPRwf_0210	-	hypothetical protein
210	 45.65	0	248480..248812	-	110	148652027	-	PsycPRwf_0211	-	BolA family protein
211	 49.50	+1	249034..249837	-	267	148652028	-	PsycPRwf_0212	-	peptidase M48, Ste24p
212	 49.03	0	251656..252891	+	411	148652029	-	PsycPRwf_0213	-	trimethylamine-N-oxide reductase c-type cytochrome TorC
213	 51.53	+1	252948..255470	+	840	148652030	-	PsycPRwf_0214	-	trimethylamine-N-oxide reductase TorA
214	 49.55	+1	255591..256256	+	221	148652031	-	PsycPRwf_0215	-	cytoplasmic chaperone TorD family protein
215	 51.56	+1	256323..257633	+	436	148652032	-	PsycPRwf_0216	-	molybdenum cofactor synthesis domain-containing protein
216	 48.02	0	257966..259279	+	437	148652033	moaA	PsycPRwf_0217	-	molybdenum cofactor biosynthesis protein A
217	 48.48	0	259365..259892	+	175	148652034	-	PsycPRwf_0218	-	molybdenum cofactor biosynthesis protein B
218	 50.31	+1	259897..260715	+	272	148652035	-	PsycPRwf_0219	-	molybdopterin-guanine dinucleotide biosynthesis protein A-like protein
219	 49.21	0	260928..261494	+	188	148652036	-	PsycPRwf_0220	-	molybdenum cofactor biosynthesis protein C
220	 45.27	0	261699..261941	+	80	148652037	-	PsycPRwf_0221	-	molybdopterin converting factor, subunit 1
221	 47.29	0	261973..262488	+	171	148652038	-	PsycPRwf_0222	-	molybdopterin biosynthesis MoaE protein
222	 50.07	+1	262616..263374	-	252	148652039	-	PsycPRwf_0223	-	molybdate ABC transporter, inner membrane subunit
223	 49.08	0	263587..264513	-	308	148652040	-	PsycPRwf_0224	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
224	 47.37	0	264720..265916	-	398	148652041	-	PsycPRwf_0225	-	aromatic amino acid aminotransferase
225	 47.74	0	266107..267591	+	494	148652042	-	PsycPRwf_0226	-	Na+/H+ antiporter NhaC
226	 45.08	0	267648..268703	+	351	148652043	-	PsycPRwf_0227	-	UDP-glucose 4-epimerase
227	 45.11	0	268787..270280	-	497	148652044	-	PsycPRwf_0228	-	hypothetical protein
228	 38.07	-2	270520..272040	-	506	148652045	-	PsycPRwf_0229	-	NAD-dependent epimerase/dehydratase
229	 34.22	-2	272116..273240	-	374	148652046	-	PsycPRwf_0230	-	glycosyl transferase, group 1
230	 33.95	-2	273465..274601	-	378	148652047	-	PsycPRwf_0231	-	glycosyl transferase, group 1
231	 38.10	-2	275575..275700	-	41	148652048	-	PsycPRwf_0233	-	hypothetical protein
232	 46.26	0	275990..276577	-	195	148652049	-	PsycPRwf_0234	-	integrase catalytic subunit
233	 44.23	0	276694..277005	-	103	148652050	-	PsycPRwf_0235	-	transposase IS3/IS911 family protein
234	 32.20	-2	277178..278323	-	381	148652051	-	PsycPRwf_0236	-	hypothetical protein
235	 39.70	-1	279538..279804	-	88	148652052	-	PsycPRwf_0240	-	transposase IS3/IS911 family protein
236	 36.90	-2	279954..281918	-	654	148652053	-	PsycPRwf_0241	-	asparagine synthase (glutamine-hydrolyzing)
237	 32.38	-2	281928..282974	-	348	148652054	-	PsycPRwf_0242	-	glycosyl transferase, group 1
238	 35.59	-2	283023..284441	-	472	148652055	-	PsycPRwf_0243	-	polysaccharide biosynthesis protein
239	 33.67	-2	284432..285613	-	393	148652056	-	PsycPRwf_0244	-	glycosyl transferase, group 1
240	 42.64	0	285617..286690	-	357	148652057	-	PsycPRwf_0245	-	DegT/DnrJ/EryC1/StrS aminotransferase
241	 40.89	-1	286731..287312	-	193	148652058	-	PsycPRwf_0246	-	hexapaptide repeat-containing transferase
242	 36.99	-2	287330..288286	-	318	148652059	-	PsycPRwf_0247	-	oxidoreductase domain-containing protein
243	 44.57	0	288338..289360	-	340	148652060	-	PsycPRwf_0248	-	NAD-dependent epimerase/dehydratase
244	 40.79	-1	289427..290713	-	428	148652061	-	PsycPRwf_0249	-	UDP-glucose/GDP-mannose dehydrogenase
245	 41.79	-1	290754..292751	-	665	148652062	-	PsycPRwf_0250	-	polysaccharide biosynthesis protein CapD
246	 39.10	-2	292810..295065	-	751	148652063	-	PsycPRwf_0251	-	non-specific protein-tyrosine kinase
247	 41.20	-1	295143..295574	-	143	148652064	-	PsycPRwf_0252	-	protein tyrosine phosphatase
248	 43.48	0	295631..296734	-	367	148652065	-	PsycPRwf_0253	-	polysaccharide export protein
249	 45.36	0	296953..299181	-	742	148652066	-	PsycPRwf_0254	-	UvrD/REP helicase
250	 49.74	+1	299255..300424	-	389	148652067	-	PsycPRwf_0255	-	alpha/beta hydrolase fold
251	 51.21	+1	300465..301583	-	372	148652068	-	PsycPRwf_0256	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
252	 52.35	+1	301786..303105	-	439	148652069	-	PsycPRwf_0257	-	recombination factor protein RarA
253	 48.13	0	303521..304216	+	231	148652070	-	PsycPRwf_0258	-	hypothetical protein
254	 51.91	+1	304213..305208	+	331	148652071	-	PsycPRwf_0259	-	hypothetical protein
255	 45.04	0	305422..306702	-	426	148652072	-	PsycPRwf_0260	-	citrate synthase I
256	 42.33	-1	308231..308608	+	125	148652073	-	PsycPRwf_0261	-	succinate dehydrogenase, cytochrome b556 subunit
257	 46.35	0	308608..308991	+	127	148652074	-	PsycPRwf_0262	-	succinate dehydrogenase, hydrophobic membrane anchor
258	 46.79	0	309198..311048	+	616	148652075	sdhA	PsycPRwf_0263	-	succinate dehydrogenase flavoprotein subunit
259	 45.99	0	311177..311887	+	236	148652076	sdhB	PsycPRwf_0264	-	succinate dehydrogenase iron-sulfur subunit
260	 39.74	-1	312460..313161	-	233	148652077	-	PsycPRwf_0265	-	IS1 transposase
261	 47.58	0	313445..316321	+	958	148652078	kgd	PsycPRwf_0266	-	alpha-ketoglutarate decarboxylase
262	 47.64	0	316529..317758	+	409	148652079	-	PsycPRwf_0267	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
263	 46.78	0	317980..319437	+	485	148652080	-	PsycPRwf_0268	-	dihydrolipoamide dehydrogenase
45.93	MEAN

3.38	STD DEV
