IslandPath Analysis: Psychrobacter sp. PRwf-1

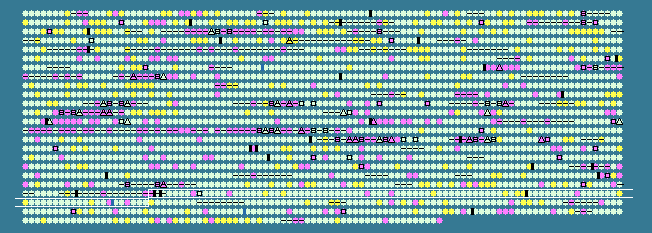

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2022	 41.56	-1	2545516..2545989	-	157	148653839	secE	PsycPRwf_2042	-	preprotein translocase subunit SecE
2023	 46.60	0	2546482..2547672	-	396	148653840	-	PsycPRwf_2043	-	elongation factor Tu
2024	 45.40	0	2548606..2549823	-	405	148653841	-	PsycPRwf_2044	-	FHA domain-containing protein
2025	 45.70	0	2549960..2550784	-	274	148653842	-	PsycPRwf_2045	-	hypothetical protein
2026	 47.99	0	2551109..2552704	-	531	148653843	prfC	PsycPRwf_2046	-	peptide chain release factor 3
2027	 45.01	0	2553014..2553424	+	136	148653844	-	PsycPRwf_2047	-	OsmC family protein
2028	 46.30	0	2553739..2556807	+	1022	148653845	-	PsycPRwf_2048	-	DNA polymerase I
2029	 28.99	-2	2556978..2557529	+	183	148653846	-	PsycPRwf_2049	-	hypothetical protein
2030	 45.75	0	2557587..2558786	-	399	148653847	-	PsycPRwf_2050	-	transposase, mutator type
2031	 43.32	0	2559130..2560281	+	383	148653848	-	PsycPRwf_2051	-	hypothetical protein
2032	 48.86	0	2560301..2561569	-	422	148653849	-	PsycPRwf_2052	-	hypothetical protein
2033	 45.58	0	2561609..2562841	-	410	148653850	-	PsycPRwf_2053	-	alkane 1-monooxygenase
2034	 42.74	0	2563366..2563737	+	123	148653851	-	PsycPRwf_2054	-	hypothetical protein
2035	 41.99	-1	2564109..2564651	+	180	148653852	-	PsycPRwf_2055	-	Ferritin, Dps family protein
2036	 43.38	0	2564733..2564951	+	72	148653853	-	PsycPRwf_2056	-	hypothetical protein
2037	 47.06	0	2565054..2566073	-	339	148653854	-	PsycPRwf_2057	-	ferrochelatase
2038	 48.15	0	2566442..2567710	+	422	148653855	metX	PsycPRwf_2058	-	homoserine O-acetyltransferase
2039	 45.09	0	2567707..2568327	+	206	148653856	-	PsycPRwf_2059	-	methionine biosynthesis protein MetW
2040	 46.74	0	2568779..2569360	+	193	148653857	-	PsycPRwf_2060	-	Sel1 domain-containing protein
2041	 49.96	+1	2569612..2571000	-	462	148653858	-	PsycPRwf_2061	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2042	 47.98	0	2571175..2572362	-	395	148653859	-	PsycPRwf_2062	-	acyl-CoA dehydrogenase domain-containing protein
2043	 48.74	0	2572413..2573327	-	304	148653860	-	PsycPRwf_2063	-	pyruvate carboxyltransferase
2044	 50.83	+1	2573398..2575500	-	700	148653861	-	PsycPRwf_2064	-	carbamoyl-phosphate synthase L chain, ATP-binding
2045	 43.82	0	2575625..2576053	-	142	148653862	-	PsycPRwf_2065	-	glutathione-dependent formaldehyde-activating, GFA
2046	 47.32	0	2576110..2576931	-	273	148653863	-	PsycPRwf_2066	-	enoyl-CoA hydratase/isomerase
2047	 48.42	0	2577189..2578799	-	536	148653864	-	PsycPRwf_2067	-	propionyl-CoA carboxylase
2048	 47.12	0	2578914..2580704	-	596	148653865	-	PsycPRwf_2068	-	acyl-CoA synthetase
2049	 47.63	0	2581218..2582147	+	309	148653866	-	PsycPRwf_2069	-	Hsp33 protein
2050	 47.72	0	2582289..2583776	-	495	148653867	-	PsycPRwf_2070	-	PGAP1 family protein
2051	 46.35	0	2583933..2585999	-	688	148653868	-	PsycPRwf_2071	-	phosphatase-like protein
2052	 44.90	0	2586232..2586957	-	241	148653869	-	PsycPRwf_2072	-	polar amino acid ABC transporter, inner membrane subunit
2053	 47.91	0	2586967..2587707	-	246	148653870	-	PsycPRwf_2073	-	polar amino acid ABC transporter, inner membrane subunit
2054	 44.36	0	2588062..2588895	-	277	148653871	-	PsycPRwf_2074	-	extracellular solute-binding protein
2055	 46.50	0	2589087..2589929	-	280	148653872	-	PsycPRwf_2075	-	extracellular solute-binding protein
2056	 45.79	0	2590039..2590833	-	264	148653873	-	PsycPRwf_2076	-	extracellular solute-binding protein
2057	 49.28	0	2591302..2592129	-	275	148653874	-	PsycPRwf_2077	-	ABC transporter related
2058	 40.15	-1	2592251..2592382	-	43	148653875	-	PsycPRwf_2078	-	hypothetical protein
2059	 48.27	0	2592478..2593776	+	432	148653876	proA	PsycPRwf_2079	-	gamma-glutamyl phosphate reductase
2060	 47.22	0	2594530..2595804	+	424	148653877	-	PsycPRwf_2080	-	sodium/glutamate symporter
2061	 44.80	0	2595877..2597673	-	598	148653878	-	PsycPRwf_2081	-	oligoendopeptidase F
2062	 40.56	-1	2597861..2598109	+	82	148653879	-	PsycPRwf_2082	-	hypothetical protein
2063	 47.41	0	2598302..2599558	-	418	148653880	-	PsycPRwf_2083	-	serine hydroxymethyltransferase
2064	 46.67	0	2599813..2600322	-	169	148653881	-	PsycPRwf_2084	-	chorismate lyase
2065	 46.46	0	2600357..2601697	-	446	148653882	-	PsycPRwf_2085	-	hypothetical protein
2066	 45.41	0	2602323..2604542	+	739	148653883	-	PsycPRwf_2086	-	isocitrate dehydrogenase, NADP-dependent
2067	 48.49	0	2604875..2607097	+	740	148653884	-	PsycPRwf_2087	-	isocitrate dehydrogenase, NADP-dependent
2068	 44.13	0	2607213..2607740	+	175	148653885	-	PsycPRwf_2088	-	Ion transport 2 domain-containing protein
2069	 49.51	+1	2607796..2608407	+	203	148653886	-	PsycPRwf_2089	-	pseudouridine synthase
2070	 47.26	0	2608469..2610364	-	631	148653887	-	PsycPRwf_2090	-	peptidase M61 domain-containing protein
2071	 45.34	0	2610797..2611279	+	160	148653888	-	PsycPRwf_2091	-	peptidylprolyl isomerase, FKBP-type
2072	 46.70	0	2611426..2613093	-	555	148653889	-	PsycPRwf_2092	-	histidine kinase
2073	 48.72	0	2613280..2613981	-	233	148653890	-	PsycPRwf_2093	-	two component transcriptional regulator
2074	 47.39	0	2614224..2614664	-	146	148653891	-	PsycPRwf_2094	-	D-tyrosyl-tRNA deacylase
2075	 49.12	0	2614877..2615788	+	303	148653892	-	PsycPRwf_2095	-	phosphatidylserine decarboxylase
2076	 46.76	0	2615867..2616484	-	205	148653893	-	PsycPRwf_2096	-	metal dependent phosphohydrolase
2077	 45.08	0	2616651..2617229	-	192	148653894	-	PsycPRwf_2097	-	isochorismatase hydrolase
2078	 45.61	0	2617379..2617777	-	132	148653895	-	PsycPRwf_2098	-	hypothetical protein
2079	 48.51	0	2617934..2619106	-	390	148653896	fadA	PsycPRwf_2099	-	3-ketoacyl-CoA thiolase
2080	 46.94	0	2619268..2621427	-	719	148653897	fadB	PsycPRwf_2100	-	multifunctional fatty acid oxidation complex subunit alpha
2081	 49.47	+1	2621901..2622836	+	311	148653898	-	PsycPRwf_2101	-	polyprenyl synthetase
2082	 46.32	0	2622981..2625167	+	728	148653899	-	PsycPRwf_2102	-	tetratricopeptide TPR_4
2083	 52.14	+1	2625415..2626137	+	240	148653900	-	PsycPRwf_2103	-	outer membrane lipoprotein LolB
2084	 49.69	+1	2626207..2627178	+	323	148653901	-	PsycPRwf_2104	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
2085	 47.34	0	2627784..2628740	+	318	148653902	-	PsycPRwf_2105	-	ribose-phosphate pyrophosphokinase
2086	 45.19	0	2628967..2629641	+	224	148653903	-	PsycPRwf_2106	-	50S ribosomal protein L25/general stress protein Ctc
2087	 44.55	0	2629686..2630309	+	207	148653904	-	PsycPRwf_2107	-	peptidyl-tRNA hydrolase
2088	 43.04	0	2630498..2630878	+	126	148653905	-	PsycPRwf_2108	-	aspartate alpha-decarboxylase
2089	 47.37	0	2630987..2631955	+	322	148653906	-	PsycPRwf_2109	-	CaCA family Na(+)/Ca(+) antiporter
2090	 49.17	0	2632070..2634247	-	725	148653907	-	PsycPRwf_2110	-	NADH:flavin oxidoreductase/NADH oxidase
2091	 48.31	0	2634649..2636331	+	560	148653908	-	PsycPRwf_2111	-	AMP-dependent synthetase and ligase
2092	 48.74	0	2636417..2637565	-	382	148653909	-	PsycPRwf_2112	-	Serine-pyruvate aminotransferase/ aspartate aminotransferase-like protein
2093	 38.61	-2	2637769..2638242	-	157	148653910	-	PsycPRwf_2113	-	bacterioferritin
2094	 43.33	0	2638309..2638788	-	159	148653911	-	PsycPRwf_2114	-	bacterioferritin
2095	 44.76	0	2639097..2639306	-	69	148653912	-	PsycPRwf_2115	-	BFD/(2Fe-2S)-binding domain-containing protein
2096	 43.30	0	2639605..2640246	-	213	148653913	-	PsycPRwf_2116	-	DSBA oxidoreductase
2097	 48.92	0	2640723..2641511	+	262	148653914	-	PsycPRwf_2117	-	3-demethylubiquinone-9 3-methyltransferase
2098	 47.88	0	2641593..2642300	+	235	148653915	-	PsycPRwf_2118	-	HAD family hydrolase
2099	 49.16	0	2642392..2643168	+	258	148653916	-	PsycPRwf_2119	-	short chain dehydrogenase
2100	 53.56	+2	2643391..2643657	+	88	148653917	-	PsycPRwf_2120	-	hypothetical protein
2101	 49.53	+1	2643843..2644589	-	248	148653918	ompR	PsycPRwf_2121	-	osmolarity response regulator
2102	 48.51	0	2645245..2647794	+	849	148653919	-	PsycPRwf_2122	-	RNA-binding S1 domain-containing protein
2103	 46.75	0	2648208..2649467	-	419	148653920	-	PsycPRwf_2123	-	saccharopine dehydrogenase (NAD(+), L-glutamate-forming)
2104	 46.20	0	2649884..2650792	+	302	148653921	-	PsycPRwf_2124	-	dihydrodipicolinate synthase
2105	 45.90	0	2650968..2651333	+	121	148653922	-	PsycPRwf_2125	-	hypothetical protein
2106	 43.33	0	2651472..2652191	+	239	148653923	-	PsycPRwf_2126	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2107	 45.83	0	2652331..2652642	+	103	148653924	-	PsycPRwf_2127	-	hypothetical protein
2108	 42.94	0	2652657..2653166	-	169	148653925	-	PsycPRwf_2128	-	hypothetical protein
2109	 45.57	0	2653336..2654283	-	315	148653926	-	PsycPRwf_2129	-	hypothetical protein
2110	 44.60	0	2654350..2655210	-	286	148653927	-	PsycPRwf_2130	-	pantoate--beta-alanine ligase
2111	 45.76	0	2655230..2656042	-	270	148653928	-	PsycPRwf_2131	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2112	 49.62	+1	2656117..2656644	-	175	148653929	-	PsycPRwf_2132	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2113	 46.76	0	2656681..2658840	-	719	148653930	-	PsycPRwf_2133	-	poly(A) polymerase
2114	 44.56	0	2658987..2659583	-	198	148653931	-	PsycPRwf_2134	-	rhomboid family protein
2115	 42.16	-1	2659637..2660644	-	335	148653932	-	PsycPRwf_2135	-	5'-nucleotidase
2116	 45.17	0	2666956..2668890	+	644	148653933	thrS	PsycPRwf_2136	-	threonyl-tRNA synthetase
2117	 44.25	0	2668914..2669417	+	167	148653934	-	PsycPRwf_2137	-	translation initiation factor IF-3
2118	 41.87	-1	2669725..2670978	+	417	148653935	-	PsycPRwf_2138	-	toxic anion resistance family protein
2119	 45.68	0	2671098..2671664	-	188	148653936	-	PsycPRwf_2139	-	peroxiredoxin
2120	 44.96	0	2672192..2673103	+	303	148653937	-	PsycPRwf_2140	-	LysR family transcriptional regulator
2121	 48.58	0	2673173..2673874	-	233	148653938	-	PsycPRwf_2141	-	hypothetical protein
45.93	MEAN

3.38	STD DEV
