IslandPath Analysis: Psychrobacter sp. PRwf-1

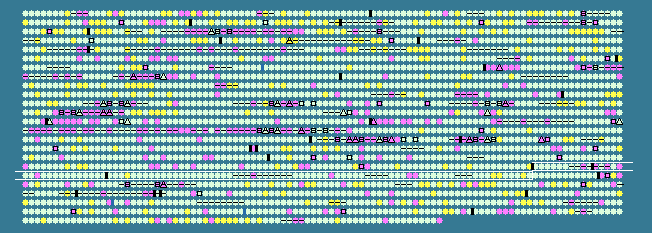

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1786	 45.09	0	2242085..2243122	-	345	148653603	-	PsycPRwf_1806	-	protein kinase
1787	 45.23	0	2243272..2244162	+	296	148653604	-	PsycPRwf_1807	-	hypothetical protein
1788	 47.61	0	2244240..2245304	-	354	148653605	-	PsycPRwf_1808	-	ribonuclease Z
1789	 47.76	0	2245313..2245804	-	163	148653606	-	PsycPRwf_1809	-	dehydratase
1790	 46.67	0	2245959..2247248	-	429	148653607	-	PsycPRwf_1810	-	adenylosuccinate synthetase
1791	 44.29	0	2247370..2248665	-	431	148653608	-	PsycPRwf_1811	-	ATP phosphoribosyltransferase regulatory subunit
1792	 43.93	0	2249531..2249917	+	128	148653609	-	PsycPRwf_1812	-	hypothetical protein
1793	 44.02	0	2249989..2251092	+	367	148653610	-	PsycPRwf_1813	-	magnesium and cobalt transport protein CorA
1794	 41.93	-1	2251189..2251665	-	158	148653611	-	PsycPRwf_1814	-	phosphate-starvation-inducible E
1795	 46.80	0	2251833..2252708	-	291	148653612	-	PsycPRwf_1815	-	methenyltetrahydrofolate cyclohydrolase
1796	 41.59	-1	2253611..2254627	-	338	148653613	-	PsycPRwf_1816	-	fimbrial protein-like protein
1797	 42.76	0	2254617..2257172	-	851	148653614	-	PsycPRwf_1817	-	fimbrial biogenesis outer membrane usher protein
1798	 40.53	-1	2257251..2258000	-	249	148653615	-	PsycPRwf_1818	-	pili assembly chaperone
1799	 44.06	0	2258108..2258629	-	173	148653616	-	PsycPRwf_1819	-	fimbrial protein-like protein
1800	 40.30	-1	2259890..2260822	-	310	148653617	-	PsycPRwf_1820	-	hypothetical protein
1801	 47.80	0	2260943..2262214	-	423	148653618	-	PsycPRwf_1821	-	muramoyltetrapeptide carboxypeptidase
1802	 46.88	0	2262470..2263480	+	336	148653619	-	PsycPRwf_1822	-	delta-aminolevulinic acid dehydratase
1803	 41.90	-1	2263579..2264208	-	209	148653620	-	PsycPRwf_1823	-	OmpW family protein
1804	 47.40	0	2264597..2266636	+	679	148653621	-	PsycPRwf_1824	-	UvrD/REP helicase
1805	 47.27	0	2266858..2268249	+	463	148653622	-	PsycPRwf_1825	-	magnesium transporter
1806	 46.24	0	2268424..2268888	+	154	148653623	dut	PsycPRwf_1826	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
1807	 48.04	0	2268964..2270574	+	536	148653624	-	PsycPRwf_1827	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
1808	 48.90	0	2270626..2271537	+	303	148653625	-	PsycPRwf_1828	-	acetylglutamate kinase
1809	 43.72	0	2271673..2272038	-	121	148653626	-	PsycPRwf_1829	-	arsenate reductase and related
1810	 48.23	0	2272301..2274958	+	885	148653627	-	PsycPRwf_1830	-	leucyl-tRNA synthetase
1811	 47.39	0	2274962..2275651	+	229	148653628	-	PsycPRwf_1831	-	hypothetical protein
1812	 47.38	0	2275655..2276722	+	355	148653629	-	PsycPRwf_1832	-	DNA polymerase III, delta subunit
1813	 48.53	0	2276992..2278386	+	464	148653630	-	PsycPRwf_1833	-	RND family efflux transporter MFP subunit
1814	 48.21	0	2278595..2280685	+	696	148653631	-	PsycPRwf_1834	-	ABC transporter related
1815	 45.63	0	2281464..2282252	-	262	148653632	-	PsycPRwf_1835	-	beta-lactamase domain-containing protein
1816	 45.93	0	2282420..2284507	-	695	148653633	-	PsycPRwf_1836	-	catalase
1817	 46.86	0	2284806..2285330	-	174	148653634	-	PsycPRwf_1837	-	hypothetical protein
1818	 50.98	+1	2285569..2286900	-	443	148653635	-	PsycPRwf_1838	-	peptidoglycan-binding LysM
1819	 47.94	0	2287377..2288225	+	282	148653636	thiG	PsycPRwf_1839	-	thiazole synthase
1820	 44.52	0	2288422..2289807	+	461	148653637	-	PsycPRwf_1840	-	acyltransferase ws/dgat/mgat family protein
1821	 46.34	0	2289930..2291390	+	486	148653638	-	PsycPRwf_1841	-	acyltransferase ws/dgat/mgat family protein
1822	 46.86	0	2291393..2291902	-	169	148653639	-	PsycPRwf_1842	-	hypothetical protein
1823	 48.76	0	2292039..2295137	-	1032	148653640	-	PsycPRwf_1843	-	peptidase M16C associated domain-containing protein
1824	 46.99	0	2295297..2295977	-	226	148653641	-	PsycPRwf_1844	-	phosphoglycerate mutase
1825	 49.22	0	2296583..2297608	+	341	148653642	-	PsycPRwf_1845	-	ribokinase-like domain-containing protein
1826	 48.71	0	2297750..2299063	-	437	148653643	-	PsycPRwf_1846	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1827	 47.47	0	2299305..2299955	-	216	148653644	-	PsycPRwf_1847	-	HesB/YadR/YfhF-family protein
1828	 44.94	0	2300337..2301611	+	424	148653645	-	PsycPRwf_1848	-	hypothetical protein
1829	 46.93	0	2301746..2302738	+	330	148653646	-	PsycPRwf_1849	-	transporter DMT superfamily protein
1830	 45.56	0	2302916..2303545	+	209	148653647	-	PsycPRwf_1850	-	glutathione S-transferase domain-containing protein
1831	 49.04	0	2303763..2304851	+	362	148653648	-	PsycPRwf_1851	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
1832	 47.21	0	2304979..2306376	+	465	148653649	-	PsycPRwf_1852	-	putative nicotinate phosphoribosyltransferase
1833	 48.36	0	2306642..2307433	+	263	148653650	-	PsycPRwf_1853	-	GDSL family lipase
1834	 48.41	0	2307498..2307968	-	156	148653651	-	PsycPRwf_1854	-	membrane protein-like protein
1835	 48.35	0	2307961..2309112	-	383	148653652	-	PsycPRwf_1855	-	dihydroorotase-like protein
1836	 48.94	0	2309232..2310320	-	362	148653653	pyrB	PsycPRwf_1856	-	aspartate carbamoyltransferase catalytic subunit
1837	 48.76	0	2310955..2311959	+	334	148653654	-	PsycPRwf_1857	-	fructose-1,6-bisphosphatase
1838	 43.85	0	2312150..2312986	+	278	148653655	-	PsycPRwf_1858	-	tRNA/rRNA methyltransferase (SpoU)
1839	 41.76	-1	2313069..2313875	-	268	148653656	-	PsycPRwf_1859	-	procollagen-proline dioxygenase
1840	 46.26	0	2314125..2315315	-	396	148653657	-	PsycPRwf_1860	-	elongation factor Tu
1841	 43.94	0	2315611..2317740	-	709	148653658	-	PsycPRwf_1861	-	elongation factor G
1842	 47.47	0	2318184..2318657	-	157	148653659	-	PsycPRwf_1862	-	30S ribosomal protein S7
1843	 45.07	0	2318811..2319185	-	124	148653660	rpsL	PsycPRwf_1863	-	30S ribosomal protein S12
1844	 45.61	0	2319783..2320295	+	170	148653661	-	PsycPRwf_1864	-	peptidylprolyl isomerase, FKBP-type
1845	 47.45	0	2320390..2321430	+	346	148653662	-	PsycPRwf_1865	-	aldo/keto reductase
1846	 48.11	0	2321637..2322509	-	290	148653663	-	PsycPRwf_1866	-	phospholipid/glycerol acyltransferase
1847	 47.99	0	2322839..2323657	-	272	148653664	-	PsycPRwf_1867	-	phospholipid/glycerol acyltransferase
1848	 47.58	0	2324245..2325690	+	481	148653665	-	PsycPRwf_1868	-	GTP-binding protein, HSR1-related
1849	 47.85	0	2326095..2326535	+	146	148653666	-	PsycPRwf_1869	-	hypothetical protein
1850	 46.38	0	2326547..2327251	+	234	148653667	-	PsycPRwf_1870	-	LrgB family protein
1851	 43.85	0	2327599..2328444	+	281	148653668	-	PsycPRwf_1871	-	lytic transglycosylase, catalytic
1852	 40.00	-1	2328578..2328817	-	79	148653669	-	PsycPRwf_1872	-	hypothetical protein
1853	 46.75	0	2329112..2330095	-	327	148653670	-	PsycPRwf_1873	-	malate dehydrogenase
1854	 47.15	0	2330561..2332681	-	706	148653671	-	PsycPRwf_1874	-	lytic transglycosylase, catalytic
1855	 45.62	0	2333189..2334661	+	490	148653672	-	PsycPRwf_1875	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
1856	 46.81	0	2334747..2335421	-	224	148653673	-	PsycPRwf_1876	-	lysine exporter protein LysE/YggA
1857	 47.16	0	2335503..2336717	-	404	148653674	-	PsycPRwf_1877	-	acetylornithine deacetylase
1858	 48.10	0	2336905..2337561	-	218	148653675	-	PsycPRwf_1878	-	hypothetical protein
1859	 47.89	0	2337798..2338271	+	157	148653676	-	PsycPRwf_1879	-	hypothetical protein
1860	 44.96	0	2338441..2338956	+	171	148653677	-	PsycPRwf_1880	-	hypothetical protein
1861	 46.44	0	2338963..2339412	-	149	148653678	-	PsycPRwf_1881	-	hypothetical protein
1862	 47.20	0	2339811..2341469	+	552	148653679	-	PsycPRwf_1882	-	NAD+ synthetase
1863	 49.37	+1	2341576..2342292	-	238	148653680	-	PsycPRwf_1883	-	alanine racemase domain-containing protein
1864	 49.26	0	2342450..2343529	+	359	148653681	-	PsycPRwf_1884	-	twitching motility protein
1865	 41.20	-1	2343661..2344092	-	143	148653682	-	PsycPRwf_1885	-	ferric uptake regulator family protein
1866	 41.87	-1	2344377..2344751	+	124	148653683	-	PsycPRwf_1886	-	SmpA/OmlA domain-containing protein
1867	 47.79	0	2344953..2345291	-	112	148653684	-	PsycPRwf_1887	-	hypothetical protein
1868	 49.29	0	2345288..2346409	-	373	148653685	-	PsycPRwf_1888	-	hypothetical protein
1869	 46.40	0	2346657..2347322	-	221	148653686	-	PsycPRwf_1889	-	cytochrome c, class I
1870	 47.25	0	2347738..2348046	-	102	148653687	-	PsycPRwf_1890	-	hypothetical protein
1871	 46.07	0	2348761..2349459	+	232	148653688	-	PsycPRwf_1891	-	GTP-binding protein, HSR1-related
1872	 48.86	0	2349728..2352568	+	946	148653689	ileS	PsycPRwf_1892	-	isoleucyl-tRNA synthetase
1873	 48.44	0	2352561..2353169	+	202	148653690	-	PsycPRwf_1893	-	lipoprotein signal peptidase
1874	 46.67	0	2353276..2353680	-	134	148653691	-	PsycPRwf_1894	-	hypothetical protein
1875	 48.74	0	2353979..2355718	+	579	148653692	-	PsycPRwf_1895	-	FAD dependent oxidoreductase
1876	 47.47	0	2355798..2356490	-	230	148653693	-	PsycPRwf_1896	-	hypothetical protein
1877	 46.17	0	2356730..2357695	+	321	148653694	-	PsycPRwf_1897	-	alpha/beta hydrolase-like protein
1878	 46.10	0	2357931..2358956	+	341	148653695	-	PsycPRwf_1898	-	hypothetical protein
1879	 49.46	+1	2359088..2360284	-	398	148653696	-	PsycPRwf_1899	-	Pyrrolo-quinoline quinone
1880	 49.46	+1	2360440..2361276	-	278	148653697	-	PsycPRwf_1900	-	hypothetical protein
1881	 48.89	0	2361364..2362674	-	436	148653698	hisS	PsycPRwf_1901	-	histidyl-tRNA synthetase
1882	 47.69	0	2362779..2363927	-	382	148653699	-	PsycPRwf_1902	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase
1883	 44.68	0	2364035..2364880	-	281	148653700	-	PsycPRwf_1903	-	hypothetical protein
1884	 49.57	+1	2364985..2365803	-	272	148653701	-	PsycPRwf_1904	-	type IV pilus biogenesis/stability protein PilW
1885	 49.17	0	2366004..2367215	-	403	148653702	-	PsycPRwf_1905	-	radical SAM protein
45.93	MEAN

3.38	STD DEV
