IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

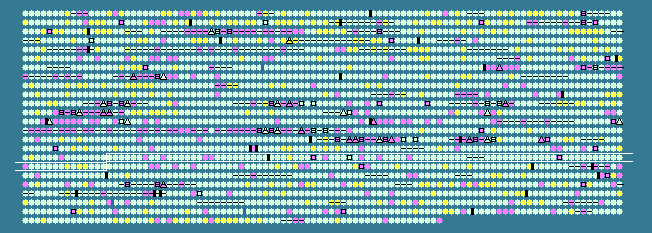

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1615	 44.84	0	2020567..2020905	+	112	148653432	-	PsycPRwf_1634	-	ferredoxin, 2Fe-2S type, ISC system
1616	 44.14	0	2021007..2021441	-	144	148653433	-	PsycPRwf_1635	-	histidine triad (HIT) protein
1617	 48.19	0	2022248..2026063	-	1271	148653434	-	PsycPRwf_1636	-	transcription-repair coupling factor
1618	 46.21	0	2026354..2026881	-	175	148653435	-	PsycPRwf_1638	-	ribonuclease activity regulator protein RraA
1619	 43.88	0	2026984..2027694	-	236	148653436	-	PsycPRwf_1639	-	nucleoside-diphosphate-sugar epimerase-like protein
1620	 43.21	0	2028050..2028454	+	134	148653437	rpsF	PsycPRwf_1640	-	30S ribosomal protein S6
1621	 39.47	-1	2028481..2028708	+	75	148653438	rpsR	PsycPRwf_1641	-	30S ribosomal protein S18
1622	 43.64	0	2028728..2029222	+	164	148653439	rplI	PsycPRwf_1642	-	50S ribosomal protein L9
1623	 45.26	0	2030394..2031575	-	393	148653440	-	PsycPRwf_1643	-	competence/damage-inducible protein CinA
1624	 42.29	-1	2032262..2032987	+	241	148653441	-	PsycPRwf_1644	-	hypothetical protein
1625	 44.75	0	2033068..2034477	-	469	148653442	-	PsycPRwf_1645	-	glutamine synthetase, type I
1626	 45.11	0	2035184..2035786	+	200	148653443	-	PsycPRwf_1646	-	glutamine amidotransferase of anthranilate synthase
1627	 46.94	0	2035861..2036970	+	369	148653444	trpD	PsycPRwf_1647	-	anthranilate phosphoribosyltransferase
1628	 46.81	0	2037011..2037856	+	281	148653445	-	PsycPRwf_1648	-	indole-3-glycerol-phosphate synthase
1629	 45.13	0	2037904..2038632	+	242	148653446	-	PsycPRwf_1649	-	Smr protein/MutS2
1630	 44.54	0	2038751..2040463	-	570	148653447	-	PsycPRwf_1650	-	MscS mechanosensitive ion channel
1631	 39.65	-1	2040776..2042722	+	648	148653448	-	PsycPRwf_1651	-	TonB-dependent receptor
1632	 40.03	-1	2042854..2043540	-	228	148653449	-	PsycPRwf_1652	-	TetR family transcriptional regulator
1633	 44.64	0	2043740..2044765	-	341	148653450	-	PsycPRwf_1653	-	endonuclease/exonuclease/phosphatase
1634	 48.62	0	2044902..2046491	-	529	148653451	-	PsycPRwf_1654	-	glycerol kinase
1635	 46.78	0	2046611..2047867	-	418	148653452	-	PsycPRwf_1655	-	putative oxygen-independent coproporphyrinogen III oxidase
1636	 47.48	0	2048272..2049642	+	456	148653453	-	PsycPRwf_1656	-	MATE efflux family protein
1637	 45.00	0	2049827..2050246	+	139	148653454	-	PsycPRwf_1657	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1638	 47.04	0	2050262..2051611	+	449	148653455	-	PsycPRwf_1658	-	acetyl-CoA carboxylase, biotin carboxylase
1639	 45.39	0	2051713..2052948	-	411	148653456	-	PsycPRwf_1659	-	argininosuccinate synthase
1640	 49.02	0	2053483..2054604	+	373	148653457	-	PsycPRwf_1660	-	dihydroorotase
1641	 45.09	0	2054678..2055502	+	274	148653458	-	PsycPRwf_1661	-	ribonuclease T
1642	 48.82	0	2056464..2057225	-	253	148653459	-	PsycPRwf_1662	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1643	 43.22	0	2057237..2057590	-	117	148653460	-	PsycPRwf_1663	-	septum formation initiator
1644	 45.86	0	2057782..2059098	-	438	148653461	-	PsycPRwf_1664	-	phosphopyruvate hydratase
1645	 49.59	+1	2059338..2061662	-	774	148653462	-	PsycPRwf_1665	-	heavy metal translocating P-type ATPase
1646	 48.65	0	2061862..2062083	-	73	148653463	-	PsycPRwf_1666	-	copper ion binding protein
1647	 45.78	0	2062151..2062399	-	82	148653464	-	PsycPRwf_1667	-	hypothetical protein
1648	 45.76	0	2062443..2063303	-	286	148653465	-	PsycPRwf_1668	-	2-dehydro-3-deoxyphosphooctonate aldolase
1649	 41.82	-1	2063454..2064560	-	368	148653466	-	PsycPRwf_1669	-	IS605 family transposase OrfB
1650	 45.04	0	2064775..2066406	-	543	148653467	-	PsycPRwf_1670	-	CTP synthetase
1651	 40.48	-1	2066735..2067826	-	363	148653468	-	PsycPRwf_1671	-	porin
1652	 46.30	0	2068951..2071155	-	734	148653469	-	PsycPRwf_1672	-	malate synthase G
1653	 46.35	0	2071652..2072404	+	250	148653470	-	PsycPRwf_1673	-	tRNA--hydroxylase
1654	 43.57	0	2072510..2072851	-	113	148653471	-	PsycPRwf_1674	-	hypothetical protein
1655	 43.69	0	2073163..2073915	+	250	148653472	-	PsycPRwf_1675	-	transposase, IS4 family protein
1656	 44.05	0	2073949..2074284	-	111	148653473	-	PsycPRwf_1676	-	hypothetical protein
1657	 39.44	-1	2074380..2074559	-	59	148653474	-	PsycPRwf_1677	-	hypothetical protein
1658	 46.52	0	2074789..2077116	-	775	148653475	-	PsycPRwf_1678	-	polyphosphate kinase
1659	 46.76	0	2077219..2077896	-	225	148653476	-	PsycPRwf_1679	-	monofunctional biosynthetic peptidoglycan transglycosylase
1660	 41.27	-1	2077985..2078362	+	125	148653477	-	PsycPRwf_1680	-	glutaredoxin 2
1661	 45.34	0	2078685..2080442	+	585	148653478	-	PsycPRwf_1681	-	L-lactate transport
1662	 49.01	0	2080514..2081725	+	403	148653479	-	PsycPRwf_1682	-	FMN-dependent alpha-hydroxy acid dehydrogenase
1663	 44.31	0	2081918..2082664	+	248	148653480	-	PsycPRwf_1683	-	rhomboid family protein
1664	 47.22	0	2082749..2083540	+	263	148653481	-	PsycPRwf_1684	-	MltA-interacting MipA family protein
1665	 42.41	-1	2083598..2084401	+	267	148653482	-	PsycPRwf_1685	-	hypothetical protein
1666	 45.09	0	2084514..2085338	-	274	148653483	-	PsycPRwf_1686	-	oxidoreductase FAD/NAD(P)-binding subunit
1667	 43.50	0	2085486..2086961	-	491	148653484	-	PsycPRwf_1687	-	proton-translocating NADH-quinone oxidoreductase, chain N
1668	 46.48	0	2086961..2088694	-	577	148653485	-	PsycPRwf_1688	-	NADH dehydrogenase subunit M
1669	 45.49	0	2088696..2090570	-	624	148653486	-	PsycPRwf_1689	-	NADH dehydrogenase subunit L
1670	 46.13	0	2090575..2090949	-	124	148653487	-	PsycPRwf_1690	-	NADH-ubiquinone oxidoreductase, chain 4L
1671	 44.96	0	2091033..2091737	-	234	148653488	-	PsycPRwf_1691	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
1672	 46.99	0	2091734..2092282	-	182	148653489	-	PsycPRwf_1692	-	NADH dehydrogenase subunit I
1673	 45.46	0	2092445..2093491	-	348	148653490	-	PsycPRwf_1693	-	NADH dehydrogenase subunit H
1674	 46.65	0	2093493..2096525	-	1010	148653491	-	PsycPRwf_1694	-	NADH dehydrogenase subunit G
1675	 48.76	0	2096542..2098155	-	537	148653492	-	PsycPRwf_1695	-	NADH-quinone oxidoreductase, F subunit
1676	 44.64	0	2098152..2098664	-	170	148653493	-	PsycPRwf_1696	-	NADH dehydrogenase subunit E
1677	 47.32	0	2098754..2100541	-	595	148653494	-	PsycPRwf_1697	-	bifunctional NADH:ubiquinone oxidoreductase subunit C/D
1678	 48.88	0	2100663..2101331	-	222	148653495	-	PsycPRwf_1698	-	NADH dehydrogenase subunit B
1679	 44.65	0	2101342..2101977	-	211	148653496	-	PsycPRwf_1699	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
1680	 44.10	0	2102358..2102933	-	191	148653497	dcd	PsycPRwf_1700	-	deoxycytidine triphosphate deaminase
1681	 47.95	0	2103247..2104464	-	405	148653498	-	PsycPRwf_1701	-	hypothetical protein
1682	 47.47	0	2104528..2105814	-	428	148653499	-	PsycPRwf_1702	-	ATPase involved in chromosome partitioning-like protein
1683	 47.09	0	2106002..2107339	-	445	148653500	-	PsycPRwf_1703	-	magnesium transporter
1684	 46.24	0	2107668..2108465	-	265	148653501	-	PsycPRwf_1704	-	3-hydroxybutyrate dehydrogenase
1685	 49.21	0	2108537..2109166	-	209	148653502	-	PsycPRwf_1705	-	3-oxoacid CoA-transferase, B subunit
1686	 45.87	0	2109203..2109904	-	233	148653503	-	PsycPRwf_1706	-	3-oxoacid CoA-transferase, A subunit
1687	 44.82	0	2110362..2111771	+	469	148653504	-	PsycPRwf_1707	-	citrate transporter
1688	 47.35	0	2111885..2113225	-	446	148653505	-	PsycPRwf_1708	-	short chain fatty acid transporter
1689	 44.79	0	2113541..2115634	+	697	148653506	metG	PsycPRwf_1709	-	methionyl-tRNA synthetase
1690	 41.37	-1	2115680..2116786	-	368	148653507	-	PsycPRwf_1710	-	IS605 family transposase OrfB
1691	 48.70	0	2117035..2118147	+	370	148653508	-	PsycPRwf_1711	-	hypothetical protein
1692	 49.03	0	2118258..2119289	+	343	148653509	-	PsycPRwf_1712	-	hypothetical protein
1693	 47.11	0	2119641..2120540	+	299	148653510	-	PsycPRwf_1713	-	inner-membrane translocator
1694	 47.55	0	2120593..2121387	+	264	148653511	-	PsycPRwf_1714	-	ABC transporter related
1695	 46.02	0	2121493..2122761	-	422	148653512	-	PsycPRwf_1715	-	saccharopine dehydrogenase
1696	 42.89	0	2123098..2124237	-	379	148653513	-	PsycPRwf_1716	-	carboxynorspermidine decarboxylase
1697	 44.44	0	2124358..2124915	-	185	148653514	-	PsycPRwf_1717	-	hypothetical protein
1698	 49.08	0	2125004..2126248	-	414	148653515	-	PsycPRwf_1718	-	hypothetical protein
1699	 43.99	0	2126321..2127193	-	290	148653516	-	PsycPRwf_1719	-	ATPase central domain-containing protein
1700	 49.07	0	2127642..2128232	-	196	148653517	-	PsycPRwf_1720	-	hypothetical protein
1701	 42.06	-1	2128495..2128815	-	106	148653518	-	PsycPRwf_1721	-	hypothetical protein
1702	 46.60	0	2129772..2130917	+	381	148653519	gcvT	PsycPRwf_1722	-	glycine cleavage system aminomethyltransferase T
1703	 47.77	0	2131148..2131528	+	126	148653520	-	PsycPRwf_1723	-	glycine cleavage system protein H
1704	 46.24	0	2131718..2132515	+	265	148653521	-	PsycPRwf_1724	-	nitroreductase
1705	 48.76	0	2132624..2135527	+	967	148653522	-	PsycPRwf_1725	-	glycine dehydrogenase
1706	 47.20	0	2135714..2136463	+	249	148653523	-	PsycPRwf_1726	-	hypothetical protein
1707	 46.45	0	2136460..2137755	-	431	148653524	-	PsycPRwf_1727	-	3'-5' exonuclease
1708	 49.66	+1	2137815..2138402	-	195	148653525	-	PsycPRwf_1728	-	recombination protein RecR
1709	 45.35	0	2138598..2138930	-	110	148653526	-	PsycPRwf_1729	-	hypothetical protein
1710	 49.73	+1	2139142..2140446	-	434	148653527	-	PsycPRwf_1730	-	O-succinylhomoserine sulfhydrylase
1711	 50.97	+1	2140622..2141551	+	309	148653528	-	PsycPRwf_1731	-	6-phosphogluconate dehydrogenase, NAD-binding
1712	 43.87	0	2141950..2143581	+	543	148653529	-	PsycPRwf_1732	-	phospholipase D/transphosphatidylase
1713	 43.50	0	2143671..2144978	+	435	148653530	-	PsycPRwf_1733	-	major facilitator transporter
1714	 49.19	0	2145115..2146161	+	348	148653531	-	PsycPRwf_1734	-	tRNA-dihydrouridine synthase A
45.93	MEAN

3.38	STD DEV
