IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

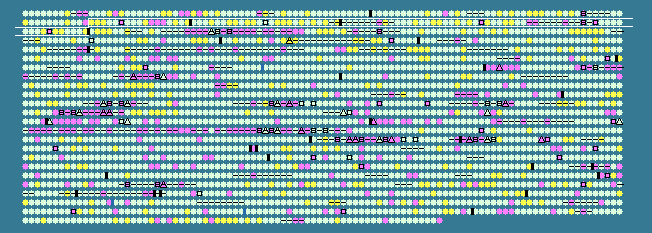

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
112	 50.05	+1	133133..136015	+	960	148651929	-	PsycPRwf_0112	-	ATP-dependent helicase HepA
113	 51.71	+1	136158..136625	+	155	148651930	-	PsycPRwf_0113	-	ybaK/ebsC protein
114	 49.60	+1	136691..137065	+	124	148651931	-	PsycPRwf_0114	-	5-carboxymethyl-2-hydroxymuconate isomerase-like protein
115	 49.28	0	137070..137558	-	162	148651932	-	PsycPRwf_0115	-	hypothetical protein
116	 44.15	0	137725..139545	-	606	148651933	-	PsycPRwf_0116	-	acyl-CoA dehydrogenase domain-containing protein
117	 41.10	-1	139848..140954	-	368	148651934	-	PsycPRwf_0117	-	IS605 family transposase OrfB
118	 47.37	0	141266..142369	+	367	148651935	-	PsycPRwf_0118	-	hypothetical protein
119	 49.27	0	142442..143326	-	294	148651936	-	PsycPRwf_0119	-	shikimate 5-dehydrogenase
120	 47.84	0	143813..144508	+	231	148651937	-	PsycPRwf_0120	-	hypothetical protein
121	 51.58	+1	144592..145572	+	326	148651938	-	PsycPRwf_0121	-	branched-chain amino acid aminotransferase/4-amino-4-deoxychorismate lyase-like protein
122	 38.81	-2	145518..145718	-	66	148651939	-	PsycPRwf_0122	-	hypothetical protein
123	 38.83	-2	145859..146422	+	187	148651940	-	PsycPRwf_0123	-	hypothetical protein
124	 41.44	-1	146473..147237	-	254	148651941	-	PsycPRwf_0124	-	Type II site-specific deoxyribonuclease
125	 49.24	0	147359..148540	+	393	148651942	-	PsycPRwf_0125	-	aminodeoxychorismate lyase
126	 50.24	+1	148636..149262	+	208	148651943	-	PsycPRwf_0126	-	dTMP kinase
127	 47.53	0	149406..151688	-	760	148651944	-	PsycPRwf_0127	-	sodium/hydrogen exchanger
128	 51.02	+1	152506..153930	+	474	148651945	-	PsycPRwf_0128	-	protease Do
129	 46.55	0	154567..155451	-	294	148651946	-	PsycPRwf_0129	-	pirin domain-containing protein
130	 44.77	0	155658..156164	+	168	148651947	-	PsycPRwf_0130	-	hypothetical protein
131	 48.48	0	156290..157807	-	505	148651948	gltX	PsycPRwf_0131	-	glutamyl-tRNA synthetase
132	 51.37	+1	158286..159305	+	339	148651949	-	PsycPRwf_0132	-	S-adenosyl-methyltransferase MraW
133	 48.15	0	159459..159917	+	152	148651950	-	PsycPRwf_0133	-	cell division protein FtsL
134	 48.61	0	160003..162012	+	669	148651951	-	PsycPRwf_0134	-	peptidoglycan glycosyltransferase
135	 50.35	+1	162117..163826	+	569	148651952	-	PsycPRwf_0135	-	UDP-N-acetylmuramyl-tripeptide synthetase
136	 50.33	+1	163891..165408	+	505	148651953	-	PsycPRwf_0136	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
137	 46.26	0	165724..166845	+	373	148651954	-	PsycPRwf_0137	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
138	 49.53	+1	167017..167979	+	320	148651955	-	PsycPRwf_0138	-	rRNA (guanine-N(1)-)-methyltransferase
139	 51.22	+1	168080..169018	-	312	148651956	-	PsycPRwf_0139	-	tyrosine recombinase XerD
140	 47.62	0	169059..169352	-	97	148651957	-	PsycPRwf_0140	-	SirA family protein
141	 42.46	-1	169445..170551	-	368	148651958	-	PsycPRwf_0141	-	IS605 family transposase OrfB
142	 47.31	0	170628..171128	-	166	148651959	-	PsycPRwf_0142	-	hypothetical protein
143	 51.31	+1	171218..171751	-	177	148651960	-	PsycPRwf_0143	-	Holliday junction resolvase YqgF
144	 50.44	+1	171889..172455	-	188	148651961	-	PsycPRwf_0144	-	hypothetical protein
145	 50.00	+1	172579..174390	-	603	148651962	-	PsycPRwf_0145	-	DNA repair protein RecN
146	 45.35	0	175039..175371	+	110	148651963	-	PsycPRwf_0146	-	hypothetical protein
147	 52.42	+1	175574..176359	+	261	148651964	-	PsycPRwf_0147	-	RNA methyltransferase
148	 49.38	+1	176463..177110	-	215	148651965	-	PsycPRwf_0148	-	dephospho-CoA kinase
149	 49.84	+1	177662..178582	-	306	148651966	-	PsycPRwf_0149	-	peptidase A24A domain-containing protein
150	 48.99	0	178666..179898	-	410	148651967	-	PsycPRwf_0150	-	type II secretion system protein
151	 49.64	+1	179959..181221	-	420	148651968	-	PsycPRwf_0151	-	type II secretion system protein E
152	 48.62	0	181557..182354	+	265	148651969	-	PsycPRwf_0152	-	Triose-phosphate isomerase
153	 49.69	+1	182520..182837	+	105	148651970	secG	PsycPRwf_0153	-	preprotein translocase subunit SecG
154	 45.11	0	183800..184300	+	166	148651971	-	PsycPRwf_0155	-	hypothetical protein
155	 43.88	0	184592..186079	+	495	148651972	nusA	PsycPRwf_0156	-	transcription elongation factor NusA
156	 47.50	0	186097..188814	+	905	148651973	infB	PsycPRwf_0157	-	translation initiation factor IF-2
157	 45.86	0	189011..189433	+	140	148651974	-	PsycPRwf_0158	-	ribosome-binding factor A
158	 47.73	0	189456..190490	+	344	148651975	-	PsycPRwf_0159	-	tRNA pseudouridine synthase B
159	 42.61	0	191213..191740	+	175	148651976	-	PsycPRwf_0160	-	ThiJ/PfpI domain-containing protein
160	 42.22	-1	191834..192013	+	59	148651977	-	PsycPRwf_0161	-	hypothetical protein
161	 50.62	+1	192085..192246	+	53	148651978	-	PsycPRwf_0162	-	hypothetical protein
162	 42.70	0	192402..192668	+	88	148651979	rpsO	PsycPRwf_0163	-	30S ribosomal protein S15
163	 46.24	0	193089..195203	+	704	148651980	-	PsycPRwf_0164	-	polynucleotide phosphorylase/polyadenylase
164	 45.64	0	196042..198876	-	944	148651981	-	PsycPRwf_0165	-	glycerol-3-phosphate acyltransferase
165	 47.99	0	199482..200375	+	297	148651982	-	PsycPRwf_0166	-	palmitoyl-CoA hydrolase
166	 50.82	+1	200529..201866	-	445	148651983	-	PsycPRwf_0167	-	lytic murein transglycosylase
167	 48.94	0	202029..203303	-	424	148651984	-	PsycPRwf_0168	-	A/G-specific adenine glycosylase
168	 47.43	0	203433..204404	-	323	148651985	rbgA	PsycPRwf_0169	-	ribosomal biogenesis GTPase
169	 49.80	+1	204627..205367	-	246	148651986	-	PsycPRwf_0170	-	dienelactone hydrolase
170	 51.15	+1	205637..206113	+	158	148651987	-	PsycPRwf_0171	-	hypothetical protein
171	 46.97	0	206272..207525	-	417	148651988	-	PsycPRwf_0172	-	Rh family protein/ammonium transporter
172	 44.25	0	207634..207972	-	112	148651989	-	PsycPRwf_0173	-	nitrogen regulatory protein P-II
173	 49.48	+1	208359..209219	-	286	148651990	-	PsycPRwf_0174	-	UspA domain-containing protein
174	 48.17	0	209376..210878	-	500	148651991	-	PsycPRwf_0175	-	sulphate transporter
175	 50.00	+1	211558..213015	+	485	148651992	murD	PsycPRwf_0176	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
176	 47.23	0	213137..214345	+	402	148651993	-	PsycPRwf_0177	-	cell cycle protein
177	 42.01	-1	214403..215509	-	368	148651994	-	PsycPRwf_0178	-	IS605 family transposase OrfB
178	 51.33	+1	215789..216727	-	312	148651995	-	PsycPRwf_0179	-	glutamate--tRNA ligase
179	 43.45	0	216759..217193	-	144	148651996	-	PsycPRwf_0180	-	TraR/DksA family transcriptional regulator
180	 46.43	0	217357..218379	-	340	148651997	-	PsycPRwf_0181	-	calcineurin phosphoesterase C-terminal domain-containing protein
181	 51.32	+1	218419..219213	-	264	148651998	-	PsycPRwf_0182	-	ABC-3 protein
182	 50.24	+1	219327..220154	-	275	148651999	-	PsycPRwf_0183	-	ABC transporter related
183	 48.88	0	220278..220856	-	192	148652000	-	PsycPRwf_0184	-	ferric uptake regulator family protein
184	 49.08	0	221384..222361	+	325	148652001	-	PsycPRwf_0185	-	periplasmic solute binding protein
185	 41.24	-1	222498..222965	+	155	148652002	-	PsycPRwf_0186	-	hypothetical protein
186	 41.06	-1	223321..224187	+	288	148652003	-	PsycPRwf_0187	-	F0F1 ATP synthase subunit A
187	 43.90	0	224222..224467	+	81	148652004	-	PsycPRwf_0188	-	F0F1 ATP synthase subunit C
188	 43.95	0	224572..225042	+	156	148652005	-	PsycPRwf_0189	-	F0F1 ATP synthase subunit B
189	 43.17	0	225257..225886	+	209	148652006	-	PsycPRwf_0190	-	F0F1 ATP synthase subunit delta
190	 44.60	0	226051..227595	+	514	148652007	-	PsycPRwf_0191	-	F0F1 ATP synthase subunit alpha
191	 42.40	-1	227691..228572	+	293	148652008	-	PsycPRwf_0192	-	F0F1 ATP synthase subunit gamma
192	 46.15	0	228611..230038	+	475	148652009	-	PsycPRwf_0193	-	F0F1 ATP synthase subunit beta
193	 45.32	0	230169..230585	+	138	148652010	-	PsycPRwf_0194	-	ATP synthase F1, epsilon subunit
194	 41.19	-1	230778..231884	+	368	148652011	-	PsycPRwf_0195	-	IS605 family transposase OrfB
195	 44.91	0	232013..232729	+	238	148652012	-	PsycPRwf_0196	-	two component transcriptional regulator
196	 41.73	-1	232943..234049	+	368	148652013	-	PsycPRwf_0197	-	IS605 family transposase OrfB
197	 46.51	0	234457..236148	+	563	148652014	-	PsycPRwf_0198	-	integral membrane sensor signal transduction histidine kinase
198	 48.53	0	236205..237665	-	486	148652015	-	PsycPRwf_0199	-	integral membrane sensor signal transduction histidine kinase
199	 44.70	0	237787..238050	+	87	148652016	rpsP	PsycPRwf_0200	-	30S ribosomal protein S16
200	 45.95	0	238140..238670	+	176	148652017	-	PsycPRwf_0201	-	16S rRNA processing protein RimM
201	 47.51	0	238761..239522	+	253	148652018	-	PsycPRwf_0202	-	tRNA (guanine-N1)-methyltransferase
202	 44.36	0	239796..240212	+	138	148652019	rplS	PsycPRwf_0203	-	50S ribosomal protein L19
203	 48.98	0	240499..242013	+	504	148652020	-	PsycPRwf_0204	-	hypothetical protein
204	 50.14	+1	242157..244001	+	614	148652021	-	PsycPRwf_0205	-	excinuclease ABC, C subunit
205	 41.82	-1	244034..245140	-	368	148652022	-	PsycPRwf_0206	-	IS605 family transposase OrfB
206	 50.88	+1	245311..246102	-	263	148652023	-	PsycPRwf_0207	-	hypothetical protein
207	 52.85	+2	246171..247502	-	443	148652024	-	PsycPRwf_0208	-	Beta-ketoacyl synthase-like protein
208	 48.66	0	247575..247985	-	136	148652025	-	PsycPRwf_0209	-	hypothetical protein
209	 42.50	-1	248056..248415	-	119	148652026	-	PsycPRwf_0210	-	hypothetical protein
210	 45.65	0	248480..248812	-	110	148652027	-	PsycPRwf_0211	-	BolA family protein
211	 49.50	+1	249034..249837	-	267	148652028	-	PsycPRwf_0212	-	peptidase M48, Ste24p
45.93	MEAN

3.38	STD DEV
