IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

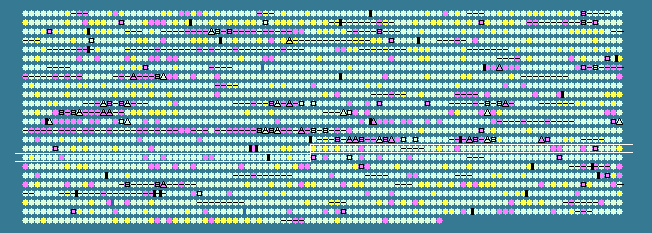

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1549	 52.19	+1	1924916..1925806	+	296	148653366	-	PsycPRwf_1568	-	TonB family protein
1550	 48.74	0	1925907..1927256	+	449	148653367	-	PsycPRwf_1569	-	WD40 domain-containing protein
1551	 52.02	+1	1927630..1928271	-	213	148653368	-	PsycPRwf_1570	-	NADPH-dependent FMN reductase
1552	 48.99	0	1928366..1929457	-	363	148653369	-	PsycPRwf_1571	-	hypothetical protein
1553	 49.88	+1	1929617..1930879	-	420	148653370	-	PsycPRwf_1572	-	RluA family pseudouridine synthase
1554	 47.46	0	1931164..1932345	+	393	148653371	-	PsycPRwf_1573	-	DNA uptake lipoprotein-like protein
1555	 48.11	0	1932555..1934672	+	705	148653372	-	PsycPRwf_1574	-	DNA primase
1556	 46.74	0	1935099..1936970	+	623	148653373	-	PsycPRwf_1575	-	RNA polymerase, sigma 70 subunit, RpoD
1557	 41.52	-1	1937168..1937509	+	113	148653374	-	PsycPRwf_1576	-	hypothetical protein
1558	 46.55	0	1938073..1940349	+	758	148653375	-	PsycPRwf_1577	-	ribonucleotide-diphosphate reductase subunit alpha
1559	 43.03	0	1940551..1941684	+	377	148653376	nrdB	PsycPRwf_1578	-	ribonucleotide-diphosphate reductase subunit beta
1560	 44.96	0	1941768..1942025	+	85	148653377	-	PsycPRwf_1579	-	ferredoxin
1561	 48.50	0	1942145..1943476	-	443	148653378	-	PsycPRwf_1580	-	2-alkenal reductase
1562	 48.45	0	1943786..1944592	+	268	148653379	-	PsycPRwf_1581	-	hypothetical protein
1563	 48.09	0	1945742..1946974	+	410	148653380	-	PsycPRwf_1582	-	lytic transglycosylase, catalytic
1564	 48.52	0	1947065..1950304	-	1079	148653381	-	PsycPRwf_1583	-	lytic transglycosylase, catalytic
1565	 44.92	0	1950440..1950931	-	163	148653382	-	PsycPRwf_1584	-	hypothetical protein
1566	 43.67	0	1951224..1952297	-	357	148653383	-	PsycPRwf_1585	-	hypothetical protein
1567	 43.33	0	1952523..1952822	-	99	148653384	-	PsycPRwf_1586	-	histone family protein DNA-binding protein
1568	 44.05	0	1953206..1954885	-	559	148653385	rpsA	PsycPRwf_1587	-	30S ribosomal protein S1
1569	 47.93	0	1955135..1955833	-	232	148653386	-	PsycPRwf_1588	-	cytidylate kinase
1570	 50.79	+1	1956224..1956796	-	190	148653387	-	PsycPRwf_1589	-	CMP/dCMP deaminase, zinc-binding
1571	 44.69	0	1956912..1957721	-	269	148653388	-	PsycPRwf_1590	-	uracil-DNA glycosylase
1572	 45.34	0	1957893..1960457	-	854	148653389	-	PsycPRwf_1591	-	ATP-dependent Clp protease, ATP-binding subunit clpA
1573	 33.78	-2	1960567..1960791	+	74	148653390	-	PsycPRwf_1592	-	hypothetical protein
1574	 43.49	0	1960879..1961823	-	314	148653391	-	PsycPRwf_1593	-	auxin efflux carrier
1575	 48.40	0	1961845..1963344	-	499	148653392	-	PsycPRwf_1594	-	thiamine pyrophosphate binding domain-containing protein
1576	 47.74	0	1963927..1965738	+	603	148653393	-	PsycPRwf_1595	-	pyruvate oxidase
1577	 43.97	0	1965922..1966344	-	140	148653394	-	PsycPRwf_1596	-	ATP-dependent Clp protease adaptor protein ClpS
1578	 45.11	0	1966383..1967189	-	268	148653395	-	PsycPRwf_1597	-	hypothetical protein
1579	 47.00	0	1967533..1968600	-	355	148653396	-	PsycPRwf_1598	-	N-acetyl-gamma-glutamyl-phosphate reductase
1580	 46.43	0	1968809..1969915	-	368	148653397	-	PsycPRwf_1599	-	uroporphyrinogen decarboxylase
1581	 46.96	0	1970059..1971276	-	405	148653398	-	PsycPRwf_1600	-	gamma-glutamyl kinase
1582	 49.13	0	1971426..1972634	-	402	148653399	obgE	PsycPRwf_1601	-	GTPase ObgE
1583	 44.49	0	1972957..1974399	-	480	148653400	-	PsycPRwf_1602	-	glyceraldehyde-3-phosphate dehydrogenase
1584	 45.20	0	1974757..1975422	-	221	148653401	-	PsycPRwf_1603	-	Lipocalin family protein
1585	 46.94	0	1975693..1976802	-	369	148653402	-	PsycPRwf_1604	-	NUDIX hydrolase
1586	 44.85	0	1977042..1977206	+	54	148653403	-	PsycPRwf_1605	-	hypothetical protein
1587	 47.24	0	1977335..1982656	-	1773	148653404	-	PsycPRwf_1606	-	hypothetical protein
1588	 48.14	0	1982958..1986299	-	1113	148653405	-	PsycPRwf_1607	-	surface antigen (D15)
1589	 41.36	-1	1986547..1987866	+	439	148653406	-	PsycPRwf_1608	-	major facilitator transporter
1590	 41.15	-1	1988000..1988191	-	63	148653407	-	PsycPRwf_1609	-	hypothetical protein
1591	 47.23	0	1988720..1990360	+	546	148653408	-	PsycPRwf_1610	-	hypothetical protein
1592	 47.79	0	1990599..1993310	+	903	148653409	-	PsycPRwf_1611	-	alanyl-tRNA synthetase
1593	 46.26	0	1993766..1995049	+	427	148653410	-	PsycPRwf_1612	-	aspartate kinase
1594	 42.28	-1	1995520..1995765	+	81	148653411	-	PsycPRwf_1613	-	carbon storage regulator, CsrA
1595	 42.67	0	1995895..1996269	+	124	148653412	-	PsycPRwf_1614	-	HopJ type III effector protein
1596	 41.67	-1	1996663..1997946	+	427	148653413	-	PsycPRwf_1615	-	transposase, IS4 family protein
1597	 48.87	0	1998065..1998373	-	102	148653414	-	PsycPRwf_1616	-	hypothetical protein
1598	 47.21	0	1998422..1999444	-	340	148653415	ppnK	PsycPRwf_1617	-	inorganic polyphosphate/ATP-NAD kinase
1599	 45.54	0	1999978..2000706	+	242	148653416	-	PsycPRwf_1618	-	hypothetical protein
1600	 49.45	+1	2000832..2003729	-	965	148653417	-	PsycPRwf_1619	-	heavy metal translocating P-type ATPase
1601	 47.54	0	2003947..2006592	+	881	148653418	-	PsycPRwf_1620	-	penicillin-binding protein 1B
1602	 51.77	+1	2006623..2007528	+	301	148653419	-	PsycPRwf_1621	-	hypothetical protein
1603	 48.81	0	2007599..2008522	+	307	148653420	-	PsycPRwf_1622	-	ribosomal protein L11 methyltransferase
1604	 46.20	0	2008625..2008966	+	113	148653421	-	PsycPRwf_1623	-	Fis family transcriptional regulator
1605	 48.19	0	2009136..2010710	+	524	148653422	-	PsycPRwf_1624	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1606	 45.71	0	2010835..2012709	-	624	148653423	-	PsycPRwf_1625	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1607	 40.66	-1	2012852..2013124	-	90	148653424	-	PsycPRwf_1626	-	histone family protein DNA-binding protein
1608	 44.03	0	2013696..2014340	+	214	148653425	-	PsycPRwf_1627	-	hypothetical protein
1609	 42.72	0	2014956..2015477	+	173	148653426	-	PsycPRwf_1628	-	BadM/Rrf2 family transcriptional regulator
1610	 46.13	0	2015474..2016700	+	408	148653427	-	PsycPRwf_1629	-	cysteine desulfurase IscS
1611	 44.78	0	2016824..2017216	+	130	148653428	-	PsycPRwf_1630	-	scaffold protein
1612	 43.61	0	2017356..2017676	+	106	148653429	-	PsycPRwf_1631	-	iron-sulfur cluster assembly protein IscA
1613	 43.30	0	2017875..2018426	+	183	148653430	-	PsycPRwf_1632	-	co-chaperone Hsc20
1614	 48.95	0	2018531..2020483	+	650	148653431	hscA	PsycPRwf_1633	-	chaperone protein HscA
1615	 44.84	0	2020567..2020905	+	112	148653432	-	PsycPRwf_1634	-	ferredoxin, 2Fe-2S type, ISC system
1616	 44.14	0	2021007..2021441	-	144	148653433	-	PsycPRwf_1635	-	histidine triad (HIT) protein
1617	 48.19	0	2022248..2026063	-	1271	148653434	-	PsycPRwf_1636	-	transcription-repair coupling factor
1618	 46.21	0	2026354..2026881	-	175	148653435	-	PsycPRwf_1638	-	ribonuclease activity regulator protein RraA
1619	 43.88	0	2026984..2027694	-	236	148653436	-	PsycPRwf_1639	-	nucleoside-diphosphate-sugar epimerase-like protein
1620	 43.21	0	2028050..2028454	+	134	148653437	rpsF	PsycPRwf_1640	-	30S ribosomal protein S6
1621	 39.47	-1	2028481..2028708	+	75	148653438	rpsR	PsycPRwf_1641	-	30S ribosomal protein S18
1622	 43.64	0	2028728..2029222	+	164	148653439	rplI	PsycPRwf_1642	-	50S ribosomal protein L9
1623	 45.26	0	2030394..2031575	-	393	148653440	-	PsycPRwf_1643	-	competence/damage-inducible protein CinA
1624	 42.29	-1	2032262..2032987	+	241	148653441	-	PsycPRwf_1644	-	hypothetical protein
1625	 44.75	0	2033068..2034477	-	469	148653442	-	PsycPRwf_1645	-	glutamine synthetase, type I
1626	 45.11	0	2035184..2035786	+	200	148653443	-	PsycPRwf_1646	-	glutamine amidotransferase of anthranilate synthase
1627	 46.94	0	2035861..2036970	+	369	148653444	trpD	PsycPRwf_1647	-	anthranilate phosphoribosyltransferase
1628	 46.81	0	2037011..2037856	+	281	148653445	-	PsycPRwf_1648	-	indole-3-glycerol-phosphate synthase
1629	 45.13	0	2037904..2038632	+	242	148653446	-	PsycPRwf_1649	-	Smr protein/MutS2
1630	 44.54	0	2038751..2040463	-	570	148653447	-	PsycPRwf_1650	-	MscS mechanosensitive ion channel
1631	 39.65	-1	2040776..2042722	+	648	148653448	-	PsycPRwf_1651	-	TonB-dependent receptor
1632	 40.03	-1	2042854..2043540	-	228	148653449	-	PsycPRwf_1652	-	TetR family transcriptional regulator
1633	 44.64	0	2043740..2044765	-	341	148653450	-	PsycPRwf_1653	-	endonuclease/exonuclease/phosphatase
1634	 48.62	0	2044902..2046491	-	529	148653451	-	PsycPRwf_1654	-	glycerol kinase
1635	 46.78	0	2046611..2047867	-	418	148653452	-	PsycPRwf_1655	-	putative oxygen-independent coproporphyrinogen III oxidase
1636	 47.48	0	2048272..2049642	+	456	148653453	-	PsycPRwf_1656	-	MATE efflux family protein
1637	 45.00	0	2049827..2050246	+	139	148653454	-	PsycPRwf_1657	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1638	 47.04	0	2050262..2051611	+	449	148653455	-	PsycPRwf_1658	-	acetyl-CoA carboxylase, biotin carboxylase
1639	 45.39	0	2051713..2052948	-	411	148653456	-	PsycPRwf_1659	-	argininosuccinate synthase
1640	 49.02	0	2053483..2054604	+	373	148653457	-	PsycPRwf_1660	-	dihydroorotase
1641	 45.09	0	2054678..2055502	+	274	148653458	-	PsycPRwf_1661	-	ribonuclease T
1642	 48.82	0	2056464..2057225	-	253	148653459	-	PsycPRwf_1662	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1643	 43.22	0	2057237..2057590	-	117	148653460	-	PsycPRwf_1663	-	septum formation initiator
1644	 45.86	0	2057782..2059098	-	438	148653461	-	PsycPRwf_1664	-	phosphopyruvate hydratase
1645	 49.59	+1	2059338..2061662	-	774	148653462	-	PsycPRwf_1665	-	heavy metal translocating P-type ATPase
1646	 48.65	0	2061862..2062083	-	73	148653463	-	PsycPRwf_1666	-	copper ion binding protein
1647	 45.78	0	2062151..2062399	-	82	148653464	-	PsycPRwf_1667	-	hypothetical protein
1648	 45.76	0	2062443..2063303	-	286	148653465	-	PsycPRwf_1668	-	2-dehydro-3-deoxyphosphooctonate aldolase
45.93	MEAN

3.38	STD DEV
