IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

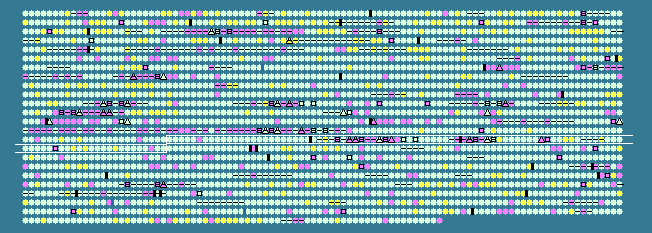

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1425	 47.99	0	1764519..1765610	+	363	148653242	-	PsycPRwf_1440	-	phosphoribosylaminoimidazole synthetase
1426	 49.07	0	1765612..1766310	+	232	148653243	-	PsycPRwf_1441	-	phosphoribosylglycinamide formyltransferase
1427	 46.18	0	1766405..1767058	-	217	148653244	-	PsycPRwf_1442	-	lysine exporter protein LysE/YggA
1428	 43.95	0	1767158..1767892	-	244	148653245	-	PsycPRwf_1443	-	ABC transporter related
1429	 42.84	0	1767941..1768897	-	318	148653246	-	PsycPRwf_1444	-	NMT1/THI5-like protein
1430	 40.26	-1	1769036..1769815	-	259	148653247	-	PsycPRwf_1445	-	binding-protein-dependent transport systems inner membrane component
1431	 42.85	0	1770053..1771450	-	465	148653248	-	PsycPRwf_1446	-	aldehyde dehydrogenase
1432	 47.17	0	1771635..1772624	-	329	148653249	-	PsycPRwf_1447	-	LysR family transcriptional regulator
1433	 44.51	0	1773186..1774769	+	527	148653250	-	PsycPRwf_1448	-	isocitrate lyase
1434	 46.60	0	1775118..1776677	+	519	148653251	-	PsycPRwf_1449	-	adenylate cyclase
1435	 46.93	0	1776815..1777351	-	178	148653252	-	PsycPRwf_1450	-	ErfK/YbiS/YcfS/YnhG family protein
1436	 45.30	0	1777486..1778613	+	375	148653253	-	PsycPRwf_1451	-	hypothetical protein
1437	 49.08	0	1778728..1779705	-	325	148653254	ruvB	PsycPRwf_1452	-	Holliday junction DNA helicase B
1438	 43.27	0	1780016..1780921	-	301	148653255	-	PsycPRwf_1453	-	LysR family transcriptional regulator
1439	 45.57	0	1781069..1783324	-	751	148653256	-	PsycPRwf_1454	-	DNA polymerase III, subunits gamma and tau
1440	 42.90	0	1783467..1784909	-	480	148653257	-	PsycPRwf_1455	-	hypothetical protein
1441	 45.53	0	1785232..1786764	-	510	148653258	lysS	PsycPRwf_1456	-	lysyl-tRNA synthetase
1442	 48.22	0	1786896..1787990	-	364	148653259	prfA	PsycPRwf_1457	-	peptide chain release factor 1
1443	 44.94	0	1788307..1789452	-	381	148653260	-	PsycPRwf_1458	-	3-oxoacyl-(acyl carrier protein) synthase III
1444	 48.38	0	1789761..1790345	+	194	148653261	-	PsycPRwf_1459	-	ATPase/kinase involved in NAD metabolism-like protein
1445	 49.39	+1	1790372..1791592	-	406	148653262	-	PsycPRwf_1460	-	tryptophan synthase subunit beta
1446	 46.24	0	1791913..1793268	+	451	148653263	-	PsycPRwf_1461	-	sodium:dicarboxylate symporter
1447	 45.61	0	1793547..1794605	+	352	148653264	-	PsycPRwf_1462	-	FMN-dependent alpha-hydroxy acid dehydrogenase
1448	 43.15	0	1794867..1795997	+	376	148653265	-	PsycPRwf_1463	-	porin
1449	 44.44	0	1796736..1797239	+	167	148653266	-	PsycPRwf_1464	-	hypothetical protein
1450	 46.80	0	1797903..1798823	-	306	148653267	-	PsycPRwf_1466	-	hypothetical protein
1451	 49.74	+1	1799366..1799944	+	192	148653268	-	PsycPRwf_1467	-	TetR family transcriptional regulator
1452	 44.44	0	1800001..1801476	+	491	148653269	-	PsycPRwf_1468	-	EmrB/QacA family drug resistance transporter
1453	 40.67	-1	1801499..1801798	+	99	148653270	-	PsycPRwf_1469	-	transposase IS3/IS911 family protein
1454	 42.67	0	1801846..1802145	+	99	148653271	-	PsycPRwf_1470	-	hypothetical protein
1455	 41.52	-1	1802156..1802656	-	166	148653272	-	PsycPRwf_1471	-	integrase catalytic subunit
1456	 41.84	-1	1802698..1803426	-	242	148653273	-	PsycPRwf_1472	-	integrase catalytic subunit
1457	 41.38	-1	1803513..1803773	-	86	148653274	-	PsycPRwf_1473	-	transposase IS3/IS911 family protein
1458	 37.04	-2	1804082..1804675	+	197	148653275	-	PsycPRwf_1474	-	hypothetical protein
1459	 35.25	-2	1806393..1807070	+	225	148653276	-	PsycPRwf_1475	-	hypothetical protein
1460	 43.86	0	1807058..1807912	-	284	148653277	-	PsycPRwf_1476	-	integrase catalytic subunit
1461	 41.41	-1	1807927..1808223	-	98	148653278	-	PsycPRwf_1477	-	transposase IS3/IS911 family protein
1462	 35.18	-2	1808544..1809302	-	252	148653279	-	PsycPRwf_1478	-	integrase catalytic subunit
1463	 36.46	-2	1809371..1809913	-	180	148653280	-	PsycPRwf_1479	-	hypothetical protein
1464	 44.12	0	1809979..1810386	+	135	148653281	-	PsycPRwf_1480	-	transposase IS3/IS911 family protein
1465	 47.25	0	1810383..1810727	+	114	148653282	-	PsycPRwf_1481	-	IS66 Orf2 family protein
1466	 46.44	0	1810770..1812509	+	579	148653283	-	PsycPRwf_1482	-	transposase IS66
1467	 44.06	0	1812836..1813609	-	257	148653284	-	PsycPRwf_1483	-	hypothetical protein
1468	 45.45	0	1813893..1814882	+	329	148653285	-	PsycPRwf_1484	-	alpha/beta fold family hydrolase-like protein
1469	 47.22	0	1814963..1817296	-	777	148653286	-	PsycPRwf_1485	-	outer membrane receptor FepA
1470	 42.48	-1	1817682..1818632	+	316	148653287	-	PsycPRwf_1486	-	hypothetical protein
1471	 46.37	0	1818642..1819577	-	311	148653288	-	PsycPRwf_1487	-	hypothetical protein
1472	 47.18	0	1819783..1820331	-	182	148653289	-	PsycPRwf_1488	-	isochorismatase hydrolase
1473	 41.15	-1	1820717..1821151	+	144	148653290	-	PsycPRwf_1489	-	hypothetical protein
1474	 36.06	-2	1821766..1823085	-	439	148653291	-	PsycPRwf_1490	-	nucleoside recognition domain-containing protein
1475	 41.84	-1	1823544..1824272	-	242	148653292	-	PsycPRwf_1492	-	integrase catalytic subunit
1476	 41.38	-1	1824359..1824619	-	86	148653293	-	PsycPRwf_1493	-	transposase IS3/IS911 family protein
1477	 41.33	-1	1824675..1825049	-	124	148653294	-	PsycPRwf_1494	-	hypothetical protein
1478	 45.05	0	1825705..1826523	-	272	148653295	-	PsycPRwf_1495	-	integrase catalytic subunit
1479	 43.43	0	1826574..1826870	-	98	148653296	-	PsycPRwf_1496	-	transposase IS3/IS911 family protein
1480	 49.52	+1	1827022..1827954	+	310	148653297	-	PsycPRwf_1497	-	homocysteine S-methyltransferase
1481	 47.46	0	1827959..1829296	+	445	148653298	-	PsycPRwf_1498	-	amino acid permease-associated region
1482	 45.89	0	1829561..1830691	+	376	148653299	-	PsycPRwf_1499	-	sugar efflux transporter
1483	 48.24	0	1830832..1833099	+	755	148653300	-	PsycPRwf_1500	-	TonB-dependent siderophore receptor
1484	 46.77	0	1833308..1834981	+	557	148653301	-	PsycPRwf_1501	-	cyclic peptide transporter
1485	 46.46	0	1835131..1836288	+	385	148653302	-	PsycPRwf_1502	-	siderophore-interacting protein
1486	 44.77	0	1836414..1838345	-	643	148653303	-	PsycPRwf_1503	-	TonB-dependent siderophore receptor
1487	 41.84	-1	1838479..1839207	-	242	148653304	-	PsycPRwf_1504	-	integrase catalytic subunit
1488	 41.38	-1	1839294..1839554	-	86	148653305	-	PsycPRwf_1505	-	transposase IS3/IS911 family protein
1489	 45.10	0	1839823..1841946	-	707	148653306	-	PsycPRwf_1506	-	TonB-dependent receptor
1490	 48.10	0	1842226..1843410	+	394	148653307	-	PsycPRwf_1507	-	hemin-degrading family protein
1491	 50.68	+1	1843477..1844283	+	268	148653308	-	PsycPRwf_1508	-	periplasmic binding protein
1492	 50.92	+1	1844304..1845281	+	325	148653309	-	PsycPRwf_1509	-	transport system permease protein
1493	 48.40	0	1845426..1846301	+	291	148653310	-	PsycPRwf_1510	-	ABC transporter related
1494	 44.96	0	1846310..1847608	-	432	148653311	-	PsycPRwf_1511	-	hypothetical protein
1495	 45.52	0	1847843..1848244	-	133	148653312	-	PsycPRwf_1512	-	biopolymer transport protein ExbD/TolR
1496	 47.42	0	1848287..1848946	-	219	148653313	-	PsycPRwf_1513	-	MotA/TolQ/ExbB proton channel
1497	 51.20	+1	1849158..1850153	-	331	148653314	-	PsycPRwf_1514	-	TonB family protein
1498	 44.33	0	1850626..1851234	+	202	148653315	-	PsycPRwf_1515	-	YceI family protein
1499	 48.52	0	1851259..1851798	-	179	148653316	-	PsycPRwf_1516	-	hypothetical protein
1500	 44.70	0	1852029..1852820	+	263	148653317	-	PsycPRwf_1517	-	hypothetical protein
1501	 45.97	0	1853321..1854412	+	363	148653318	-	PsycPRwf_1518	-	hypothetical protein
1502	 43.90	0	1854520..1856553	-	677	148653319	-	PsycPRwf_1519	-	TonB-dependent heme/hemoglobin receptor family protein
1503	 45.35	0	1857063..1859342	+	759	148653320	-	PsycPRwf_1520	-	nitric oxide reductase large subunit-like protein
1504	 45.13	0	1860862..1861641	-	259	148653321	-	PsycPRwf_1523	-	2OG-Fe(II) oxygenase
1505	 42.77	0	1861839..1864382	-	847	148653322	-	PsycPRwf_1524	-	TonB-dependent siderophore receptor
1506	 39.74	-1	1865037..1865738	+	233	148653323	-	PsycPRwf_1525	-	IS1 transposase
1507	 44.46	0	1865892..1867526	+	544	148653324	-	PsycPRwf_1526	-	extracellular solute-binding protein
1508	 47.98	0	1867737..1868753	+	338	148653325	-	PsycPRwf_1527	-	nickel-transporting ATPase
1509	 49.78	+1	1868850..1869761	+	303	148653326	-	PsycPRwf_1528	-	binding-protein-dependent transport systems inner membrane component
1510	 49.01	0	1869761..1870870	+	369	148653327	-	PsycPRwf_1529	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1511	 50.78	+1	1870867..1871898	+	343	148653328	dppF	PsycPRwf_1530	-	dipeptide transporter ATP-binding subunit
1512	 45.56	0	1871996..1873435	-	479	148653329	-	PsycPRwf_1531	-	amino acid permease-associated region
1513	 48.33	0	1873550..1874809	-	419	148653330	-	PsycPRwf_1532	-	4-aminobutyrate aminotransferase
1514	 48.66	0	1874952..1876406	-	484	148653331	-	PsycPRwf_1533	-	succinic semialdehyde dehydrogenase
1515	 48.72	0	1876787..1877566	+	259	148653332	-	PsycPRwf_1534	-	regulatory protein, IclR
1516	 51.65	+1	1877625..1878863	-	412	148653333	-	PsycPRwf_1535	-	L-carnitine dehydratase/bile acid-inducible protein F
1517	 48.04	0	1878993..1880189	-	398	148653334	-	PsycPRwf_1536	-	acyl-CoA dehydrogenase domain-containing protein
1518	 47.78	0	1880460..1881407	+	315	148653335	-	PsycPRwf_1537	-	regulatory protein, IclR
1519	 48.48	0	1881491..1883491	-	666	148653336	-	PsycPRwf_1538	-	transketolase
1520	 48.33	0	1883643..1884929	-	428	148653337	-	PsycPRwf_1539	-	seryl-tRNA synthetase
1521	 44.65	0	1885336..1885998	+	220	148653338	-	PsycPRwf_1540	-	hypothetical protein
1522	 41.19	-1	1886498..1886968	+	156	148653339	-	PsycPRwf_1541	-	Ferritin, Dps family protein
1523	 45.76	0	1887093..1888541	-	482	148653340	-	PsycPRwf_1542	-	anion transporter
1524	 47.60	0	1888886..1889635	+	249	148653341	-	PsycPRwf_1543	-	AzlC family protein
45.93	MEAN

3.38	STD DEV
