IslandPath Analysis: Psychrobacter sp. PRwf-1

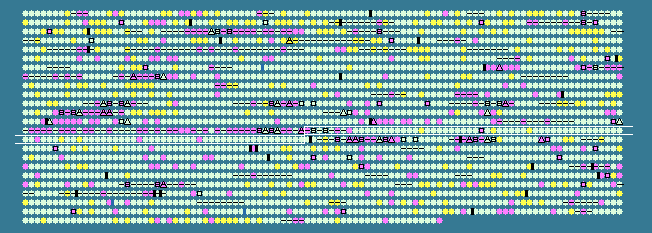

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1348	 36.46	-2	1663961..1664503	-	180	148653165	-	PsycPRwf_1363	-	hypothetical protein
1349	 43.87	0	1664569..1664976	+	135	148653166	-	PsycPRwf_1364	-	transposase IS3/IS911 family protein
1350	 47.25	0	1664973..1665317	+	114	148653167	-	PsycPRwf_1365	-	IS66 Orf2 family protein
1351	 46.49	0	1665360..1667099	+	579	148653168	-	PsycPRwf_1366	-	transposase IS66
1352	 48.75	0	1667116..1677306	-	3396	148653169	-	PsycPRwf_1367	-	putative outer membrane adhesin like proteiin
1353	 41.10	-1	1677964..1678491	-	175	148653170	-	PsycPRwf_1368	-	redoxin domain-containing protein
1354	 47.54	0	1678685..1680211	+	508	148653171	xseA	PsycPRwf_1369	-	exodeoxyribonuclease VII large subunit
1355	 42.28	-1	1680291..1680614	+	107	148653172	-	PsycPRwf_1370	-	hypothetical protein
1356	 42.75	0	1680778..1682136	+	452	148653173	-	PsycPRwf_1371	-	gluconate transporter
1357	 48.99	0	1682223..1683416	+	397	148653174	-	PsycPRwf_1372	-	glycerate kinase
1358	 48.87	0	1683526..1685379	+	617	148653175	-	PsycPRwf_1373	-	gamma-glutamyltransferase
1359	 47.32	0	1685403..1687175	-	590	148653176	-	PsycPRwf_1374	-	methionine-R-sulfoxide reductase
1360	 47.36	0	1687332..1688222	-	296	148653177	-	PsycPRwf_1375	-	ABC transporter related
1361	 49.00	0	1688267..1690225	-	652	148653178	-	PsycPRwf_1376	-	substrate-binding region of ABC-type glycine betaine transport system
1362	 47.96	0	1690450..1690866	-	138	148653179	-	PsycPRwf_1377	-	class I peptide chain release factor
1363	 45.86	0	1691028..1692440	-	470	148653180	-	PsycPRwf_1378	-	aldehyde dehydrogenase
1364	 46.19	0	1692635..1693513	-	292	148653181	-	PsycPRwf_1379	-	short-chain dehydrogenase/reductase SDR
1365	 47.26	0	1693750..1694553	+	267	148653182	-	PsycPRwf_1380	-	lipoate-protein ligase B
1366	 45.18	0	1694580..1695263	+	227	148653183	-	PsycPRwf_1381	-	hypothetical protein
1367	 51.92	+1	1695390..1697294	+	634	148653184	-	PsycPRwf_1382	-	dihydroxy-acid dehydratase
1368	 43.77	0	1697388..1697684	-	98	148653185	-	PsycPRwf_1383	-	hypothetical protein
1369	 45.67	0	1697831..1698292	+	153	148653186	-	PsycPRwf_1384	-	hypothetical protein
1370	 46.27	0	1698648..1699907	+	419	148653187	-	PsycPRwf_1385	-	sodium/hydrogen exchanger
1371	 47.87	0	1700016..1701377	-	453	148653188	-	PsycPRwf_1386	-	beta-lactamase
1372	 48.40	0	1701450..1701980	-	176	148653189	-	PsycPRwf_1387	-	hypothetical protein
1373	 44.04	0	1702115..1703011	-	298	148653190	-	PsycPRwf_1388	-	dehydratase
1374	 47.11	0	1703177..1704577	-	466	148653191	fabG	PsycPRwf_1389	-	3-ketoacyl-(acyl-carrier-protein) reductase
1375	 46.80	0	1705218..1707044	+	608	148653192	-	PsycPRwf_1390	-	acetyl-CoA acetyltransferase
1376	 48.62	0	1707155..1708279	-	374	148653193	-	PsycPRwf_1391	-	DNA-directed DNA polymerase
1377	 41.10	-1	1708335..1709441	-	368	148653194	-	PsycPRwf_1392	-	IS605 family transposase OrfB
1378	 48.31	0	1709589..1710416	-	275	148653195	-	PsycPRwf_1393	-	3-deoxy-manno-octulosonate cytidylyltransferase
1379	 49.47	+1	1710550..1711677	-	375	148653196	-	PsycPRwf_1394	-	tetraacyldisaccharide 4'-kinase
1380	 46.15	0	1711848..1713680	-	610	148653197	-	PsycPRwf_1395	-	lipid A ABC exporter, fused ATPase and inner membrane subunits MsbA
1381	 49.40	+1	1713809..1714897	-	362	148653198	-	PsycPRwf_1396	-	parB-like partition protein
1382	 47.03	0	1715138..1715911	-	257	148653199	-	PsycPRwf_1397	-	cobyrinic acid a,c-diamide synthase
1383	 42.92	0	1716031..1716708	-	225	148653200	-	PsycPRwf_1398	-	methyltransferase GidB
1384	 47.31	0	1716885..1719317	+	810	148653201	-	PsycPRwf_1399	-	peptidase S16, lon domain-containing protein
1385	 49.53	+1	1719425..1720492	+	355	148653202	-	PsycPRwf_1400	-	hypothetical protein
1386	 48.18	0	1720605..1721264	+	219	148653203	-	PsycPRwf_1401	-	hypothetical protein
1387	 43.27	0	1721356..1722351	-	331	148653204	-	PsycPRwf_1402	-	Ion transport protein
1388	 47.81	0	1722528..1724213	-	561	148653205	-	PsycPRwf_1403	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
1389	 47.31	0	1724342..1727167	-	941	148653206	aceE	PsycPRwf_1404	-	pyruvate dehydrogenase subunit E1
1390	 45.80	0	1727862..1728302	+	146	148653207	-	PsycPRwf_1405	-	hypothetical protein
1391	 43.34	0	1728378..1729496	-	372	148653208	-	PsycPRwf_1406	-	AFG1 family ATPase
1392	 48.65	0	1729553..1730218	-	221	148653209	-	PsycPRwf_1407	-	alpha/beta fold family hydrolase-like protein
1393	 46.61	0	1730681..1731064	+	127	148653210	-	PsycPRwf_1408	-	hypothetical protein
1394	 48.17	0	1731126..1732163	-	345	148653211	-	PsycPRwf_1409	-	binding-protein-dependent transport systems inner membrane component
1395	 45.79	0	1732165..1733232	-	355	148653212	-	PsycPRwf_1410	-	binding-protein-dependent transport systems inner membrane component
1396	 48.72	0	1733302..1734081	-	259	148653213	-	PsycPRwf_1411	-	hydroxyacylglutathione hydrolase
1397	 46.13	0	1734151..1736010	-	619	148653214	-	PsycPRwf_1412	-	extracellular solute-binding protein
1398	 46.95	0	1736047..1737192	-	381	148653215	-	PsycPRwf_1413	-	phosphoserine aminotransferase
1399	 48.09	0	1737306..1738118	-	270	148653216	-	PsycPRwf_1414	-	hypothetical protein
1400	 43.44	0	1738475..1739374	-	299	148653217	-	PsycPRwf_1415	-	NLPA lipoprotein
1401	 47.22	0	1739618..1740301	-	227	148653218	-	PsycPRwf_1416	-	binding-protein-dependent transport systems inner membrane component
1402	 45.49	0	1740305..1741069	-	254	148653219	-	PsycPRwf_1417	-	ABC transporter related
1403	 40.10	-1	1741312..1741518	-	68	148653220	-	PsycPRwf_1418	-	hypothetical protein
1404	 49.22	0	1741876..1743153	+	425	148653221	-	PsycPRwf_1419	-	phosphoribosylamine--glycine ligase
1405	 46.61	0	1743449..1744909	+	486	148653222	-	PsycPRwf_1420	-	hypothetical protein
1406	 47.20	0	1745011..1745796	-	261	148653223	-	PsycPRwf_1421	-	putative methyltransferase
1407	 49.76	+1	1745959..1746165	+	68	148653224	-	PsycPRwf_1422	-	hypothetical protein
1408	 49.37	+1	1746284..1747480	+	398	148653225	-	PsycPRwf_1423	-	acetylornithine aminotransferase
1409	 48.34	0	1747578..1748210	-	210	148653226	-	PsycPRwf_1424	-	Holliday junction DNA helicase RuvA
1410	 49.59	+1	1748378..1748746	-	122	148653227	-	PsycPRwf_1425	-	hypothetical protein
1411	 44.00	0	1749092..1750300	-	402	148653228	-	PsycPRwf_1426	-	phosphoglycerate kinase
1412	 44.55	0	1750571..1750900	+	109	148653229	-	PsycPRwf_1427	-	TraR/DksA family transcriptional regulator
1413	 46.67	0	1751034..1752068	-	344	148653230	-	PsycPRwf_1428	-	peptidase S11, D-alanyl-D-alanine carboxypeptidase 1
1414	 42.61	0	1752505..1753140	+	211	148653231	-	PsycPRwf_1429	-	two component LuxR family transcriptional regulator
1415	 47.66	0	1753258..1754772	-	504	148653232	-	PsycPRwf_1430	-	carboxyl-terminal protease
1416	 46.64	0	1754801..1756393	-	530	148653233	-	PsycPRwf_1431	-	phosphoglyceromutase
1417	 44.99	0	1757028..1757636	-	202	148653234	-	PsycPRwf_1432	-	FxsA cytoplasmic membrane protein
1418	 49.23	0	1757863..1758447	+	194	148653235	-	PsycPRwf_1433	-	crossover junction endodeoxyribonuclease RuvC
1419	 48.77	0	1758453..1759307	-	284	148653236	-	PsycPRwf_1434	-	hypothetical protein
1420	 41.59	-1	1759343..1759972	-	209	148653237	-	PsycPRwf_1435	-	glutathione S-transferase domain-containing protein
1421	 43.61	0	1760224..1760865	-	213	148653238	-	PsycPRwf_1436	-	peroxidase
1422	 43.54	0	1761205..1761831	-	208	148653239	-	PsycPRwf_1437	-	hypothetical protein
1423	 43.42	0	1762060..1762872	-	270	148653240	-	PsycPRwf_1438	-	ATPase involved in DNA replication initiation-like protein
1424	 43.42	0	1763049..1764149	-	366	148653241	-	PsycPRwf_1439	-	hypothetical protein
1425	 47.99	0	1764519..1765610	+	363	148653242	-	PsycPRwf_1440	-	phosphoribosylaminoimidazole synthetase
1426	 49.07	0	1765612..1766310	+	232	148653243	-	PsycPRwf_1441	-	phosphoribosylglycinamide formyltransferase
1427	 46.18	0	1766405..1767058	-	217	148653244	-	PsycPRwf_1442	-	lysine exporter protein LysE/YggA
1428	 43.95	0	1767158..1767892	-	244	148653245	-	PsycPRwf_1443	-	ABC transporter related
1429	 42.84	0	1767941..1768897	-	318	148653246	-	PsycPRwf_1444	-	NMT1/THI5-like protein
1430	 40.26	-1	1769036..1769815	-	259	148653247	-	PsycPRwf_1445	-	binding-protein-dependent transport systems inner membrane component
1431	 42.85	0	1770053..1771450	-	465	148653248	-	PsycPRwf_1446	-	aldehyde dehydrogenase
1432	 47.17	0	1771635..1772624	-	329	148653249	-	PsycPRwf_1447	-	LysR family transcriptional regulator
1433	 44.51	0	1773186..1774769	+	527	148653250	-	PsycPRwf_1448	-	isocitrate lyase
1434	 46.60	0	1775118..1776677	+	519	148653251	-	PsycPRwf_1449	-	adenylate cyclase
1435	 46.93	0	1776815..1777351	-	178	148653252	-	PsycPRwf_1450	-	ErfK/YbiS/YcfS/YnhG family protein
1436	 45.30	0	1777486..1778613	+	375	148653253	-	PsycPRwf_1451	-	hypothetical protein
1437	 49.08	0	1778728..1779705	-	325	148653254	ruvB	PsycPRwf_1452	-	Holliday junction DNA helicase B
1438	 43.27	0	1780016..1780921	-	301	148653255	-	PsycPRwf_1453	-	LysR family transcriptional regulator
1439	 45.57	0	1781069..1783324	-	751	148653256	-	PsycPRwf_1454	-	DNA polymerase III, subunits gamma and tau
1440	 42.90	0	1783467..1784909	-	480	148653257	-	PsycPRwf_1455	-	hypothetical protein
1441	 45.53	0	1785232..1786764	-	510	148653258	lysS	PsycPRwf_1456	-	lysyl-tRNA synthetase
1442	 48.22	0	1786896..1787990	-	364	148653259	prfA	PsycPRwf_1457	-	peptide chain release factor 1
1443	 44.94	0	1788307..1789452	-	381	148653260	-	PsycPRwf_1458	-	3-oxoacyl-(acyl carrier protein) synthase III
1444	 48.38	0	1789761..1790345	+	194	148653261	-	PsycPRwf_1459	-	ATPase/kinase involved in NAD metabolism-like protein
1445	 49.39	+1	1790372..1791592	-	406	148653262	-	PsycPRwf_1460	-	tryptophan synthase subunit beta
1446	 46.24	0	1791913..1793268	+	451	148653263	-	PsycPRwf_1461	-	sodium:dicarboxylate symporter
1447	 45.61	0	1793547..1794605	+	352	148653264	-	PsycPRwf_1462	-	FMN-dependent alpha-hydroxy acid dehydrogenase
45.93	MEAN

3.38	STD DEV
