IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

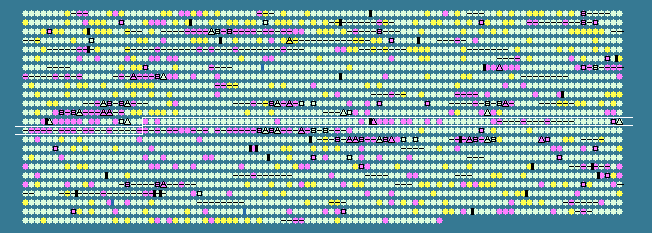

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1221	 41.67	-1	1518685..1519392	+	235	148653038	-	PsycPRwf_1233	-	isochorismatase hydrolase
1222	 44.44	0	1519521..1519745	+	74	148653039	-	PsycPRwf_1234	-	hypothetical protein
1223	 39.85	-1	1522178..1522960	-	260	148653040	-	PsycPRwf_1236	-	hypothetical protein
1224	 43.56	0	1522957..1524687	-	576	148653041	-	PsycPRwf_1237	-	hypothetical protein
1225	 43.60	0	1524754..1526418	-	554	148653042	-	PsycPRwf_1238	-	BCCT transporter
1226	 45.63	0	1526691..1527731	-	346	148653043	-	PsycPRwf_1239	-	peptidase M19, renal dipeptidase
1227	 46.39	0	1527816..1529270	-	484	148653044	-	PsycPRwf_1240	-	aldehyde dehydrogenase
1228	 45.80	0	1529401..1529793	-	130	148653045	-	PsycPRwf_1241	-	endoribonuclease L-PSP
1229	 43.76	0	1529990..1530871	+	293	148653046	-	PsycPRwf_1242	-	LysR family transcriptional regulator
1230	 47.27	0	1531006..1531866	+	286	148653047	-	PsycPRwf_1243	-	RNA methyltransferase
1231	 47.10	0	1531999..1532877	+	292	148653048	-	PsycPRwf_1244	-	serine O-acetyltransferase
1232	 43.53	0	1532930..1533547	-	205	148653049	-	PsycPRwf_1245	-	hypothetical protein
1233	 45.05	0	1533578..1533961	-	127	148653050	-	PsycPRwf_1246	-	dihydroneopterin aldolase
1234	 44.06	0	1534024..1534974	-	316	148653051	-	PsycPRwf_1247	-	transporter DMT superfamily protein
1235	 48.90	0	1535255..1537567	-	770	148653052	-	PsycPRwf_1248	-	3-phosphoshikimate 1-carboxyvinyltransferase
1236	 47.83	0	1537631..1538734	-	367	148653053	-	PsycPRwf_1249	-	histidinol-phosphate aminotransferase
1237	 45.17	0	1538813..1539961	-	382	148653054	-	PsycPRwf_1250	-	chorismate mutase
1238	 45.01	0	1540305..1541255	+	316	148653055	-	PsycPRwf_1251	-	transaldolase B
1239	 46.60	0	1541341..1541913	-	190	148653056	-	PsycPRwf_1252	-	adenine phosphoribosyltransferase
1240	 46.06	0	1542283..1542447	+	54	148653057	-	PsycPRwf_1253	-	rubredoxin-type Fe(Cys)4 protein
1241	 47.40	0	1542500..1543459	+	319	148653058	-	PsycPRwf_1254	-	alpha/beta hydrolase fold
1242	 44.18	0	1543621..1544625	+	334	148653059	-	PsycPRwf_1255	-	alpha/beta hydrolase fold
1243	 41.73	-1	1544750..1545154	-	134	148653060	-	PsycPRwf_1256	-	hypothetical protein
1244	 48.55	0	1545375..1546616	-	413	148653061	argJ	PsycPRwf_1257	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1245	 43.75	0	1546676..1547491	-	271	148653062	-	PsycPRwf_1258	-	exonuclease III
1246	 47.38	0	1547579..1548226	-	215	148653063	-	PsycPRwf_1259	-	pyridoxamine 5'-phosphate oxidase
1247	 47.12	0	1548351..1549706	-	451	148653064	-	PsycPRwf_1260	-	phosphoglucosamine mutase
1248	 47.32	0	1549910..1551382	-	490	148653065	-	PsycPRwf_1261	-	inosine-5'-monophosphate dehydrogenase
1249	 47.29	0	1551736..1553619	-	627	148653066	-	PsycPRwf_1262	-	MscS mechanosensitive ion channel
1250	 47.50	0	1553778..1555295	-	505	148653067	-	PsycPRwf_1263	-	cysteinyl-tRNA synthetase
1251	 44.77	0	1555465..1556076	+	203	148653068	-	PsycPRwf_1264	-	ATP--cobalamin adenosyltransferase
1252	 48.29	0	1556187..1557149	-	320	148653069	-	PsycPRwf_1265	-	hypothetical protein
1253	 45.81	0	1557484..1558413	+	309	148653070	-	PsycPRwf_1266	-	glycerophosphoryl diester phosphodiesterase
1254	 45.42	0	1558872..1560062	+	396	148653071	-	PsycPRwf_1267	-	stearoyl-CoA 9-desaturase
1255	 47.78	0	1560379..1561956	+	525	148653072	-	PsycPRwf_1268	-	hypothetical protein
1256	 44.44	0	1562236..1564575	+	779	148653073	-	PsycPRwf_1269	-	malic enzyme
1257	 38.10	-2	1564645..1565295	-	216	148653074	-	PsycPRwf_1270	-	BLUF domain-containing protein
1258	 45.65	0	1565497..1566738	+	413	148653075	-	PsycPRwf_1271	-	tRNA cytidylyltransferase
1259	 39.67	-1	1567080..1568357	+	425	148653076	-	PsycPRwf_1272	-	phage integrase family protein
1260	 34.70	-2	1569287..1569505	+	72	148653077	-	PsycPRwf_1274	-	hypothetical protein
1261	 35.19	-2	1569596..1570456	+	286	148653078	-	PsycPRwf_1275	-	hypothetical protein
1262	 40.68	-1	1570549..1572903	-	784	148653079	-	PsycPRwf_1276	-	hypothetical protein
1263	 42.98	0	1573035..1573718	-	227	148653080	-	PsycPRwf_1277	-	hypothetical protein
1264	 40.85	-1	1574043..1574561	-	172	148653081	-	PsycPRwf_1278	-	hypothetical protein
1265	 42.01	-1	1574792..1575529	-	245	148653082	-	PsycPRwf_1279	-	hypothetical protein
1266	 45.15	0	1575526..1576380	-	284	148653083	-	PsycPRwf_1280	-	hypothetical protein
1267	 43.65	0	1576383..1578194	-	603	148653084	-	PsycPRwf_1281	-	hypothetical protein
1268	 40.24	-1	1578204..1580360	-	718	148653085	-	PsycPRwf_1282	-	hypothetical protein
1269	 47.37	0	1581011..1581295	-	94	148653086	-	PsycPRwf_1283	-	hypothetical protein
1270	 40.21	-1	1581305..1581973	-	222	148653087	-	PsycPRwf_1284	-	hypothetical protein
1271	 45.98	0	1581973..1583601	-	542	148653088	-	PsycPRwf_1285	-	hypothetical protein
1272	 48.21	0	1583610..1584281	-	223	148653089	-	PsycPRwf_1286	-	hypothetical protein
1273	 43.78	0	1584278..1585186	-	302	148653090	-	PsycPRwf_1287	-	hypothetical protein
1274	 43.16	0	1585177..1585695	-	172	148653091	-	PsycPRwf_1288	-	hypothetical protein
1275	 45.89	0	1585707..1586327	-	206	148653092	-	PsycPRwf_1289	-	hypothetical protein
1276	 45.21	0	1586560..1587384	+	274	148653093	-	PsycPRwf_1290	-	hypothetical protein
1277	 44.34	0	1587396..1588031	-	211	148653094	-	PsycPRwf_1291	-	hypothetical protein
1278	 43.79	0	1588033..1589505	-	490	148653095	-	PsycPRwf_1292	-	hypothetical protein
1279	 40.61	-1	1589489..1589818	-	109	148653096	-	PsycPRwf_1293	-	hypothetical protein
1280	 38.55	-2	1589815..1590255	-	146	148653097	-	PsycPRwf_1294	-	hypothetical protein
1281	 45.19	0	1590265..1590804	-	179	148653098	-	PsycPRwf_1295	-	hypothetical protein
1282	 45.71	0	1590888..1591784	-	298	148653099	-	PsycPRwf_1296	-	hypothetical protein
1283	 44.98	0	1591818..1593191	-	457	148653100	-	PsycPRwf_1297	-	hypothetical protein
1284	 41.29	-1	1593277..1594143	-	288	148653101	-	PsycPRwf_1298	-	putative lipoprotein
1285	 46.04	0	1594153..1597788	-	1211	148653102	-	PsycPRwf_1299	-	hypothetical protein
1286	 43.51	0	1597945..1598337	-	130	148653103	-	PsycPRwf_1300	-	hypothetical protein
1287	 44.89	0	1598927..1599904	-	325	148653104	-	PsycPRwf_1302	-	hypothetical protein
1288	 41.23	-1	1599904..1601157	-	417	148653105	-	PsycPRwf_1303	-	hypothetical protein
1289	 42.59	0	1601214..1601645	-	143	148653106	-	PsycPRwf_1304	-	hypothetical protein
1290	 45.16	0	1601747..1603555	-	602	148653107	-	PsycPRwf_1305	-	hypothetical protein
1291	 43.74	0	1603753..1604319	-	188	148653108	-	PsycPRwf_1306	-	hypothetical protein
1292	 45.30	0	1604316..1605518	-	400	148653109	-	PsycPRwf_1307	-	hypothetical protein
1293	 46.17	0	1605812..1607143	-	443	148653110	-	PsycPRwf_1308	-	hypothetical protein
1294	 45.94	0	1607228..1608790	-	520	148653111	-	PsycPRwf_1309	-	hypothetical protein
1295	 45.33	0	1608802..1609326	-	174	148653112	-	PsycPRwf_1310	-	hypothetical protein
1296	 47.87	0	1609319..1610329	-	336	148653113	-	PsycPRwf_1311	-	hypothetical protein
1297	 44.80	0	1610344..1611276	-	310	148653114	-	PsycPRwf_1312	-	hypothetical protein
1298	 45.36	0	1611503..1611685	+	60	148653115	-	PsycPRwf_1313	-	hypothetical protein
1299	 41.41	-1	1611738..1612034	+	98	148653116	-	PsycPRwf_1314	-	transposase IS3/IS911 family protein
1300	 43.86	0	1612049..1612903	+	284	148653117	-	PsycPRwf_1315	-	integrase catalytic subunit
1301	 44.62	0	1612917..1613102	+	61	148653118	-	PsycPRwf_1316	-	hypothetical protein
1302	 41.45	-1	1613346..1614146	-	266	148653119	-	PsycPRwf_1317	-	hypothetical protein
1303	 34.64	-2	1614355..1615122	+	255	148653120	-	PsycPRwf_1318	-	hypothetical protein
1304	 34.02	-2	1615183..1615473	-	96	148653121	-	PsycPRwf_1319	-	hypothetical protein
1305	 33.33	-2	1615677..1616273	-	198	148653122	-	PsycPRwf_1320	-	hypothetical protein
1306	 47.73	0	1616513..1619464	-	983	148653123	-	PsycPRwf_1321	-	hypothetical protein
1307	 37.34	-2	1619547..1620245	-	232	148653124	-	PsycPRwf_1322	-	LrgB family protein
1308	 38.01	-2	1620255..1620746	-	163	148653125	-	PsycPRwf_1323	-	LrgA family protein
1309	 38.10	-2	1620882..1621763	+	293	148653126	-	PsycPRwf_1324	-	LysR family transcriptional regulator
1310	 43.46	0	1621773..1625111	-	1112	148653127	-	PsycPRwf_1325	-	type III restriction enzyme, res subunit
1311	 34.50	-2	1625154..1626095	-	313	148653128	-	PsycPRwf_1326	-	hypothetical protein
1312	 37.35	-2	1626119..1627414	-	431	148653129	-	PsycPRwf_1327	-	restriction modification system DNA specificity subunit
1313	 44.36	0	1627414..1629834	-	806	148653130	-	PsycPRwf_1328	-	N-6 DNA methylase
1314	 42.68	0	1630037..1630924	-	295	148653131	-	PsycPRwf_1329	-	hypothetical protein
1315	 41.45	-1	1630924..1631613	-	229	148653132	-	PsycPRwf_1330	-	hypothetical protein
1316	 45.41	0	1631735..1632181	-	148	148653133	-	PsycPRwf_1331	-	VRR-NUC
1317	 43.94	0	1632420..1632683	-	87	148653134	-	PsycPRwf_1332	-	hypothetical protein
1318	 46.62	0	1632674..1633132	-	152	148653135	-	PsycPRwf_1333	-	hypothetical protein
1319	 44.74	0	1633147..1633707	-	186	148653136	-	PsycPRwf_1334	-	hypothetical protein
1320	 37.63	-2	1633724..1634608	-	294	148653137	-	PsycPRwf_1335	-	hypothetical protein
45.93	MEAN

3.38	STD DEV
