IslandPath Analysis: Psychrobacter sp. PRwf-1

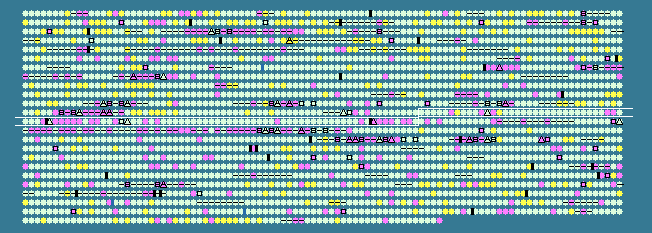

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1167	 44.60	0	1441092..1441508	+	138	148652984	-	PsycPRwf_1178	-	membrane protein-like protein
1168	 48.72	0	1441614..1442198	-	194	148652985	-	PsycPRwf_1179	-	NAD(P)H dehydrogenase (quinone)
1169	 45.02	0	1442283..1443086	-	267	148652986	-	PsycPRwf_1180	-	aldo/keto reductase
1170	 44.22	0	1443217..1444116	+	299	148652987	-	PsycPRwf_1181	-	LysR family transcriptional regulator
1171	 44.12	0	1444145..1444858	-	237	148652988	-	PsycPRwf_1182	-	hypothetical protein
1172	 41.77	-1	1445006..1446688	-	560	148652989	-	PsycPRwf_1183	-	AMP-dependent synthetase and ligase
1173	 50.33	+1	1446865..1447935	-	356	148652990	-	PsycPRwf_1184	-	L-carnitine dehydratase/bile acid-inducible protein F
1174	 46.27	0	1447928..1450099	-	723	148652991	-	PsycPRwf_1185	-	3-hydroxyacyl-CoA dehydrogenase, NAD-binding
1175	 49.05	0	1450197..1451405	-	402	148652992	-	PsycPRwf_1186	-	acetyl-CoA acetyltransferase
1176	 45.40	0	1451536..1452687	-	383	148652993	-	PsycPRwf_1187	-	acyl-CoA dehydrogenase domain-containing protein
1177	 42.44	-1	1452874..1453521	+	215	148652994	-	PsycPRwf_1188	-	TetR family transcriptional regulator
1178	 47.16	0	1454018..1455283	+	421	148652995	-	PsycPRwf_1189	-	phage integrase family protein
1179	 39.20	-1	1455303..1455677	-	124	148652996	-	PsycPRwf_1190	-	hypothetical protein
1180	 49.54	+1	1455956..1456282	-	108	148652997	-	PsycPRwf_1191	-	hypothetical protein
1181	 46.69	0	1456409..1457935	-	508	148652998	-	PsycPRwf_1192	-	aldehyde dehydrogenase
1182	 46.05	0	1458354..1459619	+	421	148652999	-	PsycPRwf_1193	-	manganese transporter NRAMP
1183	 45.95	0	1459730..1460989	+	419	148653000	-	PsycPRwf_1194	-	manganese transporter NRAMP
1184	 45.69	0	1461221..1461916	+	231	148653001	-	PsycPRwf_1195	-	hypothetical protein
1185	 47.66	0	1461964..1462926	+	320	148653002	-	PsycPRwf_1196	-	LysR family transcriptional regulator
1186	 46.53	0	1463221..1464114	+	297	148653003	prpB	PsycPRwf_1197	-	2-methylisocitrate lyase
1187	 48.63	0	1464312..1465442	+	376	148653004	-	PsycPRwf_1198	-	methylcitrate synthase
1188	 48.93	0	1465657..1468368	+	903	148653005	-	PsycPRwf_1199	-	aconitate hydratase
1189	 48.80	0	1468484..1469737	+	417	148653006	-	PsycPRwf_1200	-	putative AcnD-accessory protein PrpF
1190	 44.12	0	1469953..1471806	+	617	148653007	-	PsycPRwf_1201	-	ABC transporter related
1191	 44.50	0	1471868..1472458	+	196	148653008	-	PsycPRwf_1202	-	GCN5-related N-acetyltransferase
1192	 47.05	0	1472582..1473922	+	446	148653009	-	PsycPRwf_1203	-	hypothetical protein
1193	 44.09	0	1474076..1475023	+	315	148653010	-	PsycPRwf_1204	-	sterol desaturase-like protein
1194	 49.39	+1	1475125..1476687	+	520	148653011	-	PsycPRwf_1205	-	GTP-binding protein, HSR1-related
1195	 49.20	0	1476734..1477729	-	331	148653012	-	PsycPRwf_1206	-	arsenite-activated ATPase ArsA
1196	 47.57	0	1477771..1478037	-	88	148653013	-	PsycPRwf_1207	-	hypothetical protein
1197	 44.84	0	1478182..1479849	-	555	148653014	-	PsycPRwf_1208	-	carbon starvation protein CstA
1198	 39.49	-1	1480281..1480946	+	221	148653015	-	PsycPRwf_1209	-	hypothetical protein
1199	 42.15	-1	1481037..1481603	+	188	148653016	-	PsycPRwf_1210	-	hypoxanthine-guanine phosphoribosyltransferase
1200	 44.67	0	1481693..1484056	-	787	148653017	-	PsycPRwf_1211	-	exodeoxyribonuclease V, alpha subunit
1201	 46.36	0	1484140..1488630	-	1496	148653018	-	PsycPRwf_1212	-	UvrD/REP helicase
1202	 47.47	0	1488714..1493225	-	1503	148653019	-	PsycPRwf_1213	-	exonuclease V gamma subunit-like protein
1203	 45.91	0	1493539..1494309	-	256	148653020	-	PsycPRwf_1214	-	pseudouridine synthase
1204	 41.58	-1	1494419..1494697	-	92	148653021	-	PsycPRwf_1215	-	PpiC-type peptidyl-prolyl cis-trans isomerase
1205	 43.67	0	1495159..1496367	+	402	148653022	-	PsycPRwf_1216	-	phage integrase family protein
1206	 38.45	-2	1496664..1497815	-	383	148653023	-	PsycPRwf_1217	-	hypothetical protein
1207	 38.39	-2	1497952..1499514	-	520	148653024	-	PsycPRwf_1218	-	Dyp-type peroxidase family protein
1208	 39.24	-1	1499732..1500307	-	191	148653025	-	PsycPRwf_1219	-	hypothetical protein
1209	 35.77	-2	1501558..1502418	+	286	148653026	-	PsycPRwf_1221	-	hypothetical protein
1210	 40.64	-1	1502508..1504862	-	784	148653027	-	PsycPRwf_1222	-	hypothetical protein
1211	 43.71	0	1504994..1505677	-	227	148653028	-	PsycPRwf_1223	-	hypothetical protein
1212	 42.20	-1	1506002..1506520	-	172	148653029	-	PsycPRwf_1224	-	hypothetical protein
1213	 41.19	-1	1506751..1507488	-	245	148653030	-	PsycPRwf_1225	-	hypothetical protein
1214	 45.73	0	1507485..1508339	-	284	148653031	-	PsycPRwf_1226	-	hypothetical protein
1215	 43.93	0	1508342..1510153	-	603	148653032	-	PsycPRwf_1227	-	hypothetical protein
1216	 38.70	-2	1510163..1511056	-	297	148653033	-	PsycPRwf_1228	-	hypothetical protein
1217	 43.43	0	1511074..1511370	+	98	148653034	-	PsycPRwf_1229	-	transposase IS3/IS911 family protein
1218	 45.05	0	1511421..1512239	+	272	148653035	-	PsycPRwf_1230	-	integrase catalytic subunit
1219	 46.61	0	1512763..1513899	-	378	148653036	-	PsycPRwf_1231	-	peptidase M14, carboxypeptidase A
1220	 47.56	0	1514141..1517752	+	1203	148653037	-	PsycPRwf_1232	-	DNA polymerase III, alpha subunit
1221	 41.67	-1	1518685..1519392	+	235	148653038	-	PsycPRwf_1233	-	isochorismatase hydrolase
1222	 44.44	0	1519521..1519745	+	74	148653039	-	PsycPRwf_1234	-	hypothetical protein
1223	 39.85	-1	1522178..1522960	-	260	148653040	-	PsycPRwf_1236	-	hypothetical protein
1224	 43.56	0	1522957..1524687	-	576	148653041	-	PsycPRwf_1237	-	hypothetical protein
1225	 43.60	0	1524754..1526418	-	554	148653042	-	PsycPRwf_1238	-	BCCT transporter
1226	 45.63	0	1526691..1527731	-	346	148653043	-	PsycPRwf_1239	-	peptidase M19, renal dipeptidase
1227	 46.39	0	1527816..1529270	-	484	148653044	-	PsycPRwf_1240	-	aldehyde dehydrogenase
1228	 45.80	0	1529401..1529793	-	130	148653045	-	PsycPRwf_1241	-	endoribonuclease L-PSP
1229	 43.76	0	1529990..1530871	+	293	148653046	-	PsycPRwf_1242	-	LysR family transcriptional regulator
1230	 47.27	0	1531006..1531866	+	286	148653047	-	PsycPRwf_1243	-	RNA methyltransferase
1231	 47.10	0	1531999..1532877	+	292	148653048	-	PsycPRwf_1244	-	serine O-acetyltransferase
1232	 43.53	0	1532930..1533547	-	205	148653049	-	PsycPRwf_1245	-	hypothetical protein
1233	 45.05	0	1533578..1533961	-	127	148653050	-	PsycPRwf_1246	-	dihydroneopterin aldolase
1234	 44.06	0	1534024..1534974	-	316	148653051	-	PsycPRwf_1247	-	transporter DMT superfamily protein
1235	 48.90	0	1535255..1537567	-	770	148653052	-	PsycPRwf_1248	-	3-phosphoshikimate 1-carboxyvinyltransferase
1236	 47.83	0	1537631..1538734	-	367	148653053	-	PsycPRwf_1249	-	histidinol-phosphate aminotransferase
1237	 45.17	0	1538813..1539961	-	382	148653054	-	PsycPRwf_1250	-	chorismate mutase
1238	 45.01	0	1540305..1541255	+	316	148653055	-	PsycPRwf_1251	-	transaldolase B
1239	 46.60	0	1541341..1541913	-	190	148653056	-	PsycPRwf_1252	-	adenine phosphoribosyltransferase
1240	 46.06	0	1542283..1542447	+	54	148653057	-	PsycPRwf_1253	-	rubredoxin-type Fe(Cys)4 protein
1241	 47.40	0	1542500..1543459	+	319	148653058	-	PsycPRwf_1254	-	alpha/beta hydrolase fold
1242	 44.18	0	1543621..1544625	+	334	148653059	-	PsycPRwf_1255	-	alpha/beta hydrolase fold
1243	 41.73	-1	1544750..1545154	-	134	148653060	-	PsycPRwf_1256	-	hypothetical protein
1244	 48.55	0	1545375..1546616	-	413	148653061	argJ	PsycPRwf_1257	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1245	 43.75	0	1546676..1547491	-	271	148653062	-	PsycPRwf_1258	-	exonuclease III
1246	 47.38	0	1547579..1548226	-	215	148653063	-	PsycPRwf_1259	-	pyridoxamine 5'-phosphate oxidase
1247	 47.12	0	1548351..1549706	-	451	148653064	-	PsycPRwf_1260	-	phosphoglucosamine mutase
1248	 47.32	0	1549910..1551382	-	490	148653065	-	PsycPRwf_1261	-	inosine-5'-monophosphate dehydrogenase
1249	 47.29	0	1551736..1553619	-	627	148653066	-	PsycPRwf_1262	-	MscS mechanosensitive ion channel
1250	 47.50	0	1553778..1555295	-	505	148653067	-	PsycPRwf_1263	-	cysteinyl-tRNA synthetase
1251	 44.77	0	1555465..1556076	+	203	148653068	-	PsycPRwf_1264	-	ATP--cobalamin adenosyltransferase
1252	 48.29	0	1556187..1557149	-	320	148653069	-	PsycPRwf_1265	-	hypothetical protein
1253	 45.81	0	1557484..1558413	+	309	148653070	-	PsycPRwf_1266	-	glycerophosphoryl diester phosphodiesterase
1254	 45.42	0	1558872..1560062	+	396	148653071	-	PsycPRwf_1267	-	stearoyl-CoA 9-desaturase
1255	 47.78	0	1560379..1561956	+	525	148653072	-	PsycPRwf_1268	-	hypothetical protein
1256	 44.44	0	1562236..1564575	+	779	148653073	-	PsycPRwf_1269	-	malic enzyme
1257	 38.10	-2	1564645..1565295	-	216	148653074	-	PsycPRwf_1270	-	BLUF domain-containing protein
1258	 45.65	0	1565497..1566738	+	413	148653075	-	PsycPRwf_1271	-	tRNA cytidylyltransferase
1259	 39.67	-1	1567080..1568357	+	425	148653076	-	PsycPRwf_1272	-	phage integrase family protein
1260	 34.70	-2	1569287..1569505	+	72	148653077	-	PsycPRwf_1274	-	hypothetical protein
1261	 35.19	-2	1569596..1570456	+	286	148653078	-	PsycPRwf_1275	-	hypothetical protein
1262	 40.68	-1	1570549..1572903	-	784	148653079	-	PsycPRwf_1276	-	hypothetical protein
1263	 42.98	0	1573035..1573718	-	227	148653080	-	PsycPRwf_1277	-	hypothetical protein
1264	 40.85	-1	1574043..1574561	-	172	148653081	-	PsycPRwf_1278	-	hypothetical protein
1265	 42.01	-1	1574792..1575529	-	245	148653082	-	PsycPRwf_1279	-	hypothetical protein
1266	 45.15	0	1575526..1576380	-	284	148653083	-	PsycPRwf_1280	-	hypothetical protein
45.93	MEAN

3.38	STD DEV
