IslandPathversion 1.0

IslandPath Analysis: Psychrobacter sp. PRwf-1

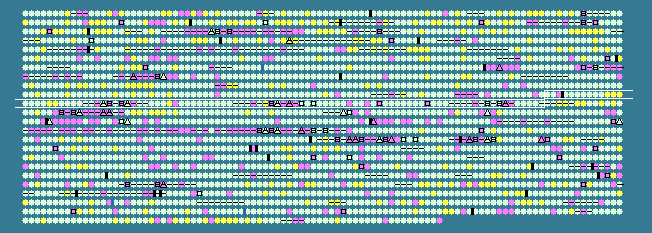

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 45.93 STD DEV: 3.38
Psychrobacter sp. PRwf-1, complete genome - 1..2978976
2370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
988	 43.64	0	1187244..1188155	-	303	148652805	-	PsycPRwf_0998	-	alpha/beta hydrolase fold
989	 43.17	0	1188443..1189438	-	331	148652806	-	PsycPRwf_0999	-	alcohol dehydrogenase
990	 41.14	-1	1189695..1190552	+	285	148652807	-	PsycPRwf_1000	-	alpha/beta hydrolase fold
991	 48.49	0	1191225..1192418	+	397	148652808	-	PsycPRwf_1001	-	signal recognition particle-docking protein FtsY
992	 44.86	0	1192518..1193081	+	187	148652809	-	PsycPRwf_1002	-	methylated-DNA--protein-cysteine methyltransferase
993	 46.55	0	1193074..1194072	-	332	148652810	-	PsycPRwf_1003	-	AraC family transcriptional regulator
994	 47.95	0	1194230..1196035	+	601	148652811	-	PsycPRwf_1004	-	acyl-CoA dehydrogenase domain-containing protein
995	 49.17	0	1196080..1196862	+	260	148652812	-	PsycPRwf_1005	-	short-chain dehydrogenase/reductase SDR
996	 46.98	0	1196916..1197677	+	253	148652813	-	PsycPRwf_1006	-	short chain dehydrogenase
997	 43.77	0	1197885..1198679	+	264	148652814	-	PsycPRwf_1007	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
998	 50.86	+1	1198676..1199668	+	330	148652815	-	PsycPRwf_1008	-	molybdopterin dehydrogenase, FAD-binding
999	 49.71	+1	1199671..1202112	+	813	148652816	-	PsycPRwf_1009	-	aldehyde oxidase and xanthine dehydrogenase, molybdopterin binding
1000	 49.81	+1	1202130..1203452	+	440	148652817	-	PsycPRwf_1010	-	hypothetical protein
1001	 46.38	0	1203500..1204327	+	275	148652818	-	PsycPRwf_1011	-	MobA-like protein-like protein
1002	 48.54	0	1204643..1205806	+	387	148652819	-	PsycPRwf_1012	-	cytochrome P450
1003	 49.40	+1	1205946..1206692	-	248	148652820	-	PsycPRwf_1013	-	hypothetical protein
1004	 45.97	0	1207141..1207971	+	276	148652821	-	PsycPRwf_1014	-	Ion transport protein
1005	 49.50	+1	1208098..1209396	+	432	148652822	-	PsycPRwf_1015	-	hypothetical protein
1006	 50.52	+1	1209526..1210200	+	224	148652823	-	PsycPRwf_1016	-	hypothetical protein
1007	 45.51	0	1210287..1210943	-	218	148652824	-	PsycPRwf_1017	-	lysine exporter protein LysE/YggA
1008	 46.42	0	1211057..1211545	-	162	148652825	-	PsycPRwf_1018	-	AsnC family transcriptional regulator
1009	 47.53	0	1211941..1213701	+	586	148652826	-	PsycPRwf_1019	-	2-isopropylmalate synthase
1010	 44.19	0	1213826..1214083	-	85	148652827	-	PsycPRwf_1020	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1011	 47.51	0	1214122..1214925	-	267	148652828	-	PsycPRwf_1021	-	hypothetical protein
1012	 46.54	0	1215178..1216593	-	471	148652829	-	PsycPRwf_1022	-	peptidase U32
1013	 39.45	-1	1217270..1218070	+	266	148652830	-	PsycPRwf_1023	-	Outer membrane protein and related peptidoglycan-associated (lipo)protein-like protein
1014	 43.86	0	1218113..1218967	-	284	148652831	-	PsycPRwf_1024	-	integrase catalytic subunit
1015	 41.41	-1	1218982..1219278	-	98	148652832	-	PsycPRwf_1025	-	transposase IS3/IS911 family protein
1016	 47.04	0	1219464..1230014	+	3516	148652833	-	PsycPRwf_1026	-	hypothetical protein
1017	 41.41	-1	1230077..1230373	+	98	148652834	-	PsycPRwf_1027	-	transposase IS3/IS911 family protein
1018	 43.86	0	1230388..1231242	+	284	148652835	-	PsycPRwf_1028	-	integrase catalytic subunit
1019	 41.63	-1	1231256..1235845	+	1529	148652836	-	PsycPRwf_1029	-	hemolysin-type calcium-binding region
1020	 45.55	0	1236035..1237270	-	411	148652837	-	PsycPRwf_1030	-	hypothetical protein
1021	 46.30	0	1237461..1238486	+	341	148652838	-	PsycPRwf_1031	-	LysR family transcriptional regulator
1022	 47.36	0	1238585..1239739	-	384	148652839	-	PsycPRwf_1032	-	S-(hydroxymethyl)glutathione dehydrogenase
1023	 46.38	0	1239858..1240754	+	298	148652840	-	PsycPRwf_1033	-	LysR family transcriptional regulator
1024	 46.37	0	1240760..1241626	-	288	148652841	-	PsycPRwf_1034	-	MscS mechanosensitive ion channel
1025	 51.37	+1	1241818..1243275	-	485	148652842	-	PsycPRwf_1035	-	aminoacyl-histidine dipeptidase
1026	 41.03	-1	1243625..1243858	-	77	148652843	-	PsycPRwf_1036	-	hypothetical protein
1027	 46.18	0	1244069..1244644	-	191	148652844	-	PsycPRwf_1037	-	glyoxalase/bleomycin resistance protein/dioxygenase
1028	 48.45	0	1244680..1245969	-	429	148652845	-	PsycPRwf_1038	-	fumarylacetoacetase
1029	 47.93	0	1246146..1247111	-	321	148652846	-	PsycPRwf_1039	-	LysR family transcriptional regulator
1030	 48.53	0	1247267..1248385	+	372	148652847	-	PsycPRwf_1040	-	4-hydroxyphenylpyruvate dioxygenase
1031	 47.87	0	1248472..1249269	+	265	148652848	phhA	PsycPRwf_1041	-	phenylalanine 4-monooxygenase
1032	 47.37	0	1249332..1249673	+	113	148652849	-	PsycPRwf_1042	-	transcriptional coactivator/pterin dehydratase
1033	 46.21	0	1249751..1251163	+	470	148652850	-	PsycPRwf_1043	-	Na+/H+ antiporter NhaC
1034	 46.71	0	1251271..1252107	-	278	148652851	-	PsycPRwf_1044	-	phosphoesterase, PA-phosphatase related
1035	 46.71	0	1252136..1252606	-	156	148652852	-	PsycPRwf_1045	-	diacylglycerol kinase
1036	 44.34	0	1252822..1254156	-	444	148652853	-	PsycPRwf_1046	-	integral membrane sensor signal transduction histidine kinase
1037	 45.11	0	1254202..1254897	-	231	148652854	-	PsycPRwf_1047	-	two component transcriptional regulator
1038	 43.37	0	1254996..1256738	-	580	148652855	-	PsycPRwf_1048	-	sulfatase
1039	 41.96	-1	1257384..1258241	+	285	148652856	-	PsycPRwf_1049	-	Outer membrane protein and related peptidoglycan-associated (lipo)protein-like protein
1040	 44.55	0	1258353..1259297	+	314	148652857	-	PsycPRwf_1050	-	hypothetical protein
1041	 50.27	+1	1259294..1272586	+	4430	148652858	-	PsycPRwf_1051	-	hypothetical protein
1042	 41.41	-1	1272639..1272935	+	98	148652859	-	PsycPRwf_1052	-	transposase IS3/IS911 family protein
1043	 43.86	0	1272950..1273804	+	284	148652860	-	PsycPRwf_1053	-	integrase catalytic subunit
1044	 37.69	-2	1273804..1275387	+	527	148652861	-	PsycPRwf_1054	-	hypothetical protein
1045	 35.18	-2	1275674..1276432	-	252	148652862	-	PsycPRwf_1055	-	integrase catalytic subunit
1046	 36.46	-2	1276501..1277043	-	180	148652863	-	PsycPRwf_1056	-	hypothetical protein
1047	 44.12	0	1277109..1277516	+	135	148652864	-	PsycPRwf_1057	-	transposase IS3/IS911 family protein
1048	 47.25	0	1277513..1277857	+	114	148652865	-	PsycPRwf_1058	-	IS66 Orf2 family protein
1049	 46.44	0	1277900..1279639	+	579	148652866	-	PsycPRwf_1059	-	transposase IS66
1050	 44.28	0	1279895..1280881	-	328	148652867	-	PsycPRwf_1060	-	glutathione S-transferase-like protein
1051	 45.26	0	1281296..1282444	+	382	148652868	potA	PsycPRwf_1061	-	putrescine/spermidine ABC transporter ATPase protein
1052	 44.12	0	1282413..1283339	+	308	148652869	-	PsycPRwf_1062	-	binding-protein-dependent transport systems inner membrane component
1053	 44.66	0	1283349..1284125	+	258	148652870	potC	PsycPRwf_1063	-	spermidine/putrescine ABC transporter membrane protein
1054	 46.22	0	1284135..1285259	+	374	148652871	-	PsycPRwf_1064	-	extracellular solute-binding protein
1055	 41.42	-1	1285338..1285955	+	205	148652872	-	PsycPRwf_1065	-	membrane protein-like protein
1056	 46.22	0	1286056..1286769	-	237	148652873	-	PsycPRwf_1066	-	exonuclease, RNase T and DNA polymerase III
1057	 44.87	0	1286931..1288022	-	363	148652874	-	PsycPRwf_1067	-	hypothetical protein
1058	 39.89	-1	1288253..1288618	+	121	148652875	-	PsycPRwf_1068	-	hypothetical protein
1059	 48.33	0	1288778..1289704	+	308	148652876	-	PsycPRwf_1069	-	hypothetical protein
1060	 41.19	-1	1290087..1291193	+	368	148652877	-	PsycPRwf_1070	-	IS605 family transposase OrfB
1061	 47.35	0	1291263..1292339	+	358	148652878	-	PsycPRwf_1071	-	iron-containing alcohol dehydrogenase
1062	 42.97	0	1292502..1293248	-	248	148652879	-	PsycPRwf_1072	-	hypothetical protein
1063	 47.45	0	1293782..1295686	+	634	148652880	-	PsycPRwf_1073	-	hypothetical protein
1064	 45.21	0	1295785..1297560	+	591	148652881	-	PsycPRwf_1074	-	hypothetical protein
1065	 44.78	0	1297742..1298737	+	331	148652882	-	PsycPRwf_1075	-	phosphoesterase, PA-phosphatase related
1066	 49.29	0	1298791..1300050	-	419	148652883	-	PsycPRwf_1076	-	Zn-dependent hydrolase of the beta-lactamase fold-like protein
1067	 43.68	0	1300280..1300714	-	144	148652884	-	PsycPRwf_1077	-	hypothetical protein
1068	 40.83	-1	1300724..1301830	+	368	148652885	-	PsycPRwf_1078	-	IS605 family transposase OrfB
1069	 45.31	0	1301804..1302421	-	205	148652886	-	PsycPRwf_1079	-	LysR family transcriptional regulator
1070	 45.46	0	1302634..1304406	+	590	148652887	-	PsycPRwf_1080	-	D-lactate dehydrogenase
1071	 47.76	0	1304575..1306245	+	556	148652888	-	PsycPRwf_1081	-	AMP-dependent synthetase and ligase
1072	 47.96	0	1306463..1307734	+	423	148652889	-	PsycPRwf_1082	-	enoyl-CoA hydratase/isomerase
1073	 46.24	0	1307949..1308986	+	345	148652890	-	PsycPRwf_1083	-	amino acid aldolase or racemase-like protein
1074	 46.49	0	1309145..1310482	+	445	148652891	-	PsycPRwf_1084	-	FAD linked oxidase domain-containing protein
1075	 48.32	0	1310612..1311892	+	426	148652892	-	PsycPRwf_1085	-	hypothetical protein
1076	 39.47	-1	1312478..1313422	+	314	148652893	-	PsycPRwf_1086	-	OmpA/MotB domain-containing protein
1077	 42.81	0	1313661..1328957	+	5098	148652894	-	PsycPRwf_1087	-	putative outer membrane adhesin like proteiin
1078	 46.44	0	1329169..1330908	-	579	148652895	-	PsycPRwf_1088	-	transposase IS66
1079	 47.25	0	1330951..1331295	-	114	148652896	-	PsycPRwf_1089	-	IS66 Orf2 family protein
1080	 44.12	0	1331292..1331699	-	135	148652897	-	PsycPRwf_1090	-	transposase IS3/IS911 family protein
1081	 35.18	-2	1331737..1332495	-	252	148652898	-	PsycPRwf_1091	-	integrase catalytic subunit
1082	 36.46	-2	1332564..1333106	-	180	148652899	-	PsycPRwf_1092	-	hypothetical protein
1083	 42.70	0	1333250..1333879	-	209	148652900	-	PsycPRwf_1093	-	glutathione S-transferase domain-containing protein
1084	 47.49	0	1333906..1334583	-	225	148652901	-	PsycPRwf_1094	-	ThiJ/PfpI domain-containing protein
1085	 47.61	0	1334642..1335706	-	354	148652902	-	PsycPRwf_1095	-	alcohol dehydrogenase
1086	 44.75	0	1335942..1337150	-	402	148652903	-	PsycPRwf_1096	-	iron-containing alcohol dehydrogenase
1087	 46.02	0	1337652..1338242	-	196	148652904	-	PsycPRwf_1097	-	TetR family transcriptional regulator
45.93	MEAN

3.38	STD DEV
