IslandPath Analysis: Pseudomonas putida KT2440

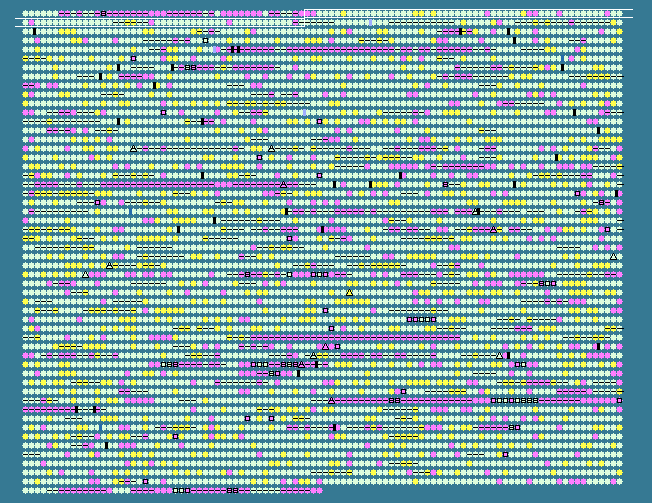

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.83   STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
48	 48.46	-2	55019..55342	+	107	26986793	-	PP_0048	-	hypothetical protein
49	 54.06	-1	56161..57627	-	488	26986794	-	PP_0049	-	hypothetical protein
50	 58.82	0	58777..59184	-	135	26986795	-	PP_0050	-	hypothetical protein
51	 62.34	0	59316..60608	-	430	26986796	-	PP_0051	-	sigma-54 dependent transcriptional regulator
52	 59.77	0	60831..61715	+	294	26986797	-	PP_0052	-	beta-lactamase domain protein
53	 63.04	0	61756..63024	+	422	26986798	-	PP_0053	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
54	 65.97	+1	62982..63839	+	285	26986799	-	PP_0054	-	hypothetical protein
55	 63.85	0	63828..64715	-	295	26986800	-	PP_0055	-	LysR family transcriptional regulator
56	 62.49	0	64943..66595	+	550	26986801	-	PP_0056	-	GMC family oxidoreductase
57	 59.57	0	66693..68312	+	539	26986802	-	PP_0057	-	major facilitator family transporter
58	 60.31	0	68487..69272	-	261	26986803	-	PP_0058	-	phospholipid/glycerol acyltransferase
59	 62.31	0	69319..69846	-	175	26986804	-	PP_0059	-	D,D-heptose 1,7-bisphosphate phosphatase
60	 64.48	0	69850..71904	-	684	26986805	glyS	PP_0060	-	glycyl-tRNA synthetase subunit beta
61	 60.55	0	71901..72848	-	315	26986806	glyQ	PP_0061	-	glycyl-tRNA synthetase subunit alpha
62	 60.51	0	72932..73483	+	183	26986807	tag	PP_0062	-	DNA-3-methyladenine glycosylase I
63	 62.50	0	73525..74412	+	295	26986808	-	PP_0063	-	lipid A biosynthesis lauroyl acyltransferase
64	 59.68	0	74510..74824	-	104	26986809	-	PP_0064	-	TPR domain-containing protein
65	 61.57	0	74836..76209	-	457	26986810	trkA	PP_0065	-	potassium transporter peripheral membrane component
66	 67.73	+1	76233..77543	-	436	26986811	sun	PP_0066	-	sun protein
67	 65.81	0	77540..78472	-	310	26986812	fmt	PP_0067	-	methionyl-tRNA formyltransferase
68	 60.75	0	78533..79039	-	168	26986813	def	PP_0068	-	peptide deformylase
69	 66.12	+1	79246..80343	+	365	26986814	-	PP_0069	-	DNA protecting protein DprA
70	 65.23	0	80386..80943	+	185	26986815	-	PP_0070	-	Sua5/YciO/YrdC/YwlC family protein
71	 58.87	0	81562..82023	+	153	26986816	-	PP_0071	-	hypothetical protein
72	 63.91	0	82151..83128	-	325	26986817	qor-1	PP_0072	-	quinone oxidoreductase
73	 63.16	0	83261..84172	+	303	26986818	hemF	PP_0073	-	coproporphyrinogen III oxidase
74	 64.97	0	84198..85022	+	274	26986819	aroE	PP_0074	-	shikimate 5-dehydrogenase
75	 63.92	0	85152..86717	-	521	26986820	-	PP_0075	-	sulphate transporter
76	 59.45	0	86861..87802	-	313	26986821	-	PP_0076	-	glycine betaine-binding protein, putative
77	 63.04	0	87799..89316	-	505	26986822	betC	PP_0077	-	choline sulfatase
78	 52.94	-2	89315..89416	+	33	26986823	-	PP_0078	-	hypothetical protein
79	 62.22	0	89425..90324	+	299	26986824	-	PP_0079	-	LysR family transcriptional regulator
80	 65.05	0	90446..91063	-	205	26986825	-	PP_0080	-	hypothetical protein
81	 61.29	0	91077..91448	+	123	26986826	-	PP_0081	-	hypothetical protein
82	 65.31	0	91569..92378	-	269	26986827	trpA	PP_0082	-	tryptophan synthase subunit alpha
83	 63.14	0	92375..93592	-	405	26986828	trpB	PP_0083	-	tryptophan synthase subunit beta
84	 67.78	+1	93703..94599	+	298	26986829	trpI	PP_0084	-	LysR family transcriptional regulator
85	 57.67	-1	94596..95084	-	162	26986830	-	PP_0085	-	hypothetical protein
86	 53.70	-2	95070..95285	+	71	26986831	-	PP_0086	-	hypothetical protein
87	 60.61	0	95344..95607	+	87	26986832	-	PP_0087	-	hypothetical protein
88	 63.78	0	95679..96683	-	334	26986833	-	PP_0088	-	luciferase family protein
89	 59.86	0	96836..97261	+	141	26986834	osmC	PP_0089	-	OsmC family protein
90	 58.25	0	97274..97570	+	98	26986835	-	PP_0090	-	hypothetical protein
91	 63.04	0	97606..98019	-	137	26986836	-	PP_0091	-	putative lipoprotein
92	 58.70	0	98075..98488	-	137	26986837	-	PP_0092	-	putative lipoprotein
93	 61.60	0	98487..99650	+	387	26986838	-	PP_0093	-	hypothetical protein
94	 60.68	0	99757..100407	-	216	26986839	-	PP_0094	-	HAD superfamily hydrolase
95	 62.30	0	100529..101077	-	182	26986840	-	PP_0095	-	anhydrase family 3 protein
96	 64.33	0	101180..103231	+	683	26986841	prlC	PP_0096	-	oligopeptidase A
97	 61.70	0	103228..103509	+	93	26986842	-	PP_0097	-	hypothetical protein
98	 58.05	0	103528..103701	+	57	26986843	-	PP_0098	-	hypothetical protein
99	 62.23	0	103841..104899	+	352	26986844	-	PP_0099	-	radical SAM domain protein
100	 61.39	0	105206..105925	+	239	26986845	cynT	PP_0100	-	carbonate dehydratase
101	 65.28	0	106133..107650	+	505	26986846	-	PP_0101	-	sulphate transporter
102	 56.23	-1	107786..108676	+	296	26986847	-	PP_0102	-	hypothetical protein
103	 61.44	0	108809..109936	+	375	26986848	-	PP_0103	-	cytochrome c oxidase, subunit II
104	 59.50	0	109980..111569	+	529	26986849	-	PP_0104	-	cytochrome c oxidase, subunit I
105	 63.14	0	111579..112145	+	188	26986850	-	PP_0105	-	cytochrome C oxidase assembly protein
106	 58.67	0	112162..113049	+	295	26986851	-	PP_0106	-	cytochrome c oxidase, subunit III
107	 63.27	0	113072..114073	+	333	26986852	-	PP_0107	-	hypothetical protein
108	 64.78	0	114042..114623	+	193	26986853	-	PP_0108	-	hypothetical protein
109	 65.09	0	114633..115712	+	359	26986854	-	PP_0109	-	cytochrome oxidase assembly
110	 63.09	0	115697..116590	+	297	26986855	cyoE-1	PP_0110	-	protoheme IX farnesyltransferase
111	 61.45	0	116587..117219	+	210	26986856	-	PP_0111	-	electron transport protein SCO1/SenC
112	 60.18	0	117313..118083	-	256	26986857	-	PP_0112	-	metal ABC transporter periplasmic-binding protein
113	 59.97	0	118148..118819	-	223	26986858	-	PP_0113	-	ABC transporter, permease protein
114	 63.89	0	118819..119826	-	335	26986859	-	PP_0114	-	ABC transporter ATP-binding protein
115	 61.00	0	120054..122189	+	711	26986860	katE	PP_0115	-	hydroperoxidase II
116	 62.85	0	122250..122957	-	235	26986861	-	PP_0116	-	putative lipoprotein
117	 64.11	0	123084..123866	-	260	26986862	znuB	PP_0117	-	hypothetical protein
118	 65.63	0	123859..124632	-	257	26986863	znuC	PP_0118	-	zinc ABC transporter ATP-binding protein
119	 66.42	+1	124629..125036	-	135	26986864	-	PP_0119	-	FUR family transcriptional regulator
120	 62.49	0	125181..126089	+	302	26986865	-	PP_0120	-	periplasmic solute binding protein
121	 64.14	0	126139..127089	-	316	26986866	thrB	PP_0121	-	homoserine kinase
122	 56.60	-1	127159..127446	-	95	26986867	-	PP_0122	-	hypothetical protein
123	 64.08	0	127522..130269	+	915	26986868	polA	PP_0123	-	DNA polymerase I
124	 60.51	0	130640..131272	-	210	26986869	-	PP_0124	-	GTPase EngB
125	 59.41	0	131474..131776	+	100	26986870	-	PP_0125	-	cytochrome c-type protein
126	 62.94	0	131808..132425	+	205	26986871	-	PP_0126	-	cytochrome c4
127	 59.72	0	132577..133209	+	210	26986872	-	PP_0127	-	DsbA family thiol:disulfide interchange protein
128	 62.92	0	133222..134076	+	284	26986873	-	PP_0128	-	endonuclease/exonuclease/phosphatase
129	 62.18	0	134104..136041	+	645	26986874	-	PP_0129	-	GGDEF domain-containing protein
130	 61.47	0	136115..136903	+	262	26986875	-	PP_0130	-	N-acetylmuramoyl-L-alanine amidase family protein
131	 61.63	0	137099..138706	+	535	26986876	-	PP_0131	-	EAL domain containing protein
132	 63.41	0	138721..140502	-	593	26986877	-	PP_0132	-	multi-sensor signal transduction histidine kinase
133	 62.44	0	140499..141845	-	448	26986878	algB	PP_0133	-	two component, sigma54 specific, transcriptional regulator, Fis family
134	 63.75	0	142056..142877	+	273	26986879	-	PP_0134	-	transport-associated protein
135	 53.09	-2	143386..143547	+	53	26986880	-	PP_0135	-	hypothetical protein
136	 63.27	0	143550..144020	+	156	26986881	-	PP_0136	-	inhibitor of vertebrate lysozyme
137	 58.84	0	144766..146094	+	442	26986882	gltP	PP_0137	-	glutamate/aspartate:proton symporter
138	 64.31	0	146242..147471	+	409	26986883	-	PP_0138	-	nucleoside recognition domain protein
139	 63.99	0	147453..148088	-	211	26986884	-	PP_0139	-	putative lipoprotein
140	 62.09	0	148085..149023	-	312	26986885	-	PP_0140	-	hypothetical protein
141	 65.03	0	149027..149818	-	263	26986886	-	PP_0141	-	ABC transporter ATP-binding protein
142	 63.93	0	149815..150948	-	377	26986887	-	PP_0142	-	hypothetical protein
143	 63.55	0	151080..152105	-	341	26986888	-	PP_0143	-	hypothetical protein
144	 63.40	0	152199..153605	-	468	26986889	-	PP_0144	-	insulinase family metalloprotease
145	 62.87	0	153636..155294	-	552	26986890	-	PP_0145	-	sodium-dependent inorganic phosphate (Pi) transporter
146	 57.64	-1	155577..156374	-	265	26986891	-	PP_0146	-	integral membrane protein TerC
147	 62.16	0	156417..157724	-	435	26986892	-	PP_0147	-	citrate transporter
61.83	MEAN

4.04	STD DEV
