IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

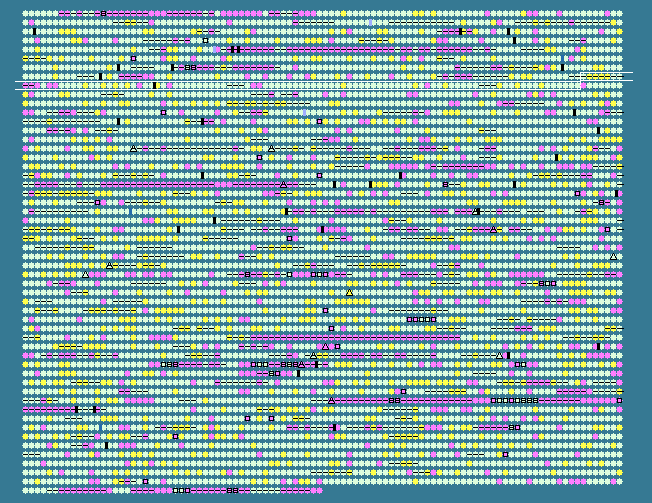

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
794	 63.88	0	921841..923025	-	394	26987539	-	PP_0803	-	HlyD family type I secretion membrane fusion protein
795	 66.62	+1	923022..925190	-	722	26987540	-	PP_0804	-	protein secretion ABC efflux system, permease and ATP-binding protein
796	 67.92	+1	925187..926623	-	478	26987541	-	PP_0805	-	TolC family type I secretion outer membrane protein
797	 66.38	+1	926687..945619	-	6310	26987542	-	PP_0806	-	surface adhesion protein, putative
798	 66.67	+1	945810..947366	-	518	26987543	-	PP_0807	-	anaerobic nitric oxide reductase transcription regulator
799	 63.53	0	947522..948700	+	392	26987544	hmpA	PP_0808	-	nitric oxide dioxygenase
800	 62.13	0	949157..949663	+	168	26987545	dsbB	PP_0809	-	disulfide bond formation protein B
801	 52.38	-2	949729..950085	+	118	26987546	cyoups1	PP_0810	-	cyoups1 protein
802	 56.54	-1	949961..950197	+	78	26987547	cyoups2	PP_0811	-	cyoups2 protein
803	 56.69	-1	950223..951164	+	313	26987548	cyoA	PP_0812	-	ubiquinol oxidase subunit 2
804	 58.84	0	951168..953186	+	672	26987549	cyoB	PP_0813	-	cytochrome o ubiquinol oxidase, subunit I
805	 57.85	0	953190..953813	+	207	26987550	cyoC	PP_0814	-	cytochrome o ubiquinol oxidase, subunit III
806	 53.45	-2	953813..954145	+	110	26987551	cyoD	PP_0815	-	cytochrome o ubiquinol oxidase, protein CyoD
807	 60.14	0	954157..955044	+	295	26987552	cyoE-2	PP_0816	-	protoheme IX farnesyltransferase
808	 63.19	0	955357..956565	+	402	26987553	-	PP_0817	-	aminotransferase
809	 60.60	0	956571..957806	+	411	26987554	-	PP_0818	-	hypothetical protein
810	 63.02	0	957968..958351	+	127	26987555	-	PP_0819	-	hypothetical protein
811	 65.78	0	958544..959107	+	187	26987556	-	PP_0820	-	acetyltransferase
812	 62.53	0	959730..960140	+	136	26987557	-	PP_0821	-	hypothetical protein
813	 62.98	0	960266..961378	-	370	26987558	-	PP_0822	-	tRNA 2-selenouridine synthase
814	 66.18	+1	961378..962412	-	344	26987559	selD	PP_0823	-	selenophosphate synthetase
815	 61.75	0	962539..963393	+	284	26987560	-	PP_0824	-	phosphonate ABC transporter periplasmic phosphonate-binding protein
816	 67.04	+1	963390..964199	+	269	26987561	-	PP_0825	-	phosphate ABC transporter, ATP-binding protein, putative
817	 64.98	0	964193..965020	+	275	26987562	-	PP_0826	-	phosphate ABC transporter, permease protein, putative
818	 66.28	+1	965017..965784	+	255	26987563	-	PP_0827	-	phosphonate ABC transporter inner membrane protein
819	 62.14	0	965821..966792	-	323	26987564	-	PP_0828	-	hypothetical protein
820	 52.86	-2	967033..967329	+	98	26987565	-	PP_0829	-	hypothetical protein
821	 61.46	0	967340..967819	-	159	26987566	-	PP_0830	-	acetyltransferase
822	 59.97	0	967987..968718	-	243	26987567	-	PP_0831	-	hypothetical protein
823	 65.90	+1	969086..970135	+	349	26987568	queA	PP_0832	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
824	 60.39	0	970150..971265	+	371	26987569	tgt	PP_0833	-	queuine tRNA-ribosyltransferase
825	 58.33	0	971308..971643	+	111	26987570	yajC	PP_0834	-	preprotein translocase subunit YajC
826	 61.46	0	971707..973569	+	620	26987571	secD	PP_0835	-	preprotein translocase subunit SecD
827	 59.52	0	973580..974488	+	302	26987572	secF	PP_0836	-	preprotein translocase subunit SecF
828	 58.38	0	974607..975149	+	180	26987573	-	PP_0837	-	hypothetical protein
829	 63.86	0	975318..976136	-	272	26987574	suhB	PP_0838	-	inositol-phosphate phosphatase
830	 62.96	0	976288..977043	+	251	26987575	-	PP_0839	-	RNA methyltransferase
831	 63.36	0	977047..977832	+	261	26987576	cysE	PP_0840	-	serine O-acetyltransferase
832	 63.41	0	978012..978503	+	163	26987577	-	PP_0841	-	BadM/Rrf2 family transcriptional regulator
833	 60.08	0	978549..979763	+	404	26987578	iscS	PP_0842	-	cysteine desulfurase IscS
834	 59.17	0	979810..980196	+	128	26987579	iscU	PP_0843	-	scaffold protein
835	 58.95	0	980225..980548	+	107	26987580	iscA	PP_0844	-	iron-sulfur cluster assembly protein IscA
836	 62.45	0	980557..981078	+	173	26987581	hscB	PP_0845	-	co-chaperone HscB
837	 65.22	0	981122..982984	+	620	26987582	hscA	PP_0846	-	chaperone protein HscA
838	 61.11	0	982988..983329	+	113	26987583	-	PP_0847	-	ferredoxin, 2Fe-2S type, ISC system
839	 55.22	-1	983340..983540	+	66	26987584	-	PP_0848	-	hypothetical protein
840	 56.34	-1	983629..984054	+	141	26987585	ndk	PP_0849	-	nucleoside-diphosphate kinase
841	 59.42	0	984083..985228	+	381	26987586	-	PP_0850	-	radical SAM enzyme, Cfr family
842	 60.81	0	985237..986004	+	255	26987587	pilF	PP_0851	-	type IV pilus biogenesis/stability protein PilW
843	 65.28	0	986001..987008	+	335	26987588	-	PP_0852	-	Cro/CI family transcriptional regulator
844	 62.52	0	987012..988121	+	369	26987589	ispG	PP_0853	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
845	 63.10	0	988147..989436	+	429	26987590	hisS	PP_0854	-	histidyl-tRNA synthetase
846	 63.08	0	989476..990117	+	213	26987591	-	PP_0855	-	hypothetical protein
847	 63.25	0	990118..991260	+	380	26987592	-	PP_0856	-	hypothetical protein
848	 60.86	0	991377..992840	+	487	26987593	engA	PP_0857	-	GTP-binding protein EngA
849	 62.05	0	992992..994140	+	382	26987594	-	PP_0858	-	putative aminotransferase
850	 63.51	0	994128..994919	+	263	26987595	-	PP_0859	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
851	 64.55	0	995044..997593	-	849	26987596	-	PP_0860	-	flavodoxin/nitric oxide synthase
852	 62.65	0	997825..1000167	-	780	26987597	-	PP_0861	-	TonB-dependent siderophore receptor
853	 62.70	0	1000338..1001018	+	226	26987598	-	PP_0862	-	putative hydroxylase
854	 65.89	+1	1001022..1001792	+	256	26987599	-	PP_0863	-	Sel1 domain protein repeat-containing protein
855	 59.68	0	1001821..1002936	-	371	26987600	-	PP_0864	-	ornithine decarboxylase
856	 63.79	0	1003492..1003977	+	161	26987601	-	PP_0865	-	RNA polymerase, sigma-24 subunit, ECF subfamily
857	 65.25	0	1003974..1004960	+	328	26987602	-	PP_0866	-	anti-FecI sigma factor, FecR
858	 62.47	0	1005069..1007498	+	809	26987603	-	PP_0867	-	FecA-like outer membrane receptor
859	 60.97	0	1007588..1008745	-	385	26987604	-	PP_0868	-	glycine betaine/L-proline ABC transporter, ATPase subunit
860	 65.29	0	1008742..1009395	-	217	26987605	-	PP_0869	-	binding-protein-dependent transport systems inner membrane component
861	 62.85	0	1009392..1010333	-	313	26987606	-	PP_0870	-	substrate-binding region of ABC-type glycine betaine transport system
862	 64.92	0	1010317..1011060	-	247	26987607	-	PP_0871	-	binding-protein-dependent transport systems inner membrane component
863	 61.49	0	1011587..1013170	+	527	26987608	prfC	PP_0872	-	peptide chain release factor 3
864	 59.54	0	1013301..1014380	-	359	26987609	-	PP_0873	-	periplasmic polyamine-binding protein, putative
865	 61.11	0	1014433..1014774	-	113	26987610	-	PP_0874	-	hypothetical protein
866	 65.83	0	1014808..1016238	-	476	26987611	-	PP_0875	-	FAD dependent oxidoreductase
867	 64.24	0	1016279..1017103	-	274	26987612	-	PP_0876	-	AraC family transcriptional regulator
868	 45.83	-2	1017155..1017250	-	31	26987613	-	PP_0877	-	hypothetical protein
869	 64.19	0	1018090..1019058	-	322	26987614	dppF	PP_0878	-	dipeptide transporter ATP-binding subunit
870	 64.71	0	1019058..1020026	-	322	26987615	dppD	PP_0879	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
871	 65.80	0	1020037..1020963	-	308	26987616	dppC	PP_0880	-	binding-protein-dependent transport systems inner membrane component
872	 63.20	0	1020974..1021984	-	336	26987617	dppB	PP_0881	-	alkaline phosphatase
873	 60.61	0	1022076..1023710	-	544	26987618	dppA	PP_0882	-	dipeptide ABC transporter, periplasmic dipeptide-binding protein
874	 62.46	0	1023765..1025144	-	459	26987619	-	PP_0883	-	outer membrane porin
875	 61.71	0	1025373..1026965	-	530	26987620	-	PP_0884	-	dipeptide ABC transporter, periplasmic peptide-binding protein
876	 59.78	0	1027112..1028737	-	541	26987621	-	PP_0885	-	dipeptide ABC transporter, periplasmic peptide-binding protein
877	 61.65	0	1029118..1029834	-	238	26987622	-	PP_0886	-	hypothetical protein
878	 63.27	0	1029941..1031293	+	450	26987623	-	PP_0887	-	integral membrane sensor signal transduction histidine kinase
879	 63.64	0	1031293..1031853	+	186	26987624	-	PP_0888	-	two component transcriptional regulator, Fis family
880	 66.93	+1	1031905..1033041	+	378	26987625	-	PP_0889	-	beta-lactamase
881	 63.97	0	1033038..1033334	+	98	26987626	-	PP_0890	-	hypothetical protein
882	 61.17	0	1033379..1033960	+	193	26987627	-	PP_0891	-	YceI family protein
883	 65.37	0	1033962..1035119	+	385	26987628	-	PP_0892	-	phospholipase family protein
884	 64.29	0	1035162..1035749	+	195	26987629	-	PP_0893	-	intracellular protease, PfpI family
885	 60.40	0	1035780..1036178	-	132	26987630	-	PP_0894	-	hypothetical protein
886	 65.14	0	1036294..1036884	+	196	26987631	-	PP_0895	-	hypothetical protein
887	 65.52	0	1036881..1037753	+	290	26987632	-	PP_0896	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
888	 62.60	0	1037869..1039392	-	507	26987633	-	PP_0897	-	hydro-lyase, Fe-S type, tartrate/fumarate subfamily, alpha subunit
889	 63.74	0	1039407..1039577	-	56	26987634	-	PP_0898	-	hypothetical protein
890	 65.15	0	1039642..1040562	+	306	26987635	-	PP_0899	-	hypothetical protein
891	 62.00	0	1040604..1041332	-	242	26987636	-	PP_0900	-	PAP2 family protein
892	 63.60	0	1041516..1042199	+	227	26987637	colR	PP_0901	-	winged helix family two component transcriptional regulator
893	 64.36	0	1042156..1043499	+	447	26987638	-	PP_0902	-	integral membrane sensor signal transduction histidine kinase
61.83	MEAN

4.04	STD DEV
