IslandPath Analysis: Pseudomonas putida KT2440

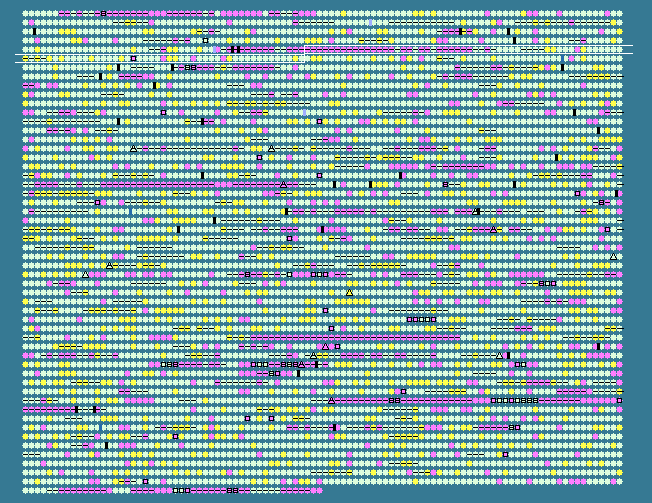

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
448	 57.29	-1	549324..550517	+	397	26987193	tuf	PP_0452	-	elongation factor Tu
449	 53.53	-2	550659..550970	+	103	26987194	rpsJ	PP_0453	-	30S ribosomal protein S10
450	 57.39	-1	551051..551686	+	211	161378147	rplC	PP_0454	-	50S ribosomal protein L3
451	 57.05	-1	551699..552301	+	200	26987196	rplD	PP_0455	-	50S ribosomal protein L4
452	 50.00	-2	552298..552597	+	99	26987197	rplW	PP_0456	-	50S ribosomal protein L23
453	 58.18	0	552612..553436	+	274	26987198	rplB	PP_0457	-	50S ribosomal protein L2
454	 54.71	-1	553453..553728	+	91	26987199	rpsS	PP_0458	-	30S ribosomal protein S19
455	 57.66	-1	553740..554072	+	110	26987200	rplV	PP_0459	-	50S ribosomal protein L22
456	 54.00	-1	554086..554772	+	228	161378146	rpsC	PP_0460	-	30S ribosomal protein S3
457	 57.00	-1	554785..555198	+	137	26987202	rplP	PP_0461	-	50S ribosomal protein L16
458	 53.12	-2	555198..555389	+	63	161378145	rpmC	PP_0462	-	50S ribosomal protein L29
459	 54.68	-1	555392..555658	+	88	26987204	rpsQ	PP_0463	-	30S ribosomal protein S17
460	 55.28	-1	555682..556050	+	122	26987205	rplN	PP_0464	-	50S ribosomal protein L14
461	 52.06	-2	556062..556376	+	104	26987206	rplX	PP_0465	-	50S ribosomal protein L24
462	 56.11	-1	556397..556936	+	179	26987207	rplE	PP_0466	-	50S ribosomal protein L5
463	 59.48	0	556950..557255	+	101	26987208	rpsN	PP_0467	-	30S ribosomal protein S14
464	 57.51	-1	557464..557856	+	130	26987209	rpsH	PP_0468	-	30S ribosomal protein S8
465	 56.55	-1	557869..558402	+	177	26987210	rplF	PP_0469	-	50S ribosomal protein L6
466	 58.69	0	558413..558763	+	116	26987211	rplR	PP_0470	-	50S ribosomal protein L18
467	 56.89	-1	558767..559267	+	166	26987212	rpsE	PP_0471	-	30S ribosomal protein S5
468	 53.67	-2	559270..559446	+	58	26987213	rpmD	PP_0472	-	50S ribosomal protein L30
469	 58.85	0	559450..559884	+	144	26987214	rplO	PP_0473	-	50S ribosomal protein L15
470	 55.93	-1	559885..561216	+	443	26987215	secY	PP_0474	-	preprotein translocase subunit SecY
471	 55.56	-1	561245..561361	+	38	26987216	rpmJ	PP_0475	-	50S ribosomal protein L36
472	 55.46	-1	561493..561849	+	118	26987217	rpsM	PP_0476	-	30S ribosomal protein S13
473	 57.69	-1	561868..562257	+	129	26987218	rpsK	PP_0477	-	30S ribosomal protein S11
474	 55.72	-1	562273..562893	+	206	26987219	rpsD	PP_0478	-	30S ribosomal protein S4
475	 56.59	-1	562916..563917	+	333	26987220	rpoA	PP_0479	-	DNA-directed RNA polymerase subunit alpha
476	 59.69	0	563960..564346	+	128	26987221	rplQ	PP_0480	-	50S ribosomal protein L17
477	 59.10	0	564519..565958	+	479	26987222	katA	PP_0481	-	catalase
478	 57.85	0	566122..566586	+	154	26987223	-	PP_0482	-	bacterioferritin
479	 61.59	0	566659..569493	-	944	26987224	uvrA	PP_0483	-	excinuclease ABC subunit A
480	 61.94	0	569623..571017	+	464	26987225	-	PP_0484	-	major facilitator family transporter
481	 63.00	0	571027..571572	+	181	26987226	ssb	PP_0485	-	single-strand DNA-binding protein
482	 62.67	0	571663..573087	-	474	26987227	-	PP_0486	-	GntR family transcriptional regulator
483	 59.40	0	573234..574031	+	265	26987228	-	PP_0487	-	hypothetical protein
484	 61.55	0	574053..574814	+	253	26987229	-	PP_0488	-	short chain dehydrogenase/reductase family oxidoreductase
485	 63.93	0	578030..578980	+	316	26987230	-	PP_0490	-	formate dehydrogenase, beta subunit
486	 61.49	0	578977..579633	+	218	26987231	-	PP_0491	-	formate dehydrogenase, gamma subunit
487	 64.79	0	579608..580564	+	318	26987232	-	PP_0492	-	formate dehydrogenase accessory protein FdhE
488	 66.46	+1	580709..582136	+	475	26987233	selA	PP_0493	-	selenocysteine synthase
489	 65.89	+1	582133..584055	+	640	26987234	selB	PP_0494	-	selenocysteine-specific translation elongation factor
490	 63.94	0	584264..585253	-	329	26987235	ansB	PP_0495	-	asparaginase
491	 62.65	0	585326..586768	-	480	26987236	-	PP_0496	-	amino acid carrier protein
492	 59.88	0	586947..587756	+	269	26987237	-	PP_0497	-	Cro/CI family transcriptional regulator
493	 57.31	-1	587768..588643	-	291	26987238	-	PP_0498	-	hypothetical protein
494	 65.76	0	589875..590759	+	294	26987239	-	PP_0500	-	dTDP-4-dehydrorhamnose reductase
495	 61.63	0	590752..591684	+	310	26987240	-	PP_0501	-	NAD-dependent epimerase/dehydratase
496	 58.78	0	591715..592158	-	147	26987241	-	PP_0502	-	HxlR family transcriptional regulator
497	 64.18	0	592261..593466	+	401	26987242	-	PP_0503	-	major facilitator family transporter
498	 61.70	0	593454..594137	-	227	26987243	oprG	PP_0504	-	OmpW family protein
499	 62.91	0	594247..594885	-	212	26987244	-	PP_0505	-	putative lipoprotein
500	 62.32	0	594886..596151	-	421	26987245	-	PP_0506	-	hypothetical protein
501	 67.79	+1	596151..596861	-	236	26987246	-	PP_0507	-	efflux ABC transporter ATP-binding protein
502	 62.20	0	596862..597443	-	193	26987247	-	PP_0508	-	hypothetical protein
503	 65.80	0	597574..597918	+	114	26987248	-	PP_0509	-	hypothetical protein
504	 62.20	0	598070..598942	-	290	26987249	trx-1	PP_0510	-	thioredoxin
505	 66.15	+1	599634..600218	-	194	26987250	-	PP_0512	-	hypothetical protein
506	 64.30	0	600187..600651	+	154	161378144	-	PP_0513	-	transcriptional regulator NrdR
507	 68.25	+1	600648..601784	+	378	26987252	ribD	PP_0514	-	riboflavin biosynthesis protein RibD
508	 61.86	0	601827..602492	+	221	26987253	ribE-1	PP_0515	-	riboflavin synthase subunit alpha
509	 64.50	0	602493..603602	+	369	26987254	ribBA-1	PP_0516	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
510	 61.64	0	603694..604170	+	158	26987255	ribH	PP_0517	-	riboflavin synthase subunit beta
511	 60.28	0	604167..604667	+	166	26987256	nusB	PP_0518	-	transcription antitermination protein NusB
512	 67.18	+1	604686..605654	+	322	26987257	thiL	PP_0519	-	thiamine monophosphate kinase
513	 61.51	0	605651..606154	+	167	26987258	pgpA	PP_0520	-	phosphatidylglycerophosphatase A
514	 60.48	0	606171..606914	+	247	26987259	-	PP_0521	-	hypothetical protein
515	 65.05	0	607095..607712	+	205	26987260	ribA	PP_0522	-	GTP cyclohydrolase II
516	 65.00	0	607709..608128	+	139	26987261	-	PP_0523	-	hypothetical protein
517	 66.30	+1	608128..608940	+	270	26987262	-	PP_0524	-	periplasmic binding protein
518	 60.80	0	608918..610843	-	641	26987263	-	PP_0525	-	B12 family TonB-dependent receptor
519	 57.56	-1	611102..612067	+	321	26987264	-	PP_0526	-	ISPpu10, transposase
520	 65.30	0	612284..614179	-	631	161378143	dxs	PP_0527	-	1-deoxy-D-xylulose-5-phosphate synthase
521	 65.09	0	614357..615244	-	295	26987266	ispA	PP_0528	-	polyprenyl synthetase
522	 63.37	0	615241..615483	-	80	26987267	xseB	PP_0529	-	exodeoxyribonuclease VII small subunit
523	 64.82	0	615649..616299	-	216	26987268	ribB	PP_0530	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
524	 55.07	-1	616548..617651	+	367	26987269	-	PP_0531	-	hypothetical protein
525	 67.11	+1	617673..618566	-	297	26987270	-	PP_0532	-	putative esterase
526	 66.06	+1	618667..619995	-	442	26987271	pfeS	PP_0533	-	sensor protein PfeS
527	 64.94	0	619995..620687	-	230	26987272	-	PP_0534	-	winged helix family two component transcriptional regulator
528	 61.11	0	620869..623046	+	725	26987273	-	PP_0535	-	TonB-dependent siderophore receptor
529	 47.77	-2	623208..623678	-	156	26987274	-	PP_0536	-	hypothetical protein
530	 61.65	0	624203..625039	-	278	26987275	-	PP_0537	-	transcriptional regulator, putative
531	 59.85	0	625087..625614	-	175	26987276	ppa	PP_0538	-	inorganic pyrophosphatase
532	 63.36	0	625707..626522	-	271	26987277	-	PP_0539	-	hypothetical protein
533	 61.27	0	626543..627190	-	215	26987278	-	PP_0540	-	SNARE associated Golgi protein
534	 55.34	-1	627408..627866	-	152	26987279	-	PP_0541	-	acetyltransferase
535	 67.28	+1	627974..628792	-	272	26987280	-	PP_0542	-	ethanolamine ammonia-lyase small subunit
536	 64.30	0	628801..630195	-	464	26987281	eutB	PP_0543	-	ethanolamine ammonia lyase large subunit
537	 62.73	0	630242..631690	-	482	26987282	-	PP_0544	-	ethanolamine transproter
538	 60.88	0	631918..633438	-	506	26987283	-	PP_0545	-	aldehyde dehydrogenase family protein
539	 65.06	0	633531..635708	+	725	26987284	-	PP_0546	-	GAF modulated sigma54 specific transcriptional regulator, Fis family
540	 64.81	0	635775..637124	+	449	26987285	mpl	PP_0547	-	UDP-N-acetylmuramate
541	 63.33	0	637121..637750	+	209	26987286	ubiD	PP_0548	-	aromatic acid decarboxylase
542	 64.58	0	637747..638034	+	95	26987287	-	PP_0549	-	hypothetical protein
543	 63.57	0	638142..638786	-	214	26987288	-	PP_0550	-	hypothetical protein
544	 65.06	0	638814..640742	-	642	26987289	-	PP_0551	-	MORN domain-containing protein
545	 62.26	0	640761..641849	-	362	26987290	adh	PP_0552	-	2,3-butanediol dehydrogenase
546	 66.58	+1	641878..642984	-	368	26987291	acoC	PP_0553	-	branched-chain alpha-keto acid dehydrogenase subunit E2
547	 64.61	0	642981..644003	-	340	26987292	acoB	PP_0554	-	acetoin dehydrogenase, beta subunit
61.83	MEAN

4.04	STD DEV
