IslandPath Analysis: Pseudomonas putida KT2440

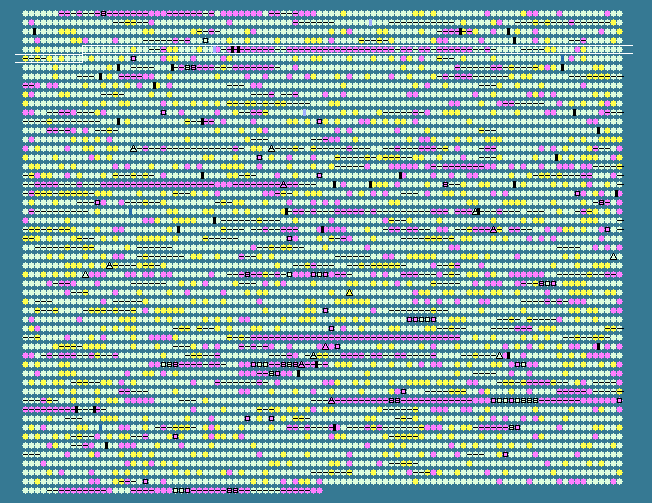

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
411	 60.29	0	503853..504620	+	255	26987156	rpe	PP_0415	-	ribulose-phosphate 3-epimerase
412	 64.10	0	504617..505435	+	272	26987157	gph	PP_0416	-	phosphoglycolate phosphatase
413	 61.54	0	505505..506986	+	493	26987158	trpE	PP_0417	-	anthranilate synthase component I
414	 64.07	0	507119..509008	-	629	26987159	-	PP_0418	-	GDSL family lipase
415	 59.60	0	509142..509240	+	32	26987160	-	PP_0419	-	hypothetical protein
416	 58.59	0	509376..509969	+	197	26987161	trpG	PP_0420	-	anthranilate synthase component II
417	 60.00	0	509979..511028	+	349	26987162	trpD	PP_0421	-	anthranilate phosphoribosyltransferase
418	 62.11	0	511025..511858	+	277	26987163	trpC	PP_0422	-	indole-3-glycerol-phosphate synthase
419	 65.67	0	512006..512710	+	234	26987164	-	PP_0423	-	hypothetical protein
420	 59.53	0	512707..513351	-	214	26987165	crp	PP_0424	-	cAMP-regulatory protein
421	 60.05	0	513542..513964	+	140	26987166	-	PP_0425	-	OsmC family protein
422	 61.96	0	514041..515081	-	346	26987167	-	PP_0426	-	hypothetical protein
423	 63.12	0	515092..515739	-	215	26987168	-	PP_0427	-	hypothetical protein
424	 56.34	-1	515805..516143	-	112	26987169	-	PP_0428	-	histidine triad (HIT) protein
425	 66.67	+1	516207..516989	-	260	26987170	-	PP_0429	-	short chain dehydrogenase/reductase family oxidoreductase
426	 65.41	0	517057..518013	-	318	26987171	-	PP_0430	-	hypothetical protein
427	 59.62	0	518042..518467	-	141	26987172	-	PP_0431	-	hypothetical protein
428	 65.02	0	518610..519644	+	344	26987173	argC	PP_0432	-	N-acetyl-gamma-glutamyl-phosphate reductase
429	 58.65	0	519744..520142	+	132	26987174	-	PP_0433	-	iron-sulfur cluster insertion protein ErpA
430	 66.76	+1	520202..521293	-	363	26987175	anmK	PP_0434	-	anhydro-N-acetylmuramic acid kinase
431	 61.48	0	521297..522724	-	475	26987176	-	PP_0435	-	M24/M37 family peptidase
432	 59.33	0	522932..524131	+	399	26987177	tyrS	PP_0436	-	tyrosyl-tRNA synthetase
433	 57.92	0	530085..531044	+	319	26987178	birA	PP_0437	-	biotin--protein ligase
434	 59.87	0	531034..531783	+	249	26987179	-	PP_0438	-	pantothenate kinase
435	 53.98	-1	531752..532216	+	154	26987180	-	PP_0439	-	hypothetical protein
436	 56.53	-1	532734..533927	+	397	26987181	tuf	PP_0440	-	elongation factor Tu
437	 55.83	-1	534102..534470	+	122	26987182	secE	PP_0441	-	preprotein translocase subunit SecE
438	 54.49	-1	534480..535013	+	177	26987183	nusG	PP_0442	-	transcription antitermination protein NusG
439	 58.33	0	535133..535564	+	143	26987184	rplK	PP_0443	-	50S ribosomal protein L11
440	 57.04	-1	535564..536259	+	231	26987185	rplA	PP_0444	-	50S ribosomal protein L1
441	 56.49	-1	536457..536957	+	166	26987186	rplJ	PP_0445	-	50S ribosomal protein L10
442	 52.19	-2	537035..537400	+	121	26987187	rplL	PP_0446	-	50S ribosomal protein L7/L12
443	 58.79	0	537621..541694	+	1357	26987188	rpoB	PP_0447	-	DNA-directed RNA polymerase subunit beta
444	 58.69	0	541759..545958	+	1399	26987189	rpoC	PP_0448	-	DNA-directed RNA polymerase subunit beta'
445	 57.26	-1	546170..546541	+	123	26987190	rpsL	PP_0449	-	30S ribosomal protein S12
446	 57.75	-1	546648..547118	+	156	26987191	rpsG	PP_0450	-	30S ribosomal protein S7
447	 56.38	-1	547149..549296	+	715	26987192	fusA	PP_0451	-	elongation factor G
448	 57.29	-1	549324..550517	+	397	26987193	tuf	PP_0452	-	elongation factor Tu
449	 53.53	-2	550659..550970	+	103	26987194	rpsJ	PP_0453	-	30S ribosomal protein S10
450	 57.39	-1	551051..551686	+	211	161378147	rplC	PP_0454	-	50S ribosomal protein L3
451	 57.05	-1	551699..552301	+	200	26987196	rplD	PP_0455	-	50S ribosomal protein L4
452	 50.00	-2	552298..552597	+	99	26987197	rplW	PP_0456	-	50S ribosomal protein L23
453	 58.18	0	552612..553436	+	274	26987198	rplB	PP_0457	-	50S ribosomal protein L2
454	 54.71	-1	553453..553728	+	91	26987199	rpsS	PP_0458	-	30S ribosomal protein S19
455	 57.66	-1	553740..554072	+	110	26987200	rplV	PP_0459	-	50S ribosomal protein L22
456	 54.00	-1	554086..554772	+	228	161378146	rpsC	PP_0460	-	30S ribosomal protein S3
457	 57.00	-1	554785..555198	+	137	26987202	rplP	PP_0461	-	50S ribosomal protein L16
458	 53.12	-2	555198..555389	+	63	161378145	rpmC	PP_0462	-	50S ribosomal protein L29
459	 54.68	-1	555392..555658	+	88	26987204	rpsQ	PP_0463	-	30S ribosomal protein S17
460	 55.28	-1	555682..556050	+	122	26987205	rplN	PP_0464	-	50S ribosomal protein L14
461	 52.06	-2	556062..556376	+	104	26987206	rplX	PP_0465	-	50S ribosomal protein L24
462	 56.11	-1	556397..556936	+	179	26987207	rplE	PP_0466	-	50S ribosomal protein L5
463	 59.48	0	556950..557255	+	101	26987208	rpsN	PP_0467	-	30S ribosomal protein S14
464	 57.51	-1	557464..557856	+	130	26987209	rpsH	PP_0468	-	30S ribosomal protein S8
465	 56.55	-1	557869..558402	+	177	26987210	rplF	PP_0469	-	50S ribosomal protein L6
466	 58.69	0	558413..558763	+	116	26987211	rplR	PP_0470	-	50S ribosomal protein L18
467	 56.89	-1	558767..559267	+	166	26987212	rpsE	PP_0471	-	30S ribosomal protein S5
468	 53.67	-2	559270..559446	+	58	26987213	rpmD	PP_0472	-	50S ribosomal protein L30
469	 58.85	0	559450..559884	+	144	26987214	rplO	PP_0473	-	50S ribosomal protein L15
470	 55.93	-1	559885..561216	+	443	26987215	secY	PP_0474	-	preprotein translocase subunit SecY
471	 55.56	-1	561245..561361	+	38	26987216	rpmJ	PP_0475	-	50S ribosomal protein L36
472	 55.46	-1	561493..561849	+	118	26987217	rpsM	PP_0476	-	30S ribosomal protein S13
473	 57.69	-1	561868..562257	+	129	26987218	rpsK	PP_0477	-	30S ribosomal protein S11
474	 55.72	-1	562273..562893	+	206	26987219	rpsD	PP_0478	-	30S ribosomal protein S4
475	 56.59	-1	562916..563917	+	333	26987220	rpoA	PP_0479	-	DNA-directed RNA polymerase subunit alpha
476	 59.69	0	563960..564346	+	128	26987221	rplQ	PP_0480	-	50S ribosomal protein L17
477	 59.10	0	564519..565958	+	479	26987222	katA	PP_0481	-	catalase
478	 57.85	0	566122..566586	+	154	26987223	-	PP_0482	-	bacterioferritin
479	 61.59	0	566659..569493	-	944	26987224	uvrA	PP_0483	-	excinuclease ABC subunit A
480	 61.94	0	569623..571017	+	464	26987225	-	PP_0484	-	major facilitator family transporter
481	 63.00	0	571027..571572	+	181	26987226	ssb	PP_0485	-	single-strand DNA-binding protein
482	 62.67	0	571663..573087	-	474	26987227	-	PP_0486	-	GntR family transcriptional regulator
483	 59.40	0	573234..574031	+	265	26987228	-	PP_0487	-	hypothetical protein
484	 61.55	0	574053..574814	+	253	26987229	-	PP_0488	-	short chain dehydrogenase/reductase family oxidoreductase
485	 63.93	0	578030..578980	+	316	26987230	-	PP_0490	-	formate dehydrogenase, beta subunit
486	 61.49	0	578977..579633	+	218	26987231	-	PP_0491	-	formate dehydrogenase, gamma subunit
487	 64.79	0	579608..580564	+	318	26987232	-	PP_0492	-	formate dehydrogenase accessory protein FdhE
488	 66.46	+1	580709..582136	+	475	26987233	selA	PP_0493	-	selenocysteine synthase
489	 65.89	+1	582133..584055	+	640	26987234	selB	PP_0494	-	selenocysteine-specific translation elongation factor
490	 63.94	0	584264..585253	-	329	26987235	ansB	PP_0495	-	asparaginase
491	 62.65	0	585326..586768	-	480	26987236	-	PP_0496	-	amino acid carrier protein
492	 59.88	0	586947..587756	+	269	26987237	-	PP_0497	-	Cro/CI family transcriptional regulator
493	 57.31	-1	587768..588643	-	291	26987238	-	PP_0498	-	hypothetical protein
494	 65.76	0	589875..590759	+	294	26987239	-	PP_0500	-	dTDP-4-dehydrorhamnose reductase
495	 61.63	0	590752..591684	+	310	26987240	-	PP_0501	-	NAD-dependent epimerase/dehydratase
496	 58.78	0	591715..592158	-	147	26987241	-	PP_0502	-	HxlR family transcriptional regulator
497	 64.18	0	592261..593466	+	401	26987242	-	PP_0503	-	major facilitator family transporter
498	 61.70	0	593454..594137	-	227	26987243	oprG	PP_0504	-	OmpW family protein
499	 62.91	0	594247..594885	-	212	26987244	-	PP_0505	-	putative lipoprotein
500	 62.32	0	594886..596151	-	421	26987245	-	PP_0506	-	hypothetical protein
501	 67.79	+1	596151..596861	-	236	26987246	-	PP_0507	-	efflux ABC transporter ATP-binding protein
502	 62.20	0	596862..597443	-	193	26987247	-	PP_0508	-	hypothetical protein
503	 65.80	0	597574..597918	+	114	26987248	-	PP_0509	-	hypothetical protein
504	 62.20	0	598070..598942	-	290	26987249	trx-1	PP_0510	-	thioredoxin
505	 66.15	+1	599634..600218	-	194	26987250	-	PP_0512	-	hypothetical protein
506	 64.30	0	600187..600651	+	154	161378144	-	PP_0513	-	transcriptional regulator NrdR
507	 68.25	+1	600648..601784	+	378	26987252	ribD	PP_0514	-	riboflavin biosynthesis protein RibD
508	 61.86	0	601827..602492	+	221	26987253	ribE-1	PP_0515	-	riboflavin synthase subunit alpha
509	 64.50	0	602493..603602	+	369	26987254	ribBA-1	PP_0516	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
510	 61.64	0	603694..604170	+	158	26987255	ribH	PP_0517	-	riboflavin synthase subunit beta
61.83	MEAN

4.04	STD DEV
