IslandPath Analysis: Pseudomonas putida KT2440

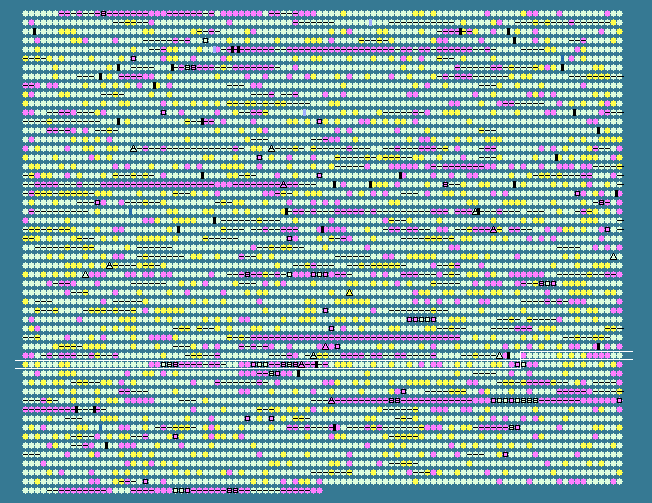

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3884	 58.18	0	4429728..4430045	+	105	26990629	-	PP_3924	-	sterol-binding domain protein
3885	 62.45	0	4430229..4431296	+	355	26990630	-	PP_3925	-	aminoglycoside phosphotransferase
3886	 61.46	0	4431333..4432100	+	255	26990631	-	PP_3926	-	short chain dehydrogenase
3887	 62.77	0	4432101..4432922	-	273	26990632	-	PP_3927	-	methyltransferase type 12
3888	 59.79	0	4433560..4433850	+	96	26990633	-	PP_3928	-	hypothetical protein
3889	 59.18	0	4434013..4434279	+	88	26990634	-	PP_3929	-	hypothetical protein
3890	 71.25	+2	4434353..4434745	+	130	26990635	-	PP_3930	-	17 kDa surface antigen
3891	 63.39	0	4434872..4436701	+	609	26990636	-	PP_3931	-	sodium/sulfate symporter family protein
3892	 67.00	+1	4437054..4438262	+	402	26990637	-	PP_3932	-	GGDEF domain-containing protein
3893	 63.78	0	4438264..4439025	-	253	26990638	-	PP_3933	-	hypothetical protein
3894	 65.61	0	4439088..4440029	+	313	26990639	-	PP_3934	-	LysR family transcriptional regulator
3895	 56.19	-1	4440130..4440339	+	69	26990640	-	PP_3935	-	hypothetical protein
3896	 52.08	-2	4440336..4440479	+	47	26990641	-	PP_3936	-	hypothetical protein
3897	 54.47	-1	4440485..4440607	-	40	26990642	-	PP_3937	-	hypothetical protein
3898	 52.59	-2	4440878..4441012	+	44	26990643	-	PP_3938	-	hypothetical protein
3899	 61.87	0	4441236..4442528	-	430	26990644	-	PP_3939	-	porin, putative
3900	 61.49	0	4442667..4443980	-	437	26990645	-	PP_3940	-	major facilitator family transporter
3901	 66.04	+1	4444189..4444830	-	213	26990646	-	PP_3941	-	isochorismatase superfamily hydrolase
3902	 64.54	0	4444846..4445598	-	250	26990647	-	PP_3942	-	maleate cis-trans isomerase
3903	 65.43	0	4445612..4446418	-	268	26990648	-	PP_3943	-	alpha/beta fold family hydrolase
3904	 63.45	0	4446415..4447563	-	382	26990649	nahG	PP_3944	-	salicylate hydroxylase
3905	 64.58	0	4447885..4448937	+	350	26990650	-	PP_3945	-	hypothetical protein
3906	 64.78	0	4449008..4449484	+	158	26990651	-	PP_3946	-	MarR family transcriptional regulator
3907	 66.46	+1	4449926..4450399	+	157	26990652	-	PP_3947	-	(2Fe-2S)-binding domain protein
3908	 65.82	0	4450396..4453959	+	1187	26990653	-	PP_3948	-	aldehyde dehydrogenase family protein, putative/cytochrome c family protein, putative
3909	 59.47	0	4453963..4454601	-	212	26990654	-	PP_3949	-	TetR family transcriptional regulator
3910	 63.13	0	4454806..4456983	-	725	26990655	-	PP_3950	-	methyl-accepting chemotaxis transducer
3911	 63.94	0	4457362..4458057	+	231	26990656	pcaI	PP_3951	-	3-oxoadipate CoA-transferase, subunit A
3912	 63.08	0	4458066..4458707	+	213	26990657	pcaJ	PP_3952	-	3-oxoadipate CoA-transferase, subunit B
3913	 58.97	0	4458975..4460429	+	484	26990658	-	PP_3953	-	TrkH family potassium uptake protein
3914	 58.68	0	4460534..4461484	+	316	26990659	-	PP_3954	-	periplasmic binding protein, putative
3915	 61.14	0	4461512..4463539	+	675	26990660	-	PP_3955	-	transporter, putative
3916	 61.39	0	4463536..4463952	+	138	26990661	-	PP_3956	-	hypothetical protein
3917	 58.66	0	4463980..4465953	-	657	26990662	-	PP_3957	-	choline/carnitine/betaine transporter family protein
3918	 61.97	0	4466257..4467618	+	453	26990663	-	PP_3958	-	sodium-proton antiporter, NhaA family
3919	 62.63	0	4467755..4469116	+	453	26990664	-	PP_3959	-	voltage-gated chloride channel family protein
3920	 63.70	0	4469218..4469823	-	201	26990665	-	PP_3960	-	TetR family transcriptional regulator
3921	 65.18	0	4469980..4471188	-	402	26990666	-	PP_3961	-	major facilitator transporter
3922	 56.69	-1	4471971..4472792	+	273	26990667	-	PP_3962	-	putative lipoprotein
3923	 55.96	-1	4473459..4473785	+	108	26990668	-	PP_3963	-	hypothetical protein
3924	 58.79	0	4473999..4475534	-	511	26990669	-	PP_3964	-	ISPpu14, transposase Orf3
3925	 63.39	0	4475598..4475933	-	111	26990670	-	PP_3965	-	ISPpu14, transposase Orf2
3926	 57.32	-1	4475930..4476250	-	106	26990671	-	PP_3966	-	ISPpu14, transposase Orf1
3927	 56.01	-1	4476426..4476866	+	146	26990672	-	PP_3967	-	MutT/nudix family protein
3928	 54.96	-1	4476872..4477990	-	372	26990673	-	PP_3968	-	sensor histidine kinase
3929	 55.92	-1	4478138..4478500	+	120	26990674	-	PP_3969	-	response regulator
3930	 58.35	0	4478649..4479851	+	400	26990675	-	PP_3970	-	alcohol dehydrogenase GroES domain protein
3931	 61.54	0	4479865..4480098	+	77	26990676	-	PP_3971	-	hypothetical protein
3932	 57.92	0	4480131..4481456	+	441	26990677	-	PP_3972	-	short chain dehydrogenase
3933	 56.21	-1	4481687..4481839	+	50	26990678	-	PP_3973	-	hypothetical protein
3934	 59.98	0	4481994..4482980	+	328	26990679	-	PP_3974	-	LysR family transcriptional regulator
3935	 58.66	0	4483000..4483461	-	153	26990680	-	PP_3975	-	hypothetical protein
3936	 58.81	0	4483669..4484355	+	228	26990681	-	PP_3976	-	isochorismatase superfamily hydrolase
3937	 52.76	-2	4484824..4486125	+	433	26990682	-	PP_3977	-	hypothetical protein
3938	 57.31	-1	4486128..4486298	+	56	26990683	-	PP_3978	-	hypothetical protein
3939	 57.32	-1	4486395..4486715	+	106	26990684	-	PP_3979	-	ISPpu14, transposase Orf1
3940	 62.20	0	4486712..4487047	+	111	26990685	-	PP_3980	-	ISPpu14, transposase Orf2
3941	 58.79	0	4487111..4488646	+	511	26990686	-	PP_3981	-	ISPpu14, transposase Orf3
3942	 55.67	-1	4489217..4491862	-	881	26990687	-	PP_3982	-	hypothetical protein
3943	 54.15	-1	4492117..4492899	+	260	26990688	-	PP_3983	-	hypothetical protein
3944	 50.96	-2	4493378..4493638	-	86	26990689	-	PP_3984	-	ISPpu13, transposase Orf3
3945	 58.97	0	4493707..4495239	-	510	26990690	-	PP_3985	-	ISPpu13, transposase Orf2
3946	 55.74	-1	4495258..4495614	-	118	26990691	-	PP_3986	-	ISPpu13, transposase Orf1
3947	 54.27	-1	4495690..4496649	+	319	26990692	-	PP_3987	-	phage integrase family site specific recombinase
3948	 46.66	-2	4497954..4500002	-	682	26990693	-	PP_3988	-	hypothetical protein
3949	 45.65	-2	4500014..4501060	-	348	26990694	-	PP_3989	-	DNA-cytosine methyltransferase
3950	 58.48	0	4501536..4502207	+	223	26990695	-	PP_3990	-	hypothetical protein
3951	 57.94	0	4502208..4502333	+	41	26990696	-	PP_3991	-	hypothetical protein
3952	 62.32	0	4502371..4503750	+	459	26990697	-	PP_3992	-	xanthine/uracil permease family protein
3953	 67.18	+1	4503848..4504240	+	130	26990698	dsrE	PP_3993	-	hypothetical protein
3954	 65.56	0	4504242..4504601	+	119	26990699	-	PP_3994	-	hypothetical protein
3955	 65.32	0	4504601..4504897	+	98	26990700	-	PP_3995	-	hypothetical protein
3956	 61.31	0	4504894..4505229	+	111	26990701	-	PP_3996	-	hypothetical protein
3957	 64.67	0	4505226..4506227	+	333	26990702	-	PP_3997	-	hypothetical protein
3958	 59.71	0	4506304..4507281	+	325	26990703	-	PP_3998	-	glutathione S-transferase domain-containing protein
3959	 66.38	+1	4507388..4508779	-	463	26990704	cobA-2	PP_3999	-	uroporphyrin-III C-methyltransferase
3960	 63.31	0	4508780..4510060	-	426	26990705	serS	PP_4000	-	seryl-tRNA synthetase
3961	 61.87	0	4510091..4510465	-	124	26990706	crcB	PP_4001	-	chromosome condensation/camphor resistance protein CrcB
3962	 65.38	0	4510462..4511787	-	441	26990707	-	PP_4002	-	recombination factor protein RarA
3963	 59.97	0	4511800..4512486	-	228	26990708	lolA	PP_4003	-	outer-membrane lipoprotein carrier protein
3964	 63.87	0	4512486..4514990	-	834	26990709	ftsK	PP_4004	-	cell divisionFtsK/SpoIIIE
3965	 66.08	+1	4515398..4516078	+	226	26990710	aat	PP_4005	-	leucyl/phenylalanyl-tRNA--protein transferase
3966	 61.86	0	4516135..4516842	+	235	26990711	-	PP_4006	-	arginyl-tRNA-protein transferase
3967	 57.08	-1	4516944..4517162	+	72	26990712	infA	PP_4007	-	translation initiation factor IF-1
3968	 61.34	0	4517248..4519518	-	756	26990713	clpA	PP_4008	-	ATP-dependent Clp protease, ATP-binding subunit clpA
3969	 53.72	-2	4519549..4519911	-	120	26990714	clpS	PP_4009	-	ATP-dependent Clp protease adaptor protein ClpS
3970	 55.43	-1	4520142..4520408	+	88	26990715	cspD	PP_4010	-	cold-shock protein CspD
3971	 60.22	0	4520480..4521736	-	418	26990716	icd	PP_4011	-	isocitrate dehydrogenase, NADP-dependent
3972	 62.98	0	4522151..4524376	+	741	26990717	-	PP_4012	-	isocitrate dehydrogenase, NADP-dependent
3973	 66.21	+1	4524568..4525008	+	146	26990718	-	PP_4013	-	NUDIX hydrolase
3974	 64.98	0	4525068..4526192	+	374	26990719	trmU	PP_4014	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3975	 65.55	0	4526189..4526815	+	208	26990720	-	PP_4015	-	hypothetical protein
3976	 63.75	0	4526953..4528323	+	456	26990721	purB	PP_4016	-	adenylosuccinate lyase
3977	 64.11	0	4528399..4529571	+	390	26990722	-	PP_4017	-	cupin 4 family protein
3978	 62.47	0	4529564..4529992	+	142	26990723	-	PP_4018	-	acetyltransferase
3979	 66.06	+1	4530160..4532121	+	653	26990724	topB	PP_4019	-	DNA topoisomerase III
3980	 65.89	+1	4532267..4533556	+	429	26990725	-	PP_4020	-	FAD dependent oxidoreductase
3981	 63.18	0	4533729..4534559	+	276	26990726	est	PP_4021	-	alpha/beta hydrolase fold
3982	 46.21	-2	4534679..4535470	+	263	26990727	-	PP_4022	-	hypothetical protein
3983	 55.56	-1	4536285..4536644	+	119	26990728	-	PP_4024	-	ISPpu15, transposase Orf1
61.83	MEAN

4.04	STD DEV
