IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

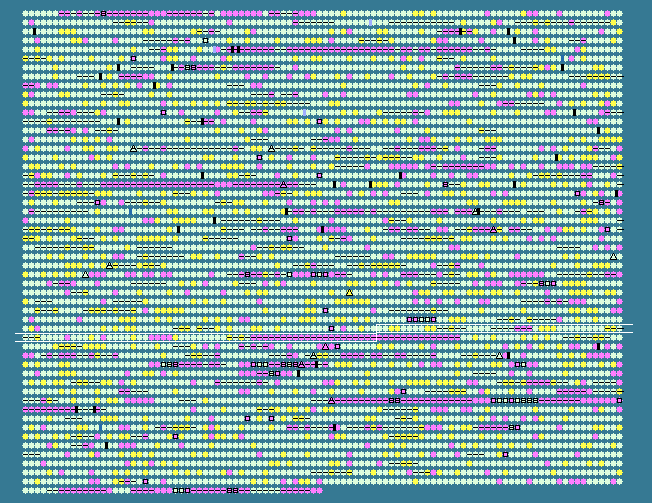

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3560	 64.44	0	4083855..4084574	+	239	26990305	-	PP_3594	-	polar amino acid ABC transporter inner membrane subunit
3561	 62.31	0	4084571..4085281	+	236	26990306	-	PP_3595	-	polar amino acid ABC transporter inner membrane subunit
3562	 68.51	+1	4085298..4086542	+	414	26990307	-	PP_3596	-	FAD dependent oxidoreductase
3563	 65.64	0	4086565..4087347	+	260	26990308	-	PP_3597	-	amino acid ABC transporter ATP-binding protein
3564	 60.12	0	4087773..4088582	+	269	26990309	-	PP_3598	-	peptidase C26
3565	 63.93	0	4088930..4089841	+	303	26990310	-	PP_3599	-	5-dehydro-4-deoxyglucarate dehydratase
3566	 60.81	0	4089946..4091310	+	454	26990311	-	PP_3600	-	d-galactonate transporter
3567	 64.74	0	4091388..4092941	+	517	26990312	-	PP_3601	-	D-galactarate dehydratase, putative
3568	 67.93	+1	4093000..4094580	+	526	26990313	-	PP_3602	-	ketoglutarate semialdehyde dehydrogenase
3569	 65.75	0	4094715..4095479	-	254	26990314	-	PP_3603	-	GntR family transcriptional regulator
3570	 61.26	0	4096402..4096734	-	110	26990315	-	PP_3604	-	hypothetical protein
3571	 62.32	0	4096751..4097671	-	306	26990316	-	PP_3605	-	LysR family transcriptional regulator
3572	 65.54	0	4097711..4098685	-	324	26990317	qor-2	PP_3606	-	quinone oxidoreductase
3573	 64.61	0	4098799..4100013	-	404	26990318	-	PP_3607	-	hypothetical protein
3574	 64.41	0	4100123..4101052	+	309	26990319	-	PP_3608	-	LysR family transcriptional regulator
3575	 63.84	0	4101053..4101583	-	176	26990320	-	PP_3609	-	hypothetical protein
3576	 64.84	0	4101748..4102512	+	254	26990321	-	PP_3610	-	hypothetical protein
3577	 59.11	0	4102660..4103241	-	193	26990322	-	PP_3611	-	hypothetical protein
3578	 60.66	0	4103278..4105590	+	770	26990323	-	PP_3612	-	TonB-dependent siderophore receptor
3579	 63.34	0	4105675..4106967	-	430	26990324	-	PP_3613	-	L-sorbosone dehydrogenase
3580	 62.47	0	4106964..4107392	-	142	26990325	-	PP_3614	-	hypothetical protein
3581	 60.21	0	4107456..4107842	+	128	26990326	-	PP_3615	-	hypothetical protein
3582	 60.62	0	4108175..4111165	+	996	26990327	-	PP_3616	-	hypothetical protein
3583	 53.07	-2	4111168..4112064	+	298	26990328	-	PP_3617	-	hypothetical protein
3584	 53.58	-2	4112214..4113107	+	297	26990329	-	PP_3618	-	hypothetical protein
3585	 51.28	-2	4113353..4114249	+	298	26990330	-	PP_3619	-	hypothetical protein
3586	 60.86	0	4114395..4116581	-	728	26990331	-	PP_3620	-	hypothetical protein
3587	 66.01	+1	4116852..4117307	+	151	26990332	-	PP_3621	-	(2Fe-2S)-binding domain protein
3588	 65.34	0	4117307..4119562	+	751	26990333	-	PP_3622	-	isoquinoline 1-oxidoreductase, beta subunit, putative
3589	 66.22	+1	4119581..4120924	+	447	26990334	-	PP_3623	-	gluconate 2-dehydrogenase acceptor subunit
3590	 61.85	0	4120994..4121782	-	262	26990335	-	PP_3624	-	hypothetical protein
3591	 63.08	0	4121990..4122631	-	213	26990336	-	PP_3625	-	amino acid transporter LysE
3592	 61.19	0	4122682..4122882	-	66	26990337	-	PP_3626	-	hypothetical protein
3593	 61.64	0	4122891..4123208	-	105	26990338	-	PP_3627	-	hypothetical protein
3594	 63.17	0	4123522..4125267	+	581	26990339	-	PP_3628	-	choline/carnitine/betaine transporter
3595	 60.62	0	4125348..4125827	-	159	26990340	-	PP_3629	-	3-demethylubiquinone-9 3-methyltransferase
3596	 61.90	0	4126013..4127356	-	447	26990341	-	PP_3630	-	porin, putative
3597	 64.36	0	4127628..4128278	+	216	26990342	-	PP_3631	-	hypothetical protein
3598	 68.94	+1	4128345..4129223	-	292	26990343	-	PP_3632	-	LysR family transcriptional regulator
3599	 66.24	+1	4129380..4130321	+	313	26990344	argC	PP_3633	-	N-acetyl-gamma-glutamyl-phosphate reductase
3600	 62.85	0	4130299..4131084	+	261	26990345	-	PP_3634	-	acetyltransferase
3601	 62.96	0	4131196..4131951	-	251	26990346	-	PP_3635	-	binding-protein-dependent transport systems inner membrane component
3602	 62.52	0	4131951..4133156	-	401	26990347	-	PP_3636	-	sulfonate ABC transporter, periplasmic sulfonate-binding protein, putative
3603	 65.94	+1	4133143..4133964	-	273	26990348	-	PP_3637	-	sulfonate ABC transporter, ATP-binding protein, putative
3604	 64.79	0	4133961..4135025	-	354	26990349	-	PP_3638	-	acyl-CoA dehydrogenase, putative
3605	 60.15	0	4135125..4135784	-	219	26990350	-	PP_3639	-	alkylhydroperoxidase
3606	 63.63	0	4135788..4136708	+	306	26990351	-	PP_3640	-	AraC family transcriptional regulator
3607	 60.54	0	4136778..4138181	-	467	26990352	-	PP_3641	-	cytosine/purine/uracil/thiamine/allantoin permease family protein
3608	 52.67	-2	4138275..4138424	+	49	26990353	-	PP_3642	-	hypothetical protein
3609	 62.35	0	4138498..4138983	+	161	26990354	-	PP_3643	-	oxidoreductase, putative
3610	 62.82	0	4139064..4140104	+	346	26990355	-	PP_3644	-	luciferase family protein
3611	 65.07	0	4140989..4141867	+	292	26990356	-	PP_3645	-	alpha/beta fold family hydrolase
3612	 66.13	+1	4141864..4143345	+	493	26990357	-	PP_3646	-	aldehyde dehydrogenase family protein
3613	 64.81	0	4143358..4143843	+	161	26990358	-	PP_3647	-	oxidoreductase, putative
3614	 57.95	0	4143966..4144355	+	129	26990359	-	PP_3648	-	carboxymuconolactone decarboxylase
3615	 63.35	0	4144444..4145196	+	250	26990360	-	PP_3649	-	GntR family transcriptional regulator
3616	 60.11	0	4145199..4145762	+	187	26990361	-	PP_3650	-	NUDIX hydrolase
3617	 63.92	0	4145914..4148097	+	727	26990362	-	PP_3651	-	GAF sensor hybrid histidine kinase
3618	 63.51	0	4148120..4148752	-	210	26990363	-	PP_3652	-	amino acid transporter LysE
3619	 65.85	0	4148819..4149433	-	204	26990364	-	PP_3653	-	amino acid transporter LysE
3620	 59.38	0	4149545..4149997	+	150	26990365	-	PP_3654	-	AsnC family transcriptional regulator
3621	 62.42	0	4150394..4151806	+	470	26990366	-	PP_3655	-	cytosine/purine/uracil/thiamine/allantoin permease family protein
3622	 52.81	-2	4151957..4153219	-	420	26990367	-	PP_3656	-	aromatic compound-specific porin, putative
3623	 54.37	-1	4153380..4154054	-	224	26990368	-	PP_3657	-	nitrobenzoate reductase, putative
3624	 54.84	-1	4154137..4155489	-	450	26990369	-	PP_3658	-	aromatic compound MFS transporter, putative
3625	 54.94	-1	4155761..4157014	-	417	26990370	-	PP_3659	-	AraC family transcriptional regulator
3626	 65.65	0	4156987..4157874	-	295	26990371	-	PP_3660	-	LysR family transcriptional regulator
3627	 64.50	0	4157987..4159048	+	353	26990372	-	PP_3661	-	hypothetical protein
3628	 63.90	0	4159257..4160630	+	457	26990373	-	PP_3662	-	decarboxylase family protein
3629	 60.52	0	4160751..4162052	-	433	26990374	-	PP_3663	-	GGDEF domain-containing protein
3630	 64.79	0	4162129..4163457	-	442	26990375	pssA	PP_3664	-	phosphatidylserine synthase
3631	 63.60	0	4163441..4164646	+	401	26990376	-	PP_3665	-	AraC family transcriptional regulator
3632	 64.42	0	4164763..4166097	-	444	26990377	-	PP_3666	-	major facilitator transporter
3633	 62.46	0	4166260..4167471	-	403	26990378	-	PP_3667	-	creatinase
3634	 62.68	0	4167633..4169888	-	751	26990379	-	PP_3668	-	catalase/peroxidase HPI
3635	 67.11	+1	4170275..4171180	+	301	26990380	-	PP_3669	-	LysR family transcriptional regulator
3636	 63.14	0	4171240..4172118	-	292	26990381	-	PP_3670	-	hypothetical protein
3637	 66.79	+1	4172363..4173187	+	274	26990382	-	PP_3671	-	aldo/keto reductase family oxidoreductase
3638	 61.95	0	4173202..4173774	-	190	26990383	-	PP_3672	-	hypothetical protein
3639	 43.14	-2	4175034..4175186	+	50	26990384	-	PP_3675	-	hypothetical protein
3640	 42.76	-2	4175316..4177427	+	703	26990385	-	PP_3676	-	hypothetical protein
3641	 43.12	-2	4177424..4179610	+	728	26990386	-	PP_3677	-	hypothetical protein
3642	 43.44	-2	4180132..4181595	+	487	26990387	-	PP_3678	-	hypothetical protein
3643	 51.85	-2	4181658..4181981	-	107	26990388	-	PP_3679	-	hypothetical protein
3644	 55.39	-1	4182219..4184222	+	667	26990389	-	PP_3680	-	hypothetical protein
3645	 55.88	-1	4184219..4185877	+	552	26990390	-	PP_3681	-	helicase, putative
3646	 53.59	-2	4185928..4186080	+	50	26990391	-	PP_3682	-	hypothetical protein
3647	 53.22	-2	4186650..4187891	+	413	26990392	-	PP_3683	-	hypothetical protein
3648	 52.00	-2	4188101..4188400	+	99	26990393	-	PP_3684	-	hypothetical protein
3649	 45.36	-2	4189760..4189942	+	60	26990394	-	PP_3685	-	hypothetical protein
3650	 49.71	-2	4191774..4191944	-	56	26990395	-	PP_3686	-	hypothetical protein
3651	 46.64	-2	4194971..4195669	-	232	26990396	-	PP_3688	-	hypothetical protein
3652	 55.26	-1	4198162..4199169	+	335	26990397	-	PP_3689	-	serine/threonine protein phosphatase, putative
3653	 51.40	-2	4199711..4201033	-	440	26990398	-	PP_3690	-	hypothetical protein
3654	 57.31	-1	4201148..4207771	-	2207	26990399	-	PP_3691	-	DNA helicase-related protein
3655	 53.92	-1	4208044..4210719	+	891	26990400	-	PP_3692	-	hypothetical protein
3656	 51.09	-2	4211122..4211487	-	121	26990401	-	PP_3693	-	transcriptional regulator MvaT, P16 subunit, putative
3657	 51.67	-2	4211652..4212611	-	319	26990402	-	PP_3694	-	hypothetical protein
3658	 55.90	-1	4212569..4213720	-	383	26990403	-	PP_3695	-	hypothetical protein
3659	 54.46	-1	4213727..4214947	-	406	26990404	-	PP_3696	-	hypothetical protein
61.83	MEAN

4.04	STD DEV
