IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

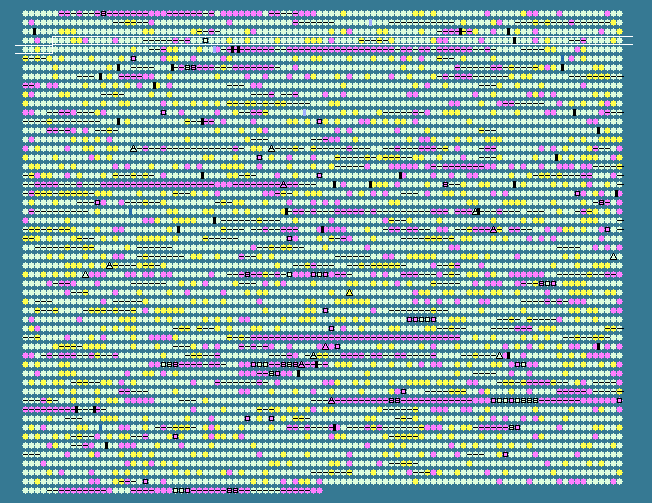

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
306	 58.95	0	369972..370502	+	176	26987051	-	PP_0309	-	hypothetical protein
307	 62.20	0	370518..372578	+	686	26987052	-	PP_0310	-	oxidoreductase, FMN-binding
308	 63.65	0	372757..374709	+	650	26987053	-	PP_0311	-	iron-sulfur cluster-binding protein
309	 66.67	+1	374955..375941	+	328	26987054	-	PP_0312	-	electron transfer flavoprotein, alpha subunit
310	 66.54	+1	375952..376722	+	256	26987055	-	PP_0313	-	electron transfer flavoprotein, beta subunit, putative
311	 57.24	-1	377324..378055	+	243	26987056	-	PP_0314	-	hypothetical protein
312	 60.79	0	378120..379412	-	430	26987057	-	PP_0315	-	Rieske (2Fe-2S) domain protein
313	 61.25	0	379702..380808	+	368	26987058	-	PP_0316	-	oxidoreductase FAD-binding domain protein
314	 63.16	0	380917..382542	-	541	26987059	-	PP_0317	-	methyl-accepting chemotaxis sensory transducer
315	 59.31	0	382809..383039	+	76	26987060	-	PP_0318	-	hypothetical protein
316	 57.76	-1	383036..383338	+	100	26987061	-	PP_0319	-	hypothetical protein
317	 63.78	0	383521..385458	+	645	26987062	-	PP_0320	-	methyl-accepting chemotaxis sensory transducer
318	 62.92	0	385493..386533	-	346	26987063	-	PP_0321	-	threonine aldolase
319	 63.16	0	386859..388112	+	417	26987064	glyA-1	PP_0322	-	serine hydroxymethyltransferase
320	 63.87	0	388128..389378	+	416	26987065	soxB	PP_0323	-	sarcosine oxidase, beta subunit family
321	 59.52	0	389393..389728	+	111	26987066	soxD	PP_0324	-	sarcosine oxidase, delta subunit family
322	 64.05	0	389725..392739	+	1004	26987067	soxA	PP_0325	-	sarcosine oxidase, alpha subunit family
323	 63.19	0	392814..393446	+	210	26987068	soxG	PP_0326	-	sarcosine oxidase, gamma subunit family
324	 59.91	0	393458..394315	+	285	26987069	purU-1	PP_0327	-	formyltetrahydrofolate deformylase
325	 64.00	0	394617..395816	+	399	26987070	fdhA	PP_0328	-	formaldehyde dehydrogenase, glutathione-independent
326	 47.40	-2	396020..396943	-	307	26987071	-	PP_0329	-	hypothetical protein
327	 59.50	0	396918..397712	+	264	26987072	-	PP_0330	-	hypothetical protein
328	 49.47	-2	397733..398482	-	249	26987073	-	PP_0331	-	hypothetical protein
329	 61.26	0	398694..399581	-	295	26987074	-	PP_0332	-	phospholipid/glycerol acyltransferase
330	 60.88	0	399763..400263	+	166	26987075	-	PP_0333	-	hypothetical protein
331	 58.55	0	400413..401471	+	352	26987076	-	PP_0334	-	ISPpu11, transposase
332	 64.74	0	401901..402524	-	207	26987077	-	PP_0335	-	glutathione S-transferase family protein
333	 63.83	0	402528..403196	-	222	26987078	msrA	PP_0336	-	methionine sulfoxide reductase A
334	 63.73	0	403365..406055	-	896	26987079	-	PP_0337	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
335	 65.57	0	406363..408003	-	546	26987080	aceF	PP_0338	-	dihydrolipoamide acetyltransferase
336	 60.92	0	408017..410662	-	881	26987081	aceE	PP_0339	-	pyruvate dehydrogenase subunit E1
337	 64.69	0	411046..413979	+	977	26987082	glnE	PP_0340	-	(glutamate--ammonia-ligase) adenylyltransferase
338	 65.81	0	414182..415231	+	349	26987083	waaF	PP_0341	-	lipopolysaccharide heptosyltransferase II
339	 64.78	0	415232..416290	+	352	26987084	waaC	PP_0342	-	lipopolysaccharide heptosyltransferase I
340	 62.67	0	416290..417414	+	374	26987085	waaG	PP_0343	-	lipopolysaccharide core biosynthesis protein WaaG
341	 64.31	0	417411..418217	+	268	26987086	waaP	PP_0344	-	lipopolysaccharide kinase
342	 62.86	0	418217..418951	+	244	26987087	-	PP_0345	-	lipopolysaccharide kinase
343	 65.74	0	418948..419700	+	250	26987088	-	PP_0346	-	lipopolysaccharide kinase
344	 64.31	0	419700..421142	+	480	26987089	-	PP_0347	-	hypothetical protein
345	 61.25	0	421160..423946	-	928	26987090	-	PP_0348	-	hypothetical protein
346	 63.61	0	424196..425308	-	370	26987091	-	PP_0349	-	PepSY-associated TM helix domain protein
347	 62.06	0	425365..427797	-	810	26987092	-	PP_0350	-	TonB-dependent siderophore receptor
348	 68.23	+1	428049..429005	-	318	26987093	-	PP_0351	-	anti-FecI sigma factor, FecR
349	 65.70	0	429002..429520	-	172	26987094	-	PP_0352	-	RNA polymerase sigma factor
350	 65.68	0	429668..430378	-	236	26987095	-	PP_0353	-	DNA polymerase III, epsilon subunit
351	 64.24	0	430375..432312	-	645	26987096	-	PP_0354	-	CBS domain-containing protein
352	 57.19	-1	432405..432974	+	189	26987097	-	PP_0355	-	response regulator receiver protein
353	 63.13	0	433021..435198	-	725	26987098	glcB	PP_0356	-	malate synthase G
354	 61.66	0	435648..436166	+	172	26987099	-	PP_0357	-	ACT domain-containing protein
355	 63.74	0	436399..437286	-	295	26987100	rarD-1	PP_0358	-	RarD protein, DMT superfamily transporter
356	 65.08	0	437351..438358	-	335	26987101	-	PP_0359	-	serine/threonine protein kinase
357	 66.54	+1	438424..439188	-	254	26987102	modR	PP_0360	-	ModE family transcriptional regulator
358	 62.57	0	439238..439969	-	243	26987103	-	PP_0361	-	competence protein ComF, putative
359	 62.51	0	440059..441117	+	352	26987104	bioB	PP_0362	-	biotin synthase
360	 67.43	+1	441119..442291	+	390	26987105	bioF	PP_0363	-	8-amino-7-oxononanoate synthase
361	 64.07	0	442284..443015	+	243	26987106	bioH	PP_0364	-	carboxylesterase
362	 66.30	+1	443008..443826	+	272	26987107	bioC	PP_0365	-	biotin biosynthesis protein BioC
363	 63.14	0	443837..444517	+	226	26987108	bioD	PP_0366	-	dithiobiotin synthetase
364	 62.50	0	444691..445026	+	111	26987109	-	PP_0367	-	hypothetical protein
365	 62.35	0	445314..447119	+	601	26987110	-	PP_0368	-	acyl-CoA dehydrogenase domain-containing protein
366	 63.76	0	447502..448704	+	400	26987111	-	PP_0369	-	GGDEF domain-containing protein
367	 62.96	0	448829..450607	+	592	26987112	-	PP_0370	-	acyl-CoA dehydrogenase domain-containing protein
368	 62.88	0	450948..451871	-	307	26987113	-	PP_0371	-	LysR family transcriptional regulator
369	 65.73	0	452082..453362	+	426	26987114	-	PP_0372	-	aminotransferase class-III
370	 55.97	-1	453510..453668	+	52	26987115	-	PP_0373	-	hypothetical protein
371	 55.97	-1	454297..454455	+	52	26987116	-	PP_0374	-	hypothetical protein
372	 63.51	0	454815..456653	-	612	26987117	-	PP_0375	-	prolyl oligopeptidase family protein
373	 62.25	0	456619..457749	-	376	26987118	pqqE	PP_0376	-	pyrroloquinoline quinone biosynthesis protein PqqE
374	 61.59	0	457751..458026	-	91	26987119	pqqD	PP_0377	-	pyrroloquinoline quinone biosynthesis protein PqqD
375	 64.81	0	458023..458778	-	251	26987120	pqqC	PP_0378	-	pyrroloquinoline quinone biosynthesis protein PqqC
376	 64.58	0	458942..459853	-	303	26987121	pqqB	PP_0379	-	pyrroloquinoline quinone biosynthesis protein PqqB
377	 50.00	-2	459932..460003	-	23	26987122	pqqA	PP_0380	-	coenzyme PQQ synthesis protein PqqA
378	 65.19	0	460163..462463	-	766	26987123	pqqF	PP_0381	-	coenzyme PQQ biosynthesis protein PqqF
379	 64.78	0	462604..463398	-	264	26987124	-	PP_0382	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
380	 63.70	0	463413..465095	-	560	26987125	-	PP_0383	-	amine oxidase
381	 61.90	0	465349..465810	-	153	26987126	-	PP_0384	-	AsnC family transcriptional regulator
382	 61.44	0	465998..466552	+	184	26987127	-	PP_0385	-	hypothetical protein
383	 62.55	0	467212..470955	-	1247	26987128	-	PP_0386	-	sensory box protein
384	 59.59	0	471083..472933	-	616	26987129	rpoD	PP_0387	-	RNA polymerase sigma factor RpoD
385	 64.20	0	473001..474983	-	660	26987130	dnaG	PP_0388	-	DNA primase
386	 55.56	-1	475288..475503	-	71	26987131	rpsU	PP_0389	-	30S ribosomal protein S21
387	 62.67	0	475708..476733	+	341	26987132	gcp	PP_0390	-	O-sialoglycoprotein endopeptidase
388	 65.61	0	476751..477320	-	189	26987133	-	PP_0391	-	putative glycerol-3-phosphate acyltransferase PlsY
389	 63.87	0	477395..477751	+	118	26987134	folB	PP_0392	-	dihydroneopterin aldolase
390	 62.16	0	477742..478251	+	169	26987135	folK-1	PP_0393	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
391	 63.41	0	478361..479467	-	368	26987136	cca	PP_0394	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
392	 59.21	0	479523..481091	-	522	26987137	-	PP_0395	-	hypothetical protein
393	 58.43	0	481088..482410	-	440	26987138	-	PP_0396	-	hypothetical protein
394	 55.95	-1	482515..484437	-	640	26987139	-	PP_0397	-	putative serine protein kinase, PrkA
395	 63.36	0	484720..485052	-	110	26987140	glpE	PP_0398	-	thiosulfate sulfurtransferase
396	 64.01	0	485067..485933	-	288	26987141	apaH	PP_0399	-	diadenosine tetraphosphatase
397	 62.20	0	485933..486313	-	126	26987142	apaG	PP_0400	-	ApaG
398	 64.05	0	486511..487314	-	267	26987143	ksgA	PP_0401	-	dimethyladenosine transferase
399	 67.27	+1	487311..488300	-	329	26987144	pdxA	PP_0402	-	4-hydroxythreonine-4-phosphate dehydrogenase
400	 62.88	0	488297..489616	-	439	26987145	surA	PP_0403	-	survival protein SurA
401	 63.24	0	492549..493568	+	339	26987146	-	PP_0405	-	aminoglycoside phosphotransferase
402	 65.03	0	493565..494236	+	223	26987147	-	PP_0406	-	nucleotidyl transferase
403	 66.67	+1	494238..495005	+	255	26987148	djlA	PP_0407	-	heat shock protein DnaJ domain protein
404	 64.76	0	495033..496031	-	332	26987149	-	PP_0408	-	hypothetical protein
405	 64.03	0	496127..498514	+	795	26987150	-	PP_0409	-	PAS/PAC sensor signal transduction histidine kinase
61.83	MEAN

4.04	STD DEV
