IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

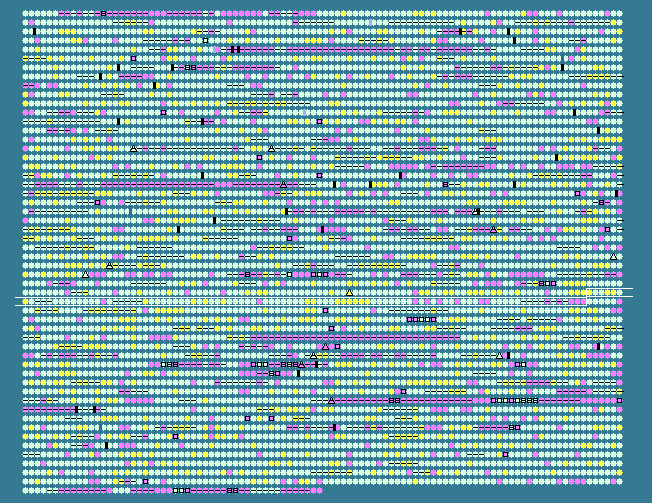

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3195	 66.56	+1	3657296..3658246	-	316	26989940	-	PP_3222	-	ABC transporter, permease protein
3196	 64.69	0	3658243..3659862	-	539	26989941	-	PP_3223	-	ABC transporter, periplasmic binding protein
3197	 63.02	0	3659937..3660731	-	264	26989942	-	PP_3224	-	hypothetical protein
3198	 67.51	+1	3660747..3661691	-	314	26989943	-	PP_3225	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
3199	 68.50	+1	3661688..3662830	-	380	26989944	-	PP_3226	-	acyl-CoA dehydrogenase-related protein
3200	 63.97	0	3663016..3663906	-	296	26989945	-	PP_3227	-	LysR family transcriptional regulator
3201	 67.49	+1	3664108..3665073	+	321	26989946	-	PP_3228	-	periplasmic aliphatic sulfonate-binding protein, putative
3202	 65.31	0	3665090..3666046	+	318	26989947	-	PP_3229	-	periplasmic aliphatic sulfonate-binding protein, putative
3203	 65.22	0	3666362..3667054	+	230	26989948	-	PP_3230	-	phosphoribosyl transferase domain-containing protein
3204	 61.77	0	3667316..3668683	-	455	26989949	-	PP_3231	-	hypothetical protein
3205	 62.11	0	3668743..3669312	-	189	26989950	-	PP_3232	-	acetyltransferase
3206	 62.16	0	3669704..3670435	+	243	26989951	-	PP_3233	-	Crp/FNR family transcriptional regulator
3207	 59.34	0	3671193..3671888	+	231	26989952	-	PP_3234	-	HSP20 family protein
3208	 61.83	0	3671947..3672339	+	130	26989953	-	PP_3235	-	hypothetical protein
3209	 64.29	0	3672538..3672789	+	83	26989954	-	PP_3236	-	lipoprotein OprI, putative
3210	 63.75	0	3672950..3673840	+	296	26989955	-	PP_3237	-	universal stress protein
3211	 63.00	0	3673980..3674552	-	190	26989956	-	PP_3238	-	transcriptional regulator PyrR, putative
3212	 63.02	0	3674784..3675770	+	328	26989957	-	PP_3239	-	Tn4652, cointegrate resolution protein T, putative
3213	 59.39	0	3675826..3675990	+	54	26989958	-	PP_3240	-	hypothetical protein
3214	 56.69	-1	3676342..3676842	-	166	26989959	-	PP_3241	-	hypothetical protein
3215	 63.42	0	3676995..3678563	+	522	26989960	-	PP_3242	-	GGDEF domain-containing protein
3216	 63.14	0	3678606..3679115	-	169	26989961	-	PP_3243	-	acetyltransferase
3217	 64.71	0	3679133..3679846	-	237	26989962	mgtC	PP_3244	-	magnesium transporter MgtC family protein
3218	 61.29	0	3679953..3680231	-	92	26989963	-	PP_3245	-	hypothetical protein
3219	 62.82	0	3680244..3680711	+	155	26989964	crtZ	PP_3246	-	beta-carotene hydroxylase
3220	 61.86	0	3680755..3681648	-	297	26989965	-	PP_3247	-	bile acid/Na+ symporter family protein
3221	 66.32	+1	3681833..3682696	+	287	26989966	-	PP_3248	-	Dyp-type peroxidase family
3222	 63.37	0	3682879..3683697	+	272	26989967	-	PP_3249	-	aldo/keto reductase
3223	 64.17	0	3683702..3684985	+	427	26989968	-	PP_3250	-	major facilitator transporter
3224	 62.54	0	3685590..3686921	+	443	26989969	-	PP_3251	-	hypothetical protein
3225	 63.62	0	3686924..3687874	+	316	26989970	-	PP_3252	-	HemK family modification methylase
3226	 63.87	0	3687881..3688987	+	368	26989971	-	PP_3253	-	carboxylate-amine ligase
3227	 59.94	0	3688978..3689631	+	217	26989972	-	PP_3254	-	nucleosidase, putative
3228	 60.83	0	3689717..3690538	+	273	26989973	-	PP_3255	-	hypothetical protein
3229	 66.97	+1	3690560..3691219	-	219	26989974	-	PP_3256	-	glycosyl transferase, group 2 family protein
3230	 63.00	0	3691216..3691815	-	199	26989975	-	PP_3257	-	methyltransferase, putative
3231	 67.86	+1	3691827..3692582	-	251	26989976	-	PP_3258	-	LmbE family protein
3232	 64.56	0	3692579..3693622	-	347	26989977	-	PP_3259	-	acyl-CoA dehydrogenase-related protein
3233	 62.63	0	3693663..3696164	-	833	26989978	ligD	PP_3260	-	ATP-dependent DNA ligase
3234	 67.41	+1	3696355..3696756	+	133	26989979	-	PP_3261	-	hypothetical protein
3235	 62.67	0	3696753..3696977	+	74	26989980	-	PP_3262	-	metallothionein, putative
3236	 62.37	0	3697514..3698467	-	317	26989981	-	PP_3263	-	hypothetical protein
3237	 61.35	0	3698467..3699669	-	400	26989982	-	PP_3264	-	cardiolipin synthase 2
3238	 64.34	0	3699666..3700439	-	257	26989983	-	PP_3265	-	endonuclease/exonuclease/phosphatase
3239	 61.16	0	3700436..3701488	-	350	26989984	-	PP_3266	-	hypothetical protein
3240	 57.12	-1	3701568..3702164	+	198	26989985	-	PP_3267	-	Clp protease, putative
3241	 60.90	0	3702166..3702564	-	132	26989986	-	PP_3268	-	MutT/nudix family protein
3242	 62.79	0	3702752..3703009	+	85	26989987	-	PP_3269	-	hypothetical protein
3243	 65.16	0	3703944..3705998	-	684	26989988	phaL	PP_3270	-	bifunctional aldehyde dehydrogenase/enoyl-CoA hydratase
3244	 63.48	0	3706036..3707289	-	417	26989989	phaK	PP_3271	-	outer membrane porin
3245	 61.93	0	3707308..3708870	-	520	26989990	actP	PP_3272	-	acetate permease
3246	 62.78	0	3708867..3709175	-	102	26989991	-	PP_3273	-	hypothetical protein
3247	 63.60	0	3709317..3710393	-	358	26989992	phaI	PP_3274	-	phenylacetate-CoA oxygenase/reductase, PaaK subunit
3248	 67.60	+1	3710409..3710942	-	177	26989993	phaH	PP_3275	-	phenylacetate-CoA oxygenase, PaaJ subunit
3249	 65.88	+1	3710929..3711687	-	252	26989994	-	PP_3276	-	phenylacetate-CoA oxygenase, PaaI subunit
3250	 62.41	0	3711696..3711977	-	93	26989995	-	PP_3277	-	phenylacetate-CoA oxygenase subunit PaaB
3251	 62.02	0	3712003..3712992	-	329	26989996	phaF	PP_3278	-	phenylacetate-CoA oxygenase subunit PaaA
3252	 61.36	0	3713191..3714510	-	439	26989997	phaE	PP_3279	-	phenylacetate-CoA ligase
3253	 66.75	+1	3714632..3715852	-	406	26989998	phaD	PP_3280	-	beta-ketoadipyl CoA thiolase
3254	 66.44	+1	3715845..3716285	-	146	26989999	-	PP_3281	-	phenylacetic acid degradation protein PaaD
3255	 65.81	0	3716278..3717795	-	505	26990000	paaC	PP_3282	-	3-hydroxybutyryl-CoA dehydrogenase
3256	 65.78	0	3717798..3718589	-	263	26990001	phaB	PP_3283	-	enoyl-CoA hydratase
3257	 65.63	0	3718624..3719397	-	257	26990002	-	PP_3284	-	enoyl-CoA hydratase-isomerase
3258	 66.33	+1	3719744..3720343	+	199	26990003	phaM	PP_3285	-	phenylacetic acid degradation protein PaaY
3259	 59.85	0	3720421..3721344	+	307	26990004	phaN	PP_3286	-	PaaX family transcriptional regulator
3260	 60.65	0	3721403..3722200	-	265	26990005	-	PP_3287	-	Crp/FNR family transcriptional regulator
3261	 59.01	0	3722741..3723667	+	308	26990006	-	PP_3288	-	universal stress protein
3262	 60.11	0	3723697..3724245	-	182	26990007	-	PP_3289	-	acetyltransferase
3263	 62.24	0	3724428..3725354	+	308	26990008	-	PP_3290	-	universal stress protein
3264	 62.94	0	3725345..3726712	+	455	26990009	-	PP_3291	-	metallo-beta-lactamase family protein
3265	 62.79	0	3726785..3727429	+	214	26990010	-	PP_3292	-	hypothetical protein
3266	 57.04	-1	3727489..3727914	-	141	26990011	-	PP_3293	-	hypothetical protein
3267	 61.05	0	3728127..3729017	+	296	26990012	-	PP_3294	-	universal stress protein
3268	 57.71	-1	3729028..3729507	+	159	26990013	-	PP_3295	-	YeeE/YedE family protein
3269	 60.21	0	3729464..3729943	+	159	26990014	-	PP_3296	-	YeeE/YedE family protein
3270	 53.30	-2	3730172..3730702	+	176	26990015	-	PP_3297	-	hypothetical protein
3271	 59.72	0	3731100..3731603	+	167	26990016	-	PP_3298	-	CinA domain-containing protein
3272	 58.40	0	3731774..3733237	-	487	26990017	-	PP_3299	-	outer membrane lipoprotein
3273	 54.80	-1	3733309..3733923	+	204	26990018	-	PP_3300	-	TetR family transcriptional regulator
3274	 61.14	0	3734001..3735104	+	367	26990019	-	PP_3301	-	RND efflux membrane fusion protein
3275	 59.26	0	3735101..3738193	+	1030	26990020	-	PP_3302	-	RND efflux transporter
3276	 62.95	0	3738266..3739558	+	430	161378128	-	PP_3303	-	3-oxoacyl-(acyl carrier protein) synthase II
3277	 58.11	0	3739555..3740793	+	412	26990022	-	PP_3304	-	Bcr/CflA family multidrug resistance transporter
3278	 49.70	-2	3740946..3741929	-	327	26990023	-	PP_3305	-	TerC family membrane protein
3279	 63.29	0	3742342..3742548	-	68	26990024	-	PP_3306	-	hypothetical protein
3280	 59.06	0	3742698..3743078	+	126	26990025	-	PP_3307	-	hypothetical protein
3281	 62.88	0	3743190..3743717	+	175	26990026	-	PP_3308	-	oxidoreductase, small subunit, putative
3282	 62.48	0	3743714..3744715	+	333	26990027	-	PP_3309	-	oxidoreductase, molybdopterin-binding subunit
3283	 63.46	0	3744712..3746928	+	738	26990028	-	PP_3310	-	oxidoreductase, large subunit, putative
3284	 61.28	0	3747012..3748757	-	581	26990029	-	PP_3311	-	glutathione-regulated potassium-proton antiporter
3285	 62.82	0	3748952..3749341	-	129	26990030	-	PP_3312	-	heat shock protein, putative
3286	 58.87	0	3749482..3749853	-	123	26990031	-	PP_3313	-	heat shock protein, putative
3287	 61.62	0	3749881..3750336	-	151	26990032	-	PP_3314	-	HSP20 family protein
3288	 57.96	0	3750526..3750996	-	156	26990033	-	PP_3315	-	hypothetical protein
3289	 63.87	0	3751057..3753879	-	940	26990034	-	PP_3316	-	chaperone-associated ATPase, putative
3290	 55.56	-1	3753933..3754058	-	41	26990035	-	PP_3317	-	hypothetical protein
3291	 61.32	0	3754045..3754287	-	80	26990036	-	PP_3318	-	hypothetical protein
3292	 55.63	-1	3754557..3756758	+	733	26990037	-	PP_3319	-	sensory box protein
3293	 57.14	-1	3756944..3757111	-	55	26990038	-	PP_3320	-	hypothetical protein
3294	 57.70	-1	3757176..3757688	+	170	26990039	-	PP_3321	-	hypothetical protein
61.83	MEAN

4.04	STD DEV
