IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

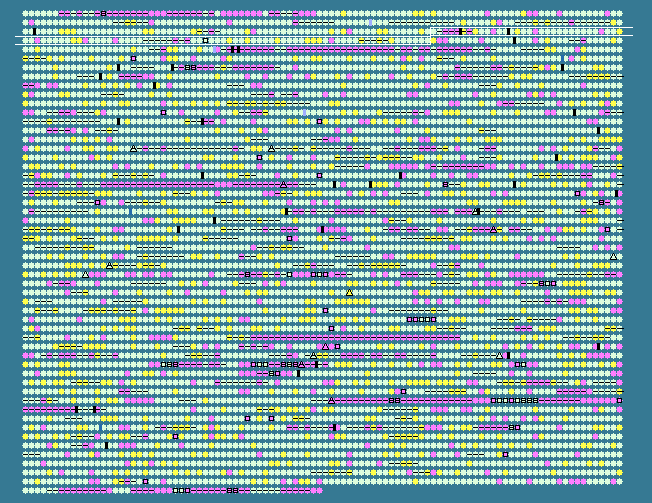

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
269	 63.53	0	330109..332406	+	765	26987014	-	PP_0272	-	TonB-dependent siderophore receptor
270	 61.03	0	332472..332684	-	70	26987015	-	PP_0273	-	hypothetical protein
271	 55.56	-1	333189..333728	+	179	26987016	-	PP_0274	-	helix-turn-helix domain-containing protein
272	 54.17	-1	334148..334363	+	71	26987017	-	PP_0275	-	hypothetical protein
273	 52.78	-2	334360..334683	-	107	26987018	-	PP_0276	-	Cro/CI family transcriptional regulator
274	 67.87	+1	335145..335393	-	82	26987019	-	PP_0277	-	hypothetical protein
275	 58.23	0	335914..336150	+	78	26987020	-	PP_0278	-	hypothetical protein
276	 66.42	+1	336543..337748	-	401	26987021	-	PP_0279	-	hypothetical protein
277	 62.75	0	337877..338566	-	229	26987022	-	PP_0280	-	polar amino acid ABC transporter inner membrane subunit
278	 62.19	0	338566..339258	-	230	26987023	-	PP_0281	-	polar amino acid ABC transporter inner membrane subunit
279	 55.51	-1	339313..340065	-	250	26987024	-	PP_0282	-	amino acid ABC transporter, periplasmic amino acid-binding protein
280	 61.24	0	340077..340850	-	257	26987025	-	PP_0283	-	amino acid ABC transporter ATP-binding protein
281	 63.13	0	341482..342867	+	461	26987026	-	PP_0284	-	GABA permease
282	 58.61	0	344264..344536	-	90	26987027	-	PP_0285	-	hypothetical protein
283	 66.76	+1	344533..345600	-	355	26987028	mutY	PP_0286	-	A/G-specific adenine glycosylase
284	 63.77	0	345597..347843	-	748	26987029	-	PP_0287	-	AsmA family protein
285	 63.48	0	348112..349773	+	553	26987030	-	PP_0288	-	major facilitator superfamily MFS_1
286	 58.29	0	349953..350585	+	210	26987031	hisB	PP_0289	-	imidazoleglycerol-phosphate dehydratase
287	 62.91	0	350586..351224	+	212	26987032	hisH	PP_0290	-	imidazole glycerol phosphate synthase subunit HisH
288	 59.77	0	351225..351485	+	86	26987033	-	PP_0291	-	hypothetical protein
289	 63.28	0	351513..352250	+	245	26987034	hisA	PP_0292	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
290	 63.68	0	352261..353031	+	256	26987035	hisF	PP_0293	-	imidazole glycerol phosphate synthase subunit HisF
291	 61.32	0	353149..354327	-	392	26987036	-	PP_0294	-	glycine betaine/L-proline ABC transporter, ATP-binding subunit
292	 60.99	0	354324..355169	-	281	26987037	-	PP_0295	-	glycine betaine/L-proline ABC transporter, permease protein
293	 58.86	0	355254..356201	-	315	26987038	-	PP_0296	-	glycine betaine/L-proline ABC transporter, periplasmic binding protein
294	 63.47	0	356654..358030	+	458	26987039	sda-1	PP_0297	-	L-serine dehydratase, iron-sulfur-dependent, single chain form
295	 62.33	0	358532..359638	+	368	26987040	-	PP_0298	-	AraC family transcriptional regulator
296	 59.04	0	359758..360216	-	152	26987041	-	PP_0299	-	hypothetical protein
297	 49.15	-2	360348..361934	+	528	26987042	-	PP_0300	-	metallopeptidase, putative
298	 59.45	0	362034..362504	-	156	26987043	-	PP_0301	-	hypothetical protein
299	 63.56	0	362515..363480	-	321	26987044	-	PP_0302	-	3-hydroxybutyryl-CoA dehydrogenase
300	 65.76	0	363647..364531	-	294	26987045	-	PP_0303	-	hypothetical protein
301	 63.36	0	364655..365623	-	322	26987046	-	PP_0304	-	hypothetical protein
302	 61.35	0	365732..366691	+	319	26987047	-	PP_0305	-	AraC family transcriptional regulator
303	 56.52	-1	367386..368114	-	242	26987048	-	PP_0306	-	hypothetical protein
304	 59.03	0	368217..368648	-	143	26987049	-	PP_0307	-	hypothetical protein
305	 60.43	0	368919..369896	+	325	26987050	-	PP_0308	-	membrane dipeptidase
306	 58.95	0	369972..370502	+	176	26987051	-	PP_0309	-	hypothetical protein
307	 62.20	0	370518..372578	+	686	26987052	-	PP_0310	-	oxidoreductase, FMN-binding
308	 63.65	0	372757..374709	+	650	26987053	-	PP_0311	-	iron-sulfur cluster-binding protein
309	 66.67	+1	374955..375941	+	328	26987054	-	PP_0312	-	electron transfer flavoprotein, alpha subunit
310	 66.54	+1	375952..376722	+	256	26987055	-	PP_0313	-	electron transfer flavoprotein, beta subunit, putative
311	 57.24	-1	377324..378055	+	243	26987056	-	PP_0314	-	hypothetical protein
312	 60.79	0	378120..379412	-	430	26987057	-	PP_0315	-	Rieske (2Fe-2S) domain protein
313	 61.25	0	379702..380808	+	368	26987058	-	PP_0316	-	oxidoreductase FAD-binding domain protein
314	 63.16	0	380917..382542	-	541	26987059	-	PP_0317	-	methyl-accepting chemotaxis sensory transducer
315	 59.31	0	382809..383039	+	76	26987060	-	PP_0318	-	hypothetical protein
316	 57.76	-1	383036..383338	+	100	26987061	-	PP_0319	-	hypothetical protein
317	 63.78	0	383521..385458	+	645	26987062	-	PP_0320	-	methyl-accepting chemotaxis sensory transducer
318	 62.92	0	385493..386533	-	346	26987063	-	PP_0321	-	threonine aldolase
319	 63.16	0	386859..388112	+	417	26987064	glyA-1	PP_0322	-	serine hydroxymethyltransferase
320	 63.87	0	388128..389378	+	416	26987065	soxB	PP_0323	-	sarcosine oxidase, beta subunit family
321	 59.52	0	389393..389728	+	111	26987066	soxD	PP_0324	-	sarcosine oxidase, delta subunit family
322	 64.05	0	389725..392739	+	1004	26987067	soxA	PP_0325	-	sarcosine oxidase, alpha subunit family
323	 63.19	0	392814..393446	+	210	26987068	soxG	PP_0326	-	sarcosine oxidase, gamma subunit family
324	 59.91	0	393458..394315	+	285	26987069	purU-1	PP_0327	-	formyltetrahydrofolate deformylase
325	 64.00	0	394617..395816	+	399	26987070	fdhA	PP_0328	-	formaldehyde dehydrogenase, glutathione-independent
326	 47.40	-2	396020..396943	-	307	26987071	-	PP_0329	-	hypothetical protein
327	 59.50	0	396918..397712	+	264	26987072	-	PP_0330	-	hypothetical protein
328	 49.47	-2	397733..398482	-	249	26987073	-	PP_0331	-	hypothetical protein
329	 61.26	0	398694..399581	-	295	26987074	-	PP_0332	-	phospholipid/glycerol acyltransferase
330	 60.88	0	399763..400263	+	166	26987075	-	PP_0333	-	hypothetical protein
331	 58.55	0	400413..401471	+	352	26987076	-	PP_0334	-	ISPpu11, transposase
332	 64.74	0	401901..402524	-	207	26987077	-	PP_0335	-	glutathione S-transferase family protein
333	 63.83	0	402528..403196	-	222	26987078	msrA	PP_0336	-	methionine sulfoxide reductase A
334	 63.73	0	403365..406055	-	896	26987079	-	PP_0337	-	diguanylate cyclase/phosphodiesterase with PAS/PAC and GAF sensor(s)
335	 65.57	0	406363..408003	-	546	26987080	aceF	PP_0338	-	dihydrolipoamide acetyltransferase
336	 60.92	0	408017..410662	-	881	26987081	aceE	PP_0339	-	pyruvate dehydrogenase subunit E1
337	 64.69	0	411046..413979	+	977	26987082	glnE	PP_0340	-	(glutamate--ammonia-ligase) adenylyltransferase
338	 65.81	0	414182..415231	+	349	26987083	waaF	PP_0341	-	lipopolysaccharide heptosyltransferase II
339	 64.78	0	415232..416290	+	352	26987084	waaC	PP_0342	-	lipopolysaccharide heptosyltransferase I
340	 62.67	0	416290..417414	+	374	26987085	waaG	PP_0343	-	lipopolysaccharide core biosynthesis protein WaaG
341	 64.31	0	417411..418217	+	268	26987086	waaP	PP_0344	-	lipopolysaccharide kinase
342	 62.86	0	418217..418951	+	244	26987087	-	PP_0345	-	lipopolysaccharide kinase
343	 65.74	0	418948..419700	+	250	26987088	-	PP_0346	-	lipopolysaccharide kinase
344	 64.31	0	419700..421142	+	480	26987089	-	PP_0347	-	hypothetical protein
345	 61.25	0	421160..423946	-	928	26987090	-	PP_0348	-	hypothetical protein
346	 63.61	0	424196..425308	-	370	26987091	-	PP_0349	-	PepSY-associated TM helix domain protein
347	 62.06	0	425365..427797	-	810	26987092	-	PP_0350	-	TonB-dependent siderophore receptor
348	 68.23	+1	428049..429005	-	318	26987093	-	PP_0351	-	anti-FecI sigma factor, FecR
349	 65.70	0	429002..429520	-	172	26987094	-	PP_0352	-	RNA polymerase sigma factor
350	 65.68	0	429668..430378	-	236	26987095	-	PP_0353	-	DNA polymerase III, epsilon subunit
351	 64.24	0	430375..432312	-	645	26987096	-	PP_0354	-	CBS domain-containing protein
352	 57.19	-1	432405..432974	+	189	26987097	-	PP_0355	-	response regulator receiver protein
353	 63.13	0	433021..435198	-	725	26987098	glcB	PP_0356	-	malate synthase G
354	 61.66	0	435648..436166	+	172	26987099	-	PP_0357	-	ACT domain-containing protein
355	 63.74	0	436399..437286	-	295	26987100	rarD-1	PP_0358	-	RarD protein, DMT superfamily transporter
356	 65.08	0	437351..438358	-	335	26987101	-	PP_0359	-	serine/threonine protein kinase
357	 66.54	+1	438424..439188	-	254	26987102	modR	PP_0360	-	ModE family transcriptional regulator
358	 62.57	0	439238..439969	-	243	26987103	-	PP_0361	-	competence protein ComF, putative
359	 62.51	0	440059..441117	+	352	26987104	bioB	PP_0362	-	biotin synthase
360	 67.43	+1	441119..442291	+	390	26987105	bioF	PP_0363	-	8-amino-7-oxononanoate synthase
361	 64.07	0	442284..443015	+	243	26987106	bioH	PP_0364	-	carboxylesterase
362	 66.30	+1	443008..443826	+	272	26987107	bioC	PP_0365	-	biotin biosynthesis protein BioC
363	 63.14	0	443837..444517	+	226	26987108	bioD	PP_0366	-	dithiobiotin synthetase
364	 62.50	0	444691..445026	+	111	26987109	-	PP_0367	-	hypothetical protein
365	 62.35	0	445314..447119	+	601	26987110	-	PP_0368	-	acyl-CoA dehydrogenase domain-containing protein
366	 63.76	0	447502..448704	+	400	26987111	-	PP_0369	-	GGDEF domain-containing protein
367	 62.96	0	448829..450607	+	592	26987112	-	PP_0370	-	acyl-CoA dehydrogenase domain-containing protein
368	 62.88	0	450948..451871	-	307	26987113	-	PP_0371	-	LysR family transcriptional regulator
61.83	MEAN

4.04	STD DEV
