IslandPath Analysis: Pseudomonas putida KT2440

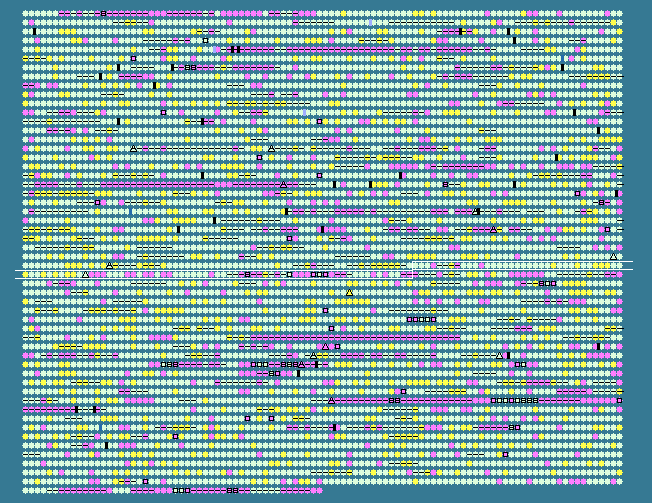

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2866	 62.04	0	3288966..3290717	+	583	26989611	-	PP_2892	-	surface antigen (D15)
2867	 65.17	0	3290714..3294388	+	1224	26989612	-	PP_2893	-	hypothetical protein
2868	 62.34	0	3294408..3294962	-	184	26989613	-	PP_2894	-	hypothetical protein
2869	 56.90	-1	3295038..3295682	-	214	26989614	-	PP_2895	-	hypothetical protein
2870	 62.47	0	3295748..3296128	-	126	26989615	-	PP_2896	-	hypothetical protein
2871	 63.94	0	3296149..3296808	+	219	26989616	-	PP_2897	-	hypothetical protein
2872	 65.45	0	3296380..3296871	-	163	26989617	-	PP_2898	-	hypothetical protein
2873	 58.20	0	3296990..3297178	+	62	26989618	-	PP_2899	-	hypothetical protein
2874	 61.87	0	3297215..3297589	-	124	26989619	-	PP_2900	-	hypothetical protein
2875	 65.11	0	3297781..3300099	+	772	26989620	-	PP_2901	-	penicillin amidase family protein
2876	 61.83	0	3300181..3300903	-	240	26989621	-	PP_2902	-	UDP-2,3-diacylglucosamine hydrolase
2877	 56.89	-1	3300900..3301400	-	166	26989622	ppiB	PP_2903	-	peptidyl-prolyl cis-trans isomerase B
2878	 63.73	0	3301649..3303352	+	567	26989623	glnS	PP_2904	-	glutaminyl-tRNA synthetase
2879	 63.27	0	3303362..3304744	+	460	26989624	cysS	PP_2905	-	cysteinyl-tRNA synthetase
2880	 62.43	0	3304776..3306167	-	463	26989625	-	PP_2906	-	integral membrane sensor signal transduction histidine kinase
2881	 63.44	0	3306145..3306825	-	226	26989626	-	PP_2907	-	winged helix family two component transcriptional regulator
2882	 62.64	0	3306900..3307595	-	231	26989627	-	PP_2908	-	DNA-binding transcriptional regulator CsiR
2883	 61.04	0	3307791..3308768	+	325	26989628	-	PP_2909	-	hypothetical protein
2884	 62.99	0	3308883..3310133	+	416	26989629	-	PP_2910	-	hypothetical protein
2885	 62.00	0	3310284..3311675	+	463	26989630	-	PP_2911	-	GABA permease
2886	 63.31	0	3311763..3312656	+	297	26989631	-	PP_2912	-	hypothetical protein
2887	 62.97	0	3312818..3313792	+	324	26989632	hemB-1	PP_2913	-	delta-aminolevulinic acid dehydratase
2888	 60.75	0	3313951..3315453	+	500	26989633	proP	PP_2914	-	proline/glycine betaine transporter
2889	 68.23	+1	3315454..3316155	-	233	26989634	-	PP_2915	-	hypothetical protein
2890	 60.95	0	3316165..3316794	-	209	26989635	ribE-2	PP_2916	-	riboflavin synthase subunit alpha
2891	 63.83	0	3316834..3316974	-	46	26989636	-	PP_2917	-	hypothetical protein
2892	 64.49	0	3316967..3319033	-	688	26989637	-	PP_2918	-	trehalose synthase
2893	 65.58	0	3319225..3320142	-	305	26989638	-	PP_2919	-	LysR family transcriptional regulator
2894	 64.43	0	3320263..3321021	+	252	26989639	-	PP_2920	-	hypothetical protein
2895	 63.16	0	3321060..3322001	+	313	26989640	-	PP_2921	-	allophanate hydrolase subunit 1
2896	 66.56	+1	3321998..3322969	+	323	26989641	-	PP_2922	-	urea amidolyase related protein
2897	 66.78	+1	3323032..3323889	-	285	26989642	-	PP_2923	-	hypothetical protein
2898	 66.03	+1	3323880..3325130	-	416	26989643	-	PP_2924	-	radical SAM domain protein
2899	 61.30	0	3325245..3326864	+	539	26989644	mqo-3	PP_2925	-	malate:quinone oxidoreductase
2900	 63.43	0	3326874..3328202	-	442	26989645	-	PP_2926	-	UDP-glucose dehydrogenase, putative
2901	 65.33	0	3328447..3329493	+	348	26989646	-	PP_2927	-	hypothetical protein
2902	 58.96	0	3329624..3330868	-	414	26989647	-	PP_2928	-	saccharopine dehydrogenase
2903	 59.56	0	3330901..3331998	-	365	26989648	nspC	PP_2929	-	carboxynorspermidine decarboxylase
2904	 66.01	+1	3332184..3333101	-	305	26989649	-	PP_2930	-	L-serine dehydratase, putative
2905	 63.76	0	3333098..3333922	-	274	26989650	-	PP_2931	-	YheO domain protein
2906	 67.02	+1	3333855..3335558	-	567	26989651	-	PP_2932	-	amidase
2907	 62.87	0	3335750..3336592	-	280	26989652	-	PP_2933	-	putative glutathione S-transferase YghU
2908	 66.48	+1	3336794..3337840	+	348	26989653	-	PP_2934	-	hypothetical protein
2909	 66.16	+1	3337802..3338995	-	397	26989654	-	PP_2935	-	hypothetical protein
2910	 60.87	0	3339238..3340824	-	528	26989655	-	PP_2936	-	ABC transporter ATP-binding protein
2911	 58.81	0	3340857..3341276	-	139	26989656	-	PP_2937	-	integrase, putative
2912	 53.28	-2	3341452..3342138	-	228	26989657	-	PP_2938	-	OsmC family protein
2913	 57.65	-1	3342445..3342699	-	84	26989658	-	PP_2939	-	hypothetical protein
2914	 55.79	-1	3342719..3343003	-	94	26989659	-	PP_2940	-	hypothetical protein
2915	 64.25	0	3344340..3345125	-	261	26989660	-	PP_2941	-	hypothetical protein
2916	 59.59	0	3345126..3346496	-	456	26989661	-	PP_2942	-	response regulator
2917	 61.26	0	3346695..3347693	+	332	26989662	-	PP_2943	-	cytochrome c551 peroxidase, putative
2918	 58.35	0	3347690..3349504	+	604	26989663	-	PP_2944	-	sensor histidine kinase
2919	 58.04	0	3349387..3350904	+	505	26989664	-	PP_2945	-	sensor histidine kinase/response regulator
2920	 60.63	0	3351062..3351475	+	137	26989665	-	PP_2946	-	hypothetical protein
2921	 54.84	-1	3351736..3352107	+	123	26989666	-	PP_2947	-	transcriptional regulator MvaT, P16 subunit, putative
2922	 57.77	-1	3352249..3353631	-	460	26989667	-	PP_2948	-	GntR family transcriptional regulator
2923	 58.48	0	3353753..3354619	+	288	26989668	-	PP_2949	-	hypothetical protein
2924	 56.18	-1	3354732..3355208	-	158	26989669	-	PP_2950	-	hypothetical protein
2925	 51.85	-2	3355262..3355828	-	188	26989670	-	PP_2951	-	TetR family transcriptional regulator
2926	 65.10	0	3355954..3356844	-	296	26989671	-	PP_2952	-	LysR family transcriptional regulator
2927	 64.09	0	3356950..3357957	+	335	26989672	-	PP_2953	-	alcohol dehydrogenase, zinc-containing
2928	 60.72	0	3358072..3358458	+	128	26989673	-	PP_2954	-	hypothetical protein
2929	 60.31	0	3358768..3359679	-	303	26989674	-	PP_2955	-	magnesium/cobalt transporter CorA family protein
2930	 61.10	0	3359683..3361263	-	526	26989675	-	PP_2956	-	ribosomal protein S6 modification protein-related protein
2931	 61.37	0	3361358..3362452	+	364	26989676	-	PP_2957	-	acetyltransferase
2932	 58.04	0	3362544..3362798	-	84	26989677	-	PP_2958	-	glutaredoxin
2933	 61.46	0	3362812..3363330	-	172	26989678	-	PP_2959	-	alkylhydroperoxidase
2934	 58.74	0	3363361..3364281	+	306	26989679	-	PP_2960	-	AraC family transcriptional regulator
2935	 62.80	0	3364344..3365222	-	292	26989680	-	PP_2961	-	LysR family transcriptional regulator
2936	 61.78	0	3365330..3366331	+	333	26989681	-	PP_2962	-	alcohol dehydrogenase, zinc-containing
2937	 56.28	-1	3366350..3366532	-	60	26989682	-	PP_2963	-	hypothetical protein
2938	 58.24	0	3366692..3369706	+	1004	26989683	tnpA	PP_2964	-	Tn4652, transposase
2939	 56.20	-1	3369715..3370077	+	120	26989684	-	PP_2965	-	Tn4652, tnpA repressor protein TnpC, putative
2940	 53.22	-2	3370094..3370264	-	56	26989685	-	PP_2966	-	hypothetical protein
2941	 66.06	+1	3370469..3370633	-	54	26989686	-	PP_2967	-	hypothetical protein
2942	 60.93	0	3370638..3371771	-	377	26989687	-	PP_2968	-	hypothetical protein
2943	 55.21	-1	3371782..3372069	-	95	26989688	-	PP_2969	-	hypothetical protein
2944	 59.72	0	3372188..3372547	+	119	26989689	-	PP_2970	-	hypothetical protein
2945	 60.02	0	3372839..3373681	-	280	26989690	-	PP_2971	-	IS1246 transposase
2946	 57.00	-1	3373712..3374011	+	99	26989691	-	PP_2972	-	hypothetical protein
2947	 52.26	-2	3374050..3374403	+	117	26989692	dgkA-2	PP_2973	-	diacylglycerol kinase
2948	 54.75	-1	3374438..3376090	+	550	26989693	-	PP_2974	-	hypothetical protein
2949	 58.05	0	3376156..3376422	+	88	26989694	-	PP_2975	-	transposase family protein
2950	 63.14	0	3376570..3376881	+	103	26989695	-	PP_2976	-	Tn4652, transposase subunit A
2951	 57.40	-1	3376878..3377783	+	301	26989696	-	PP_2977	-	Tn4652, transposase subunit B
2952	 54.48	-1	3377949..3378350	+	133	26989697	-	PP_2978	-	hypothetical protein
2953	 55.94	-1	3378299..3378727	-	142	26989698	-	PP_2979	-	hypothetical protein
2954	 57.38	-1	3378731..3378967	-	78	26989699	-	PP_2980	-	hypothetical protein
2955	 59.77	0	3379174..3380145	-	323	26989700	-	PP_2981	-	Tn4652, cointegrate resolution protein S
2956	 60.26	0	3380326..3381324	+	332	26989701	-	PP_2982	-	Tn4652, cointegrate resolution protein T, putative
2957	 59.06	0	3381352..3382008	+	218	26989702	-	PP_2983	-	hypothetical protein
2958	 59.58	0	3381989..3382468	+	159	26989703	-	PP_2984	-	hypothetical protein
2959	 54.58	-1	3383517..3384062	-	181	26989704	-	PP_2985	-	hypothetical protein
2960	 59.90	0	3384364..3385413	-	349	26989705	-	PP_2986	-	oxidoreductase, putative
2961	 55.67	-1	3385614..3386177	-	187	26989706	-	PP_2987	-	hypothetical protein
2962	 59.78	0	3386154..3387170	+	338	26989707	-	PP_2988	-	alcohol dehydrogenase, zinc-containing
2963	 62.26	0	3387217..3388011	+	264	26989708	-	PP_2989	-	short chain dehydrogenase/reductase family oxidoreductase
2964	 56.04	-1	3388149..3388628	+	159	26989709	-	PP_2990	-	MerR family transcriptional regulator
2965	 55.62	-1	3388644..3389675	-	343	26989710	-	PP_2991	-	hypothetical protein
61.83	MEAN

4.04	STD DEV
