IslandPath Analysis: Pseudomonas putida KT2440

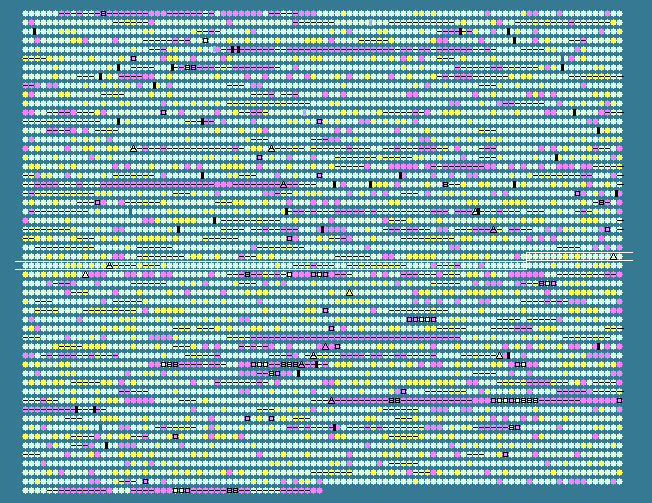

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.83   STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2785	 61.75	0	3204694..3206340	+	548	26989530	-	PP_2811	-	hypothetical protein
2786	 62.28	0	3206349..3208763	+	804	26989531	-	PP_2812	-	transporter, putative
2787	 65.11	0	3208774..3209736	+	320	26989532	-	PP_2813	-	BNR domain-containing protein
2788	 60.57	0	3209853..3210722	-	289	26989533	-	PP_2814	-	hypothetical protein
2789	 65.07	0	3210961..3212214	+	417	26989534	-	PP_2815	-	hypothetical protein
2790	 62.43	0	3212273..3212839	-	188	26989535	-	PP_2816	-	transcriptional regulator NfxB, putative
2791	 68.95	+1	3212931..3214067	+	378	26989536	mexC	PP_2817	-	multidrug efflux RND membrane fusion protein MexC
2792	 65.26	0	3214083..3217211	+	1042	26989537	mexD	PP_2818	-	multidrug efflux RND transporter MexD
2793	 68.30	+1	3217208..3218614	+	468	26989538	oprJ	PP_2819	-	outer membrane protein OprJ
2794	 65.05	0	3218697..3219254	-	185	26989539	nfxB	PP_2820	-	transcriptional regulator NfxB
2795	 61.98	0	3219432..3219836	-	134	26989540	-	PP_2821	-	hypothetical protein
2796	 62.75	0	3219827..3221053	+	408	26989541	-	PP_2822	-	hypothetical protein
2797	 63.40	0	3221038..3222690	-	550	26989542	-	PP_2823	-	methyl-accepting chemotaxis transducer
2798	 60.94	0	3223250..3223930	-	226	26989543	-	PP_2824	-	TetR family transcriptional regulator
2799	 60.68	0	3224000..3224467	-	155	26989544	-	PP_2825	-	integrase, putative
2800	 65.03	0	3224501..3225415	-	304	26989545	mexT	PP_2826	-	transcriptional regulator MexT
2801	 63.54	0	3225622..3226644	+	340	26989546	-	PP_2827	-	alcohol dehydrogenase, zinc-containing
2802	 64.36	0	3227159..3228544	+	461	26989547	-	PP_2828	-	hypothetical protein
2803	 63.06	0	3228541..3229899	+	452	26989548	-	PP_2829	-	GntR family transcriptional regulator
2804	 63.71	0	3230027..3231379	-	450	26989549	-	PP_2830	-	major facilitator family transporter
2805	 64.08	0	3231395..3232630	-	411	26989550	-	PP_2831	-	mandelate racemase/muconate lactonizing enzyme family protein
2806	 63.82	0	3232810..3233757	+	315	26989551	-	PP_2832	-	LysR family transcriptional regulator
2807	 63.48	0	3233785..3234756	+	323	26989552	-	PP_2833	-	LysR family transcriptional regulator
2808	 65.63	0	3234903..3236444	+	513	26989553	-	PP_2834	-	UxaA family hydrolase
2809	 65.99	+1	3236504..3237538	+	344	26989554	-	PP_2835	-	Ldh family oxidoreductase
2810	 65.85	0	3237559..3238776	+	405	26989555	-	PP_2836	-	fumarylacetoacetate hydrolase family protein
2811	 62.09	0	3238867..3240177	+	436	26989556	-	PP_2837	-	major facilitator family transporter
2812	 65.33	0	3240302..3241951	+	549	26989557	-	PP_2838	-	VRR-NUC domain protein
2813	 64.48	0	3241921..3244209	+	762	26989558	-	PP_2839	-	DEAD_2 domain protein
2814	 65.48	0	3244310..3245491	-	393	26989559	-	PP_2840	-	NnrS family protein
2815	 64.16	0	3245743..3246621	+	292	26989560	-	PP_2841	-	phage integrase family site specific recombinase
2816	 66.31	+1	3246899..3247732	+	277	26989561	ureD	PP_2842	-	urease accessory protein UreD
2817	 64.03	0	3247742..3248044	+	100	26989562	ureA	PP_2843	-	urease subunit gamma
2818	 65.09	0	3248064..3248381	+	105	26989563	ureB	PP_2844	-	urease subunit beta
2819	 65.20	0	3248378..3250081	+	567	26989564	ureC	PP_2845	-	urease subunit alpha
2820	 65.87	+1	3250091..3250594	+	167	26989565	ureE	PP_2846	-	urease accessory protein UreE
2821	 65.93	+1	3250613..3251158	+	181	26989566	ureJ	PP_2847	-	HupE/UreJ protein
2822	 68.00	+1	3251158..3251832	+	224	26989567	ureF	PP_2848	-	urease accessory protein UreF
2823	 62.50	0	3251844..3252467	+	207	26989568	ureG	PP_2849	-	urease accessory protein UreG
2824	 65.79	0	3252514..3252627	+	37	26989569	-	PP_2850	-	hypothetical protein
2825	 61.32	0	3252710..3253438	-	242	26989570	-	PP_2851	-	hypothetical protein
2826	 64.08	0	3253533..3255734	-	733	26989571	-	PP_2852	-	sulfatase domain-containing protein
2827	 59.56	0	3255870..3257150	-	426	26989572	-	PP_2853	-	hypothetical protein
2828	 59.76	0	3257197..3257949	-	250	26989573	-	PP_2854	-	hypothetical protein
2829	 60.50	0	3257995..3258675	-	226	26989574	-	PP_2855	-	hypothetical protein
2830	 58.68	0	3258737..3260188	-	483	26989575	-	PP_2856	-	hypothetical protein
2831	 61.66	0	3260238..3260816	-	192	26989576	-	PP_2857	-	hypothetical protein
2832	 60.50	0	3260818..3261255	-	145	26989577	-	PP_2858	-	hypothetical protein
2833	 60.00	0	3261553..3262122	-	189	26989578	-	PP_2859	-	hypothetical protein
2834	 64.55	0	3262119..3262685	-	188	26989579	-	PP_2860	-	nicotinamide mononucleotide transporter
2835	 63.85	0	3262909..3264543	-	544	26989580	-	PP_2861	-	methyl-accepting chemotaxis sensory transducer
2836	 59.83	0	3264841..3265674	+	277	26989581	uppP	PP_2862	-	undecaprenyl pyrophosphate phosphatase
2837	 63.23	0	3265703..3266080	+	125	26989582	-	PP_2863	-	hypothetical protein
2838	 63.44	0	3266139..3266510	-	123	26989583	-	PP_2864	-	hypothetical protein
2839	 64.01	0	3266491..3267393	-	300	26989584	-	PP_2865	-	LysR family transcriptional regulator
2840	 63.07	0	3267527..3268138	+	203	26989585	acpD	PP_2866	-	azoreductase
2841	 64.75	0	3268207..3269409	-	400	26989586	-	PP_2867	-	pyridine nucleotide-disulphide oxidoreductase family protein
2842	 65.00	0	3269490..3270089	-	199	26989587	-	PP_2868	-	Cro/CI family transcriptional regulator
2843	 66.00	+1	3270129..3272081	-	650	26989588	-	PP_2869	-	NADH:flavin oxidoreductase/NADH oxidase
2844	 62.22	0	3272199..3273299	+	366	26989589	-	PP_2870	-	PotD/PotF family extracellular solute-binding protein,
2845	 61.77	0	3273322..3274077	+	251	26989590	-	PP_2871	-	hypothetical protein
2846	 61.67	0	3274144..3275124	+	326	26989591	-	PP_2872	-	hypothetical protein
2847	 60.12	0	3275195..3275515	+	106	26989592	-	PP_2873	-	hypothetical protein
2848	 67.31	+1	3275984..3276295	+	103	26989593	-	PP_2874	-	hypothetical protein
2849	 58.12	0	3276342..3276692	-	116	26989594	-	PP_2875	-	hypothetical protein
2850	 64.57	0	3276975..3278117	-	380	26989595	ampC	PP_2876	-	beta-lactamase
2851	 60.78	0	3278224..3279225	+	333	26989596	-	PP_2877	-	bile acid/Na+ symporter family protein
2852	 58.47	0	3279248..3279430	+	60	26989597	-	PP_2878	-	hypothetical protein
2853	 64.14	0	3279483..3280076	-	197	26989598	-	PP_2879	-	hypothetical protein
2854	 65.25	0	3280063..3280626	-	187	26989599	-	PP_2880	-	TetR family transcriptional regulator
2855	 62.57	0	3280716..3281447	+	243	26989600	-	PP_2881	-	short chain dehydrogenase/reductase family oxidoreductase
2856	 63.25	0	3281476..3282090	+	204	26989601	-	PP_2882	-	DSBA oxidoreductase
2857	 66.33	+1	3282063..3282362	-	99	26989602	-	PP_2883	-	hypothetical protein
2858	 62.64	0	3282365..3282910	-	181	26989603	-	PP_2884	-	XRE family transcriptional regulator
2859	 68.13	+1	3282992..3284221	-	409	26989604	-	PP_2885	-	major facilitator transporter
2860	 65.92	+1	3284279..3284812	-	177	26989605	-	PP_2886	-	cytochrome B561
2861	 66.95	+1	3284809..3285861	-	350	26989606	-	PP_2887	-	catalase domain protein
2862	 65.90	+1	3285986..3286507	+	173	26989607	-	PP_2888	-	RNA polymerase, sigma-24 subunit, ECF subfamily
2863	 67.60	+1	3286504..3287256	+	250	26989608	-	PP_2889	-	putative transmembrane anti-sigma factor
2864	 62.73	0	3287297..3288109	-	270	26989609	xthA	PP_2890	-	exonuclease III
2865	 63.13	0	3288245..3288922	+	225	26989610	-	PP_2891	-	acetyltransferase
2866	 62.04	0	3288966..3290717	+	583	26989611	-	PP_2892	-	surface antigen (D15)
2867	 65.17	0	3290714..3294388	+	1224	26989612	-	PP_2893	-	hypothetical protein
2868	 62.34	0	3294408..3294962	-	184	26989613	-	PP_2894	-	hypothetical protein
2869	 56.90	-1	3295038..3295682	-	214	26989614	-	PP_2895	-	hypothetical protein
2870	 62.47	0	3295748..3296128	-	126	26989615	-	PP_2896	-	hypothetical protein
2871	 63.94	0	3296149..3296808	+	219	26989616	-	PP_2897	-	hypothetical protein
2872	 65.45	0	3296380..3296871	-	163	26989617	-	PP_2898	-	hypothetical protein
2873	 58.20	0	3296990..3297178	+	62	26989618	-	PP_2899	-	hypothetical protein
2874	 61.87	0	3297215..3297589	-	124	26989619	-	PP_2900	-	hypothetical protein
2875	 65.11	0	3297781..3300099	+	772	26989620	-	PP_2901	-	penicillin amidase family protein
2876	 61.83	0	3300181..3300903	-	240	26989621	-	PP_2902	-	UDP-2,3-diacylglucosamine hydrolase
2877	 56.89	-1	3300900..3301400	-	166	26989622	ppiB	PP_2903	-	peptidyl-prolyl cis-trans isomerase B
2878	 63.73	0	3301649..3303352	+	567	26989623	glnS	PP_2904	-	glutaminyl-tRNA synthetase
2879	 63.27	0	3303362..3304744	+	460	26989624	cysS	PP_2905	-	cysteinyl-tRNA synthetase
2880	 62.43	0	3304776..3306167	-	463	26989625	-	PP_2906	-	integral membrane sensor signal transduction histidine kinase
2881	 63.44	0	3306145..3306825	-	226	26989626	-	PP_2907	-	winged helix family two component transcriptional regulator
2882	 62.64	0	3306900..3307595	-	231	26989627	-	PP_2908	-	DNA-binding transcriptional regulator CsiR
2883	 61.04	0	3307791..3308768	+	325	26989628	-	PP_2909	-	hypothetical protein
2884	 62.99	0	3308883..3310133	+	416	26989629	-	PP_2910	-	hypothetical protein
61.83	MEAN

4.04	STD DEV
