IslandPathversion 1.0

IslandPath Analysis: Pseudomonas putida KT2440

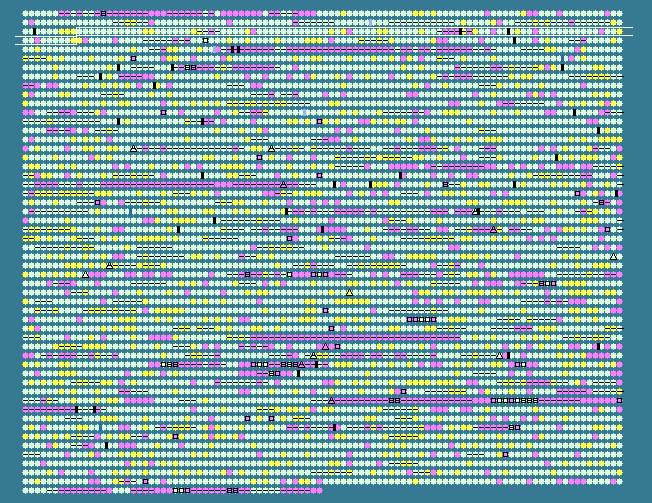

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
210	 62.77	0	262483..262764	+	93	26986955	-	PP_0211	-	hypothetical protein
211	 62.30	0	263249..264691	+	480	26986956	gabD	PP_0213	-	succinate-semialdehyde dehydrogenase I
212	 62.60	0	264874..266151	+	425	26986957	gabT	PP_0214	-	4-aminobutyrate aminotransferase
213	 64.84	0	266290..267549	+	419	26986958	-	PP_0215	-	putative signal transduction protein
214	 61.40	0	267640..268626	-	328	26986959	-	PP_0216	-	diguanylate cyclase with PAS/PAC sensor
215	 63.54	0	268768..269952	-	394	26986960	-	PP_0217	-	fatty acid desaturase
216	 63.08	0	270099..271994	+	631	26986961	-	PP_0218	-	sensory box protein
217	 62.17	0	272023..272667	-	214	26986962	-	PP_0219	-	binding-protein-dependent transport systems inner membrane component
218	 64.59	0	272657..273766	-	369	26986963	-	PP_0220	-	ABC transporter ATP-binding protein
219	 60.17	0	273768..274568	-	266	26986964	-	PP_0221	-	metal ABC transporter periplasmic-binding protein
220	 64.50	0	274561..275946	-	461	26986965	-	PP_0222	-	DszA family monooxygenase
221	 66.34	+1	275946..277166	-	406	26986966	-	PP_0223	-	DszC family monooxygenase
222	 65.86	0	277263..278504	-	413	26986967	-	PP_0224	-	DszC family monooxygenase
223	 63.50	0	278818..279576	-	252	26986968	-	PP_0225	-	putative amino-acid ABC transporter ATP-binding protein YecC
224	 63.23	0	279579..280247	-	222	26986969	-	PP_0226	-	polar amino acid ABC transporter inner membrane subunit
225	 59.50	0	280244..281038	-	264	26986970	-	PP_0227	-	cystine transporter subunit
226	 63.43	0	281755..282279	+	174	26986971	-	PP_0228	-	serine O-acetyltransferase, putative
227	 61.82	0	282591..284552	+	653	26986972	-	PP_0229	-	choline/carnitine/betaine transporter
228	 63.55	0	284615..285448	-	277	26986973	tauD	PP_0230	-	taurine dioxygenase
229	 65.95	+1	285497..286336	-	279	26986974	tauC	PP_0231	-	binding-protein-dependent transport systems inner membrane component
230	 65.53	0	286333..287121	-	262	26986975	tauB	PP_0232	-	taurine transporter ATP-binding subunit
231	 63.89	0	287135..288106	-	323	26986976	tauA	PP_0233	-	taurine ABC transporter, periplasmic binding protein
232	 57.60	-1	288581..289915	+	444	26986977	oprE	PP_0234	-	outer membrane porin
233	 59.00	0	290081..290719	+	212	26986978	lsfA	PP_0235	-	peroxidase
234	 62.79	0	290939..291532	+	197	26986979	ssuE	PP_0236	-	NAD(P)H-dependent FMN reductase
235	 65.22	0	291618..292583	+	321	26986980	ssuA	PP_0237	-	aliphatic sulfonate ABC transporter periplasmic ligand-binding protein
236	 64.23	0	292643..293791	+	382	26986981	ssuD	PP_0238	-	alkanesulfonate monooxygenase
237	 62.53	0	293802..294599	+	265	26986982	ssuC	PP_0239	-	binding-protein-dependent transport systems inner membrane component
238	 68.14	+1	294596..295408	+	270	26986983	ssuB	PP_0240	-	aliphatic sulfonates transport ATP-binding subunit
239	 52.78	-2	295436..295651	+	71	26986984	ssuF	PP_0241	-	TOBE domain protein
240	 62.24	0	295793..296425	-	210	26986985	-	PP_0242	-	TetR family transcriptional regulator
241	 62.99	0	296425..298002	-	525	26986986	gshA	PP_0243	-	glutamate--cysteine ligase
242	 64.84	0	298156..298539	-	127	26986987	-	PP_0244	-	thioesterase superfamily protein
243	 63.61	0	298539..301124	-	861	26986988	-	PP_0245	-	S1 RNA-binding domain-containing protein
244	 64.78	0	301081..301821	+	246	26986989	ompR	PP_0246	-	osmolarity response regulator
245	 63.47	0	301835..303148	+	437	26986990	envZ	PP_0247	-	integral membrane sensor signal transduction histidine kinase
246	 61.92	0	303246..304151	-	301	26986991	rimK	PP_0248	-	alpha-L-glutamate ligase, RimK family
247	 60.87	0	304148..304768	-	206	26986992	-	PP_0249	-	hypothetical protein
248	 63.93	0	304740..305141	+	133	26986993	hslR	PP_0250	-	RNA-binding S4 domain protein
249	 61.13	0	305170..305964	-	264	26986994	-	PP_0251	-	hypothetical protein
250	 61.22	0	306085..306984	+	299	26986995	hslO	PP_0252	-	Hsp33-like chaperonin
251	 65.08	0	308852..309292	+	146	26986996	-	PP_0254	-	thioesterase superfamily protein
252	 66.46	+1	309349..309831	-	160	26986997	-	PP_0255	-	17 kDa surface antigen
253	 64.32	0	310028..312373	-	781	26986998	-	PP_0256	-	molybdopterin oxidoreductase, alpha subunit
254	 65.46	0	312379..313209	-	276	26986999	-	PP_0257	-	formate dehydrogenase family accessory protein FdhD
255	 56.46	-1	313385..313825	+	146	26987000	-	PP_0258	-	hypothetical protein
256	 61.24	0	313876..314538	-	220	26987001	-	PP_0259	-	HAD superfamily hydrolase
257	 65.08	0	314603..315169	+	188	26987002	nudE	PP_0260	-	ADP-ribose diphosphatase NudE
258	 64.42	0	315184..315984	+	266	26987003	cysQ	PP_0261	-	3'(2'),5'-bisphosphate nucleotidase
259	 64.04	0	316067..316522	-	151	26987004	-	PP_0262	-	hypothetical protein
260	 65.60	0	316522..317928	-	468	26987005	-	PP_0263	-	two component, sigma54 specific, transcriptional regulator, Fis family
261	 65.45	0	317925..319739	-	604	26987006	-	PP_0264	-	sensor histidine kinase
262	 59.52	0	319782..320327	-	181	26987007	-	PP_0265	-	dTDP-4-dehydrorhamnose 3,5-epimerase
263	 63.32	0	320605..321711	+	368	26987008	-	PP_0266	-	agmatine deiminase
264	 62.46	0	322169..324238	-	689	26987009	-	PP_0267	-	TonB-dependent siderophore receptor
265	 60.00	0	324713..326032	+	439	26987010	oprQ	PP_0268	-	outer membrane porin
266	 62.89	0	326063..327730	-	555	26987011	-	PP_0269	-	glutamate synthase, large subunit, putative
267	 65.35	0	327880..329247	-	455	26987012	-	PP_0270	-	integral membrane sensor signal transduction histidine kinase
268	 64.17	0	329249..329968	-	239	26987013	gltR-1	PP_0271	-	winged helix family two component transcriptional regulator
269	 63.53	0	330109..332406	+	765	26987014	-	PP_0272	-	TonB-dependent siderophore receptor
270	 61.03	0	332472..332684	-	70	26987015	-	PP_0273	-	hypothetical protein
271	 55.56	-1	333189..333728	+	179	26987016	-	PP_0274	-	helix-turn-helix domain-containing protein
272	 54.17	-1	334148..334363	+	71	26987017	-	PP_0275	-	hypothetical protein
273	 52.78	-2	334360..334683	-	107	26987018	-	PP_0276	-	Cro/CI family transcriptional regulator
274	 67.87	+1	335145..335393	-	82	26987019	-	PP_0277	-	hypothetical protein
275	 58.23	0	335914..336150	+	78	26987020	-	PP_0278	-	hypothetical protein
276	 66.42	+1	336543..337748	-	401	26987021	-	PP_0279	-	hypothetical protein
277	 62.75	0	337877..338566	-	229	26987022	-	PP_0280	-	polar amino acid ABC transporter inner membrane subunit
278	 62.19	0	338566..339258	-	230	26987023	-	PP_0281	-	polar amino acid ABC transporter inner membrane subunit
279	 55.51	-1	339313..340065	-	250	26987024	-	PP_0282	-	amino acid ABC transporter, periplasmic amino acid-binding protein
280	 61.24	0	340077..340850	-	257	26987025	-	PP_0283	-	amino acid ABC transporter ATP-binding protein
281	 63.13	0	341482..342867	+	461	26987026	-	PP_0284	-	GABA permease
282	 58.61	0	344264..344536	-	90	26987027	-	PP_0285	-	hypothetical protein
283	 66.76	+1	344533..345600	-	355	26987028	mutY	PP_0286	-	A/G-specific adenine glycosylase
284	 63.77	0	345597..347843	-	748	26987029	-	PP_0287	-	AsmA family protein
285	 63.48	0	348112..349773	+	553	26987030	-	PP_0288	-	major facilitator superfamily MFS_1
286	 58.29	0	349953..350585	+	210	26987031	hisB	PP_0289	-	imidazoleglycerol-phosphate dehydratase
287	 62.91	0	350586..351224	+	212	26987032	hisH	PP_0290	-	imidazole glycerol phosphate synthase subunit HisH
288	 59.77	0	351225..351485	+	86	26987033	-	PP_0291	-	hypothetical protein
289	 63.28	0	351513..352250	+	245	26987034	hisA	PP_0292	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
290	 63.68	0	352261..353031	+	256	26987035	hisF	PP_0293	-	imidazole glycerol phosphate synthase subunit HisF
291	 61.32	0	353149..354327	-	392	26987036	-	PP_0294	-	glycine betaine/L-proline ABC transporter, ATP-binding subunit
292	 60.99	0	354324..355169	-	281	26987037	-	PP_0295	-	glycine betaine/L-proline ABC transporter, permease protein
293	 58.86	0	355254..356201	-	315	26987038	-	PP_0296	-	glycine betaine/L-proline ABC transporter, periplasmic binding protein
294	 63.47	0	356654..358030	+	458	26987039	sda-1	PP_0297	-	L-serine dehydratase, iron-sulfur-dependent, single chain form
295	 62.33	0	358532..359638	+	368	26987040	-	PP_0298	-	AraC family transcriptional regulator
296	 59.04	0	359758..360216	-	152	26987041	-	PP_0299	-	hypothetical protein
297	 49.15	-2	360348..361934	+	528	26987042	-	PP_0300	-	metallopeptidase, putative
298	 59.45	0	362034..362504	-	156	26987043	-	PP_0301	-	hypothetical protein
299	 63.56	0	362515..363480	-	321	26987044	-	PP_0302	-	3-hydroxybutyryl-CoA dehydrogenase
300	 65.76	0	363647..364531	-	294	26987045	-	PP_0303	-	hypothetical protein
301	 63.36	0	364655..365623	-	322	26987046	-	PP_0304	-	hypothetical protein
302	 61.35	0	365732..366691	+	319	26987047	-	PP_0305	-	AraC family transcriptional regulator
303	 56.52	-1	367386..368114	-	242	26987048	-	PP_0306	-	hypothetical protein
304	 59.03	0	368217..368648	-	143	26987049	-	PP_0307	-	hypothetical protein
305	 60.43	0	368919..369896	+	325	26987050	-	PP_0308	-	membrane dipeptidase
306	 58.95	0	369972..370502	+	176	26987051	-	PP_0309	-	hypothetical protein
307	 62.20	0	370518..372578	+	686	26987052	-	PP_0310	-	oxidoreductase, FMN-binding
308	 63.65	0	372757..374709	+	650	26987053	-	PP_0311	-	iron-sulfur cluster-binding protein
309	 66.67	+1	374955..375941	+	328	26987054	-	PP_0312	-	electron transfer flavoprotein, alpha subunit
61.83	MEAN

4.04	STD DEV
