IslandPath Analysis: Pseudomonas putida KT2440

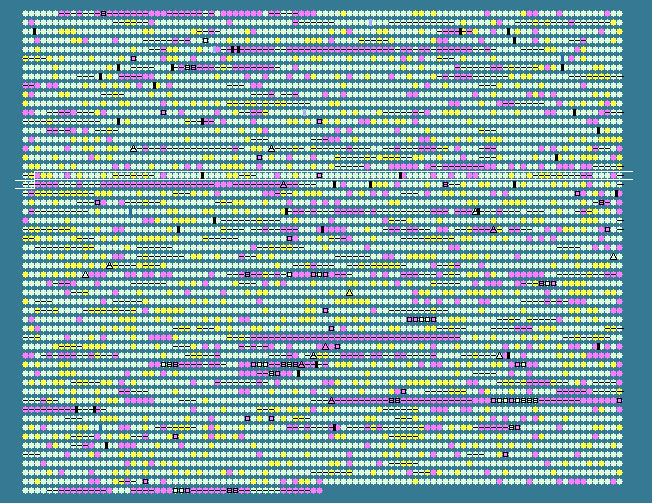

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1803	 54.17	-1	2043635..2044378	-	247	26988548	-	PP_1818	-	hypothetical protein
1804	 65.84	0	2044784..2046724	+	646	26988549	-	PP_1819	-	methyl-accepting chemotaxis sensory transducer
1805	 65.66	0	2046821..2048017	-	398	26988550	-	PP_1820	-	benzoate transporter
1806	 60.86	0	2048156..2048758	+	200	26988551	-	PP_1821	-	glutathione S-transferase family protein
1807	 65.05	0	2048897..2049268	-	123	26988552	-	PP_1822	-	glutaredoxin
1808	 58.12	0	2049328..2049900	-	190	26988553	folE	PP_1823	-	GTP cyclohydrolase I
1809	 64.35	0	2049944..2050504	-	186	26988554	-	PP_1824	-	Smr domain-containing protein
1810	 66.67	+1	2050679..2050999	-	106	26988555	-	PP_1825	-	hypothetical protein
1811	 61.25	0	2051085..2051675	-	196	26988556	-	PP_1826	-	isochorismatase superfamily hydrolase
1812	 64.80	0	2051857..2052765	+	302	26988557	-	PP_1827	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1813	 64.37	0	2052815..2053597	-	260	26988558	-	PP_1828	-	hypothetical protein
1814	 68.75	+1	2053663..2054622	-	319	26988559	-	PP_1829	-	alpha/beta fold family hydrolase
1815	 64.93	0	2054857..2055948	+	363	26988560	aroC	PP_1830	-	chorismate synthase
1816	 66.15	+1	2056091..2057245	+	384	26988561	-	PP_1831	-	major facilitator superfamily MFS_1
1817	 64.43	0	2057245..2057781	+	178	26988562	-	PP_1832	-	oxidase, putative
1818	 59.08	0	2057909..2058211	-	100	26988563	-	PP_1833	-	hypothetical protein
1819	 67.43	+1	2058448..2058972	+	174	26988564	-	PP_1834	-	ankyrin domain-containing protein
1820	 60.64	0	2059033..2059563	+	176	26988565	-	PP_1835	-	hypothetical protein
1821	 66.40	+1	2059687..2060439	-	250	26988566	-	PP_1836	-	hypothetical protein
1822	 59.38	0	2060752..2060943	+	63	26988567	-	PP_1837	-	hypothetical protein
1823	 62.44	0	2061083..2063140	+	685	26988568	-	PP_1838	-	hypothetical protein
1824	 58.02	0	2063191..2063583	+	130	26988569	-	PP_1839	-	hypothetical protein
1825	 61.86	0	2063761..2064093	+	110	26988570	-	PP_1840	-	hypothetical protein
1826	 64.67	0	2064194..2064994	-	266	26988571	-	PP_1841	-	cytochrome c family protein
1827	 60.82	0	2065524..2066258	+	244	26988572	-	PP_1842	-	amidotransferase
1828	 60.80	0	2066299..2067270	-	323	26988573	-	PP_1843	-	Mg2+/Co2+ transporter
1829	 62.89	0	2067339..2068052	-	237	26988574	plsC	PP_1844	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1830	 64.06	0	2068173..2068862	-	229	26988575	-	PP_1845	-	enoyl-CoA hydratase
1831	 60.20	0	2069624..2071045	+	473	26988576	-	PP_1846	-	group II intron-encoding maturase
1832	 63.93	0	2071272..2073461	-	729	26988577	-	PP_1847	-	TonB-dependent siderophore receptor
1833	 59.65	0	2073464..2073577	-	37	26988578	-	PP_1848	-	hypothetical protein
1834	 62.47	0	2073605..2073985	-	126	26988579	-	PP_1849	-	hypothetical protein
1835	 66.33	+1	2074188..2075375	-	395	26988580	-	PP_1850	-	major facilitator superfamily MFS_1
1836	 65.72	0	2075455..2076405	-	316	26988581	-	PP_1851	-	hypothetical protein
1837	 63.60	0	2076406..2077155	-	249	26988582	fabG	PP_1852	-	3-ketoacyl-(acyl-carrier-protein) reductase
1838	 65.39	0	2077274..2078212	+	312	26988583	-	PP_1853	-	LysR family transcriptional regulator
1839	 64.76	0	2078327..2078797	-	156	26988584	-	PP_1854	-	hypothetical protein
1840	 62.16	0	2078800..2079198	-	132	26988585	-	PP_1855	-	hypothetical protein
1841	 60.95	0	2079177..2079281	-	34	26988586	-	PP_1856	-	hypothetical protein
1842	 64.81	0	2079328..2080461	+	377	26988587	-	PP_1857	-	hypothetical protein
1843	 55.44	-1	2080510..2081079	+	189	26988588	efp	PP_1858	-	elongation factor P
1844	 63.64	0	2081194..2081622	-	142	26988589	ohr	PP_1859	-	OsmC family protein
1845	 61.84	0	2081763..2082218	-	151	26988590	-	PP_1860	-	MarR family transcriptional regulator
1846	 67.82	+1	2082277..2083230	-	317	26988591	-	PP_1861	-	LysR family transcriptional regulator
1847	 64.00	0	2083344..2084093	+	249	26988592	-	PP_1862	-	hypothetical protein
1848	 62.21	0	2084122..2084973	-	283	26988593	-	PP_1863	-	LysR family transcriptional regulator
1849	 59.48	0	2085136..2085288	+	50	26988594	-	PP_1864	-	hypothetical protein
1850	 57.45	-1	2085883..2087184	+	433	26988595	-	PP_1865	-	ISPpu8, transposase
1851	 62.81	0	2088102..2089448	-	448	26988596	-	PP_1866	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1852	 65.08	0	2089565..2090320	+	251	26988597	-	PP_1867	-	hypothetical protein
1853	 64.35	0	2090672..2092351	+	559	26988598	-	PP_1868	-	DEAD-box ATP dependent DNA helicase
1854	 65.03	0	2092442..2093236	-	264	26988599	-	PP_1869	-	hypothetical protein
1855	 62.67	0	2093311..2093961	+	216	26988600	tpm	PP_1870	-	thiopurine S-methyltransferase
1856	 62.73	0	2094059..2094946	-	295	26988601	htpX	PP_1871	-	heat shock protein HtpX
1857	 61.96	0	2095263..2096474	-	403	26988602	-	PP_1872	-	aminotransferase AlaT
1858	 63.38	0	2096642..2097037	+	131	26988603	-	PP_1873	-	methionine sulfoxide reductase B
1859	 61.55	0	2097051..2097539	+	162	26988604	-	PP_1874	-	glutathione peroxidase
1860	 64.04	0	2097529..2099886	-	785	26988605	-	PP_1875	-	histidine kinase
1861	 65.04	0	2099932..2100978	+	348	26988606	-	PP_1876	-	hypothetical protein
1862	 63.56	0	2100979..2101461	+	160	26988607	-	PP_1877	-	GAF domain-containing protein
1863	 60.29	0	2101537..2102304	-	255	26988608	-	PP_1878	-	hypothetical protein
1864	 58.35	0	2103366..2104880	-	504	26988609	-	PP_1879	-	hypothetical protein
1865	 64.30	0	2104921..2107113	-	730	26988610	-	PP_1880	-	outer membrane autotransporter
1866	 59.26	0	2107302..2109326	-	674	26988611	-	PP_1881	-	hypothetical protein
1867	 60.75	0	2109384..2114282	-	1632	26988612	-	PP_1882	-	hypothetical protein
1868	 59.12	0	2114376..2116283	+	635	26988613	-	PP_1883	-	hypothetical protein
1869	 57.50	-1	2116322..2118787	+	821	26988614	-	PP_1884	-	hypothetical protein
1870	 62.17	0	2118847..2121201	+	784	26988615	-	PP_1885	-	hypothetical protein
1871	 58.67	0	2121170..2124097	+	975	26988616	-	PP_1886	-	hypothetical protein
1872	 58.35	0	2124627..2128499	+	1290	26988617	-	PP_1887	-	hypothetical protein
1873	 60.00	0	2128549..2129643	-	364	26988618	-	PP_1888	-	fimbrial protein
1874	 62.90	0	2129700..2132195	-	831	26988619	fimD	PP_1889	-	fimbrial biogenesis outer membrane usher protein
1875	 54.62	-1	2132229..2133008	-	259	26988620	-	PP_1890	-	pili assembly chaperone
1876	 55.93	-1	2133062..2133601	-	179	26988621	fimI	PP_1891	-	type 1 pili subunit FimI
1877	 58.39	0	2133821..2134231	-	136	26988622	-	PP_1892	-	hypothetical protein
1878	 65.28	0	2134300..2136747	-	815	26988623	fadE	PP_1893	-	acyl-CoA dehydrogenase
1879	 63.94	0	2137138..2137761	+	207	26988624	-	PP_1894	-	glutathione S-transferase family protein
1880	 61.20	0	2137895..2138827	+	310	26988625	-	PP_1895	-	ABC transporter ATP-binding protein
1881	 60.77	0	2138824..2139603	+	259	26988626	-	PP_1896	-	ABC transporter
1882	 67.98	+1	2140262..2142475	+	737	26988627	-	PP_1897	-	DNA internalization-related competence protein ComEC/Rec2
1883	 61.33	0	2142547..2143221	+	224	26988628	-	PP_1898	-	MotA/TolQ/ExbB proton channel
1884	 64.83	0	2143218..2143652	+	144	26988629	-	PP_1899	-	biopolymer transport protein ExbD/TolR
1885	 66.67	+1	2143649..2144653	+	334	26988630	lpxK	PP_1900	-	tetraacyldisaccharide 4'-kinase
1886	 60.75	0	2144698..2144883	+	61	26988631	-	PP_1901	-	hypothetical protein
1887	 65.62	0	2144880..2145644	+	254	26988632	kdsB	PP_1902	-	3-deoxy-manno-octulosonate cytidylyltransferase
1888	 66.24	+1	2145644..2146108	+	154	26988633	-	PP_1903	-	protein tyrosine phosphatase
1889	 62.31	0	2146069..2147124	+	351	26988634	murB	PP_1904	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1890	 65.78	0	2147241..2150516	-	1091	26988635	rne	PP_1905	-	ribonuclease, Rne/Rng family
1891	 62.52	0	2152274..2152948	+	224	26988636	-	PP_1907	-	HAD superfamily hydrolase
1892	 61.82	0	2152955..2153944	+	329	26988637	-	PP_1908	-	signal peptide peptidase SppA, 36K type
1893	 61.95	0	2154154..2154768	-	204	26988638	maf	PP_1909	-	Maf-like protein
1894	 55.49	-1	2154829..2155356	+	175	26988639	-	PP_1910	-	hypothetical protein
1895	 56.83	-1	2155370..2155552	+	60	26988640	rpmF	PP_1911	-	50S ribosomal protein L32
1896	 63.20	0	2155556..2156566	+	336	26988641	plsX	PP_1912	-	putative glycerol-3-phosphate acyltransferase PlsX
1897	 65.18	0	2156694..2157632	+	312	26988642	fabD	PP_1913	-	malonyl CoA-acyl carrier protein transacylase
1898	 63.43	0	2157648..2158388	+	246	26988643	fabG	PP_1914	-	3-ketoacyl-(acyl-carrier-protein) reductase
1899	 52.74	-2	2158592..2158828	+	78	26988644	acpP	PP_1915	-	acyl carrier protein
1900	 64.42	0	2159016..2160260	+	414	26988645	fabF	PP_1916	-	3-oxoacyl-(acyl carrier protein) synthase II
1901	 63.73	0	2160260..2161075	+	271	26988646	pabC	PP_1917	-	4-amino-4-deoxychorismate lyase
1902	 63.82	0	2161050..2162315	+	421	26988647	-	PP_1918	-	aminodeoxychorismate lyase
61.83	MEAN

4.04	STD DEV
