IslandPath Analysis: Pseudomonas putida KT2440

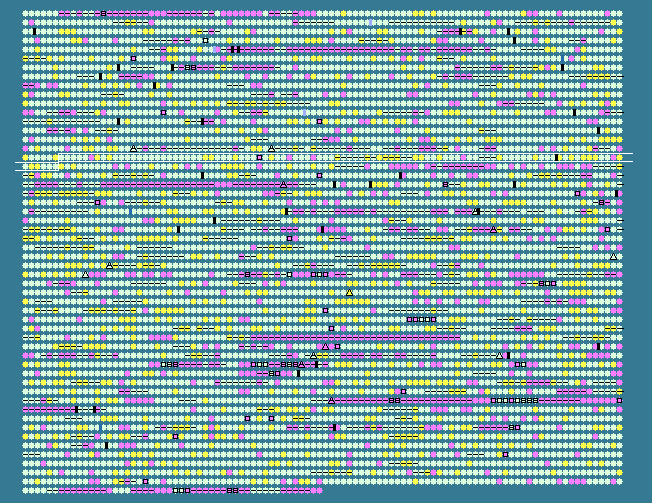

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1607	 64.53	0	1816125..1816874	+	249	26988352	surE	PP_1620	-	stationary phase survival protein SurE
1608	 64.80	0	1816853..1817548	+	231	26988353	pcm	PP_1621	-	protein-L-isoaspartate O-methyltransferase
1609	 61.60	0	1817855..1818643	+	262	26988354	nlpD	PP_1622	-	peptidase M23B
1610	 58.53	0	1818752..1819759	+	335	26988355	rpoS	PP_1623	-	RNA polymerase sigma factor RpoS
1611	 60.13	0	1820234..1821655	+	473	26988356	-	PP_1624	-	group II intron-encoding maturase
1612	 58.33	0	1822212..1822535	-	107	26988357	-	PP_1625	-	ferrodoxin, 4Fe-4S
1613	 65.42	0	1822676..1825249	-	857	26988358	mutS	PP_1626	-	DNA mismatch repair protein
1614	 62.00	0	1825410..1826501	+	363	26988359	-	PP_1627	-	hypothetical protein
1615	 65.63	0	1826557..1827039	+	160	26988360	-	PP_1628	-	CinA domain-containing protein
1616	 59.27	0	1827143..1828210	+	355	26988361	recA	PP_1629	-	recombinase A
1617	 62.63	0	1828232..1828702	+	156	26988362	recX	PP_1630	-	recombination regulator RecX
1618	 61.04	0	1828979..1830097	-	372	26988363	-	PP_1631	-	hypothetical protein
1619	 65.12	0	1830144..1830467	+	107	26988364	-	PP_1632	-	hypothetical protein
1620	 62.38	0	1830482..1830901	-	139	26988365	-	PP_1633	-	hypothetical protein
1621	 63.71	0	1831118..1831828	+	236	26988366	-	PP_1634	-	DTW domain containing protein
1622	 61.75	0	1832008..1832658	+	216	26988367	-	PP_1635	-	LuxR family two component transcriptional regulator
1623	 64.21	0	1832732..1833097	+	121	26988368	dgkA-1	PP_1636	-	diacylglycerol kinase
1624	 60.19	0	1833094..1834020	-	308	26988369	-	PP_1637	-	LysR family transcriptional regulator
1625	 60.77	0	1834138..1834917	+	259	26988370	fpr	PP_1638	-	oxidoreductase FAD/NAD(P)-binding domain protein
1626	 61.21	0	1835060..1835554	-	164	26988371	-	PP_1639	-	hypothetical protein
1627	 59.33	0	1835686..1836285	-	199	26988372	-	PP_1640	-	hypothetical protein
1628	 60.12	0	1836549..1837373	+	274	26988373	-	PP_1641	-	PP-loop domain protein
1629	 61.90	0	1837378..1838049	+	223	26988374	-	PP_1642	-	hypothetical protein
1630	 63.29	0	1838153..1838566	-	137	26988375	-	PP_1643	-	hypothetical protein
1631	 68.32	+1	1838559..1839164	-	201	26988376	wrbA	PP_1644	-	trp repressor binding protein
1632	 66.67	+1	1839161..1839514	-	117	26988377	arsC-1	PP_1645	-	arsenate reductase
1633	 62.37	0	1839600..1840064	+	154	26988378	-	PP_1646	-	alkyl hydroperoxide reductase/thiol specific antioxidant/ Mal allergen
1634	 63.66	0	1840100..1840531	-	143	26988379	-	PP_1647	-	hypothetical protein
1635	 63.24	0	1840501..1840938	-	145	26988380	-	PP_1648	-	hypothetical protein
1636	 65.89	+1	1840970..1841998	-	342	26988381	ldhA	PP_1649	-	D-lactate dehydrogenase
1637	 64.20	0	1842036..1844789	-	917	26988382	gacS	PP_1650	-	multi-sensor hybrid histidine kinase
1638	 62.15	0	1844884..1845702	+	272	26988383	-	PP_1651	-	winged helix family two component transcriptional regulator
1639	 65.07	0	1845706..1847082	+	458	26988384	-	PP_1652	-	sensor histidine kinase
1640	 57.56	-1	1847276..1848241	+	321	26988385	-	PP_1653	-	ISPpu10, transposase
1641	 62.56	0	1848556..1849455	+	299	26988386	cysM	PP_1654	-	cysteine synthase B
1642	 66.67	+1	1849456..1850814	+	452	26988387	rumA	PP_1655	-	23S rRNA 5-methyluridine methyltransferase
1643	 63.05	0	1850911..1853151	+	746	26988388	relA	PP_1656	-	(p)ppGpp synthetase I, SpoT/RelA
1644	 63.07	0	1853275..1854108	+	277	26988389	mazG	PP_1657	-	nucleoside triphosphate pyrophosphohydrolase
1645	 58.33	0	1854135..1854674	+	179	26988390	-	PP_1658	-	hypothetical protein
1646	 63.98	0	1854985..1856325	+	446	26988391	-	PP_1659	-	hypothetical protein
1647	 63.28	0	1856291..1856821	+	176	26988392	-	PP_1660	-	hypothetical protein
1648	 64.85	0	1856818..1859076	+	752	26988393	-	PP_1661	-	dehydrogenase subunit, putative
1649	 54.39	-1	1859177..1859404	-	75	26988394	-	PP_1662	-	hypothetical protein
1650	 62.31	0	1859560..1860270	-	236	26988395	-	PP_1663	-	hypothetical protein
1651	 64.37	0	1860279..1860932	-	217	26988396	purN	PP_1664	-	phosphoribosylglycinamide formyltransferase
1652	 64.97	0	1860932..1861990	-	352	26988397	purM	PP_1665	-	phosphoribosylaminoimidazole synthetase
1653	 67.13	+1	1862311..1863378	+	355	26988398	-	PP_1666	-	hypothetical protein
1654	 62.85	0	1863391..1864464	+	357	26988399	-	PP_1667	-	hypothetical protein
1655	 63.56	0	1864663..1865370	+	235	26988400	-	PP_1668	-	DNA replication initiation factor
1656	 61.24	0	1865492..1866136	+	214	26988401	-	PP_1669	-	NLP/P60 protein
1657	 62.55	0	1866279..1866812	+	177	26988402	-	PP_1670	-	NLP/P60 protein
1658	 70.83	+2	1866949..1867116	-	55	26988403	-	PP_1671	-	hypothetical protein
1659	 62.75	0	1867275..1867886	+	203	26988404	cobO	PP_1672	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1660	 67.98	+1	1867883..1869178	+	431	26988405	cobB	PP_1673	-	cobyrinic acid a,c-diamide synthase
1661	 66.21	+1	1869175..1869825	+	216	26988406	-	PP_1674	-	cob(II)yrinic acid a,c-diamide reductase
1662	 68.94	+1	1869807..1870730	+	307	26988407	cobD	PP_1675	-	cobalamin biosynthesis protein
1663	 68.88	+1	1870723..1871715	+	330	26988408	cobC	PP_1676	-	threonine-phosphate decarboxylase
1664	 64.05	0	1871712..1873166	+	484	26988409	cobQ	PP_1677	-	cobyric acid synthase
1665	 64.75	0	1873168..1873689	+	173	26988410	cobU	PP_1678	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
1666	 67.23	+1	1873686..1874741	+	351	26988411	cobT	PP_1679	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1667	 67.20	+1	1874738..1875304	+	188	26988412	-	PP_1680	-	alpha-ribazole-5'-phosphate phosphatase
1668	 64.68	0	1875273..1876028	+	251	26988413	cobS	PP_1681	-	cobalamin synthase
1669	 63.37	0	1876059..1877363	+	434	26988414	-	PP_1682	-	glycosy hydrolase family protein
1670	 66.17	+1	1877426..1877830	+	134	26988415	-	PP_1683	-	MarR family transcriptional regulator
1671	 63.72	0	1877875..1879095	+	406	26988416	-	PP_1684	-	major facilitator transporter
1672	 59.35	0	1879092..1879214	+	40	26988417	-	PP_1685	-	hypothetical protein
1673	 58.62	0	1879204..1879812	+	202	26988418	-	PP_1686	-	glutathione peroxidase
1674	 57.33	-1	1879948..1880247	-	99	26988419	-	PP_1687	-	hypothetical protein
1675	 62.69	0	1880323..1881252	+	309	26988420	-	PP_1688	-	LysR family transcriptional regulator
1676	 59.87	0	1881294..1882559	-	421	26988421	-	PP_1689	-	aromatic hydrocarbon degradation protein
1677	 62.73	0	1882707..1883189	-	160	26988422	-	PP_1690	-	hypothetical protein
1678	 60.44	0	1883439..1883663	-	74	26988423	-	PP_1691	-	hypothetical protein
1679	 65.02	0	1884609..1885034	+	141	26988424	-	PP_1692	-	Sel1 domain protein repeat-containing protein
1680	 65.64	0	1885106..1885300	-	64	26988425	-	PP_1693	-	hypothetical protein
1681	 63.98	0	1885331..1886818	+	495	26988426	-	PP_1694	-	hypothetical protein
1682	 64.86	0	1886790..1890269	-	1159	26988427	-	PP_1695	-	integral membrane sensor hybrid histidine kinase
1683	 63.95	0	1890396..1891574	-	392	26988428	-	PP_1696	-	major facilitator superfamily MFS_1
1684	 63.11	0	1891561..1892487	+	308	26988429	-	PP_1697	-	GntR family transcriptional regulator
1685	 62.27	0	1892582..1893856	+	424	26988430	-	PP_1698	-	major facilitator family transporter
1686	 65.36	0	1893872..1894714	+	280	26988431	-	PP_1699	-	amidohydrolase 2
1687	 62.29	0	1894764..1896749	+	661	26988432	-	PP_1700	-	phospholipid/glycerol acyltransferase
1688	 63.52	0	1896753..1897070	-	105	26988433	sugE	PP_1701	-	small multidrug resistance protein
1689	 61.89	0	1897288..1898208	-	306	26988434	rdgC	PP_1702	-	recombination associated protein
1690	 65.46	0	1899399..1903472	+	1357	26988435	-	PP_1703	-	molybdopterin oxidoreductase
1691	 62.70	0	1903494..1903619	+	41	26988436	-	PP_1704	-	hypothetical protein
1692	 65.88	+1	1903743..1906295	+	850	26988437	nirB	PP_1705	-	nitrite reductase (NAD(P)H), large subunit
1693	 65.29	0	1906295..1906657	+	120	26988438	nirD	PP_1706	-	nitrite reductase (NAD(P)H), small subunit
1694	 65.93	+1	1906785..1907735	-	316	26988439	-	PP_1707	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1695	 65.74	0	1907760..1908518	-	252	26988440	-	PP_1708	-	short chain dehydrogenase/reductase family oxidoreductase
1696	 66.67	+1	1908537..1909247	-	236	26988441	-	PP_1709	-	fumarylacetoacetate hydrolase family protein
1697	 64.21	0	1909468..1910808	-	446	26988442	-	PP_1710	-	major facilitator superfamily transporter phthalate permease
1698	 64.52	0	1911104..1912033	+	309	26988443	-	PP_1711	-	AraC family transcriptional regulator
1699	 57.59	-1	1912059..1913468	-	469	26988444	-	PP_1712	-	hypothetical protein
1700	 67.20	+1	1913631..1914563	+	310	26988445	pcaQ	PP_1713	-	LysR family transcriptional regulator
1701	 60.03	0	1914817..1915569	+	250	26988446	fklB-2	PP_1714	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
1702	 65.98	+1	1915858..1916295	+	145	26988447	-	PP_1715	-	hypothetical protein
1703	 65.78	0	1916410..1916748	+	112	26988448	-	PP_1716	-	Cro/CI family transcriptional regulator
1704	 64.50	0	1916745..1917113	+	122	26988449	-	PP_1717	-	hypothetical protein
1705	 62.02	0	1917139..1918278	-	379	26988450	-	PP_1718	-	diguanylate phosphodiesterase
1706	 60.99	0	1918339..1920453	-	704	26988451	prc	PP_1719	-	carboxyl-terminal protease
61.83	MEAN

4.04	STD DEV
