IslandPath Analysis: Pseudomonas putida KT2440

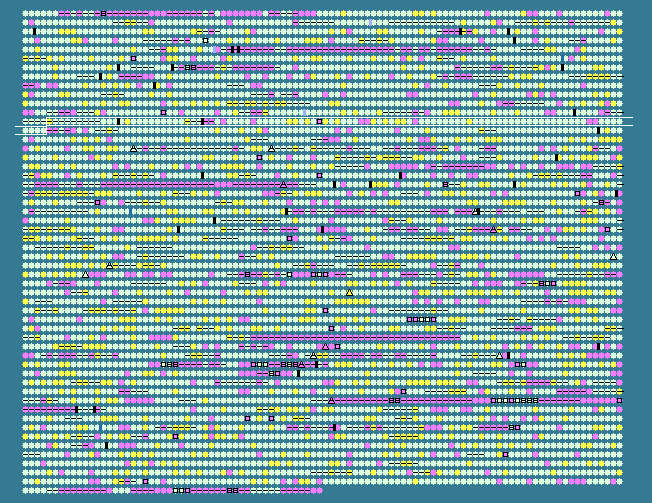

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 61.83 STD DEV: 4.04
Pseudomonas putida KT2440, complete genome - 1..6181863
5350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1205	 65.33	0	1393014..1393538	+	174	26987950	ruvC	PP_1215	-	Holliday junction resolvase
1206	 62.94	0	1393648..1394265	+	205	26987951	ruvA	PP_1216	-	Holliday junction DNA helicase motor protein
1207	 64.57	0	1394262..1395308	+	348	26987952	ruvB	PP_1217	-	Holliday junction DNA helicase B
1208	 60.49	0	1395434..1395886	+	150	26987953	-	PP_1218	-	hypothetical protein
1209	 62.79	0	1395889..1396584	+	231	26987954	tolQ	PP_1219	-	biopolymer transport protein TolQ
1210	 59.82	0	1396599..1397051	+	150	26987955	tolR	PP_1220	-	biopolymer transport protein TolR
1211	 60.59	0	1397051..1398169	+	372	26987956	tolA	PP_1221	-	biopolymer transport protein TolA
1212	 59.98	0	1398166..1399467	+	433	26987957	tolB	PP_1222	-	translocation protein TolB
1213	 59.28	0	1399522..1400022	+	166	26987958	oprL	PP_1223	-	peptidoglycan-associated lipoprotein OprL
1214	 60.97	0	1400029..1400835	+	268	26987959	-	PP_1224	-	hypothetical protein
1215	 59.88	0	1401004..1401651	+	215	26987960	-	PP_1225	-	radical SAM domain protein
1216	 63.41	0	1401669..1402343	+	224	26987961	exsB	PP_1226	-	exsB protein
1217	 61.67	0	1402573..1403532	-	319	26987962	-	PP_1227	-	cation efflux protein
1218	 65.65	0	1403613..1405679	-	688	26987963	-	PP_1228	-	methyl-accepting chemotaxis transducer
1219	 61.71	0	1405746..1407098	-	450	26987964	-	PP_1229	-	amino acid ABC transporter permease
1220	 62.29	0	1407546..1409054	+	502	26987965	-	PP_1230	-	hypothetical protein
1221	 62.80	0	1409329..1410387	+	352	26987966	nadA	PP_1231	-	quinolinate synthetase
1222	 63.19	0	1410496..1411932	-	478	26987967	-	PP_1232	-	hypothetical protein
1223	 62.08	0	1412055..1412294	+	79	26987968	-	PP_1233	-	SirA family protein
1224	 61.34	0	1412315..1413385	+	356	26987969	-	PP_1234	-	hypothetical protein
1225	 61.81	0	1413421..1413894	-	157	26987970	-	PP_1235	-	alkyl hydroperoxide reductase/thiol specific antioxidant/ Mal allergen
1226	 65.24	0	1413906..1414466	-	186	26987971	-	PP_1236	-	glycine cleavage system transcriptional repressor, putative
1227	 61.26	0	1414726..1415613	+	295	26987972	dapA	PP_1237	-	dihydrodipicolinate synthase
1228	 65.51	0	1415629..1416750	+	373	26987973	-	PP_1238	-	putative lipoprotein
1229	 63.24	0	1416751..1417509	+	252	26987974	-	PP_1239	-	beta-lactamase domain protein
1230	 59.49	0	1417540..1418250	+	236	26987975	purC	PP_1240	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1231	 50.14	-2	1418530..1418880	-	116	26987976	-	PP_1241	-	hypothetical protein
1232	 57.04	-1	1419237..1419371	-	44	26987977	-	PP_1242	-	hypothetical protein
1233	 63.16	0	1419478..1419648	+	56	26987978	-	PP_1243	-	hypothetical protein
1234	 57.65	-1	1419645..1420010	-	121	26987979	-	PP_1244	-	hypothetical protein
1235	 63.08	0	1420519..1421409	+	296	26987980	-	PP_1245	-	hypothetical protein
1236	 64.73	0	1421418..1423277	+	619	26987981	-	PP_1246	-	hypothetical protein
1237	 61.07	0	1423207..1424670	-	487	26987982	-	PP_1247	-	hypothetical protein
1238	 61.85	0	1424597..1425364	-	255	26987983	-	PP_1248	-	amino acid transporter LysE
1239	 55.21	-1	1425405..1425596	+	63	26987984	-	PP_1249	-	hypothetical protein
1240	 60.13	0	1426101..1427522	+	473	26987985	-	PP_1250	-	group II intron-encoding maturase
1241	 61.11	0	1427844..1429481	+	545	161378137	mqo-2	PP_1251	-	malate:quinone oxidoreductase
1242	 60.06	0	1429961..1431382	+	473	26987987	-	PP_1252	-	group II intron-encoding maturase
1243	 60.42	0	1431534..1431869	-	111	26987988	-	PP_1253	-	ArsR family transcriptional regulator
1244	 65.20	0	1431919..1433010	+	363	26987989	xenA	PP_1254	-	xenobiotic reductase A
1245	 65.71	0	1433134..1434381	-	415	26987990	-	PP_1255	-	FAD dependent oxidoreductase
1246	 67.36	+1	1434384..1435961	-	525	26987991	-	PP_1256	-	ketoglutarate semialdehyde dehydrogenase
1247	 65.08	0	1436114..1437061	-	315	26987992	-	PP_1257	-	dihydrodipicolinate synthase family protein
1248	 66.56	+1	1437104..1438030	-	308	26987993	-	PP_1258	-	proline racemase
1249	 64.25	0	1438054..1439667	-	537	26987994	-	PP_1259	-	amino acid ABC transporter permease
1250	 55.38	-1	1440326..1441654	+	442	26987995	-	PP_1260	-	ISPpu9, transposase
1251	 65.44	0	1442086..1443060	-	324	26987996	-	PP_1261	-	2-hydroxyacid dehydrogenase
1252	 61.39	0	1443236..1444183	-	315	26987997	-	PP_1262	-	LysR family transcriptional regulator
1253	 65.56	0	1444375..1445904	+	509	26987998	-	PP_1263	-	RND efflux system, outer membrane lipoprotein, NodT family
1254	 65.29	0	1445901..1448078	+	725	26987999	-	PP_1264	-	fusaric acid resistance protein region
1255	 62.19	0	1448068..1448268	+	66	26988000	-	PP_1265	-	hypothetical protein
1256	 60.98	0	1448279..1449139	+	286	26988001	-	PP_1266	-	secretion protein HlyD family protein
1257	 54.49	-1	1449212..1449679	-	155	26988002	-	PP_1267	-	hypothetical protein
1258	 56.92	-1	1449676..1450065	-	129	26988003	-	PP_1268	-	putative regulator PrlF
1259	 65.77	0	1450095..1450541	-	148	26988004	-	PP_1269	-	universal stress protein
1260	 63.69	0	1450815..1451720	+	301	26988005	-	PP_1270	-	LysR family transcriptional regulator
1261	 66.28	+1	1451837..1453378	+	513	26988006	-	PP_1271	-	major facilitator transporter
1262	 65.04	0	1453365..1454468	+	367	26988007	-	PP_1272	-	secretion protein HlyD family protein
1263	 65.84	0	1454465..1455919	+	484	26988008	-	PP_1273	-	RND efflux system, outer membrane lipoprotein, NodT family
1264	 67.16	+1	1456168..1456980	-	270	26988009	-	PP_1274	-	short chain dehydrogenase
1265	 64.95	0	1457012..1457476	-	154	26988010	-	PP_1275	-	hypothetical protein
1266	 55.12	-1	1457640..1458098	+	152	26988011	-	PP_1276	-	hypothetical protein
1267	 61.66	0	1458138..1459595	-	485	26988012	algA	PP_1277	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1268	 63.27	0	1459628..1460275	-	215	26988013	algF	PP_1278	-	alginate O-acetyltransferase
1269	 63.50	0	1460296..1461462	-	388	26988014	algJ	PP_1279	-	alginate O-acetylation protein AlgJ
1270	 61.52	0	1461465..1462922	-	485	26988015	algI	PP_1280	-	alginate O-acetylation protein AlgI
1271	 63.71	0	1463064..1464179	-	371	26988016	algL	PP_1281	-	poly(beta-D-mannuronate) lyase
1272	 63.40	0	1464176..1465615	-	479	26988017	algX	PP_1282	-	alginate biosynthesis protein AlgX
1273	 61.83	0	1465629..1467302	-	557	26988018	-	PP_1283	-	carbohydrate-binding and sugar hydrolysis
1274	 65.04	0	1467211..1468689	-	492	26988019	algE	PP_1284	-	outer membrane protein AlgE
1275	 65.70	0	1468686..1470140	-	484	26988020	algK	PP_1285	-	Sel1 domain protein repeat-containing protein
1276	 64.35	0	1470130..1471296	-	388	26988021	-	PP_1286	-	type IV pilus assembly PilZ
1277	 61.44	0	1471334..1472824	-	496	26988022	-	PP_1287	-	alginate biosynthesis protein Alg8
1278	 62.26	0	1472902..1474218	-	438	26988023	algD	PP_1288	-	GDP-mannose 6-dehydrogenase
1279	 61.41	0	1475019..1475798	-	259	26988024	-	PP_1289	-	hypothetical protein
1280	 62.97	0	1475819..1477063	+	414	26988025	-	PP_1290	-	polysaccharide deacetylase
1281	 61.29	0	1477345..1478739	+	464	26988026	-	PP_1291	-	PhoH family protein
1282	 63.91	0	1478935..1479405	+	156	26988027	moaC	PP_1292	-	molybdenum cofactor biosynthesis protein C
1283	 61.04	0	1479402..1479650	+	82	26988028	moaD	PP_1293	-	molybdopterin converting factor, subunit 1
1284	 63.31	0	1479653..1480099	+	148	26988029	moaE	PP_1294	-	molybdopterin biosynthesis MoaE protein
1285	 63.55	0	1480293..1481735	-	480	161378136	rhlB	PP_1295	-	ATP-dependent RNA helicase RhlB
1286	 61.49	0	1481836..1482492	-	218	26988031	estB	PP_1296	-	carboxylesterase
1287	 62.29	0	1482825..1483853	+	342	26988032	aapJ	PP_1297	-	general amino acid ABC transporter, periplasmic binding protein
1288	 60.22	0	1483921..1485099	+	392	26988033	aapQ	PP_1298	-	polar amino acid ABC transporter inner membrane subunit
1289	 62.39	0	1485110..1486207	+	365	26988034	aapM	PP_1299	-	polar amino acid ABC transporter inner membrane subunit
1290	 61.57	0	1486218..1486982	+	254	26988035	aapP	PP_1300	-	general amino acid ABC transporter, ATP-binding protein
1291	 62.86	0	1487112..1488320	-	402	26988036	algW	PP_1301	-	2-alkenal reductase
1292	 62.71	0	1488441..1489199	+	252	26988037	-	PP_1302	-	hypothetical protein
1293	 59.80	0	1489402..1490319	+	305	26988038	cysD	PP_1303	-	sulfate adenylyltransferase subunit 2
1294	 63.09	0	1490336..1492237	+	633	26988039	cysNC	PP_1304	-	bifunctional sulfate adenylyltransferase subunit 1/adenylylsulfate kinase protein
1295	 41.29	-2	1492332..1492595	-	87	26988040	-	PP_1305	-	Pyocin S-type immunity protein, putative
1296	 55.03	-1	1492592..1494868	-	758	26988041	-	PP_1306	-	pyocin S-type Killer domain-containing protein
1297	 59.17	0	1494963..1495442	-	159	26988042	-	PP_1307	-	AsnC family transcriptional regulator
1298	 61.65	0	1495570..1496766	+	398	26988043	mdeA	PP_1308	-	methionine gamma-lyase
1299	 61.19	0	1496838..1497275	-	145	26988044	-	PP_1309	-	hypothetical protein
1300	 64.94	0	1497411..1498046	+	211	26988045	-	PP_1310	-	hypothetical protein
1301	 64.30	0	1498072..1499421	+	449	26988046	-	PP_1311	-	tryptophanyl-tRNA synthetase
1302	 59.91	0	1499583..1500677	+	364	26988047	-	PP_1312	-	AFG1-family ATPase
1303	 60.91	0	1500784..1501704	-	306	26988048	-	PP_1313	-	AraC family transcriptional regulator
1304	 64.36	0	1501895..1502935	-	346	26988049	-	PP_1314	-	aldo/keto reductase family oxidoreductase
61.83	MEAN

4.04	STD DEV
