IslandPathversion 1.0

IslandPath Analysis: Pseudomonas entomophila L48

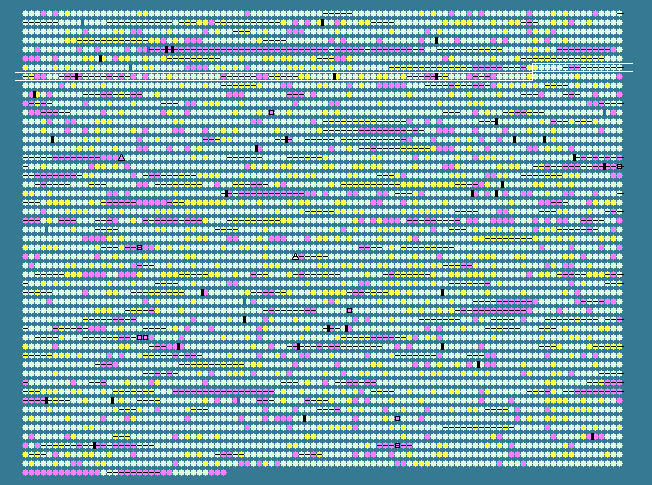

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
686	 68.24	0	796443..797588	-	381	104780002	lldD	PSEEN0767	-	L-lactate dehydrogenase
687	 65.23	0	797652..799322	-	556	104780003	lldP	PSEEN0768	-	L-lactate permease
688	 66.41	0	799660..800427	+	255	104780004	-	PSEEN0769	-	GntR family transcriptional regulator
689	 62.94	0	800592..801074	-	160	104780005	smpB	PSEEN0770	-	SsrA-binding protein
690	 62.99	0	801236..801670	+	144	104780006	-	PSEEN0771	-	hypothetical protein
691	 66.99	0	801663..801971	+	102	104780007	-	PSEEN0772	-	hypothetical protein
692	 58.86	-1	802041..802565	-	174	104780008	omlA	PSEEN0773	-	outer membrane lipoprotein OmlA
693	 57.53	-1	802663..803067	+	134	104780009	fur	PSEEN0775	-	transcriptional repressor for ferric uptake
694	 66.01	0	803240..804913	-	557	104780010	recN	PSEEN0776	-	DNA repair protein RecN
695	 64.14	0	805095..805649	+	184	104780011	grpE	PSEEN0777	-	heat shock protein GrpE
696	 61.68	0	805751..807676	+	641	104780012	dnaK	PSEEN0778	-	molecular chaperone DnaK
697	 65.96	0	807889..809016	+	375	104780013	dnaJ	PSEEN0779	-	chaperone protein DnaJ
698	 66.42	0	809030..809833	+	267	104780014	dapB	PSEEN0780	-	dihydrodipicolinate reductase
699	 64.73	0	810183..811319	+	378	104780015	carA	PSEEN0781	-	carbamoyl phosphate synthase small subunit
700	 62.45	0	811426..814647	+	1073	104780016	carB	PSEEN0782	-	carbamoyl phosphate synthase large subunit
701	 60.87	0	814644..815126	+	160	104780017	greA	PSEEN0783	-	transcription elongation factor GreA
702	 67.80	0	815104..815544	+	146	104780018	-	PSEEN0784	-	hypothetical protein
703	 56.96	-1	815684..815992	-	102	104780019	-	PSEEN0785	-	hypothetical protein
704	 60.61	0	816095..816721	+	208	104780020	ftsJ	PSEEN0786	-	23S rRNA U2552 ribose 2'-O-methyltransferase, SAM-dependent
705	 61.48	0	816925..818832	+	635	104780021	ftsH	PSEEN0787	-	ATP-dependent metalloprotease FtsH
706	 63.97	0	818841..819692	+	283	104780022	folP	PSEEN0788	-	dihydropteroate synthase
707	 62.49	0	819709..821049	+	446	104780023	glmM	PSEEN0789	-	phosphoglucosamine mutase
708	 56.75	-1	821116..821871	+	251	104780024	tpiA	PSEEN0790	-	triosephosphate isomerase
709	 50.38	-2	821876..822268	+	130	104780025	secG	PSEEN0792	-	preprotein translocase subunit SecG
710	 56.47	-1	822631..823140	+	169	104780026	-	PSEEN0793	-	hypothetical protein
711	 61.40	0	823201..824682	+	493	104780027	nusA	PSEEN0794	-	transcription elongation factor NusA
712	 63.53	0	824710..827262	+	850	104780028	infB	PSEEN0795	-	translation initiation factor IF-2
713	 63.66	0	827379..827777	+	132	104780029	rbfA	PSEEN0796	-	ribosome-binding factor A
714	 64.38	0	827781..828698	+	305	104780030	truB	PSEEN0797	-	tRNA pseudouridine 55 synthase
715	 58.15	-1	828847..829116	+	89	104780031	rpsO	PSEEN0798	-	30S ribosomal protein S15
716	 62.49	0	829365..831470	+	701	104780032	pnp	PSEEN0799	-	polynucleotide phosphorylase/polyadenylase
717	 59.54	-1	831847..832197	+	116	104780033	-	PSEEN0800	-	hypothetical protein
718	 65.22	0	832282..833799	-	505	104780034	-	PSEEN0801	-	xanthine/uracil permease
719	 58.54	-1	834061..834429	-	122	104780035	-	PSEEN0802	-	hypothetical protein
720	 64.88	0	834598..836664	+	688	104780036	cstA	PSEEN0803	-	carbon starvation protein CstA
721	 59.60	-1	836678..836875	+	65	104780037	-	PSEEN0804	-	hypothetical protein
722	 62.99	0	836955..837932	+	325	104780038	-	PSEEN0805	-	cobalamin synthesis protein/P47K family protein
723	 63.08	0	838204..839457	-	417	104780039	glyA	PSEEN0806	-	serine hydroxymethyltransferase
724	 65.41	0	839768..843598	-	1276	104780040	-	PSEEN0807	-	sensory box protein
725	 69.19	+1	843852..844247	+	131	104780041	-	PSEEN0809	-	hypothetical protein
726	 63.67	0	844505..846172	+	555	104780042	-	PSEEN0810	-	putative ABC transporter ATP-binding protein
727	 63.70	0	846453..847802	+	449	104780043	gdhA	PSEEN0812	-	glutamate dehydrogenase
728	 64.26	0	847938..848435	-	165	104780044	-	PSEEN0813	-	transcription elongation factor
729	 63.87	0	848505..848861	-	118	104780045	-	PSEEN0814	-	lipoprotein
730	 66.18	0	849000..850853	-	617	104780046	-	PSEEN0815	-	hypothetical protein
731	 65.03	0	850932..851420	-	162	104780047	-	PSEEN0816	-	hypothetical protein
732	 64.74	0	851676..854114	+	812	104780048	-	PSEEN0817	-	ATP-dependent protease
733	 63.72	0	854277..854615	+	112	104780049	-	PSEEN0818	-	hypothetical protein
734	 58.08	-1	854788..855276	+	162	104780050	-	PSEEN0819	-	hypothetical protein
735	 62.42	0	855435..855740	+	101	104780051	-	PSEEN0820	-	hypothetical protein
736	 66.02	0	855827..856444	+	205	104780052	fklB	PSEEN0821	-	FKBP-type 22KD peptidyl-prolyl cis-trans isomerase (rotamase)
737	 61.79	0	856520..856765	-	81	104780053	-	PSEEN0822	-	hypothetical protein
738	 60.82	0	856914..857255	-	113	104780054	phnA	PSEEN0823	-	alkylphosphonate utilization operon protein PhnA
739	 67.18	0	857422..858390	-	322	104780055	ispB	PSEEN0824	-	octaprenyl-diphosphate synthase
740	 55.24	-1	858636..858950	+	104	104780056	rplU	PSEEN0825	-	50S ribosomal protein L21
741	 55.43	-1	858988..859245	+	85	104780057	rpmA	PSEEN0826	-	50S ribosomal protein L27
742	 65.36	0	859430..860653	+	407	104780058	obgE	PSEEN0828	-	GTPase ObgE
743	 68.01	0	860741..861859	+	372	104780059	proB	PSEEN0829	-	gamma-glutamyl kinase
744	 62.44	0	861904..862329	+	141	104780060	-	PSEEN0830	-	hypothetical protein
745	 65.68	0	862444..865275	-	943	104780061	-	PSEEN0831	-	hypothetical protein
746	 64.97	0	865272..865979	-	235	104780062	-	PSEEN0832	-	hypothetical protein
747	 68.22	0	865969..867258	-	429	104780063	-	PSEEN0833	-	hypothetical protein
748	 70.57	+1	867542..868336	+	264	104780064	-	PSEEN0834	-	hypothetical protein
749	 61.62	0	868333..868788	+	151	104780065	-	PSEEN0835	-	ribosomal-protein-alanine acetyltransferase RimI
750	 64.35	0	868876..870039	-	387	104780066	-	PSEEN0836	-	hypothetical protein
751	 67.55	0	870631..871536	-	301	104780067	-	PSEEN0838	-	LysR family transcriptional regulator
752	 65.21	0	871719..872336	+	205	104780068	-	PSEEN0839	-	amino acid transporter LysE
753	 67.63	0	872576..873508	-	310	104780069	-	PSEEN0840	-	FecR-like transmembrane sensor
754	 64.44	0	873700..874914	+	404	104780070	fsr	PSEEN0841	-	major facilitator superfamily fosmidomycin/multidrug transport protein
755	 66.06	0	875396..876556	+	386	104780071	-	PSEEN0842	-	major facilitator family transporter
756	 65.23	0	876694..877320	+	208	104780072	-	PSEEN0843	-	DNA-3-methyladenine glycosylase
757	 68.84	+1	877568..878626	+	352	104780073	ada	PSEEN0845	-	O6-methylguanine-DNA methyltransferase
758	 67.29	0	878681..881083	+	800	104780074	-	PSEEN0846	-	ion mechanosensitive channel
759	 65.93	0	881141..882358	-	405	104780075	-	PSEEN0847	-	hypothetical protein
760	 69.46	+1	882532..883962	-	476	104780076	-	PSEEN0848	-	betaine-aldehyde dehydrogenase
761	 67.87	0	883976..885475	-	499	104780077	-	PSEEN0849	-	NCS1 nucleoside transporter
762	 66.41	0	885563..885952	-	129	104780078	-	PSEEN0850	-	hypothetical protein
763	 64.41	0	886288..886908	+	206	104780079	-	PSEEN0851	-	isochorismatase superfamily hydrolase
764	 68.39	0	886933..888093	-	386	104780080	-	PSEEN0852	-	major facilitator transporter
765	 60.82	0	888300..888590	-	96	104780081	-	PSEEN0853	-	hypothetical protein
766	 62.13	0	888759..889859	-	366	104780082	-	PSEEN0854	-	translation-associated GTPase
767	 63.93	0	889882..890466	-	194	104780083	pth	PSEEN0855	-	peptidyl-tRNA hydrolase
768	 58.96	-1	890546..891142	-	198	104780084	rplY	PSEEN0856	-	50S ribosomal protein L25/general stress protein Ctc
769	 59.89	0	891266..892195	-	309	104780085	prs	PSEEN0857	-	ribose-phosphate pyrophosphokinase
770	 61.32	0	892348..893208	-	286	104780086	ipk	PSEEN0858	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
771	 69.42	+1	893213..893830	-	205	104780087	lolB	PSEEN0859	-	outer membrane lipoprotein LolB
772	 67.07	0	893834..895558	-	574	104780088	-	PSEEN0860	-	hypothetical protein
773	 63.20	0	896182..896700	+	172	104780089	-	PSEEN0861	-	hemolysin co-regulated protein 1A
774	 67.33	0	896912..899932	+	1006	104780090	-	PSEEN0862	-	hypothetical protein
775	 58.57	-1	899929..904668	+	1579	104780091	-	PSEEN0863	-	hypothetical protein
776	 45.96	-2	904670..905152	+	160	104780092	-	PSEEN0864	-	hypothetical protein
777	 66.67	0	905281..905367	+	28	104780093	-	PSEEN0866	-	hypothetical protein
778	 45.36	-2	905584..905766	+	60	104780094	-	PSEEN0867	-	hypothetical protein
779	 43.92	-2	906585..907160	+	191	104780095	-	PSEEN0870	-	hypothetical protein
780	 62.38	0	908011..908919	+	302	104780096	-	PSEEN0871	-	hypothetical protein
781	 61.11	0	909624..909893	-	89	104780097	-	PSEEN0872	-	hypothetical protein
782	 62.14	0	910016..910258	-	80	104780098	-	PSEEN0873	-	hypothetical protein
783	 66.98	0	910801..912078	+	425	104780099	hemA	PSEEN0875	-	glutamyl-tRNA reductase
784	 66.02	0	912075..913157	+	360	104780100	prfA	PSEEN0876	-	peptide chain release factor 1
785	 69.68	+1	913158..913988	+	276	104780101	hemK	PSEEN0877	-	methylase of polypeptide chain release factors
64.12	MEAN

4.52	STD DEV
