IslandPath Analysis: Pseudomonas entomophila L48

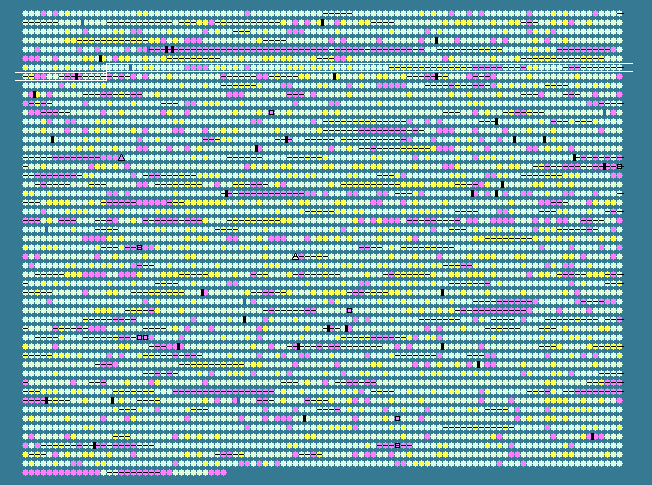

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
615	 62.44	0	691099..691761	-	220	104779931	-	PSEEN0679	-	TetR/AcrR family transcriptional regulator
616	 64.71	0	691851..692768	-	305	104779932	-	PSEEN0680	-	LysR family transcriptional regulator
617	 64.37	0	692888..694234	+	448	104779933	-	PSEEN0681	-	beta alanine--pyruvate transaminase
618	 61.85	0	694306..695799	+	497	104779934	mmsA-1	PSEEN0682	-	methylmalonate-semialdehyde dehydrogenase
619	 65.40	0	701844..705326	+	1160	104779935	recC	PSEEN0691	-	exonuclease V, gamma subunit
620	 66.53	0	705323..708994	+	1223	104779936	recB	PSEEN0692	-	exonuclease V, beta subunit
621	 69.03	+1	708991..711066	+	691	104779937	recD	PSEEN0693	-	exonuclease V, alpha subunit
622	 68.06	0	711136..711711	+	191	104779938	-	PSEEN0695	-	hypothetical protein
623	 67.54	0	711708..712970	+	420	104779939	-	PSEEN0696	-	hypothetical protein
624	 64.87	0	712974..713474	+	166	104779940	-	PSEEN0697	-	outer membrane lipoprotein
625	 63.41	0	713582..714532	-	316	104779941	-	PSEEN0698	-	LysR family transcriptional regulator
626	 65.55	0	714666..716192	+	508	104779942	mmsA-2	PSEEN0699	-	methylmalonate-semialdehyde dehydrogenase, oxidoreductase protein
627	 66.89	0	716203..717093	+	296	104779943	mmsB	PSEEN0700	-	3-hydroxyisobutyrate dehydrogenase
628	 58.09	-1	717458..722215	+	1585	104779944	-	PSEEN0701	-	hypothetical protein
629	 56.39	-1	722257..726819	+	1520	104779945	-	PSEEN0702	-	insecticidal toxin complex protein
630	 49.46	-2	726944..727495	+	183	104779946	-	PSEEN0703	-	hypothetical protein
631	 60.00	0	727726..728070	-	114	104779947	-	PSEEN0704	-	hypothetical protein
632	 64.42	0	728300..729232	-	310	104779948	-	PSEEN0705	-	phosphatidate cytidylyltransferase
633	 69.23	+1	729234..729857	-	207	104779949	-	PSEEN0706	-	acyltransferase
634	 70.24	+1	729868..730287	-	139	104779950	-	PSEEN0707	-	hypothetical protein
635	 64.12	0	730284..731618	-	444	104779951	-	PSEEN0708	-	tyrosine phosphatase
636	 68.03	0	731618..733372	-	584	104779952	-	PSEEN0709	-	lysophospholipase
637	 66.01	0	733404..734009	-	201	104779953	-	PSEEN0710	-	CDP-alcohol phosphatidyltransferase
638	 56.20	-1	734086..734343	-	85	104779954	-	PSEEN0711	-	hypothetical protein
639	 65.20	0	734463..734870	+	135	104779955	-	PSEEN0712	-	hypothetical protein
640	 61.90	0	734911..735225	-	104	104779956	-	PSEEN0713	-	hypothetical protein
641	 61.90	0	735427..736014	+	195	104779957	mdaB	PSEEN0714	-	nitroreductase or quinone reductase
642	 64.55	0	736203..737099	+	298	104779958	-	PSEEN0715	-	LysR family transcriptional regulator
643	 65.11	0	737219..738886	+	555	104779959	ggt	PSEEN0716	-	gamma-glutamyltranspeptidase
644	 66.98	0	738977..740896	-	639	104779960	-	PSEEN0717	-	methyl-accepting chemotaxis transducer
645	 68.32	0	741179..742510	+	443	104779961	-	PSEEN0718	-	DEAD-box ATP dependent DNA helicase
646	 68.39	0	742580..743854	-	424	104779962	-	PSEEN0719	-	hypothetical protein
647	 67.65	0	743971..744885	-	304	104779963	-	PSEEN0720	-	hydrolase; histone deacetylase family protein
648	 67.12	0	744980..745417	+	145	104779964	-	PSEEN0721	-	hypothetical protein
649	 67.98	0	745424..746110	-	228	104779965	-	PSEEN0722	-	hypothetical protein
650	 70.00	+1	746294..746863	+	189	104779966	-	PSEEN0723	-	acetyltransferase
651	 66.09	0	747171..748040	+	289	104779967	tesB	PSEEN0725	-	acyl-CoA thioesterase II
652	 69.20	+1	748037..748627	+	196	104779968	-	PSEEN0726	-	HAD superfamily hydrolase
653	 67.56	0	748793..749803	+	336	104779969	-	PSEEN0727	-	oxidoreductase, zinc-binding alcohol dehydrogenase
654	 63.09	0	749976..750869	-	297	104779970	-	PSEEN0728	-	acetyltransferase
655	 70.54	+1	750954..751625	-	223	104779971	-	PSEEN0729	-	GntR family transcriptional regulator
656	 66.59	0	751915..753243	+	442	104779972	-	PSEEN0730	-	major facilitator transporter
657	 67.26	0	753258..754613	+	451	104779973	gudD	PSEEN0731	-	D-glucarate dehydratase
658	 67.30	0	754793..755890	-	365	104779974	-	PSEEN0732	-	acetyltransferase
659	 61.31	0	755983..757569	+	528	104779975	-	PSEEN0734	-	ribosomal protein S6 modification protein-related protein
660	 64.01	0	757582..758598	+	338	104779976	-	PSEEN0735	-	magnesium/cobalt transporter CorA family protein
661	 65.23	0	758951..760345	+	464	104779977	gabP-3	PSEEN0737	-	amino acid permease
662	 68.31	0	760593..761384	+	263	104779978	-	PSEEN0738	-	hypothetical protein
663	 71.15	+1	761381..762697	+	438	104779979	-	PSEEN0739	-	hypothetical protein
664	 69.62	+1	762694..764790	+	698	104779980	-	PSEEN0740	-	zinc metallopeptidase M50 family
665	 69.41	+1	764881..765681	+	266	104779981	-	PSEEN0741	-	hypothetical protein
666	 66.67	0	765678..766718	+	346	104779982	-	PSEEN0742	-	hypothetical protein
667	 68.08	0	766828..767322	+	164	104779983	-	PSEEN0743	-	acetyltransferase
668	 66.67	0	767362..767643	+	93	104779984	-	PSEEN0744	-	hypothetical protein
669	 64.97	0	767719..768309	+	196	104779985	-	PSEEN0745	-	phage tail Collar
670	 68.11	0	768535..775833	+	2432	104779986	-	PSEEN0746	-	hypothetical protein
671	 67.47	0	775896..777392	+	498	104779987	-	PSEEN0747	-	efflux outer membrane protein
672	 67.95	0	777541..778008	-	155	104779988	cycC-2	PSEEN0748	-	adenosine 5'-phosphosulfate kinase
673	 68.47	0	778126..779067	-	313	104779989	-	PSEEN0749	-	hypothetical protein
674	 68.84	+1	779117..779989	-	290	104779990	-	PSEEN0750	-	LysR family transcriptional regulator
675	 66.80	0	780191..781732	+	513	104779991	-	PSEEN0751	-	major facilitator transporter
676	 52.96	-2	782281..783798	+	505	104779992	-	PSEEN0753	-	adenine specific DNA methylase
677	 50.76	-2	783801..786440	+	879	104779993	-	PSEEN0754	-	hypothetical protein
678	 54.89	-2	786604..787605	+	333	104779994	-	PSEEN0755	-	hypothetical protein
679	 42.76	-2	788128..789432	+	434	104779995	-	PSEEN0757	-	hypothetical protein
680	 49.14	-2	789573..790331	-	252	104779996	-	PSEEN0759	-	hypothetical protein
681	 66.67	0	791852..792130	-	92	104779997	-	PSEEN0762	-	hypothetical protein
682	 61.19	0	792511..792711	-	66	104779998	-	PSEEN0763	-	hypothetical protein
683	 62.92	0	792744..792983	-	79	104779999	-	PSEEN0764	-	hypothetical protein
684	 57.38	-1	792959..793195	+	78	104780000	-	PSEEN0765	-	hypothetical protein
685	 68.05	0	793561..796371	-	936	104780001	-	PSEEN0766	-	D-lactate deshydrogenase
686	 68.24	0	796443..797588	-	381	104780002	lldD	PSEEN0767	-	L-lactate dehydrogenase
687	 65.23	0	797652..799322	-	556	104780003	lldP	PSEEN0768	-	L-lactate permease
688	 66.41	0	799660..800427	+	255	104780004	-	PSEEN0769	-	GntR family transcriptional regulator
689	 62.94	0	800592..801074	-	160	104780005	smpB	PSEEN0770	-	SsrA-binding protein
690	 62.99	0	801236..801670	+	144	104780006	-	PSEEN0771	-	hypothetical protein
691	 66.99	0	801663..801971	+	102	104780007	-	PSEEN0772	-	hypothetical protein
692	 58.86	-1	802041..802565	-	174	104780008	omlA	PSEEN0773	-	outer membrane lipoprotein OmlA
693	 57.53	-1	802663..803067	+	134	104780009	fur	PSEEN0775	-	transcriptional repressor for ferric uptake
694	 66.01	0	803240..804913	-	557	104780010	recN	PSEEN0776	-	DNA repair protein RecN
695	 64.14	0	805095..805649	+	184	104780011	grpE	PSEEN0777	-	heat shock protein GrpE
696	 61.68	0	805751..807676	+	641	104780012	dnaK	PSEEN0778	-	molecular chaperone DnaK
697	 65.96	0	807889..809016	+	375	104780013	dnaJ	PSEEN0779	-	chaperone protein DnaJ
698	 66.42	0	809030..809833	+	267	104780014	dapB	PSEEN0780	-	dihydrodipicolinate reductase
699	 64.73	0	810183..811319	+	378	104780015	carA	PSEEN0781	-	carbamoyl phosphate synthase small subunit
700	 62.45	0	811426..814647	+	1073	104780016	carB	PSEEN0782	-	carbamoyl phosphate synthase large subunit
701	 60.87	0	814644..815126	+	160	104780017	greA	PSEEN0783	-	transcription elongation factor GreA
702	 67.80	0	815104..815544	+	146	104780018	-	PSEEN0784	-	hypothetical protein
703	 56.96	-1	815684..815992	-	102	104780019	-	PSEEN0785	-	hypothetical protein
704	 60.61	0	816095..816721	+	208	104780020	ftsJ	PSEEN0786	-	23S rRNA U2552 ribose 2'-O-methyltransferase, SAM-dependent
705	 61.48	0	816925..818832	+	635	104780021	ftsH	PSEEN0787	-	ATP-dependent metalloprotease FtsH
706	 63.97	0	818841..819692	+	283	104780022	folP	PSEEN0788	-	dihydropteroate synthase
707	 62.49	0	819709..821049	+	446	104780023	glmM	PSEEN0789	-	phosphoglucosamine mutase
708	 56.75	-1	821116..821871	+	251	104780024	tpiA	PSEEN0790	-	triosephosphate isomerase
709	 50.38	-2	821876..822268	+	130	104780025	secG	PSEEN0792	-	preprotein translocase subunit SecG
710	 56.47	-1	822631..823140	+	169	104780026	-	PSEEN0793	-	hypothetical protein
711	 61.40	0	823201..824682	+	493	104780027	nusA	PSEEN0794	-	transcription elongation factor NusA
712	 63.53	0	824710..827262	+	850	104780028	infB	PSEEN0795	-	translation initiation factor IF-2
713	 63.66	0	827379..827777	+	132	104780029	rbfA	PSEEN0796	-	ribosome-binding factor A
714	 64.38	0	827781..828698	+	305	104780030	truB	PSEEN0797	-	tRNA pseudouridine 55 synthase
64.12	MEAN

4.52	STD DEV
