IslandPath Analysis: Pseudomonas entomophila L48

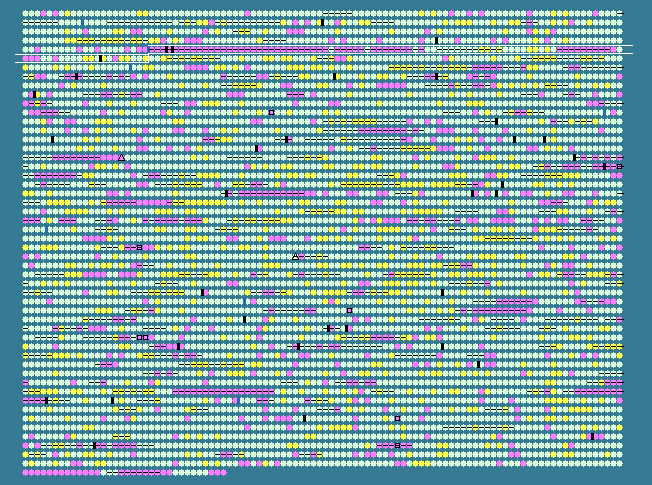

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
422	 58.75	-1	495434..496393	+	319	104779738	-	PSEEN0471	-	biotin--protein ligase
423	 60.00	0	496383..497132	+	249	104779739	-	PSEEN0472	-	pantothenate kinase
424	 56.10	-1	497140..497565	+	141	104779740	-	PSEEN0473	-	hypothetical protein
425	 57.12	-1	498083..499276	+	397	104779741	tufB	PSEEN0475	-	elongation factor Tu
426	 56.10	-1	499451..499819	+	122	104779742	secE	PSEEN0476	-	preprotein translocase subunit SecE
427	 55.99	-1	499829..500362	+	177	104779743	nusG	PSEEN0477	-	transcription antitermination protein NusG
428	 58.33	-1	500482..500913	+	143	104779744	rplK	PSEEN0478	-	50S ribosomal protein L11
429	 57.18	-1	500913..501608	+	231	104779745	rplA	PSEEN0479	-	50S ribosomal protein L1
430	 57.49	-1	501808..502308	+	166	104779746	rplJ	PSEEN0480	-	50S ribosomal protein L10
431	 53.12	-2	502387..502755	+	122	104779747	rplL	PSEEN0481	-	50S ribosomal protein L7/L12
432	 59.70	0	502974..507047	+	1357	104779748	rpoB	PSEEN0482	-	DNA-directed RNA polymerase subunit beta
433	 60.31	0	507112..511311	+	1399	104779749	rpoC	PSEEN0483	-	DNA-directed RNA polymerase subunit beta'
434	 58.06	-1	511523..511894	+	123	104779750	rpsL	PSEEN0484	-	30S ribosomal protein S12
435	 58.17	-1	512001..512471	+	156	104779751	rpsG	PSEEN0485	-	30S ribosomal protein S7
436	 57.91	-1	512502..514649	+	715	104779752	fusA-1	PSEEN0486	-	elongation factor G
437	 57.37	-1	514677..515870	+	397	104779753	tufA	PSEEN0487	-	elongation factor Tu
438	 53.21	-2	516012..516323	+	103	104779754	rpsJ	PSEEN0489	-	30S ribosomal protein S10
439	 58.02	-1	516404..517039	+	211	104779755	rplC	PSEEN0490	-	50S ribosomal protein L3
440	 58.04	-1	517052..517654	+	200	104779756	rplD	PSEEN0491	-	50S ribosomal protein L4
441	 50.33	-2	517651..517950	+	99	104779757	rplW	PSEEN0492	-	50S ribosomal protein L23
442	 58.79	-1	517965..518789	+	274	104779758	rplB	PSEEN0493	-	50S ribosomal protein L2
443	 56.16	-1	518806..519081	+	91	104779759	rpsS	PSEEN0494	-	30S ribosomal protein S19
444	 57.66	-1	519093..519425	+	110	104779760	rplV	PSEEN0495	-	50S ribosomal protein L22
445	 56.19	-1	519439..520125	+	228	104779761	rpsC	PSEEN0496	-	30S ribosomal protein S3
446	 57.97	-1	520138..520551	+	137	104779762	rplP	PSEEN0497	-	50S ribosomal protein L16
447	 53.33	-2	520548..520742	+	64	104779763	rpmC	PSEEN0498	-	50S ribosomal protein L29
448	 54.68	-2	520745..521011	+	88	104779764	rpsQ	PSEEN0499	-	30S ribosomal protein S17
449	 56.64	-1	521035..521403	+	122	104779765	rplN	PSEEN0500	-	50S ribosomal protein L14
450	 52.70	-2	521415..521729	+	104	104779766	rplX	PSEEN0501	-	50S ribosomal protein L24
451	 56.48	-1	521750..522289	+	179	104779767	rplE	PSEEN0502	-	50S ribosomal protein L5
452	 61.11	0	522303..522608	+	101	104779768	rpsN	PSEEN0503	-	30S ribosomal protein S14
453	 57.25	-1	522818..523210	+	130	104779769	rpsH	PSEEN0504	-	30S ribosomal protein S8
454	 58.80	-1	523223..523756	+	177	104779770	rplF	PSEEN0505	-	50S ribosomal protein L6
455	 59.26	-1	523767..524117	+	116	104779771	rplR	PSEEN0506	-	50S ribosomal protein L18
456	 58.08	-1	524121..524621	+	166	104779772	rpsE	PSEEN0507	-	30S ribosomal protein S5
457	 54.24	-2	524624..524800	+	58	104779773	rpmD	PSEEN0508	-	50S ribosomal protein L30
458	 60.69	0	524804..525238	+	144	104779774	rplO	PSEEN0509	-	50S ribosomal protein L15
459	 57.58	-1	525239..526570	+	443	104779775	secY	PSEEN0510	-	preprotein translocase subunit SecY
460	 55.56	-1	526601..526717	+	38	104779776	rpmJ	PSEENCDS526601D	-	50S ribosomal protein L36
461	 55.74	-1	526849..527205	+	118	104779777	rpsM	PSEEN0511	-	30S ribosomal protein S13
462	 57.95	-1	527224..527613	+	129	104779778	rpsK	PSEEN0512	-	30S ribosomal protein S11
463	 56.68	-1	527629..528249	+	206	104779779	rpsD	PSEEN0513	-	30S ribosomal protein S4
464	 58.28	-1	528272..529273	+	333	104779780	rpoA	PSEEN0514	-	DNA-directed RNA polymerase subunit alpha
465	 59.95	0	529316..529702	+	128	104779781	rplQ	PSEEN0515	-	50S ribosomal protein L17
466	 61.67	0	529875..531314	+	479	104779782	katA	PSEEN0517	-	catalase (hydroperoxidase II)KatA
467	 58.92	-1	531477..531941	+	154	104779783	bfrA	PSEEN0518	-	bacterioferritin
468	 64.59	0	532095..534929	-	944	104779784	uvrA	PSEEN0519	-	excinuclease ABC subunit A
469	 64.01	0	535059..536453	+	464	104779785	-	PSEEN0520	-	major facilitator transporter
470	 63.72	0	536463..537005	+	180	104779786	ssb	PSEEN0521	-	single-strand DNA-binding protein
471	 66.47	0	537545..539101	+	518	104779787	-	PSEEN0522	-	hypothetical protein
472	 63.67	0	539135..539635	+	166	104779788	-	PSEEN0523	-	hypothetical protein
473	 62.25	0	539663..541135	+	490	104779789	-	PSEEN0524	-	hypothetical protein
474	 62.59	0	541145..541561	+	138	104779790	-	PSEEN0525	-	hypothetical protein
475	 66.22	0	541647..543434	+	595	104779791	-	PSEEN0526	-	hypothetical protein
476	 66.57	0	543398..544405	+	335	104779792	-	PSEEN0527	-	hypothetical protein
477	 69.38	+1	544418..547036	+	872	104779793	-	PSEEN0528	-	ClpA/B-type protease
478	 68.84	+1	547047..548567	+	506	104779794	-	PSEEN0529	-	sigma-54 dependent transcriptional regulator
479	 63.12	0	548651..548791	+	46	104779795	-	PSEEN0530	-	hypothetical protein
480	 68.70	+1	548810..549991	+	393	104779796	-	PSEEN0531	-	hypothetical protein
481	 67.46	0	549997..550503	+	168	104779797	-	PSEEN0532	-	hypothetical protein
482	 64.94	0	550500..551831	+	443	104779798	-	PSEEN0533	-	hypothetical protein
483	 66.67	0	551834..552703	+	289	104779799	-	PSEEN0534	-	hypothetical protein
484	 67.15	0	552718..556245	+	1175	104779800	-	PSEEN0535	-	hypothetical protein
485	 69.55	+1	556245..556973	+	242	104779801	stp1	PSEEN0536	-	Serine/threonine phosphoprotein phosphatase Stp1
486	 70.25	+1	556970..558028	+	352	104779802	stk1	PSEEN0537	-	Serine-threonine kinase Stk1
487	 62.04	0	558507..559025	+	172	104779803	-	PSEEN0539	-	hemolysin co-regulated protein 1B
488	 68.22	0	559133..562153	+	1006	104779804	-	PSEEN0540	-	hypothetical protein
489	 61.11	0	562150..566832	+	1560	104779805	-	PSEEN0541	-	hypothetical protein
490	 44.01	-2	566835..567218	+	127	104779806	-	PSEEN0542	-	hypothetical protein
491	 48.11	-2	567371..567952	+	193	104779807	-	PSEEN0543	-	hypothetical protein
492	 44.54	-2	568256..568594	+	112	104779808	-	PSEEN0544	-	hypothetical protein
493	 52.17	-2	569056..569538	+	160	104779809	-	PSEEN0545	-	hypothetical protein
494	 53.62	-2	569657..570001	+	114	104779810	-	PSEEN0546	-	hypothetical protein
495	 48.72	-2	570527..570955	+	142	104779811	-	PSEEN0548	-	hypothetical protein
496	 46.93	-2	571206..571580	+	124	104779812	-	PSEEN0550	-	hypothetical protein
497	 44.81	-2	571669..571938	+	89	104779813	-	PSEEN0551	-	hypothetical protein
498	 56.33	-1	571974..572747	+	257	104779814	-	PSEEN0552	-	hypothetical protein
499	 60.54	0	572753..573274	+	173	104779815	-	PSEEN0553	-	hypothetical protein
500	 61.31	0	573328..573663	+	111	104779816	-	PSEEN0554	-	hypothetical protein
501	 57.01	-1	573783..574103	+	106	104779817	-	PSEEN0556	-	hypothetical protein
502	 56.94	-1	574109..574540	+	143	104779818	-	PSEEN0557	-	hypothetical protein
503	 56.51	-1	574573..575025	+	150	104779819	-	PSEEN0558	-	hypothetical protein
504	 63.07	0	575114..575752	+	212	104779820	-	PSEEN0559	-	hypothetical protein
505	 62.88	0	575865..576128	+	87	104779821	-	PSEEN0560	-	hypothetical protein
506	 51.17	-2	576248..576460	-	70	104779822	-	PSEEN0562	-	hypothetical protein
507	 64.81	0	576748..577338	+	196	104779823	fdoG	PSEEN0563	-	formate dehydrogenase-O, major subunit
508	 65.21	0	577351..579816	+	821	104779824	fdnG	PSEEN0564	-	formate dehydrogenase-N major subunit, anaerobic; selenopeptide
509	 66.14	0	579816..580766	+	316	104779825	fdnH	PSEEN0565	-	formate dehydrogenase-O, Fe-S subunit
510	 62.40	0	580763..581419	+	218	104779826	fdnI	PSEEN0566	-	formate dehydrogenase-O, cytochrome B556 (FDO) subunit
511	 67.64	0	581424..582350	+	308	104779827	fdhE	PSEEN0567	-	formate dehydrogenase formation protein
512	 69.05	+1	582496..583923	+	475	104779828	selA	PSEEN0568	-	selenocysteine synthase
513	 67.29	0	583920..585842	+	640	104779829	selB	PSEEN0569	-	selenocysteinyl-tRNA-specific translation factor
514	 68.18	0	586063..587052	-	329	104779830	-	PSEEN0570	-	L-asparaginase, type I
515	 64.52	0	587213..588655	-	480	104779831	-	PSEEN0571	-	Sodium/alanine symporter
516	 60.64	0	588836..589648	+	270	104779832	-	PSEEN0572	-	Cro/CI family transcriptional regulator
517	 68.70	+1	589751..590587	-	278	104779833	-	PSEEN0573	-	hypothetical protein
518	 67.91	0	590758..591642	+	294	104779834	-	PSEEN0574	-	dTDP-4-rhamnose reductase-related protein
519	 66.56	0	591635..592567	+	310	104779835	-	PSEEN0575	-	NAD-dependent epimerase/dehydratase family protein
520	 62.59	0	592661..593101	-	146	104779836	-	PSEEN0576	-	hypothetical protein
521	 68.16	0	593203..594411	+	402	104779837	-	PSEEN0577	-	major facilitator transporter
64.12	MEAN

4.52	STD DEV
