IslandPathversion 1.0

IslandPath Analysis: Pseudomonas entomophila L48

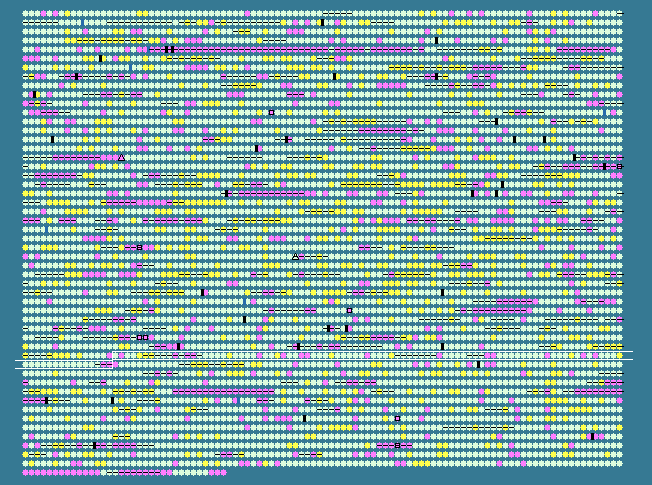

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3816	 62.20	0	4441918..4442655	+	245	104783132	-	PSEEN4157	-	phage protein
3817	 54.63	-2	4442745..4443176	-	143	104783133	-	PSEEN4158	-	phage protein
3818	 62.88	0	4443180..4445876	-	898	104783134	-	PSEEN4159	-	phage variable tail fibre protein
3819	 66.67	0	4445869..4446480	-	203	104783135	gpI	PSEEN4160	-	pyocin R2_PP, tail formation protein GpI
3820	 69.39	+1	4446482..4447363	-	293	104783136	gpJ	PSEEN4161	-	pyocin R2_PP, baseplate/tail fiber protein
3821	 70.95	+1	4447360..4447686	-	108	104783137	gpW	PSEEN4162	-	pyocin R2_PP, baseplate protein
3822	 69.35	+1	4447769..4448326	-	185	104783138	gpV	PSEEN4163	-	pyocin R2_PP
3823	 67.27	0	4448323..4448820	-	165	104783139	-	PSEEN4164	-	phage protein
3824	 60.87	0	4448940..4449284	-	114	104783140	-	PSEEN4165	-	hypothetical protein
3825	 61.12	0	4449292..4450590	-	432	104783141	-	PSEEN4166	-	phage protein
3826	 59.32	-1	4450798..4451178	-	126	104783142	-	PSEEN4167	-	phage tail fiber assembly protein
3827	 60.85	0	4451191..4452411	-	406	104783143	-	PSEEN4168	-	phage protein
3828	 58.46	-1	4452408..4452602	-	64	104783144	-	PSEEN4169	-	phage protein
3829	 57.03	-1	4452586..4452969	-	127	104783145	-	PSEEN4170	-	phage protein
3830	 64.30	0	4452969..4456946	-	1325	104783146	-	PSEEN4171	-	phage protein
3831	 66.67	0	4457005..4457193	-	62	104783147	-	PSEEN4172	-	hypothetical protein
3832	 66.07	0	4457207..4457539	-	110	104783148	-	PSEEN4173	-	hypothetical protein
3833	 63.79	0	4457539..4458546	-	335	104783149	-	PSEEN4174	-	hypothetical protein
3834	 66.83	0	4458569..4459180	-	203	104783150	-	PSEEN4175	-	phage tail protein
3835	 69.80	+1	4459247..4460011	-	254	104783151	-	PSEEN4176	-	phage protein; peptidase
3836	 66.13	0	4460015..4460764	-	249	104783152	-	PSEEN4177	-	phage tail protein
3837	 67.27	0	4460783..4461115	-	110	104783153	-	PSEEN4178	-	prophage LambdaSo, minor tail protein M
3838	 65.01	0	4461131..4462396	-	421	104783154	-	PSEEN4179	-	phage protein
3839	 66.67	0	4462463..4462717	-	84	104783155	-	PSEEN4180	-	phage protein
3840	 58.97	-1	4462747..4463097	-	116	104783156	-	PSEEN4181	-	hypothetical protein
3841	 65.24	0	4463112..4463603	-	163	104783157	-	PSEEN4182	-	phage major tail protein
3842	 66.67	0	4463689..4463871	-	60	104783158	-	PSEEN4183	-	phage protein
3843	 68.64	+1	4463886..4464239	-	117	104783159	-	PSEEN4184	-	pyocin R2_PP, holin
3844	 43.48	-2	4464500..4464637	-	45	104783160	-	PSEEN4185	-	hypothetical protein
3845	 61.71	0	4464707..4465453	-	248	104783161	-	PSEEN4186	-	transcriptional regulator
3846	 66.71	0	4465629..4468202	+	857	104783162	mutS	PSEEN4187	-	DNA mismatch repair protein
3847	 58.95	-1	4468342..4468665	+	107	104783163	fdxA	PSEEN4188	-	ferredoxin
3848	 60.22	0	4469138..4470145	-	335	104783164	rpoS	PSEEN4189	-	RNA polymerase sigma factor RpoS
3849	 61.83	0	4470251..4471036	-	261	104783165	-	PSEEN4190	-	peptidase M23B
3850	 65.63	0	4471286..4471963	-	225	104783166	pcm	PSEEN4191	-	protein-L-isoaspartate O-methyltransferase
3851	 66.13	0	4471963..4472712	-	249	104783167	surE	PSEEN4192	-	stationary phase survival protein SurE
3852	 68.46	0	4472700..4473758	-	352	104783168	truD	PSEEN4193	-	tRNA pseudouridine synthase D
3853	 63.71	0	4473755..4474228	-	157	104783169	ispF	PSEEN4194	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
3854	 65.49	0	4474383..4475231	-	282	104783170	-	PSEEN4195	-	esterase
3855	 64.69	0	4475242..4476354	-	370	104783171	adhC-2	PSEEN4196	-	alcohol dehydrogenase class III
3856	 65.89	0	4476463..4477365	+	300	104783172	-	PSEEN4197	-	LysR family transcriptional regulator
3857	 66.38	0	4477466..4478173	-	235	104783173	ispD	PSEEN4198	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
3858	 57.80	-1	4478170..4478451	-	93	104783174	ftsB	PSEEN4199	-	cell division protein FtsB-like
3859	 63.33	0	4478610..4479899	-	429	104783175	eno	PSEEN4200	-	phosphopyruvate hydratase
3860	 63.48	0	4480052..4480897	-	281	104783176	kdsA	PSEEN4201	-	2-dehydro-3-deoxyphosphooctonate aldolase
3861	 63.04	0	4480901..4482529	-	542	104783177	pyrG	PSEEN4202	-	CTP synthetase
3862	 68.67	+1	4482799..4484094	-	431	104783178	-	PSEEN4203	-	cell cycle protein MesJ
3863	 62.55	0	4484196..4485143	-	315	104783179	accA	PSEEN4204	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
3864	 63.21	0	4485249..4488773	-	1174	104783180	dnaE	PSEEN4205	-	DNA polymerase III subunit alpha
3865	 65.22	0	4488928..4489551	-	207	104783181	rnhB	PSEEN4206	-	ribonuclease HII
3866	 65.07	0	4489553..4490680	-	375	104783182	lpxB	PSEEN4207	-	lipid-A-disaccharide synthase
3867	 61.90	0	4490682..4491458	-	258	104783183	lpxA	PSEEN4208	-	UDP-N-acetylglucosamine acyltransferase
3868	 61.45	0	4491455..4491895	-	146	104783184	fabZ	PSEEN4209	-	(3R)-hydroxymyristoyl-ACP dehydratase
3869	 62.50	0	4492010..4493065	-	351	104783185	lpxD	PSEEN4210	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
3870	 60.52	0	4493067..4493570	-	167	104783186	-	PSEEN4211	-	outer membrane protein OmpH-like
3871	 61.21	0	4493615..4495978	-	787	104783187	-	PSEEN4212	-	surface antigen family outer membrane protein
3872	 63.34	0	4496054..4497406	-	450	104783188	-	PSEEN4213	-	membrane-associated Zn-dependent proteases 1
3873	 67.33	0	4497450..4498664	-	404	104783189	dxr	PSEEN4214	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
3874	 65.81	0	4498637..4499452	-	271	104783190	cdsA	PSEEN4215	-	phosphatidate cytidylyltransferase
3875	 64.95	0	4499452..4500207	-	251	104783191	uppS	PSEEN4216	-	undecaprenyl diphosphate synthase
3876	 62.54	0	4500223..4500780	-	185	104783192	frr	PSEEN4217	-	ribosome recycling factor
3877	 61.29	0	4500777..4501520	-	247	104783193	pyrH	PSEEN4218	-	uridylate kinase
3878	 58.68	-1	4501702..4502565	-	287	104783194	tsf	PSEEN4219	-	elongation factor Ts
3879	 58.67	-1	4502753..4503490	-	245	104783195	rpsB	PSEEN4220	-	30S ribosomal protein S2
3880	 61.43	0	4503838..4504620	+	260	104783196	map	PSEEN4221	-	methionine aminopeptidase
3881	 64.37	0	4504647..4507349	+	900	104783197	glnD	PSEEN4222	-	PII uridylyl-transferase
3882	 66.58	0	4507371..4508564	+	397	104783198	-	PSEEN4223	-	hypothetical protein
3883	 62.20	0	4508639..4509400	+	253	104783199	-	PSEEN4224	-	hypothetical protein
3884	 65.94	0	4509393..4511039	-	548	104783200	-	PSEEN4225	-	sodium/hydrogen antiporter
3885	 60.92	0	4511309..4511656	+	115	104783201	-	PSEEN4226	-	hypothetical protein
3886	 66.57	0	4511700..4512734	+	344	104783202	-	PSEEN4227	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase DapD
3887	 63.68	0	4512814..4514019	+	401	104783203	csdA	PSEEN4228	-	cysteine sulfinate desulfinase
3888	 60.34	0	4514016..4514426	+	136	104783204	-	PSEEN4229	-	hypothetical protein
3889	 66.05	0	4514514..4515323	-	269	104783205	-	PSEEN4230	-	hypothetical protein
3890	 63.70	0	4515566..4518157	+	863	104783206	-	PSEEN4231	-	glycosyl transferase
3891	 66.93	0	4518353..4519504	+	383	104783207	dapE	PSEEN4232	-	succinyl-diaminopimelate desuccinylase
3892	 68.02	0	4519504..4520316	+	270	104783208	-	PSEEN4233	-	23S rRNA m1G745 methyltransferase RrmA
3893	 61.11	0	4520335..4520712	+	125	104783209	-	PSEEN4234	-	hypothetical protein
3894	 59.52	-1	4520789..4520998	-	69	104783210	-	PSEEN4235	-	cold shock protein CspE-like
3895	 64.74	0	4521228..4523714	+	828	104783211	plsB	PSEEN4236	-	glycerol-3-phosphate acyltransferase
3896	 58.51	-1	4523884..4524594	+	236	104783212	-	PSEEN4237	-	hypothetical protein
3897	 64.41	0	4524684..4525082	+	132	104783213	-	PSEEN4238	-	lipoprotein
3898	 63.76	0	4525115..4525801	+	228	104783214	-	PSEEN4239	-	hypothetical protein
3899	 64.38	0	4525971..4529036	-	1021	104783215	-	PSEEN4240	-	Acr-type multidrug efflux transporter
3900	 68.31	0	4529043..4530140	-	365	104783216	-	PSEEN4241	-	multidrug RND transporter, membrane fusion protein
3901	 64.02	0	4530311..4530952	+	213	104783217	-	PSEEN4243	-	TetR family transcriptional regulator
3902	 64.68	0	4531885..4533594	-	569	104783218	recJ	PSEEN4244	-	ss DNA specific exonuclease RecJ
3903	 64.09	0	4533625..4534167	-	180	104783219	-	PSEEN4245	-	hypothetical protein
3904	 65.50	0	4534494..4535693	+	399	104783220	-	PSEEN4246	-	CAIB/BAIF family protein
3905	 63.00	0	4535706..4536578	+	290	104783221	-	PSEEN4247	-	hypothetical protein
3906	 61.70	0	4536714..4536995	-	93	104783222	-	PSEEN4248	-	hypothetical protein
3907	 64.72	0	4537104..4537514	-	136	104783223	-	PSEEN4249	-	hypothetical protein
3908	 64.68	0	4537669..4539078	-	469	104783224	thrC	PSEEN4251	-	threonine synthase
3909	 64.23	0	4539130..4540482	-	450	104783225	hom	PSEEN4252	-	homoserine dehydrogenase
3910	 66.80	0	4540517..4541278	-	253	104783226	dsbC	PSEEN4253	-	Thiol:disulfide interchange protein DsbC
3911	 66.56	0	4541432..4542328	-	298	104783227	xerD	PSEEN4254	-	site-specific tyrosine recombinase XerD
3912	 66.61	0	4542397..4544202	+	601	104783228	-	PSEEN4255	-	sodium/hydrogen exchanger family protein
3913	 63.97	0	4544294..4544701	-	135	104783229	-	PSEEN4256	-	long-chain acyl-CoA thioester hydrolase
3914	 58.40	-1	4544802..4545152	-	116	104783230	rplS	PSEEN4257	-	50S ribosomal protein L19
3915	 58.83	-1	4545196..4545948	-	250	104783231	trmD	PSEEN4258	-	tRNA (guanine-N(1)-)-methyltransferase
64.12	MEAN

4.52	STD DEV
