IslandPathversion 1.0

IslandPath Analysis: Pseudomonas entomophila L48

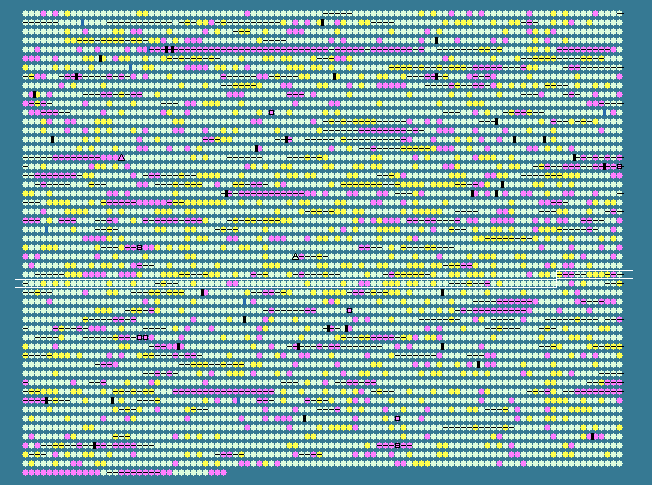

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2990	 68.92	+1	3516578..3517864	+	428	104782306	-	PSEEN3255	-	allantoate amidohydrolase
2991	 60.61	0	3517982..3518212	-	76	104782307	-	PSEEN3256	-	hypothetical protein
2992	 52.84	-2	3518848..3523200	+	1450	104782308	-	PSEEN3258	-	hypothetical protein
2993	 64.16	0	3523219..3523776	-	185	104782309	-	PSEEN3259	-	kinase
2994	 67.51	0	3523889..3524362	+	157	104782310	-	PSEEN3260	-	hypothetical protein
2995	 69.39	+1	3524370..3525689	-	439	104782311	-	PSEEN3261	-	major facilitator transporter
2996	 68.72	+1	3525744..3526814	-	356	104782312	-	PSEEN3262	-	hypothetical protein
2997	 67.76	0	3526914..3527831	-	305	104782313	-	PSEEN3263	-	LysR family transcriptional regulator
2998	 69.05	+1	3528190..3529911	+	573	104782314	-	PSEEN3265	-	metallo-dependent hydrolase
2999	 58.77	-1	3529950..3530354	-	134	104782315	-	PSEEN3266	-	hypothetical protein
3000	 61.58	0	3530305..3531090	-	261	104782316	-	PSEEN3267	-	hypothetical protein
3001	 61.56	0	3531164..3531907	-	247	104782317	-	PSEEN3268	-	hypothetical protein
3002	 65.00	0	3532073..3532852	-	259	104782318	-	PSEEN3269	-	hypothetical protein
3003	 65.86	0	3533261..3534124	+	287	104782319	-	PSEEN3270	-	sensory box protein
3004	 71.16	+1	3534135..3534779	-	214	104782320	-	PSEEN3271	-	hypothetical protein
3005	 65.65	0	3534763..3535350	-	195	104782321	-	PSEEN3272	-	RNA polymerase sigma factor
3006	 68.07	0	3535723..3536007	+	94	104782322	-	PSEEN3274	-	hypothetical protein
3007	 65.71	0	3536024..3536857	+	277	104782323	-	PSEEN3275	-	hypothetical protein
3008	 68.39	0	3536854..3537609	+	251	104782324	-	PSEEN3276	-	hypothetical protein
3009	 66.24	0	3537620..3538087	+	155	104782325	-	PSEEN3277	-	hypothetical protein
3010	 60.68	0	3538109..3538459	-	116	104782326	-	PSEEN3278	-	hypothetical protein
3011	 63.08	0	3538468..3538746	-	92	104782327	-	PSEEN3279	-	hypothetical protein
3012	 64.74	0	3539011..3539787	+	258	104782328	atoJ-2	PSEEN3280	-	arginine/ornithine ABC transporter periplasmic-binding protein
3013	 65.80	0	3539812..3540501	+	229	104782329	atoQ-2	PSEEN3281	-	arginine/ornithine ABC transporter permease
3014	 66.09	0	3540515..3541213	+	232	104782330	aotM-2	PSEEN3282	-	arginine/ornithine ABC transporter, permease protein
3015	 69.27	+1	3541224..3542336	+	370	104782331	-	PSEEN3283	-	hypothetical protein
3016	 66.41	0	3542356..3543120	+	254	104782332	aotP-2	PSEEN3284	-	arginine/ornithine transport protein AotP
3017	 67.22	0	3543199..3544104	+	301	104782333	-	PSEEN3285	-	RipR family transcriptional regulator
3018	 62.24	0	3544419..3544802	+	127	104782334	-	PSEEN3286	-	tautomerase
3019	 68.12	0	3544894..3545787	+	297	104782335	-	PSEEN3287	-	LysR family transcriptional regulator
3020	 66.95	0	3545880..3546584	+	234	104782336	-	PSEEN3288	-	short chain dehydrogenase/reductase family oxidoreductase
3021	 66.48	0	3546596..3548224	-	542	104782337	-	PSEEN3289	-	ion mechanosensitive channel
3022	 65.73	0	3548583..3549755	+	390	104782338	-	PSEEN3290	-	MerR family transcriptional regulator
3023	 66.47	0	3549778..3550284	+	168	104782339	-	PSEEN3291	-	acetyltransferase
3024	 68.12	0	3550341..3550478	-	45	104782340	-	PSEEN3292	-	hypothetical protein
3025	 61.90	0	3550511..3550720	-	69	104782341	-	PSEEN3293	-	hypothetical protein
3026	 62.62	0	3550993..3553191	-	732	104782342	-	PSEEN3294	-	hypothetical protein
3027	 65.90	0	3553450..3553839	+	129	104782343	-	PSEEN3295	-	hypothetical protein
3028	 62.90	0	3553836..3554180	-	114	104782344	-	PSEEN3296	-	hypothetical protein
3029	 68.58	0	3554314..3554994	+	226	104782345	-	PSEEN3297	-	hypothetical protein
3030	 65.13	0	3554999..3555193	-	64	104782346	-	PSEEN3298	-	hypothetical protein
3031	 61.39	0	3555257..3557512	-	751	104782347	-	PSEEN3299	-	hypothetical protein
3032	 66.34	0	3557593..3560388	-	931	104782348	-	PSEEN3301	-	non-ribosomal peptide synthetase
3033	 66.92	0	3560691..3561086	+	131	104782349	-	PSEEN3302	-	hypothetical protein
3034	 65.89	0	3561159..3561674	+	171	104782350	-	PSEEN3303	-	hypothetical protein
3035	 59.08	-1	3561801..3563105	-	434	104782351	-	PSEEN3304	-	hypothetical protein
3036	 58.38	-1	3563102..3565129	-	675	104782352	-	PSEEN3305	-	hypothetical protein
3037	 67.53	0	3565370..3565717	+	115	104782353	arsR	PSEEN3306	-	arsenic resistance transcriptional regulator
3038	 67.45	0	3565737..3567020	+	427	104782354	arsB	PSEEN3307	-	arsenite efflux pump
3039	 63.69	0	3567033..3567503	+	156	104782355	arsC	PSEEN3308	-	arsenate reductase
3040	 65.47	0	3567616..3568698	+	360	104782356	-	PSEEN3309	-	hypothetical protein
3041	 61.70	0	3568736..3569359	-	207	104782357	-	PSEEN3310	-	hypothetical protein
3042	 65.93	0	3569442..3569984	+	180	104782358	-	PSEEN3311	-	hypothetical protein
3043	 66.67	0	3570209..3571129	+	306	104782359	-	PSEEN3312	-	glutaminase
3044	 66.19	0	3571223..3572278	-	351	104782360	-	PSEEN3313	-	AraC family transcriptional regulator
3045	 64.95	0	3572513..3573445	+	310	104782361	-	PSEEN3314	-	hypothetical protein
3046	 66.43	0	3573517..3574794	-	425	104782362	-	PSEEN3315	-	hypothetical protein
3047	 67.38	0	3574810..3576204	-	464	104782363	-	PSEEN3316	-	oxidase, FAD-linked
3048	 69.42	+1	3576220..3576582	-	120	104782364	-	PSEEN3317	-	cytochrome c
3049	 65.87	0	3576841..3577092	+	83	104782365	-	PSEEN3318	-	lipoprotein
3050	 66.86	0	3577096..3578112	-	338	104782366	-	PSEEN3319	-	ammonia monooxygenase
3051	 65.51	0	3578246..3579454	-	402	104782367	-	PSEEN3320	-	hypothetical protein
3052	 65.34	0	3579533..3580363	-	276	104782368	-	PSEEN3321	-	hypothetical protein
3053	 66.67	0	3580415..3581590	-	391	104782369	-	PSEEN3322	-	major facilitator transporter
3054	 67.89	0	3581683..3582582	+	299	104782370	-	PSEEN3323	-	LysR family transcriptional regulator
3055	 66.19	0	3582779..3583831	-	350	104782371	-	PSEEN3324	-	hypothetical protein
3056	 64.86	0	3583858..3584409	-	183	104782372	-	PSEEN3325	-	isochorismatase superfamily hydrolase
3057	 60.50	0	3584466..3585794	-	442	104782373	-	PSEEN3326	-	hypothetical protein
3058	 55.59	-1	3585821..3586750	-	309	104782374	-	PSEEN3327	-	hypothetical protein
3059	 66.52	0	3586828..3587517	-	229	104782375	-	PSEEN3328	-	thioesterase involved in non-ribosomal peptide biosynthesis
3060	 61.26	0	3587568..3587789	-	73	104782376	-	PSEEN3329	-	hypothetical protein
3061	 68.12	0	3587962..3588579	+	205	104782377	-	PSEEN3330	-	amino acid transporter LysE
3062	 68.66	+1	3588585..3588986	-	133	104782378	-	PSEEN3331	-	hypothetical protein
3063	 68.54	0	3589042..3595380	-	2112	104782379	-	PSEEN3332	-	non-ribosomal peptide synthetase
3064	 64.62	0	3595809..3596588	+	259	104782380	-	PSEEN3335	-	LuxR family transcriptional regulator
3065	 70.09	+1	3596605..3598035	+	476	104782381	oprM	PSEEN3336	-	Outer membrane protein oprM precursor
3066	 71.71	+1	3598005..3598757	-	250	104782382	-	PSEEN3337	-	transcriptional regulator
3067	 67.31	0	3598943..3599560	+	205	104782383	-	PSEEN3338	-	hypothetical protein
3068	 65.67	0	3599576..3600076	+	166	104782384	-	PSEEN3339	-	hypothetical protein
3069	 68.13	0	3600153..3600767	-	204	104782385	-	PSEEN3340	-	amino acid transporter LysE
3070	 64.46	0	3600881..3601333	+	150	104782386	-	PSEEN3341	-	AsnC family transcriptional regulator
3071	 65.32	0	3601722..3603134	+	470	104782387	-	PSEEN3342	-	NCS1 nucleoside transporter
3072	 67.24	0	3603238..3604467	-	409	104782388	-	PSEEN3343	-	acyl-CoA dehydrogenase
3073	 66.77	0	3604608..3605534	+	308	104782389	-	PSEEN3344	-	LysR family transcriptional regulator
3074	 63.11	0	3605678..3605986	+	102	104782390	-	PSEEN3345	-	hypothetical protein
3075	 68.26	0	3606118..3607245	+	375	104782391	-	PSEEN3346	-	hypothetical protein
3076	 65.83	0	3607247..3607726	+	159	104782392	-	PSEEN3347	-	hypothetical protein
3077	 67.41	0	3607835..3609052	+	405	104782393	iscS-2	PSEEN3349	-	cysteine desulfurase
3078	 60.61	0	3609177..3609374	-	65	104782394	-	PSEEN3350	-	hypothetical protein
3079	 65.28	0	3609396..3609539	-	47	104782395	-	PSEEN3351	-	hypothetical protein
3080	 68.25	0	3609642..3610526	-	294	104782396	-	PSEEN3352	-	LysR family transcriptional regulator
3081	 66.35	0	3610628..3611584	+	318	104782397	-	PSEEN3353	-	hypothetical protein
3082	 66.53	0	3611702..3612421	-	239	104782398	-	PSEEN3354	-	hypothetical protein
3083	 63.91	0	3612414..3613247	-	277	104782399	-	PSEEN3355	-	hypothetical protein
3084	 64.85	0	3613315..3613809	-	164	104782400	-	PSEEN3356	-	hypothetical protein
3085	 66.49	0	3614061..3614621	-	186	104782401	-	PSEEN3357	-	hypothetical protein
3086	 65.77	0	3614829..3619304	-	1491	104782402	-	PSEEN3358	-	hypothetical protein
3087	 65.25	0	3619574..3620911	+	445	104782403	-	PSEEN3359	-	UDP-glucose dehydrogenase
3088	 65.28	0	3620899..3621909	+	336	104782404	-	PSEEN3360	-	UDP-glucuronate 5'-epimerase
3089	 67.35	0	3621910..3622641	+	243	104782405	-	PSEEN3361	-	glycosyl transferase family protein
64.12	MEAN

4.52	STD DEV
