IslandPathversion 1.0

IslandPath Analysis: Pseudomonas entomophila L48

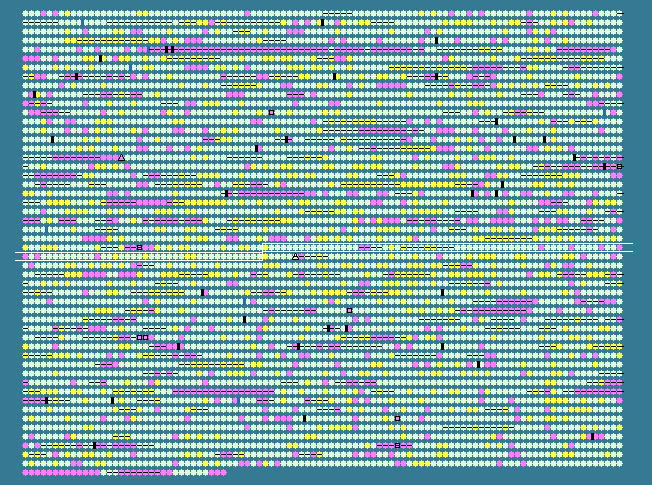

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2641	 68.48	0	3036572..3038062	-	496	104781957	-	PSEEN2886	-	aldehyde dehydrogenase
2642	 66.90	0	3038131..3038979	-	282	104781958	-	PSEEN2887	-	LuxR family transcriptional regulator
2643	 65.83	0	3039412..3040482	+	356	104781959	-	PSEEN2888	-	enoyl-CoA hydratase
2644	 65.80	0	3040499..3041650	+	383	104781960	acdA	PSEEN2889	-	acyl-CoA dehydrogenase
2645	 65.32	0	3041835..3042725	+	296	104781961	-	PSEEN2890	-	universal stress protein
2646	 63.22	0	3042814..3043335	-	173	104781962	-	PSEEN2891	-	hypothetical protein
2647	 63.24	0	3043545..3044273	-	242	104781963	-	PSEEN2892	-	hypothetical protein
2648	 64.86	0	3044373..3044816	-	147	104781964	-	PSEEN2893	-	hypothetical protein
2649	 65.53	0	3044926..3045804	-	292	104781965	-	PSEEN2894	-	LysR family transcriptional regulator
2650	 67.03	0	3045904..3047289	+	461	104781966	-	PSEEN2895	-	aldehyde dehydrogenase
2651	 65.68	0	3047462..3048271	+	269	104781967	panB-2	PSEEN2896	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2652	 67.10	0	3048259..3049653	-	464	104781968	-	PSEEN2897	-	transcription regulator MocR
2653	 64.95	0	3049712..3050641	-	309	104781969	-	PSEEN2898	-	AraC family transcriptional regulator
2654	 65.49	0	3050762..3052120	+	452	104781970	-	PSEEN2899	-	glutamine synthetase
2655	 62.99	0	3052286..3053374	+	362	104781971	-	PSEEN2900	-	putrescine ABC transporter, periplasmic putrescine-binding protein
2656	 67.59	0	3053388..3054683	+	431	104781972	-	PSEEN2901	-	oxidoreductase
2657	 60.64	0	3054687..3054968	-	93	104781973	-	PSEEN2902	-	transcriptional regulator
2658	 56.77	-1	3054973..3055356	-	127	104781974	-	PSEEN2903	-	hypothetical protein
2659	 65.34	0	3055537..3056214	+	225	104781975	-	PSEEN2904	-	hypothetical protein
2660	 64.14	0	3056477..3057070	+	197	104781976	-	PSEEN2905	-	hypothetical protein
2661	 64.89	0	3057090..3057539	+	149	104781977	-	PSEEN2906	-	hypothetical protein
2662	 68.67	+1	3057661..3058608	+	315	104781978	-	PSEEN2907	-	hypothetical protein
2663	 64.71	0	3058657..3059268	+	203	104781979	-	PSEEN2908	-	hypothetical protein
2664	 68.42	0	3059434..3060288	+	284	104781980	-	PSEEN2909	-	hypothetical protein
2665	 65.53	0	3060353..3061318	-	321	104781981	-	PSEEN2910	-	AraC family transcriptional regulator
2666	 63.40	0	3061418..3062029	+	203	104781982	-	PSEEN2911	-	amino acid transporter LysE
2667	 67.08	0	3062030..3063229	-	399	104781983	-	PSEEN2912	-	major facilitator transporter
2668	 69.43	+1	3063551..3064456	-	301	104781984	-	PSEEN2913	-	LysR family transcriptional regulator
2669	 70.30	+1	3064531..3064860	+	109	104781985	-	PSEEN2914	-	hypothetical protein
2670	 66.32	0	3064848..3066272	-	474	104781986	-	PSEEN2915	-	multidrug efflux protein MATE family
2671	 65.82	0	3066323..3066916	+	197	104781987	-	PSEEN2916	-	TetR family transcriptional regulator
2672	 66.33	0	3067306..3069711	+	801	104781988	quiA	PSEEN2918	-	quinate dehydrogenase (pyrroloquinoline-quinone)
2673	 64.44	0	3070032..3071423	+	463	104781989	-	PSEEN2919	-	amino acid permease
2674	 66.67	0	3071438..3072190	-	250	104781990	-	PSEEN2920	-	hypothetical protein
2675	 64.88	0	3072296..3072967	+	223	104781991	-	PSEEN2921	-	hypothetical protein
2676	 65.02	0	3073026..3073934	-	302	104781992	-	PSEEN2922	-	hypothetical protein
2677	 63.80	0	3077304..3078140	+	278	104781993	-	PSEEN2925	-	hypothetical protein
2678	 65.00	0	3078265..3078864	+	199	104781994	-	PSEEN2926	-	hypothetical protein
2679	 66.84	0	3079052..3080221	+	389	104781995	-	PSEEN2927	-	hypothetical protein
2680	 66.19	0	3080180..3081229	-	349	104781996	-	PSEEN2928	-	hypothetical protein
2681	 65.85	0	3081363..3081974	-	203	104781997	-	PSEEN2929	-	azoreductase
2682	 67.22	0	3082108..3083010	+	300	104781998	-	PSEEN2930	-	LysR family transcriptional regulator
2683	 65.51	0	3083018..3083362	+	114	104781999	-	PSEEN2931	-	hypothetical protein
2684	 64.68	0	3083465..3083866	-	133	104782000	-	PSEEN2932	-	hypothetical protein
2685	 61.73	0	3083866..3084696	-	276	104782001	uppP	PSEEN2933	-	undecaprenyl pyrophosphate phosphatase
2686	 66.97	0	3084995..3086629	+	544	104782002	-	PSEEN2935	-	methyl-accepting chemotaxis transducer
2687	 57.10	-1	3086780..3088033	-	417	104782003	-	PSEEN2936	-	hypothetical protein
2688	 64.55	0	3088248..3088814	+	188	104782004	-	PSEEN2937	-	nicotinamide mononucleotide transporter PnuC
2689	 64.13	0	3088811..3089362	+	183	104782005	-	PSEEN2938	-	hypothetical protein
2690	 64.17	0	3089657..3090097	+	146	104782006	-	PSEEN2939	-	hypothetical protein
2691	 63.70	0	3090099..3090671	+	190	104782007	-	PSEEN2940	-	hypothetical protein
2692	 59.80	0	3090724..3092208	+	494	104782008	-	PSEEN2941	-	hypothetical protein
2693	 60.65	0	3092275..3092955	+	226	104782009	-	PSEEN2942	-	hypothetical protein
2694	 62.52	0	3092988..3093734	+	248	104782010	-	PSEEN2943	-	hypothetical protein
2695	 61.68	0	3093782..3095065	+	427	104782011	-	PSEEN2944	-	hypothetical protein
2696	 64.82	0	3095178..3097400	+	740	104782012	-	PSEEN2945	-	sulfatase
2697	 59.84	0	3097591..3098322	-	243	104782013	-	PSEEN2946	-	exopolysaccharide biosynthesis related tyrosine-protein kinase
2698	 61.38	0	3098409..3099977	-	522	104782014	-	PSEEN2947	-	exopolysaccharide transport protein
2699	 62.28	0	3099999..3100955	-	318	104782015	-	PSEEN2948	-	hypothetical protein
2700	 59.20	-1	3101142..3101663	-	173	104782016	-	PSEEN2949	-	polysaccharide export protein
2701	 51.74	-2	3102014..3102214	-	66	104782017	-	PSEEN2950	-	hypothetical protein
2702	 62.38	0	3102624..3103742	-	372	104782018	-	PSEEN2951	-	hypothetical protein
2703	 60.26	0	3103788..3104942	-	384	104782019	-	PSEEN2952	-	hypothetical protein
2704	 63.97	0	3105310..3109095	+	1261	104782020	-	PSEEN2953	-	hypothetical protein
2705	 66.31	0	3109099..3111333	-	744	104782021	-	PSEEN2954	-	diguanylate cyclase/phosphodiesterase
2706	 64.22	0	3111481..3114753	+	1090	104782022	-	PSEEN2955	-	hypothetical protein
2707	 64.14	0	3114869..3116488	+	539	104782023	-	PSEEN2956	-	NAD-dependent aldehyde dehydrogenase
2708	 63.25	0	3116660..3117127	+	155	104782024	-	PSEEN2957	-	hypothetical protein
2709	 64.07	0	3117214..3118407	+	397	104782025	-	PSEEN2958	-	hypothetical protein
2710	 65.19	0	3118505..3119653	-	382	104782026	adhB	PSEEN2959	-	alcohol dehydrogenase II (
2711	 67.11	0	3119799..3121361	-	520	104782027	ilvA-1	PSEEN2960	-	threonine dehydratase
2712	 63.01	0	3121549..3121986	-	145	104782028	-	PSEEN2961	-	hypothetical protein
2713	 60.45	0	3122085..3122261	-	58	104782029	-	PSEEN2962	-	hypothetical protein
2714	 66.41	0	3122304..3123458	+	384	104782030	wecB	PSEEN2963	-	UDP-N-acetyl glucosamine-2-epimerase
2715	 64.92	0	3123455..3125629	+	724	104782031	nfrB	PSEEN2964	-	bacteriophage N4 adsorption protein B
2716	 68.70	+1	3125626..3128628	+	1000	104782032	-	PSEEN2965	-	hypothetical protein
2717	 66.19	0	3128628..3129467	+	279	104782033	-	PSEEN2966	-	hypothetical protein
2718	 62.44	0	3129651..3130739	+	362	104782034	-	PSEEN2967	-	diguanylate cyclase
2719	 64.82	0	3130786..3132084	-	432	104782035	-	PSEEN2968	-	sensor histidine kinase
2720	 66.52	0	3132091..3132792	-	233	104782036	-	PSEEN2969	-	response regulator
2721	 69.39	+1	3132952..3134127	+	391	104782037	-	PSEEN2970	-	multidrug efflux RND membrane fusion protein
2722	 66.60	0	3134139..3137261	+	1040	104782038	-	PSEEN2971	-	multidrug/solvent RND transporter, AcrB-like
2723	 64.76	0	3137323..3137898	+	191	104782039	mobA	PSEEN2972	-	molybdopterin-guanine dinucleotide biosynthesis protein A
2724	 65.35	0	3138018..3139688	-	556	104782040	-	PSEEN2973	-	acyl-CoA synthetase
2725	 63.19	0	3139860..3140981	-	373	104782041	-	PSEEN2974	-	quinohemoprotein amine dehydrogenase 40 kDa subunit
2726	 64.81	0	3141001..3141324	-	107	104782042	qhnDH	PSEEN2975	-	quinohemoprotein amine dehydrogenase gamma subunit
2727	 64.22	0	3141326..3142756	-	476	104782043	-	PSEEN2976	-	hypothetical protein
2728	 68.01	0	3142793..3144358	-	521	104782044	-	PSEEN2977	-	quinohemoprotein amine dehydrogenase 60 kDa subunit
2729	 67.80	0	3144804..3146297	+	497	104782045	-	PSEEN2978	-	NAD-dependent aldehyde dehydrogenase
2730	 63.31	0	3146512..3147315	-	267	104782046	-	PSEEN2979	-	hypothetical protein
2731	 65.59	0	3147540..3147818	+	92	104782047	-	PSEEN2980	-	hypothetical protein
2732	 62.63	0	3147815..3148507	-	230	104782048	-	PSEEN2981	-	hypothetical protein
2733	 63.43	0	3148724..3149125	+	133	104782049	-	PSEEN2982	-	MerR family transcriptional regulator
2734	 66.89	0	3149146..3150045	+	299	104782050	mvaB	PSEEN2983	-	hydroxymethylglutaryl-CoA lyase
2735	 65.53	0	3150581..3151108	-	175	104782051	-	PSEEN2986	-	Mg2+ transporter
2736	 64.26	0	3151476..3152885	+	469	104782052	-	PSEEN2987	-	iron-sulfur cluster-binding protein
2737	 66.88	0	3152936..3154345	+	469	104782053	-	PSEEN2988	-	GntR family transcriptional regulator
2738	 64.86	0	3154400..3156442	+	680	104782054	-	PSEEN2989	-	sensory box histidine kinase/response regulator (hybrid)
2739	 66.92	0	3156449..3157228	-	259	104782055	-	PSEEN2990	-	short chain dehydrogenase/reductase family oxidoreductase
2740	 64.71	0	3157357..3158892	-	511	104782056	-	PSEEN2992	-	EmrB/QacA family drug resistance transporter
64.12	MEAN

4.52	STD DEV
