IslandPathversion 1.0

IslandPath Analysis: Pseudomonas entomophila L48

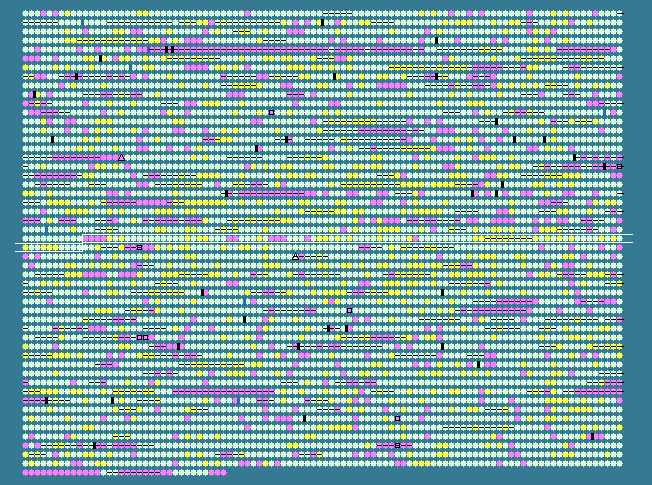

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2511	 57.97	-1	2884064..2884615	+	183	104781827	-	PSEEN2742	-	hypothetical protein
2512	 54.27	-2	2885246..2886229	+	327	104781828	-	PSEEN2746	-	hypothetical protein
2513	 59.38	-1	2886257..2887285	+	342	104781829	-	PSEEN2747	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2514	 59.72	0	2887371..2887874	+	167	104781830	-	PSEEN2748	-	oxidoreductase
2515	 68.49	0	2887866..2889347	-	493	104781831	-	PSEEN2749	-	hypothetical protein
2516	 65.69	0	2889347..2891500	-	717	104781832	-	PSEEN2750	-	outer membrane ferric siderophore receptor
2517	 68.97	+1	2891572..2891961	-	129	104781833	-	PSEEN2751	-	hypothetical protein
2518	 64.16	0	2892237..2892914	+	225	104781834	-	PSEEN2752	-	hypothetical protein
2519	 63.32	0	2892904..2894367	+	487	104781835	-	PSEEN2753	-	long-chain-fatty-acid-CoA ligase
2520	 62.26	0	2894376..2895056	+	226	104781836	-	PSEEN2754	-	hypothetical protein
2521	 64.68	0	2895043..2895849	+	268	104781837	-	PSEEN2755	-	short chain dehydrogenase
2522	 62.46	0	2895846..2896487	+	213	104781838	-	PSEEN2756	-	hypothetical protein
2523	 62.90	0	2896490..2897152	+	220	104781839	-	PSEEN2757	-	DNA-binding response regulator
2524	 64.18	0	2897149..2898513	+	454	104781840	-	PSEEN2758	-	sensor histidine kinase
2525	 65.75	0	2898816..2899142	+	108	104781841	-	PSEEN2759	-	hypothetical protein
2526	 66.23	0	2899426..2900331	+	301	104781842	-	PSEEN2760	-	oxidoreductase
2527	 62.84	0	2900562..2901398	+	278	104781843	-	PSEEN2761	-	Ku protein
2528	 70.12	+1	2901411..2902076	-	221	104781844	-	PSEEN2762	-	glycosyl transferase, group 2 family protein
2529	 67.33	0	2902073..2902672	-	199	104781845	-	PSEEN2763	-	methyltransferase
2530	 68.61	0	2902669..2903439	-	256	104781846	-	PSEEN2764	-	hypothetical protein
2531	 70.32	+1	2903436..2904476	-	346	104781847	-	PSEEN2765	-	acyl-CoA dehydrogenase
2532	 63.86	0	2904473..2904721	-	82	104781848	-	PSEEN2766	-	hypothetical protein
2533	 66.26	0	2904721..2907183	-	820	104781849	ligD	PSEEN2767	-	ATP-dependent DNA ligase
2534	 67.41	0	2907394..2907798	+	134	104781850	-	PSEEN2768	-	hypothetical protein
2535	 58.01	-1	2907798..2908028	+	76	104781851	-	PSEEN2769	-	metallothionein
2536	 60.61	0	2908547..2908843	-	98	104781852	-	PSEEN2771	-	hypothetical protein
2537	 66.88	0	2909132..2910049	+	305	104781853	-	PSEEN2772	-	AraC family transcriptional regulator
2538	 67.22	0	2910513..2911412	+	299	104781854	-	PSEEN2773	-	alpha/beta fold family hydrolase
2539	 65.50	0	2911456..2912394	+	312	104781855	-	PSEEN2774	-	alpha/beta fold family hydrolase
2540	 68.20	0	2912451..2913365	+	304	104781856	-	PSEEN2775	-	AraC family transcriptional regulator
2541	 65.48	0	2913499..2914254	-	251	104781857	-	PSEEN2776	-	HlyD family multidrug efflux protein
2542	 54.31	-2	2914603..2918550	+	1315	104781858	-	PSEEN2777	-	hypothetical protein
2543	 49.12	-2	2919179..2919349	+	56	104781859	-	PSEEN2780	-	hypothetical protein
2544	 56.31	-1	2919609..2919917	+	102	104781860	-	PSEEN2782	-	hypothetical protein
2545	 64.05	0	2920577..2922184	+	535	104781861	-	PSEEN2784	-	chemotaxis transducer
2546	 63.55	0	2922595..2923653	+	352	104781862	-	PSEEN2785	-	hypothetical protein
2547	 61.08	0	2923717..2924700	+	327	104781863	-	PSEEN2786	-	fatty acid desaturase
2548	 59.71	0	2924992..2928153	+	1053	104781864	-	PSEEN2788	-	insecticidal toxin
2549	 63.64	0	2928298..2929221	-	307	104781865	paaX	PSEEN2789	-	transcriptional repressor for phenylacetic acid degradation
2550	 69.17	+1	2929281..2929880	-	199	104781866	paaY	PSEEN2790	-	regulatory phaM protein
2551	 68.99	+1	2930217..2930990	+	257	104781867	phaA	PSEEN2791	-	enoyl-CoA hydratase-isomerase
2552	 66.92	0	2931010..2931804	+	264	104781868	paaB	PSEEN2792	-	enoyl-CoA hydratase
2553	 67.79	0	2931807..2933324	+	505	104781869	paaC	PSEEN2793	-	3-hydroxybutyryl-CoA dehydrogenase
2554	 66.22	0	2933317..2933766	+	149	104781870	paaD	PSEEN2794	-	phenylacetic acid degradation protein
2555	 71.17	+1	2933759..2934979	+	406	104781871	pcaF-2	PSEEN2795	-	beta-ketoadipyl CoA thiolase
2556	 63.86	0	2935074..2936393	+	439	104781872	paaF	PSEEN2796	-	phenylacetyl-CoA ligase
2557	 63.43	0	2936678..2937667	+	329	104781873	paaG	PSEEN2798	-	phenylacetate-CoA oxygenase subunit PaaA
2558	 65.60	0	2937694..2937975	+	93	104781874	paaL	PSEEN2799	-	phenylacetate-CoA oxygenase subunit PaaB
2559	 66.67	0	2937984..2938742	+	252	104781875	paaI	PSEEN2800	-	phenylacetic acid degradation, subunit of multicomponent oxygenase
2560	 69.33	+1	2938729..2939253	+	174	104781876	paaJ	PSEEN2801	-	ring-hydroxylation complex protein 3
2561	 66.30	0	2939269..2940345	+	358	104781877	paaK	PSEEN2802	-	ring-hydroxylation complex protein 4
2562	 65.05	0	2940542..2940850	+	102	104781878	-	PSEEN2803	-	hypothetical protein
2563	 66.03	0	2940847..2942409	+	520	104781879	actP	PSEEN2804	-	acetate permease
2564	 65.00	0	2942421..2943677	+	418	104781880	phaK	PSEEN2805	-	phenylacetic acid-specific porin
2565	 67.83	0	2943703..2945757	+	684	104781881	paaN	PSEEN2806	-	bifunctional aldehyde dehydrogenase/enoyl-CoA hydratase
2566	 57.21	-1	2945813..2946817	-	334	104781882	-	PSEEN2807	-	hypothetical protein
2567	 63.20	0	2946958..2947764	-	268	104781883	-	PSEEN2808	-	Tn4652 cointegrate resolution protein T
2568	 67.03	0	2947838..2948380	-	180	104781884	-	PSEEN2809	-	hypothetical protein
2569	 64.53	0	2948565..2950106	-	513	104781885	katB	PSEEN2810	-	catalase (hydroperoxidase II)
2570	 65.36	0	2950357..2951046	-	229	104781886	-	PSEEN2811	-	hypothetical protein
2571	 62.59	0	2951225..2952181	+	318	104781887	-	PSEEN2812	-	hypothetical protein
2572	 62.24	0	2952191..2952619	-	142	104781888	-	PSEEN2813	-	MerR family transcriptional regulator
2573	 64.02	0	2952735..2953565	+	276	104781889	cpo	PSEEN2814	-	non-heme chloroperoxidase
2574	 60.70	0	2953593..2954531	-	312	104781890	-	PSEEN2815	-	Dyp-type peroxidase
2575	 64.26	0	2954841..2955629	+	262	104781891	-	PSEEN2816	-	transporter of formate/nitrite family
2576	 67.89	0	2955715..2956941	-	408	104781892	-	PSEEN2817	-	hypothetical protein
2577	 69.20	+1	2957027..2957698	-	223	104781893	-	PSEEN2818	-	hypothetical protein
2578	 67.71	0	2957688..2959415	-	575	104781894	-	PSEEN2819	-	ABC efflux transporter, permease/ATP-binding protein
2579	 68.65	+1	2959419..2961332	-	637	104781895	-	PSEEN2820	-	sigma-54 dependent transcriptional regulator
2580	 69.86	+1	2961791..2963137	+	448	104781896	-	PSEEN2821	-	hypothetical protein
2581	 68.99	+1	2963158..2965398	+	746	104781897	-	PSEEN2822	-	hypothetical protein
2582	 68.79	+1	2965414..2965884	+	156	104781898	-	PSEEN2823	-	curli fiber surface-exposed nucleator CsgB
2583	 63.83	0	2965904..2967349	+	481	104781899	-	PSEEN2824	-	curlin; signal peptide
2584	 68.37	0	2967528..2968172	+	214	104781900	alkB	PSEEN2825	-	oxidative demethylase of N1-methyladenine or N3-methylcytosine DNA lesions, repair of alkylated DNA
2585	 66.67	0	2968258..2969223	-	321	104781901	-	PSEEN2826	-	transcriptional regulator
2586	 71.16	+1	2969275..2970231	-	318	104781902	-	PSEEN2827	-	peptidylprolyl isomerase
2587	 64.52	0	2970228..2970692	-	154	104781903	-	PSEEN2828	-	hypothetical protein
2588	 68.36	0	2970722..2971369	-	215	104781904	-	PSEEN2829	-	hypothetical protein
2589	 65.84	0	2971385..2973085	-	566	104781905	-	PSEEN2830	-	hypothetical protein
2590	 74.61	+2	2973124..2973765	-	213	104781906	-	PSEEN2831	-	hypothetical protein
2591	 66.90	0	2973816..2974241	-	141	104781907	-	PSEEN2832	-	biopolymer transport protein ExbD
2592	 69.60	+1	2974252..2976057	-	601	104781908	-	PSEEN2833	-	solvent/drug/ferric siderophore transport protein ExbB
2593	 67.49	0	2976089..2977669	-	526	104781909	-	PSEEN2834	-	hypothetical protein
2594	 65.05	0	2977705..2978322	-	205	104781910	-	PSEEN2835	-	hypothetical protein
2595	 62.68	0	2978665..2979969	-	434	104781911	-	PSEEN2836	-	hypothetical protein
2596	 67.50	0	2980080..2980922	-	280	104781912	csgG	PSEEN2837	-	curli production assembly/transport component csgG precursor
2597	 68.10	0	2980956..2981375	-	139	104781913	-	PSEEN2838	-	curli production assembly/transport component CsgF precursor
2598	 65.90	0	2981372..2981764	-	130	104781914	-	PSEEN2839	-	curli assembly protein CsgE
2599	 70.98	+1	2981761..2982270	-	169	104781915	-	PSEEN2840	-	hypothetical protein
2600	 65.60	0	2982257..2982631	-	124	104781916	-	PSEEN2841	-	secretion protein
2601	 69.00	+1	2982637..2983107	-	156	104781917	-	PSEEN2842	-	secretion type II protein related to protein G. signal peptide
2602	 66.01	0	2983104..2984939	-	611	104781918	-	PSEEN2843	-	secretion type II protein related to gspD (secretin) protein.
2603	 66.87	0	2984936..2985436	-	166	104781919	-	PSEEN2844	-	hypothetical protein
2604	 69.20	+1	2985436..2985987	-	183	104781920	-	PSEEN2845	-	hypothetical protein
2605	 70.72	+1	2985974..2986516	-	180	104781921	-	PSEEN2846	-	hypothetical protein
2606	 72.00	+1	2986518..2987267	-	249	104781922	-	PSEEN2847	-	hypothetical protein
2607	 67.14	0	2987281..2988966	-	561	104781923	-	PSEEN2848	-	type II secretion system protein E.
2608	 64.78	0	2989024..2989554	-	176	104781924	-	PSEEN2849	-	response regulator
2609	 64.80	0	2989797..2990438	-	213	104781925	-	PSEEN2850	-	hypothetical protein
2610	 66.73	0	2990571..2992064	-	497	104781926	-	PSEEN2851	-	cytochrome c
64.12	MEAN

4.52	STD DEV
