IslandPath Analysis: Pseudomonas entomophila L48

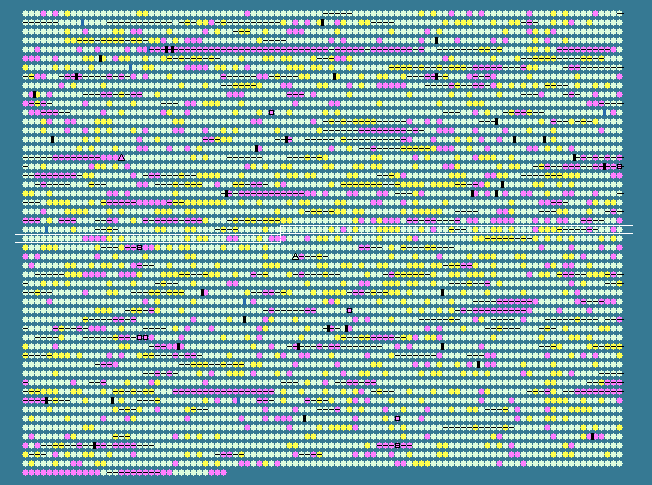

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 64.12 STD DEV: 4.52
Pseudomonas entomophila L48, complete genome - 1..5888780
5134 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2444	 64.47	0	2793695..2794195	+	166	104781760	tpx	PSEEN2672	-	thiol peroxidase
2445	 67.44	0	2794442..2795734	+	430	104781761	mdtA	PSEEN2673	-	multidrug resistance efflux pump; membrane fusion protein
2446	 67.18	0	2795731..2798829	+	1032	104781762	mdtB	PSEEN2674	-	multidrug resistance efflux transporter
2447	 65.32	0	2798826..2801936	+	1036	104781763	mdtC	PSEEN2675	-	multidrug resistance efflux pump
2448	 66.53	0	2801933..2803417	+	494	104781764	-	PSEEN2676	-	outer membrane protein precursor
2449	 65.71	0	2803570..2803881	-	103	104781765	-	PSEEN2677	-	hypothetical protein
2450	 67.51	0	2803996..2805300	-	434	104781766	-	PSEEN2678	-	hypothetical protein
2451	 65.71	0	2805608..2805817	-	69	104781767	-	PSEEN2679	-	hypothetical protein
2452	 68.88	+1	2806066..2806698	-	210	104781768	-	PSEEN2680	-	hypothetical protein
2453	 63.49	0	2806933..2807751	+	272	104781769	-	PSEEN2681	-	hypothetical protein
2454	 59.82	0	2807968..2808186	+	72	104781770	-	PSEEN2682	-	hypothetical protein
2455	 67.29	0	2808310..2809272	-	320	104781771	-	PSEEN2683	-	ribonuclease Z
2456	 69.61	+1	2809357..2810376	-	339	104781772	-	PSEEN2684	-	alcohol dehydrogenase
2457	 65.68	0	2810523..2811539	+	338	104781773	-	PSEEN2685	-	cation transporter
2458	 65.47	0	2811490..2812323	-	277	104781774	-	PSEEN2686	-	hypothetical protein
2459	 67.11	0	2812325..2813008	-	227	104781775	-	PSEEN2687	-	hypothetical protein
2460	 69.77	+1	2813307..2815271	+	654	104781776	-	PSEEN2688	-	hypothetical protein
2461	 68.98	+1	2815340..2816290	+	316	104781777	-	PSEEN2689	-	hypothetical protein
2462	 70.14	+1	2816283..2817317	+	344	104781778	-	PSEEN2690	-	hypothetical protein
2463	 69.81	+1	2817373..2819310	+	645	104781779	-	PSEEN2691	-	cation-transporting P-type ATPase
2464	 65.54	0	2819357..2820514	-	385	104781780	-	PSEEN2692	-	hypothetical protein
2465	 64.60	0	2820893..2821327	-	144	104781781	-	PSEEN2693	-	hypothetical protein
2466	 65.61	0	2821555..2822694	-	379	104781782	-	PSEEN2694	-	sensory box histidine kinase
2467	 67.68	0	2822739..2823428	-	229	104781783	-	PSEEN2695	-	response regulator
2468	 62.50	0	2823588..2823779	-	63	104781784	-	PSEEN2696	-	hypothetical protein
2469	 59.74	0	2824024..2826996	+	990	104781785	-	PSEEN2697	-	insecticidal toxin, SepC/Tcc class
2470	 62.10	0	2827094..2827531	-	145	104781786	-	PSEEN2698	-	hypothetical protein
2471	 64.87	0	2827515..2829074	-	519	104781787	-	PSEEN2699	-	diguanylate cyclase
2472	 67.91	0	2829353..2829835	-	160	104781788	-	PSEEN2701	-	hypothetical protein
2473	 66.43	0	2829841..2831097	-	418	104781789	-	PSEEN2702	-	cyclopropane-fatty-acyl-phospholipid synthase
2474	 65.80	0	2831072..2831881	-	269	104781790	-	PSEEN2703	-	hypothetical protein
2475	 65.95	0	2831878..2833125	-	415	104781791	-	PSEEN2704	-	hypothetical protein
2476	 70.25	+1	2833132..2833884	-	250	104781792	-	PSEEN2705	-	short chain dehydrogenase/reductase family oxidoreductase
2477	 63.36	0	2833881..2834303	-	140	104781793	-	PSEEN2706	-	hypothetical protein
2478	 65.45	0	2834414..2835979	-	521	104781794	-	PSEEN2707	-	EmrB/QacA family drug resistance transporter
2479	 68.62	0	2835976..2837052	-	358	104781795	-	PSEEN2708	-	HlyD family secretion protein
2480	 67.78	0	2837112..2837651	-	179	104781796	-	PSEEN2709	-	hypothetical protein
2481	 66.99	0	2837809..2839350	-	513	104781797	-	PSEEN2710	-	transcriptional regulator
2482	 68.15	0	2839556..2840299	+	247	104781798	-	PSEEN2711	-	hypothetical protein
2483	 63.87	0	2840340..2840768	+	142	104781799	-	PSEEN2712	-	hypothetical protein
2484	 64.98	0	2840785..2841378	-	197	104781800	-	PSEEN2713	-	hypothetical protein
2485	 64.73	0	2841666..2842595	-	309	104781801	-	PSEEN2714	-	hypothetical protein
2486	 57.33	-1	2842764..2842988	-	74	104781802	-	PSEEN2715	-	hypothetical protein
2487	 69.05	+1	2843245..2852217	+	2990	104781803	-	PSEEN2716	-	non-ribosomal peptide synthetase
2488	 69.14	+1	2852214..2856329	+	1371	104781804	-	PSEEN2717	-	non-ribosomal peptide synthetase
2489	 69.31	+1	2856329..2865361	+	3010	104781805	-	PSEEN2718	-	polyketide synthase (terminal component)
2490	 68.65	+1	2865372..2866025	+	217	104781806	-	PSEEN2719	-	hypothetical protein
2491	 64.83	0	2866007..2866876	+	289	104781807	-	PSEEN2720	-	dioxygenase, TauD
2492	 66.84	0	2867018..2867602	-	194	104781808	-	PSEEN2721	-	hypothetical protein
2493	 66.67	0	2867709..2868743	-	344	104781809	-	PSEEN2722	-	hypothetical protein
2494	 64.55	0	2868747..2869265	-	172	104781810	-	PSEEN2723	-	acetyltransferase
2495	 48.35	-2	2869531..2870256	+	241	104781811	-	PSEEN2724	-	hypothetical protein
2496	 66.25	0	2870432..2871634	+	400	104781812	-	PSEEN2726	-	hypothetical protein
2497	 66.62	0	2871621..2873768	+	715	104781813	-	PSEEN2727	-	hypothetical protein
2498	 62.41	0	2873815..2874237	+	140	104781814	-	PSEEN2728	-	lipoprotein
2499	 57.80	-1	2874384..2874992	+	202	104781815	-	PSEEN2729	-	hypothetical protein
2500	 64.48	0	2875125..2876132	+	335	104781816	-	PSEEN2731	-	alcohol dehydrogenase, zinc-containing
2501	 63.00	0	2876198..2876524	+	108	104781817	-	PSEEN2732	-	hypothetical protein
2502	 63.55	0	2876701..2877309	+	202	104781818	-	PSEEN2733	-	glutathione S-transferase
2503	 63.54	0	2877388..2878026	-	212	104781819	-	PSEEN2734	-	hypothetical protein
2504	 62.35	0	2878135..2879037	+	300	104781820	-	PSEEN2735	-	LysR family transcriptional regulator
2505	 65.37	0	2879042..2879812	-	256	104781821	-	PSEEN2736	-	short chain dehydrogenase/reductase family oxidoreductase
2506	 66.85	0	2879922..2880464	+	180	104781822	-	PSEEN2737	-	hypothetical protein
2507	 64.09	0	2880461..2881003	+	180	104781823	-	PSEEN2738	-	lipoprotein
2508	 66.54	0	2881044..2882585	+	513	104781824	-	PSEEN2739	-	photolyase
2509	 63.84	0	2882566..2882742	+	58	104781825	-	PSEEN2740	-	hypothetical protein
2510	 61.46	0	2882908..2884041	+	377	104781826	-	PSEEN2741	-	Serine-pyruvate transaminase
2511	 57.97	-1	2884064..2884615	+	183	104781827	-	PSEEN2742	-	hypothetical protein
2512	 54.27	-2	2885246..2886229	+	327	104781828	-	PSEEN2746	-	hypothetical protein
2513	 59.38	-1	2886257..2887285	+	342	104781829	-	PSEEN2747	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2514	 59.72	0	2887371..2887874	+	167	104781830	-	PSEEN2748	-	oxidoreductase
2515	 68.49	0	2887866..2889347	-	493	104781831	-	PSEEN2749	-	hypothetical protein
2516	 65.69	0	2889347..2891500	-	717	104781832	-	PSEEN2750	-	outer membrane ferric siderophore receptor
2517	 68.97	+1	2891572..2891961	-	129	104781833	-	PSEEN2751	-	hypothetical protein
2518	 64.16	0	2892237..2892914	+	225	104781834	-	PSEEN2752	-	hypothetical protein
2519	 63.32	0	2892904..2894367	+	487	104781835	-	PSEEN2753	-	long-chain-fatty-acid-CoA ligase
2520	 62.26	0	2894376..2895056	+	226	104781836	-	PSEEN2754	-	hypothetical protein
2521	 64.68	0	2895043..2895849	+	268	104781837	-	PSEEN2755	-	short chain dehydrogenase
2522	 62.46	0	2895846..2896487	+	213	104781838	-	PSEEN2756	-	hypothetical protein
2523	 62.90	0	2896490..2897152	+	220	104781839	-	PSEEN2757	-	DNA-binding response regulator
2524	 64.18	0	2897149..2898513	+	454	104781840	-	PSEEN2758	-	sensor histidine kinase
2525	 65.75	0	2898816..2899142	+	108	104781841	-	PSEEN2759	-	hypothetical protein
2526	 66.23	0	2899426..2900331	+	301	104781842	-	PSEEN2760	-	oxidoreductase
2527	 62.84	0	2900562..2901398	+	278	104781843	-	PSEEN2761	-	Ku protein
2528	 70.12	+1	2901411..2902076	-	221	104781844	-	PSEEN2762	-	glycosyl transferase, group 2 family protein
2529	 67.33	0	2902073..2902672	-	199	104781845	-	PSEEN2763	-	methyltransferase
2530	 68.61	0	2902669..2903439	-	256	104781846	-	PSEEN2764	-	hypothetical protein
2531	 70.32	+1	2903436..2904476	-	346	104781847	-	PSEEN2765	-	acyl-CoA dehydrogenase
2532	 63.86	0	2904473..2904721	-	82	104781848	-	PSEEN2766	-	hypothetical protein
2533	 66.26	0	2904721..2907183	-	820	104781849	ligD	PSEEN2767	-	ATP-dependent DNA ligase
2534	 67.41	0	2907394..2907798	+	134	104781850	-	PSEEN2768	-	hypothetical protein
2535	 58.01	-1	2907798..2908028	+	76	104781851	-	PSEEN2769	-	metallothionein
2536	 60.61	0	2908547..2908843	-	98	104781852	-	PSEEN2771	-	hypothetical protein
2537	 66.88	0	2909132..2910049	+	305	104781853	-	PSEEN2772	-	AraC family transcriptional regulator
2538	 67.22	0	2910513..2911412	+	299	104781854	-	PSEEN2773	-	alpha/beta fold family hydrolase
2539	 65.50	0	2911456..2912394	+	312	104781855	-	PSEEN2774	-	alpha/beta fold family hydrolase
2540	 68.20	0	2912451..2913365	+	304	104781856	-	PSEEN2775	-	AraC family transcriptional regulator
2541	 65.48	0	2913499..2914254	-	251	104781857	-	PSEEN2776	-	HlyD family multidrug efflux protein
2542	 54.31	-2	2914603..2918550	+	1315	104781858	-	PSEEN2777	-	hypothetical protein
2543	 49.12	-2	2919179..2919349	+	56	104781859	-	PSEEN2780	-	hypothetical protein
64.12	MEAN

4.52	STD DEV
